Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#33292) — 201 parça

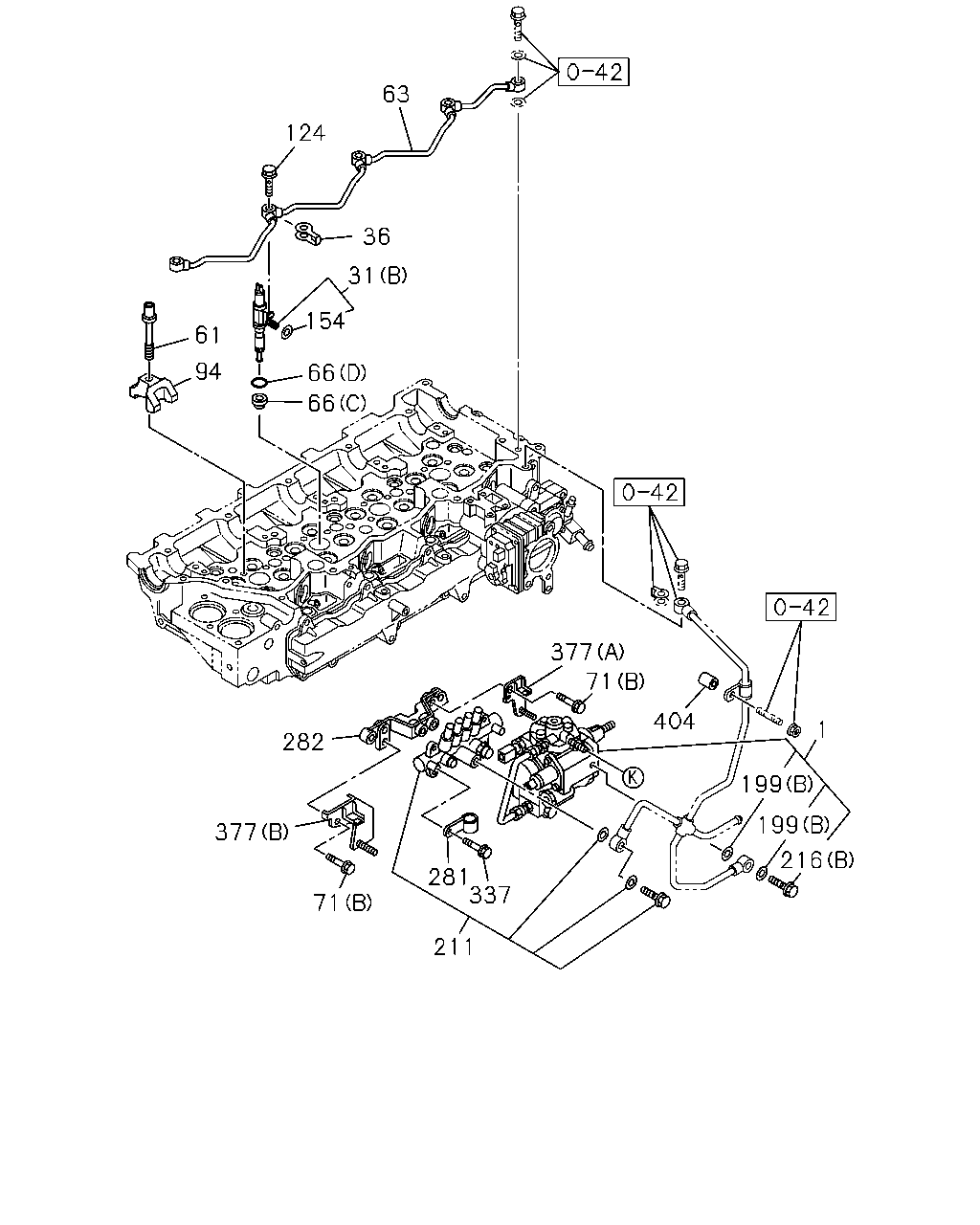

63 124 36 31 154 61 94 66 66 377 71 404 1 282 199 199 377 216 281 337 71 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ ENGINE POWER N-SPEC(7QV) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0211-0501	●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0502-		●	●
1	03.306 PUMP ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-186-1	01	1	0211-0501	●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0211-0501	●
31	03.332 NOZZLE ASM; INJ (B)	8-97602-485-6	04	1	0502-		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0211-0501	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3	8-97600-925-0	04	1	0502-0908		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-		●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0502-		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0211-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0502-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0211-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0502-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0211-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0502-0909		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-		●	●
71	03.162 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	02	1	0502-0512		●	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-		●	●
71	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
71	03.162 BOLT; BRKT 01.271 (C) M8X40 FLANGE	0-28080-840-0	01	1	0502-0512		●	●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-		●	●
71	03.162 BOLT; BRKT 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	0502-0512		●	●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-		●	●
94	03.330 BRACKET; INJ NOZZLE	8-97306-074-1	04	1	0502-0606		●	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0607-		●	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0502-		●	●
154	03.332 GASKET; CONNECTOR 06.609 ID=11.0	9-09561-111-0	04	1	0502-1106		●	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1107-		●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0502-		●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0502-		●	●
211	03.331 RAIL ASM; COMMON	8-97306-063-3	01	1	0502-		●	●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0502-		●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0502-		●	●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0502-		●	●
281	03.162 CLIP 02.343 ID=16 H=24 L=20	9-09527-015-0	01	1	0502-0606		●	●
281	03.162 CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0607-		●	●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0502-1005		●	●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-		●	●
337	03.163 BOLT; CLIP 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0502-0512		●	●
337	03.163 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-		●	●
377	03.332 BRACKET; HARNESS (A)	8-97374-283-1	01	1	0502-		●	●
377	03.332 BRACKET; HARNESS (B)	8-98001-141-0	01	1	0502-		●	●
404	03.330 SPACER; FUEL LEAK OFF L=24.5	1-33659-186-1	01	1	0502-		●	●

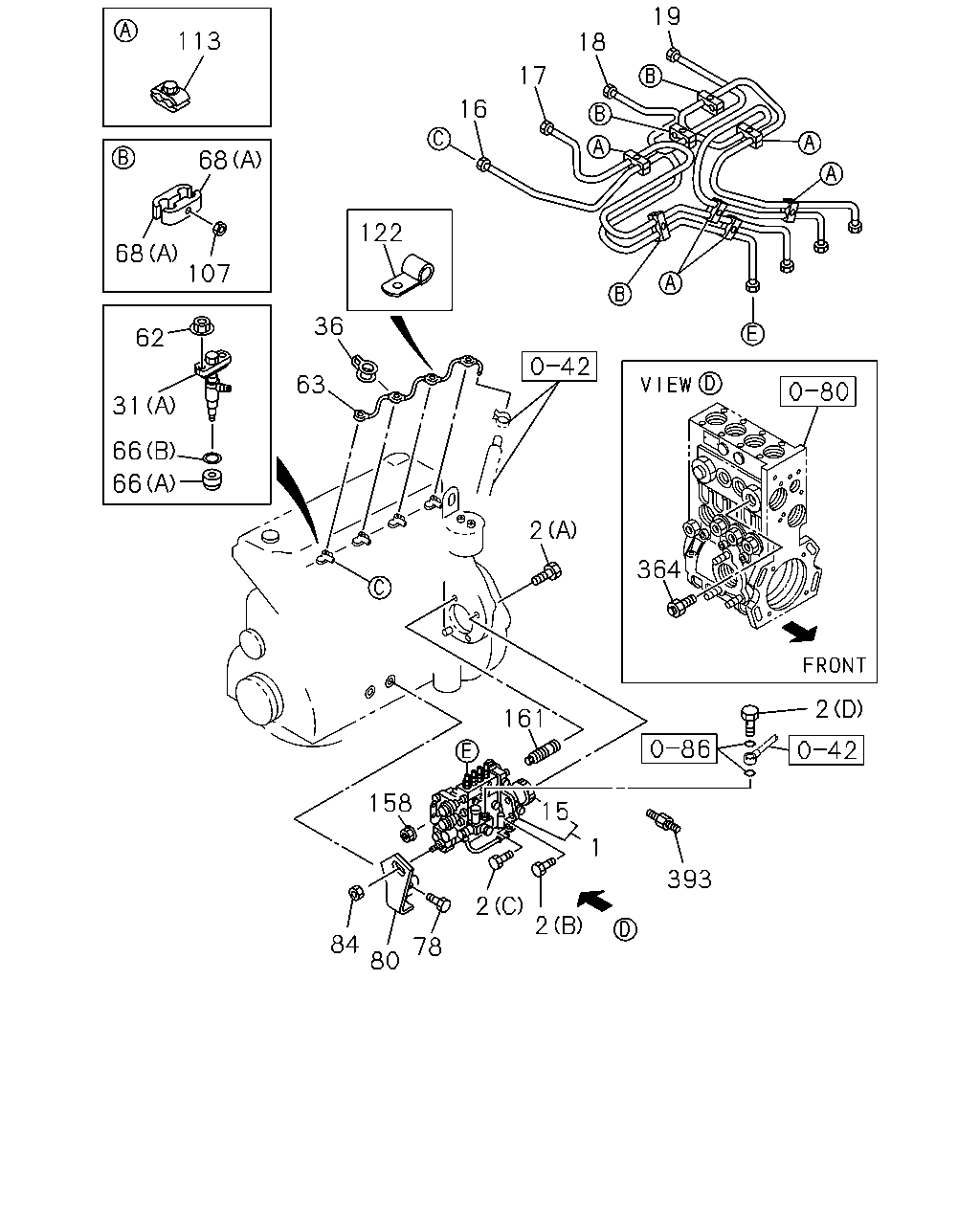

19 113 18 17 16 68 122 68 107 36 62 63 31 66 66 2 364 2 61 158 15 1 393 2 2 84 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ ENGINE POWER N-SPEC(7QV) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0211-0501	●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0502-		●	●
1	03.306 PUMP ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-186-1	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP 08.900 (E) M10X50 FLANGE	0-28181-050-0	01	1	0502-0512		●	●
2	03.330 BOLT; INJ PUMP 02.042 (E) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0512		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-		●	●
2	03.330 BOLT; INJ PUMP (A) M12X110	0-28186-211-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP (F) M12X90 FLANGE	0-28181-290-0	01	1	0502-0512		●	●
2	03.330 BOLT; INJ PUMP (F) M12X90 FLANGE	0-28151-290-0	01	1	0601-		●	●
15	03.340 COUPLING ASM; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97218-999-0	01	1	0211-0211	●
15	03.340 COUPLING ASM; INJ PUMP ENGINE POWER N-SPEC(7QV)	8-97219-000-0	01	1	0211-0211	●
15	03.340 COUPLING ASM; INJ PUMP	8-97367-625-0	01	1	0212-0501	●
16	03.330 PIPE; INJ NO.1	8-97148-963-4	01	1	0211-0501	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0502-		●	●
17	03.330 PIPE; INJ NO.2	8-97148-964-3	01	1	0211-0501	●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0502-		●	●
18	03.330 PIPE; INJ NO.3	8-97148-965-4	01	1	0211-0501	●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0502-		●	●
19	03.330 PIPE; INJ NO.4	8-97148-966-3	01	1	0211-0501	●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0502-		●	●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0211-0501	●
31	03.332 NOZZLE ASM; INJ (B)	8-97602-485-6	04	1	0502-		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0211-0501	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3	8-97600-925-0	04	1	0502-0908		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-		●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0502-		●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0211-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0502-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	0211-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0502-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0211-0501	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0502-0909		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-		●	●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0502-		●	●
68	03.162 CLIP; INJ PIPE (A)	8-97213-049-0	06	1	0211-0501	●
68	03.162 CLIP; INJ PIPE (C)	8-97330-118-1	04	1	0502-		●	●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501	●
80	03.306 BRACKET; PUMP	8-97148-958-1	01	1	0211-0501	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0502-		●	●
84	03.330 NUT; BRKT TO BRKT 07.243 M12 FLANGE	0-91150-212-0	01	1	0211-0501	●
107	03.162 NUT; INJ PIPE CLIP 03.671 M5 FLANGE	8-94178-699-0	03	1	0211-0501	●
113	03.162 CLIP; INJ PIPE	8-97213-050-0	05	1	0211-0501	●
122	03.162 CLIP; LEAK OFF PIPE	9-09524-662-0	01	1	0211-0501	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
158	03.330 NUT; INJ PUMP 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501	●
364	03.900 VALVE; OVER FLOW,INJ PUMP 03.318	1-15619-321-0	01	1	0212-0501	●
393	03.340 STUD; COVER 03.335	8-97212-809-0	02	1	0304-0403	●

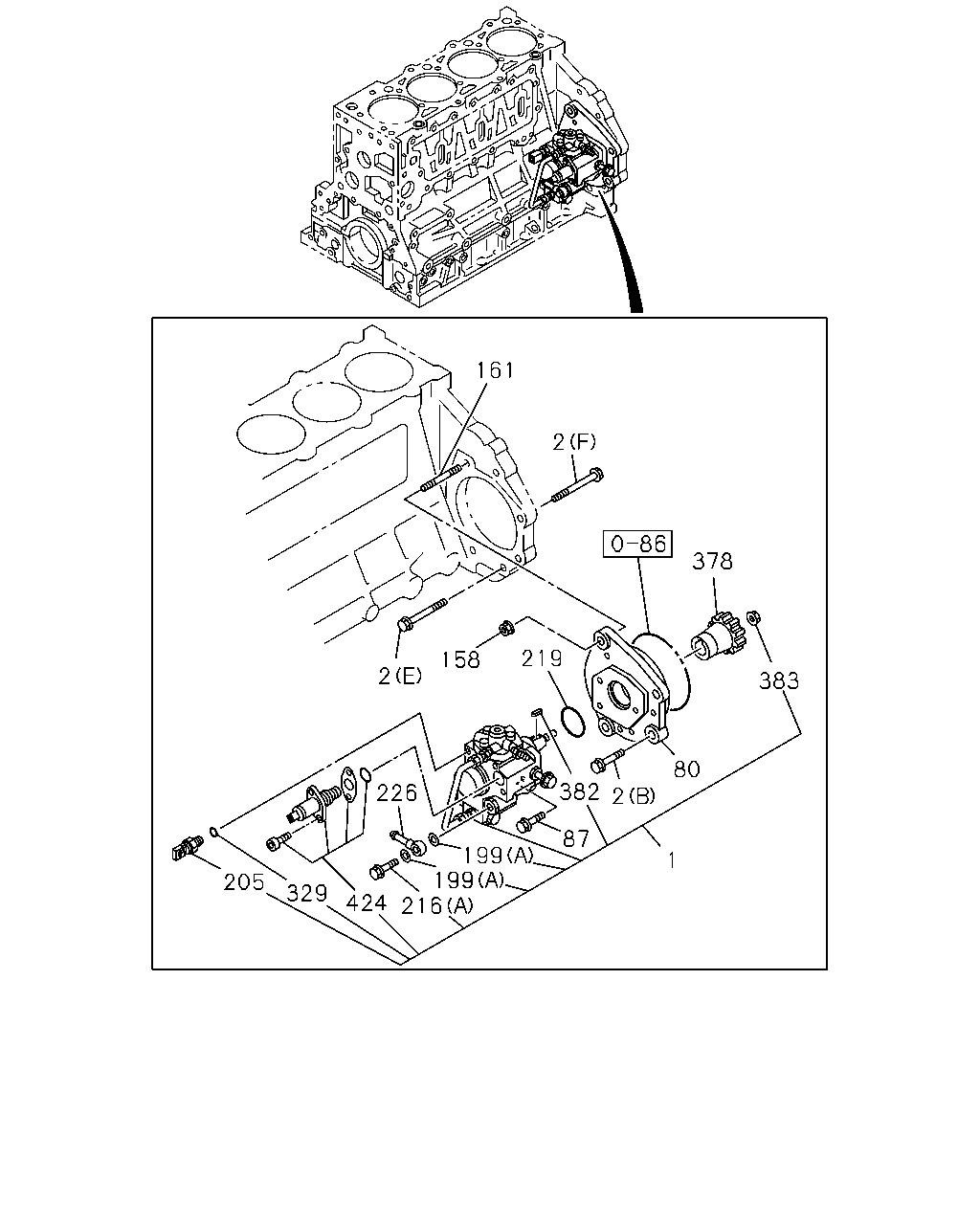

161 2 378 219 158 2 383 80 382 226 2 87 199 199 216 1 205 329 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ ENGINE POWER N-SPEC(7QV) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0211-0501	●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0502-		●	●
1	03.306 PUMP ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-186-1	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP 08.900 (E) M10X50 FLANGE	0-28181-050-0	01	1	0502-0512		●	●
2	03.330 BOLT; INJ PUMP 02.042 (E) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0512		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-		●	●
2	03.330 BOLT; INJ PUMP (A) M12X110	0-28186-211-0	01	1	0211-0501	●
2	03.330 BOLT; INJ PUMP (F) M12X90 FLANGE	0-28181-290-0	01	1	0502-0512		●	●
2	03.330 BOLT; INJ PUMP (F) M12X90 FLANGE	0-28151-290-0	01	1	0601-		●	●
80	03.306 BRACKET; PUMP	8-97148-958-1	01	1	0211-0501	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0502-		●	●
87	03.330 BOLT; PUMP 04.686 M8X30 FLANGE	0-28680-830-0	03	1	0502-0512		●	●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	0601-		●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
158	03.330 NUT; INJ PUMP 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0501	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0910		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-		●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0502-		●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0502-		●	●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0502-0605		●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-		●	●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0502-		●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0502-		●	●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0502-		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0502-0603		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-		●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0502-0808		●	●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-		●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0502-		●	●
378	03.330 GEAR; PUMP Z=35	8-97601-698-1	01	1	0502-		●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0502-		●	●
383	03.162 NUT; DRIVE SHAFT 03.616	8-97141-469-0	01	1	0502-		●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0502-		●	●

31 32 34 58 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0211-0501	●
31	03.332 NOZZLE ASM; INJ (B)	8-97602-485-6	04	1	0502-		●	●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0211-0501	●
33	03.332 NOZZLE; INJ	8-97148-961-1	04	1	0211-0501	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0211-0501	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0211-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE	8-94329-555-0	04	1	0211-0501	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0211-0501	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0211-0501	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.10	8-97027-432-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.20	8-97027-433-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.30	8-97027-434-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.40	8-97027-435-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.50	8-97027-436-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.52	8-97027-437-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.54	8-97027-438-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.56	8-97027-439-0	AR	1	0211-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.58	8-97027-440-0	AR	1	0211-0501	●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0211-0501	●

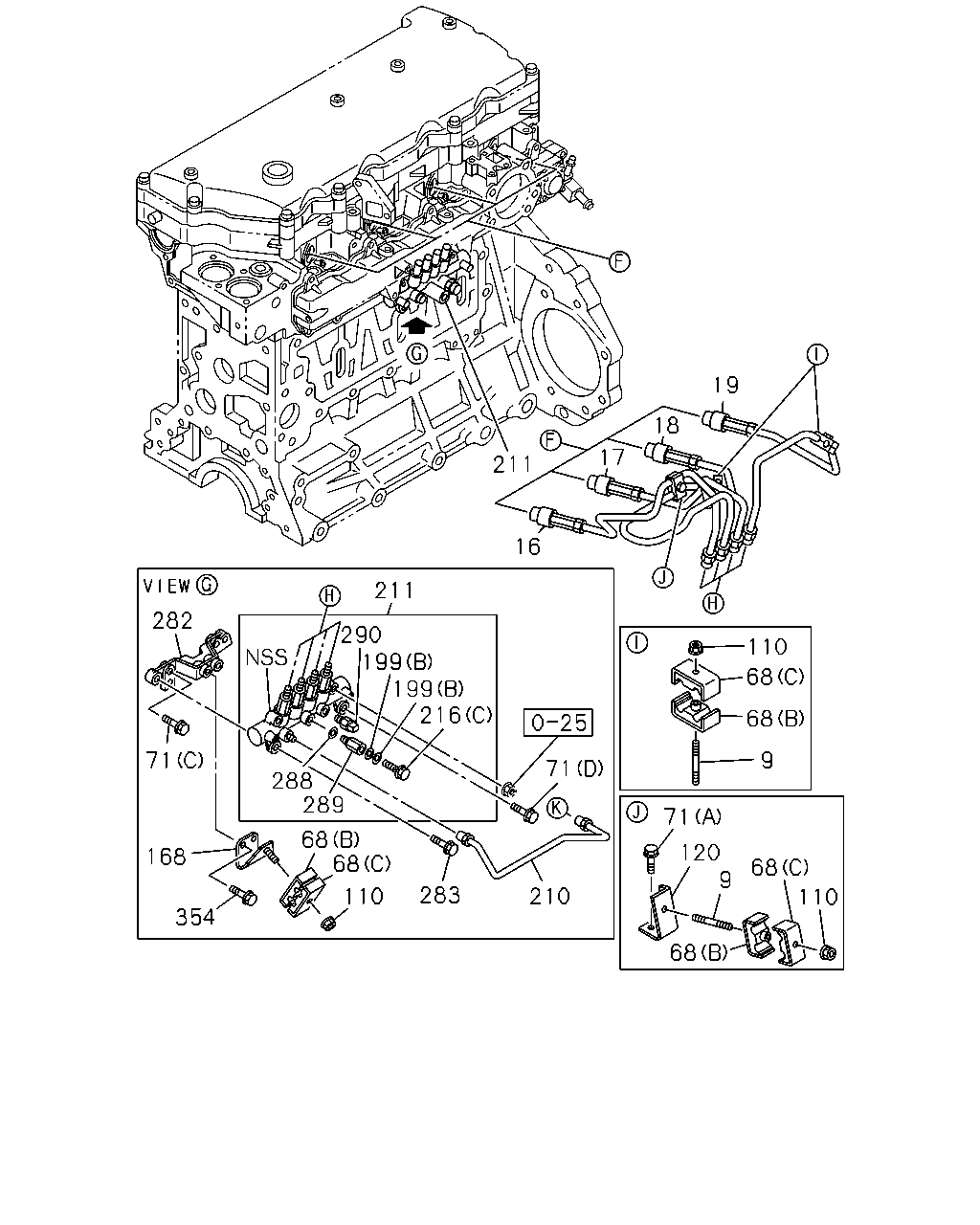

19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 03.275 M6X30 L=38	9-04110-630-0	03	1	0502-0604		●	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	03	1	0605-		●	●
16	03.330 PIPE; INJ NO.1	8-97148-963-4	01	1	0211-0501	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0502-		●	●
17	03.330 PIPE; INJ NO.2	8-97148-964-3	01	1	0211-0501	●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0502-		●	●
18	03.330 PIPE; INJ NO.3	8-97148-965-4	01	1	0211-0501	●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0502-		●	●
19	03.330 PIPE; INJ NO.4	8-97148-966-3	01	1	0211-0501	●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0502-		●	●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0502-		●	●
68	03.162 CLIP; INJ PIPE (A)	8-97213-049-0	06	1	0211-0501	●
68	03.162 CLIP; INJ PIPE (C)	8-97330-118-1	04	1	0502-		●	●
71	03.162 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	02	1	0502-0512		●	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-		●	●
71	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
71	03.162 BOLT; BRKT 01.271 (C) M8X40 FLANGE	0-28080-840-0	01	1	0502-0512		●	●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-		●	●
71	03.162 BOLT; BRKT 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	0502-0512		●	●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-		●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	04	1	0502-0602		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-		●	●
120	03.330 BRACKET; INJ PIPE	8-97306-084-2	01	1	0502-		●	●
168	03.890 BRACKET; FUEL PIPE	8-97324-195-0	01	1	0502-		●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0502-		●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0502-		●	●
210	03.330 PIPE; INJ,C/R	8-97312-509-3	01	1	0502-		●	●
211	03.331 RAIL ASM; COMMON	8-97306-063-3	01	1	0502-		●	●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0502-		●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0502-		●	●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0502-		●	●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0502-1005		●	●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-		●	●
283	03.330 BOLT; COMMON RAIL 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512		●	●
283	03.330 BOLT; COMMON RAIL 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-		●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0502-		●	●
289	03.331 LIMITER; FUEL PRESS	8-97318-691-0	01	1	0502-		●	●
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0502-1102		●	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1103-		●	●
354	03.163 BOLT; FUEL PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
