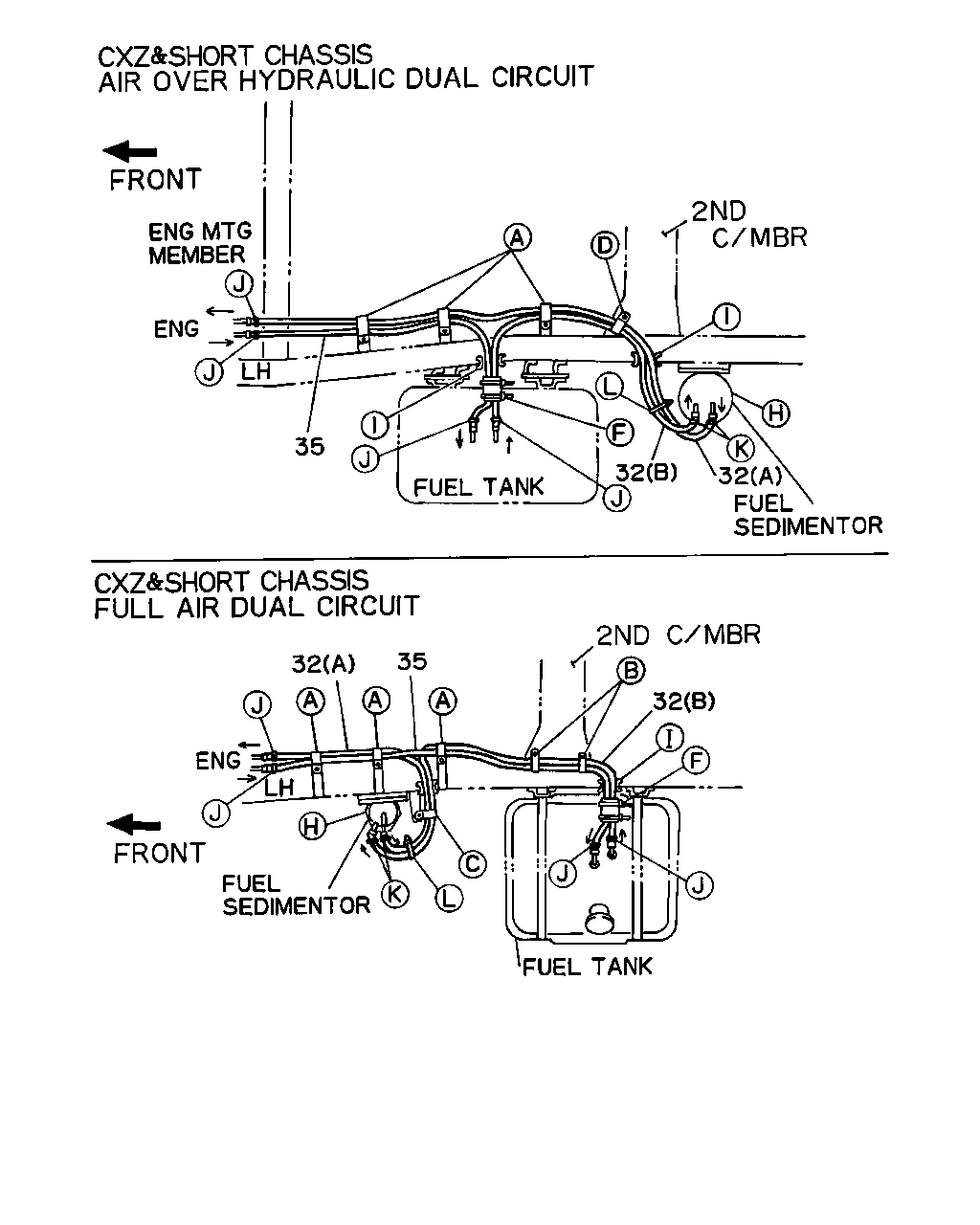

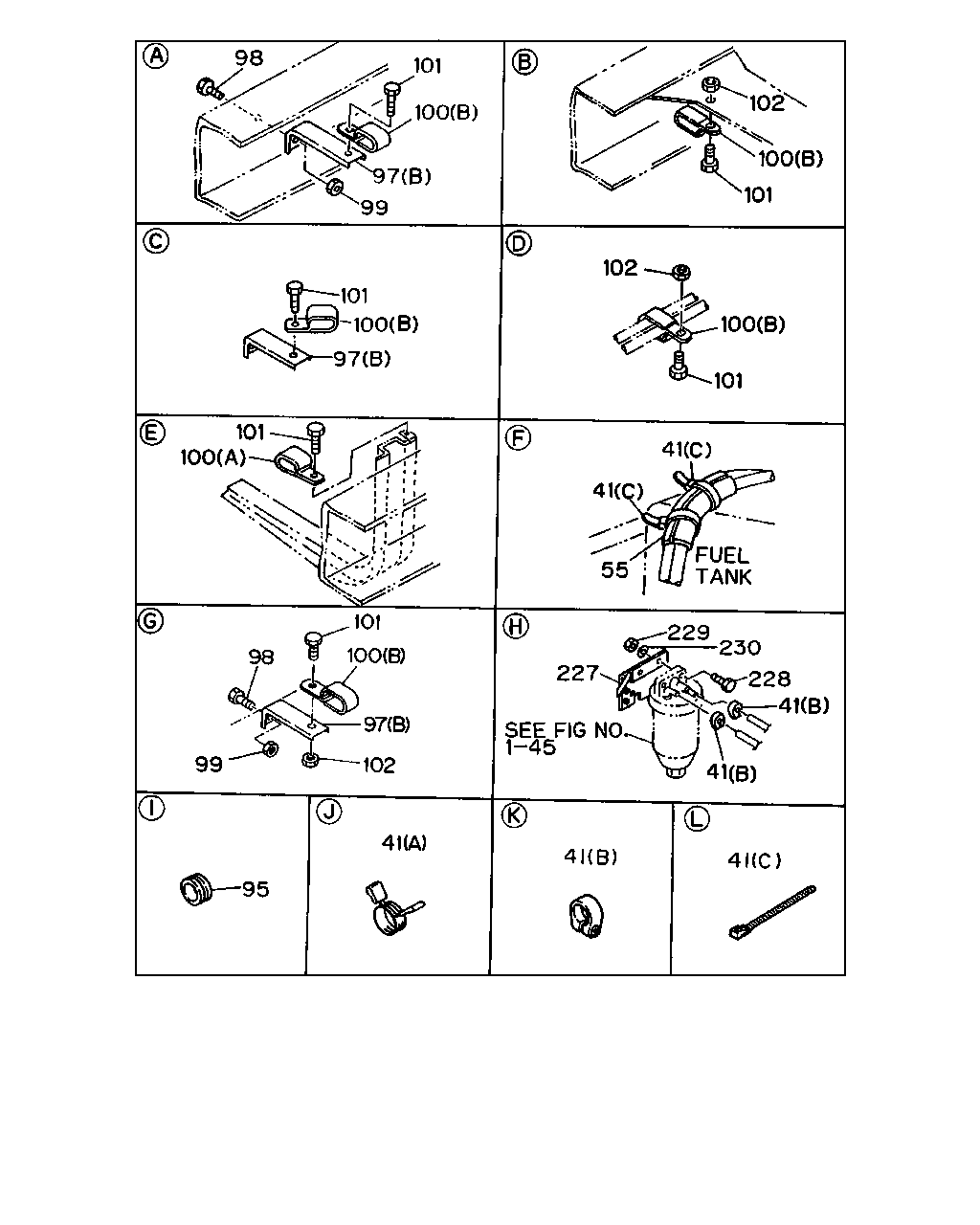

1-41B — FUEL PIPING; CHASSIS (#3329) — 72 parça

98 101 100 97 99 101 97 100 101 100 55 41 41 101 100 102 101 100 102 229 230 228 41 41 227 41 41 41 95 99 98 101 100 97 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK CXZ(CXZ***) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	5-09707-030-0	01	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	01	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	5-09707-030-0	02	1	9005-9306	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9002-9306	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9002-9306	●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150	1-09369-006-1	01	1	9005-9306	●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=35 T=25	1-09332-011-1	02	1	9002-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	9002-		●
95	BUSHING; PIPE,FUEL TANK LONG CHASSIS(CX***F) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-	●
95	BUSHING; PIPE,FUEL TANK CXM(CXM***) ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	02	1	9002-	●	●
97	BRACKET; CLIP SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=135	1-22518-099-0	01	1	9002-9306	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	01	1	9307-	●	●
98	BOLT; BRKT,FUEL PIPE CXZ(CXZ***) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
98	BOLT; BRKT,FUEL PIPE CXZ(CXZ***) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
98	BOLT; BRKT,FUEL PIPE CXZ(CXZ***) M8X30 FLANGE	0-28080-830-0	02	1	9303-	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9303-		●
98	BOLT; BRKT,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●
98	BOLT; BRKT,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●
98	BOLT; BRKT,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●
98	BOLT; BRKT,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9307-		●
98	BOLT; BRKT,FUEL PIPE CXM(CXM***) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
98	BOLT; BRKT,FUEL PIPE CXM(CXM***) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
98	BOLT; BRKT,FUEL PIPE CXM(CXM***) M8X20 FLANGE	0-28080-820-0	02	1	9303-	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	02	1	9002-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CX***F) (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●
100	CLIP; FUEL PIPE LONG CHASSIS(CX***F) (B) ID=16X2 L=20	9-09535-536-0	01	1	9307-	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	02	1	9303-	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-9306	●
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8	9-09110-408-0	01	1	9307-	●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	9002-	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-	●	●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	04	1	9002-	●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	9002-	●	●

32 32 35 187 101 187 185 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9002-	●	●
35	PIPE; FUEL TANK,RETURN L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	9002-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	02	1	9303-	●

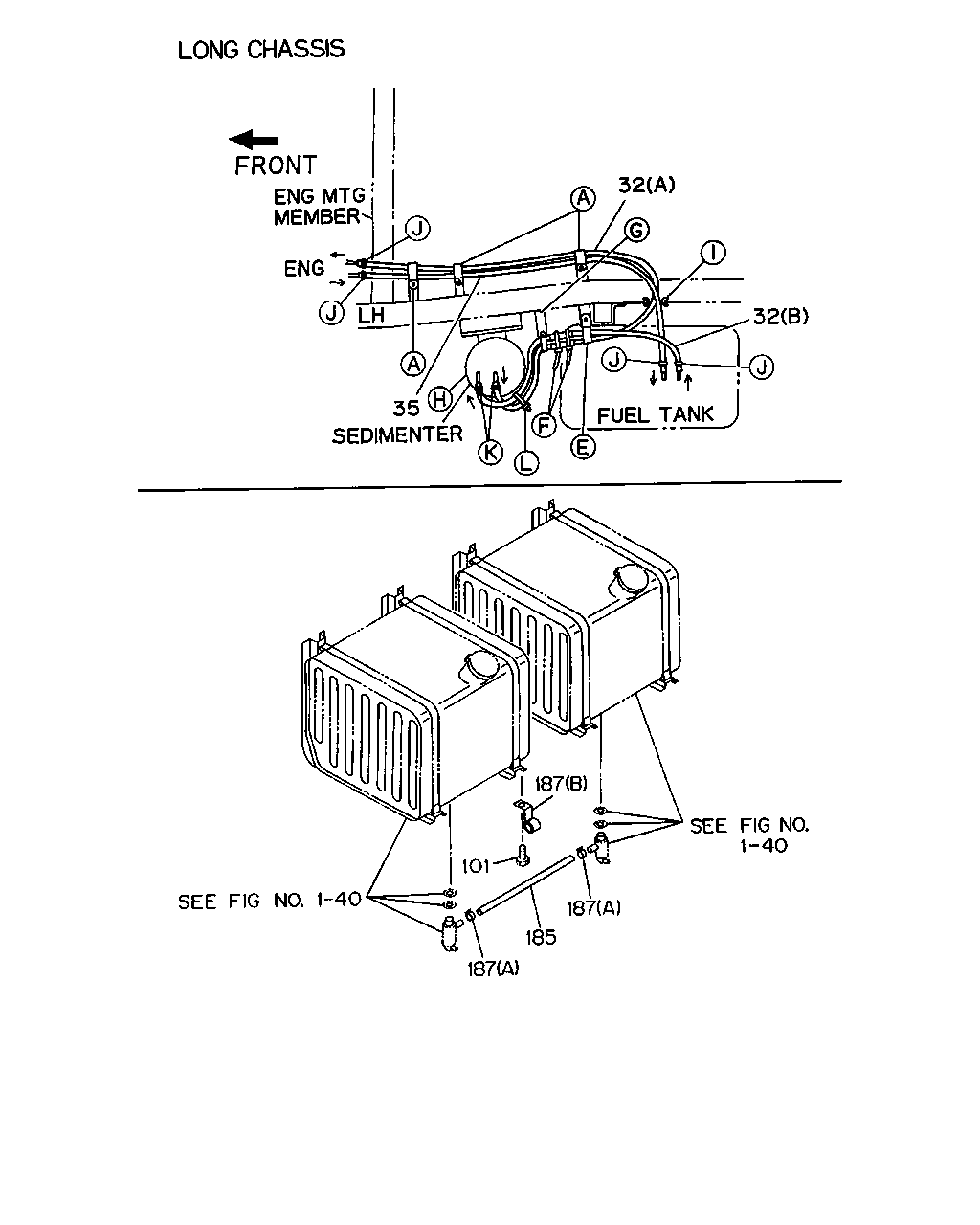

185	PIPE; FUEL TANK TO TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> L=750 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17	1-09700-840-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=18	1-09707-011-1	02	1	9002-	●

35 32 32 32 35 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9002-	●	●
35	PIPE; FUEL TANK,RETURN L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	9002-	●	●
