0-33 — FAN AND FAN BELT (#33288) — 36 parça

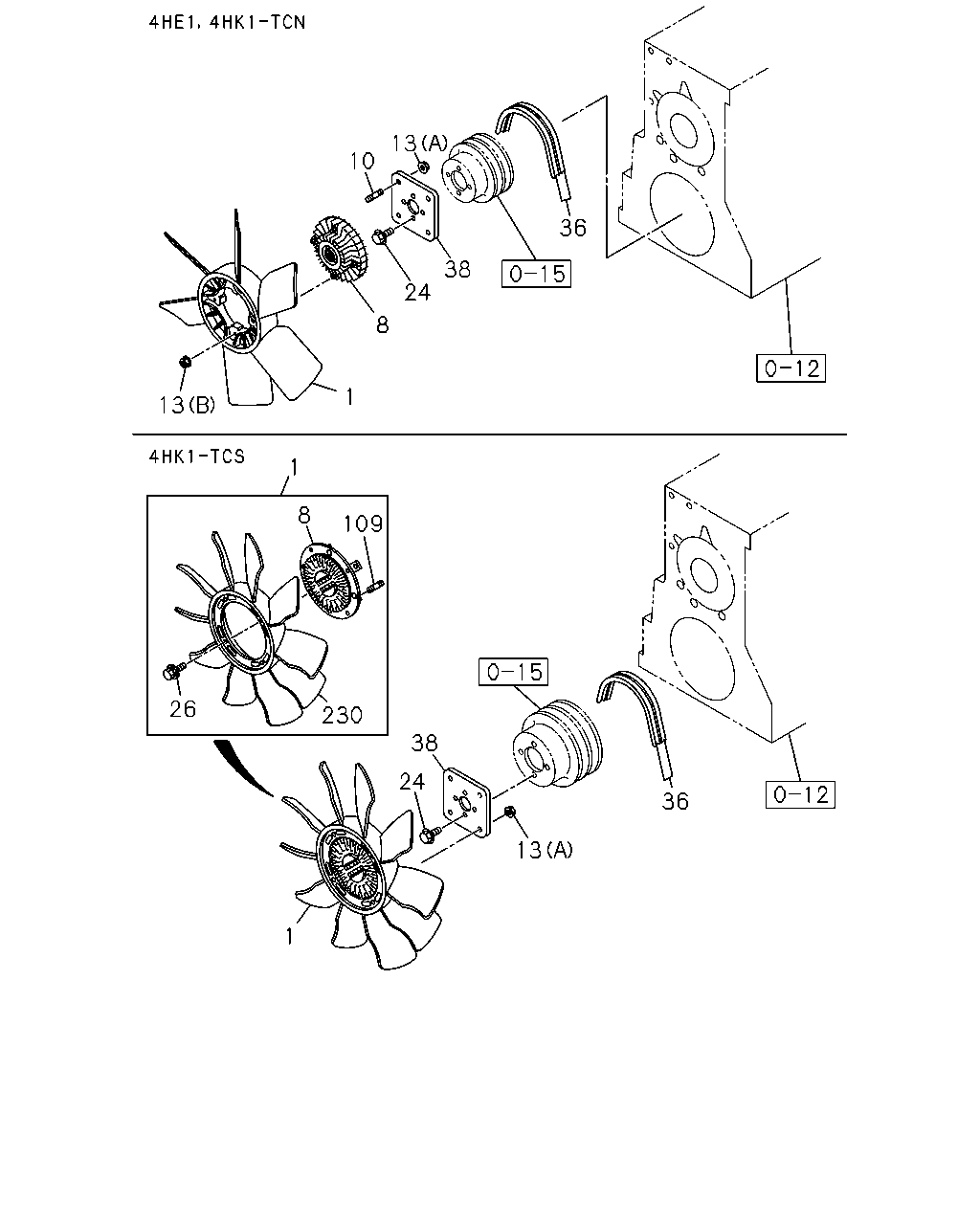

çizim 33975
13 10 36 38 24 8 1 13 1 8 109 26 230 38 24 36 13 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.064 FAN; COOLING 8-97329-394-1 01 1 0502- ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97367-382-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0502- ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0211-0501 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0502-0604 ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0605- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0502- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0211-0501 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0502- ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0502- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0211-0501 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0502- ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0211-0501 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0502- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0502- ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0502- ●

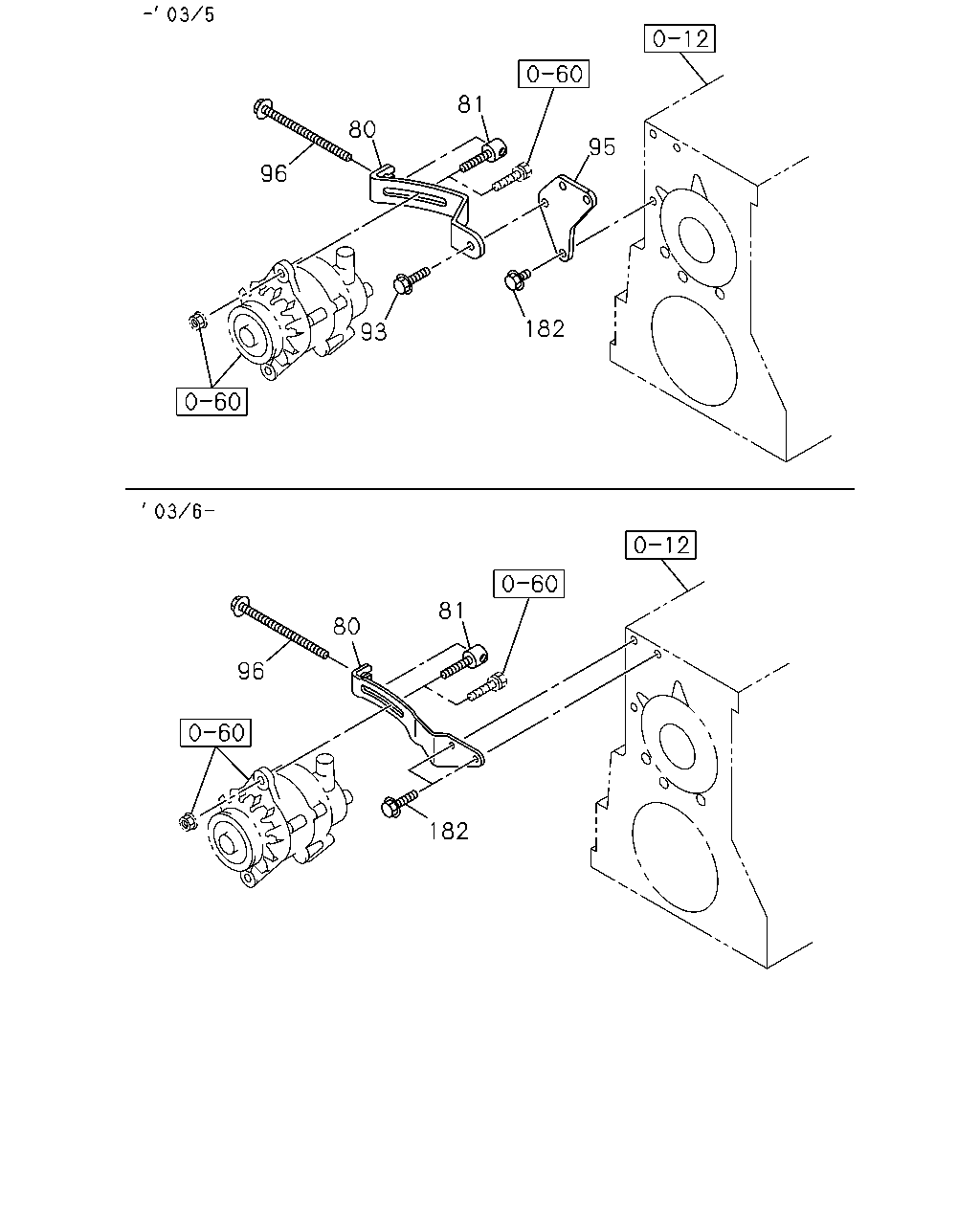

çizim 34407
81 80 95 96 182 93 81 80 96 182
BalonParca AdiParca NoAdetTipApplied Date A B C
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0211-0305 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0501 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0502- ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0211-0501 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0502- ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0305 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0211-0501 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0502- ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0211-0305 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0501 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0502-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
