0-32 — WATER PIPING; ENGINE (#33287) — 15 parça

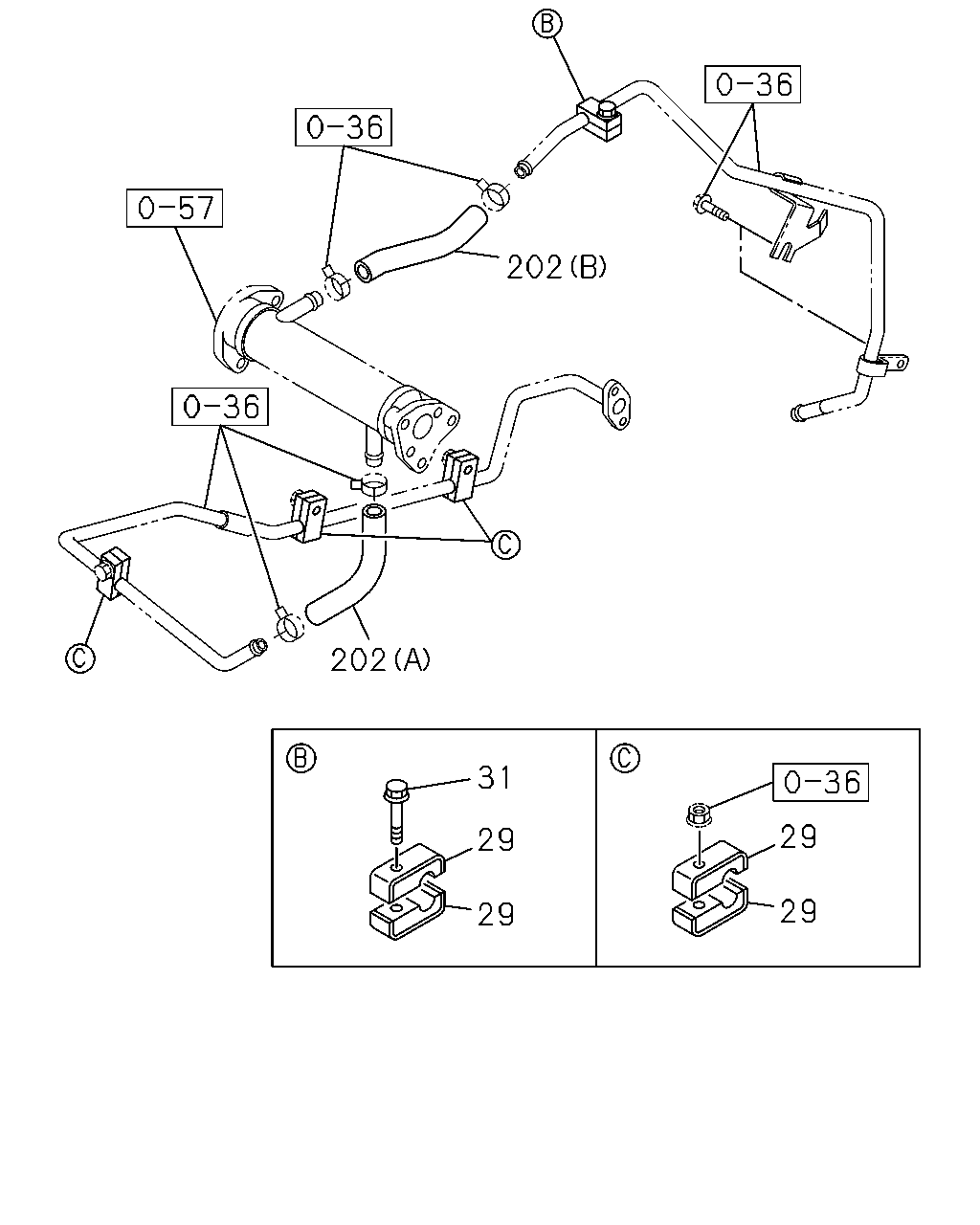

çizim 34372
202 202 31 29 29 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C
29 01.166 CLIP; PIPE 1-09701-284-0 08 1 0502- ● ●
31 01.159 BOLT; CLIP
01.271 M8X40 FLANGE 		0-28080-840-0 02 1 0502-0503 ● ●
31 01.159 BOLT; CLIP
01.271 M8X40 FLANGE 		0-28080-840-0 03 1 0504-0512 ● ●
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 03 1 0601- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
01.540 (A) L=200 SERVICED BY L=3000 		0-03566-300-0 01 1 0502- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
01.540 (B) 		8-97138-881-0 01 1 0502- ● ●

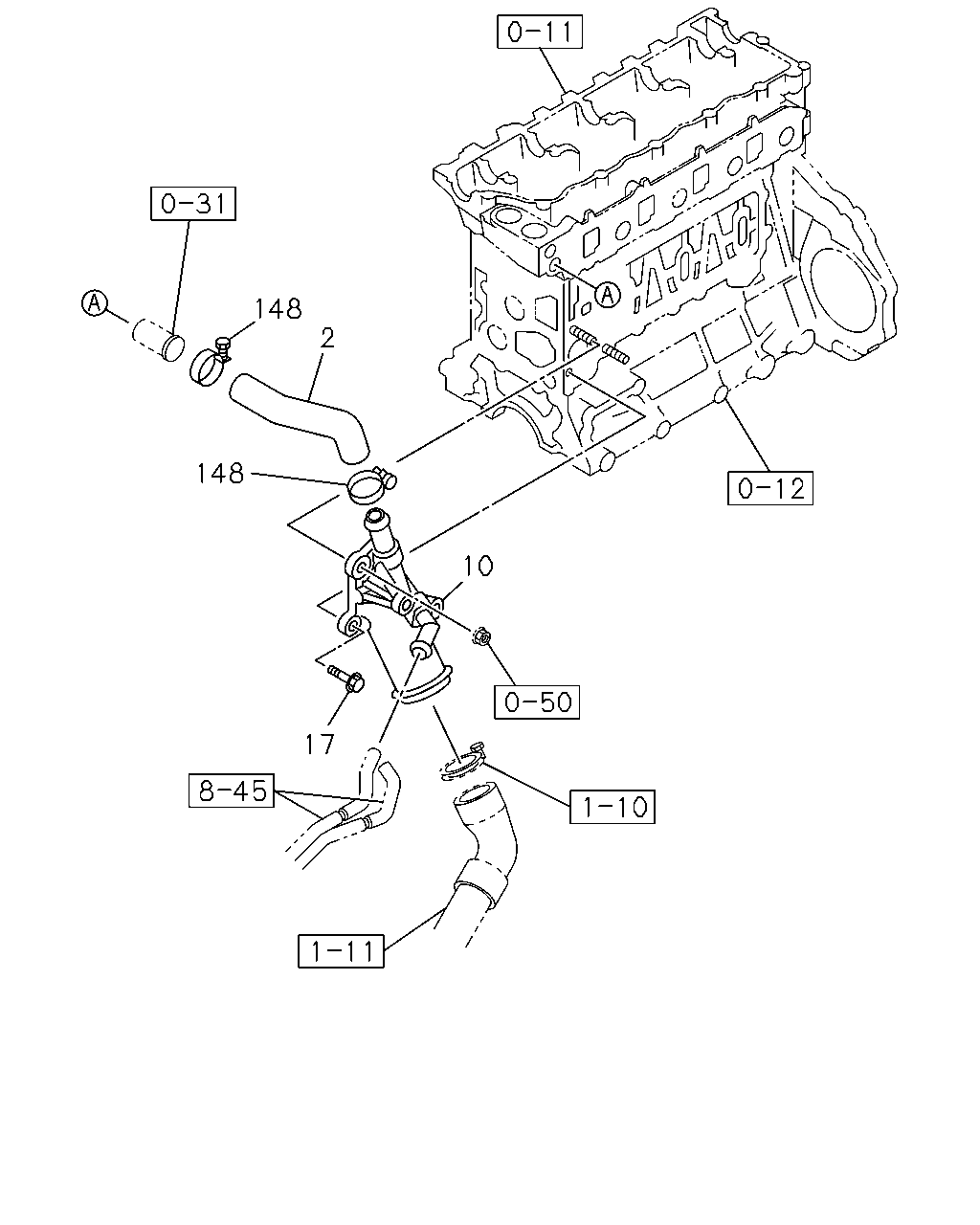

çizim 98639
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0211-0501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-1 01 1 0502- ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0211-0501 ●
10 01.153 PIPE; SUCTION 8-97371-775-1 01 1 0502-1010 ● ●
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1011- ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0211-0501 ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0502- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0211-0501 ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0502- ● ●
