0-22 — ENGINE MOUNTING (#33281) — 148 parça

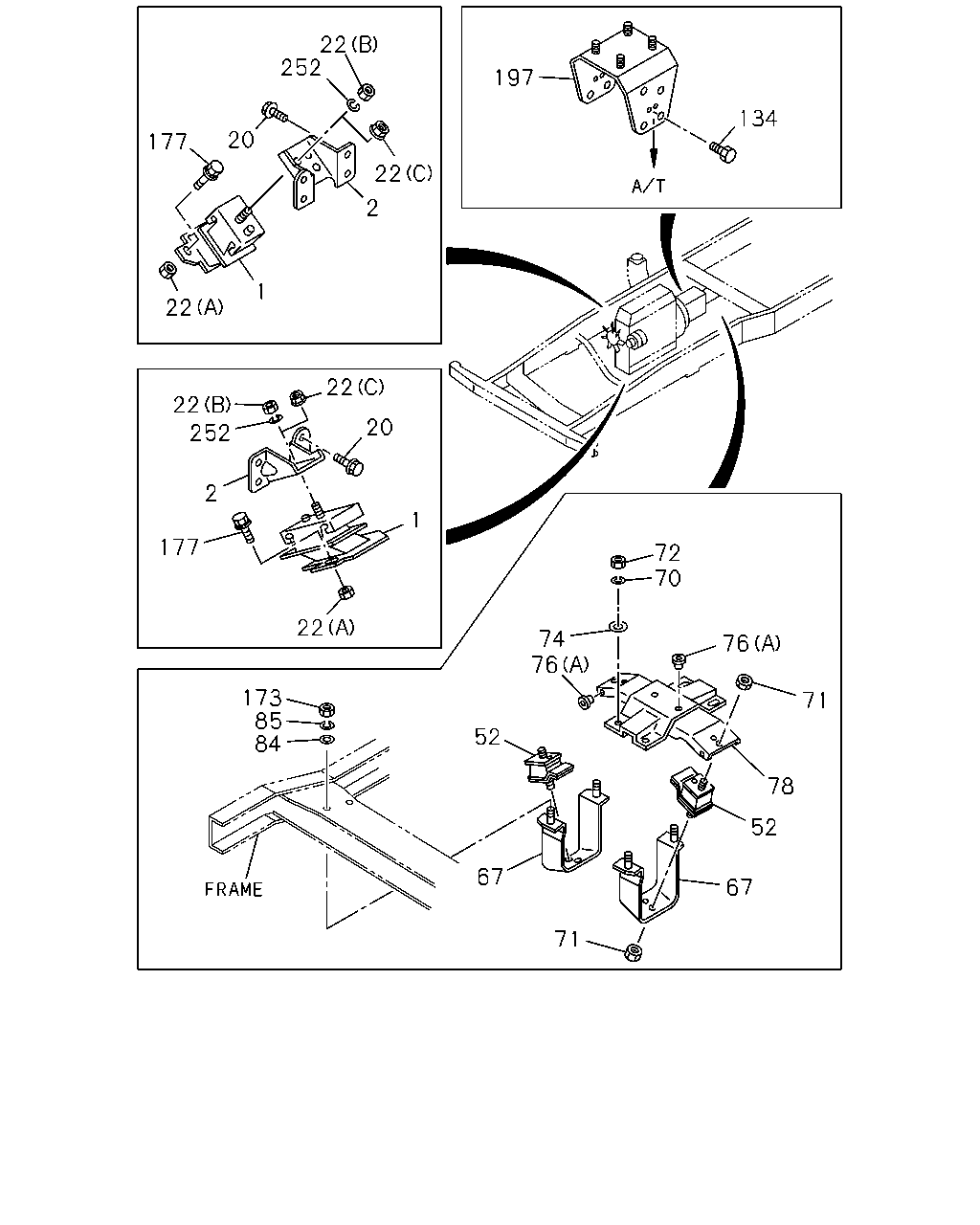

çizim 35880
22 252 197 134 20 177 22 2 1 22 22 22 252 20 2 1 177 72 70 22 74 76 76 173 85 84 71 52 78 52 67 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0502- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0502- ● ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0211-0501 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0502- ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0211-0501 ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0502-0512 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0211-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0502-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0502-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 		8-94111-903-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-94111-903-1 02 1 0502- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97039-277-0 02 1 0502- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-567-0 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-567-0 01 1 0502- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-AISIN(RNJ) 		8-94111-908-2 02 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97039-282-2 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-566-0 01 1 0211-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97371-918-0 01 1 0307-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97371-918-0 01 1 0502- ● ●
70 00.002 WASHER; LK,SUPPORT RUBBER TO TRA
A/T 4 SPEED-AISIN(RNJ) ID=10.2 		9-09150-610-0 04 1 0211-0501 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0501 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-AISIN(RNJ) 09.011 M10 		9-09110-410-0 04 1 0211-0501 ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
A/T 4 SPEED-AISIN(RNJ) 04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY6P(RSJ),M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 06 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY6P(RSJ),M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 06 1 0502- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.027 (A) 		8-94111-904-0 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97039-947-1 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-619-0 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-564-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-564-0 01 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-565-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-565-0 01 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR
A/T 4 SPEED-AISIN(RNJ) 		8-94458-319-1 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-618-0 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97172-399-1 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97172-399-1 01 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97307-777-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97307-777-0 01 1 0502- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
A/T 4 SPEED-AISIN(RNJ) M12X25 		8-97210-827-0 08 1 0211-0501 ●
134 00.029 BOLT; SUPPORT BRKT
FLOOR REMOTE SHIFT<M11> 03.890 M12X25 		0-28781-225-0 06 1 0211-0501 ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0502-0512 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601- ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0211-0512 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601-0610 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211-0501 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0502- ● ● ●
197 00.029 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-AISIN(RNJ) 		8-97120-177-1 01 1 0211-0501 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0501 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0502-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ● ●

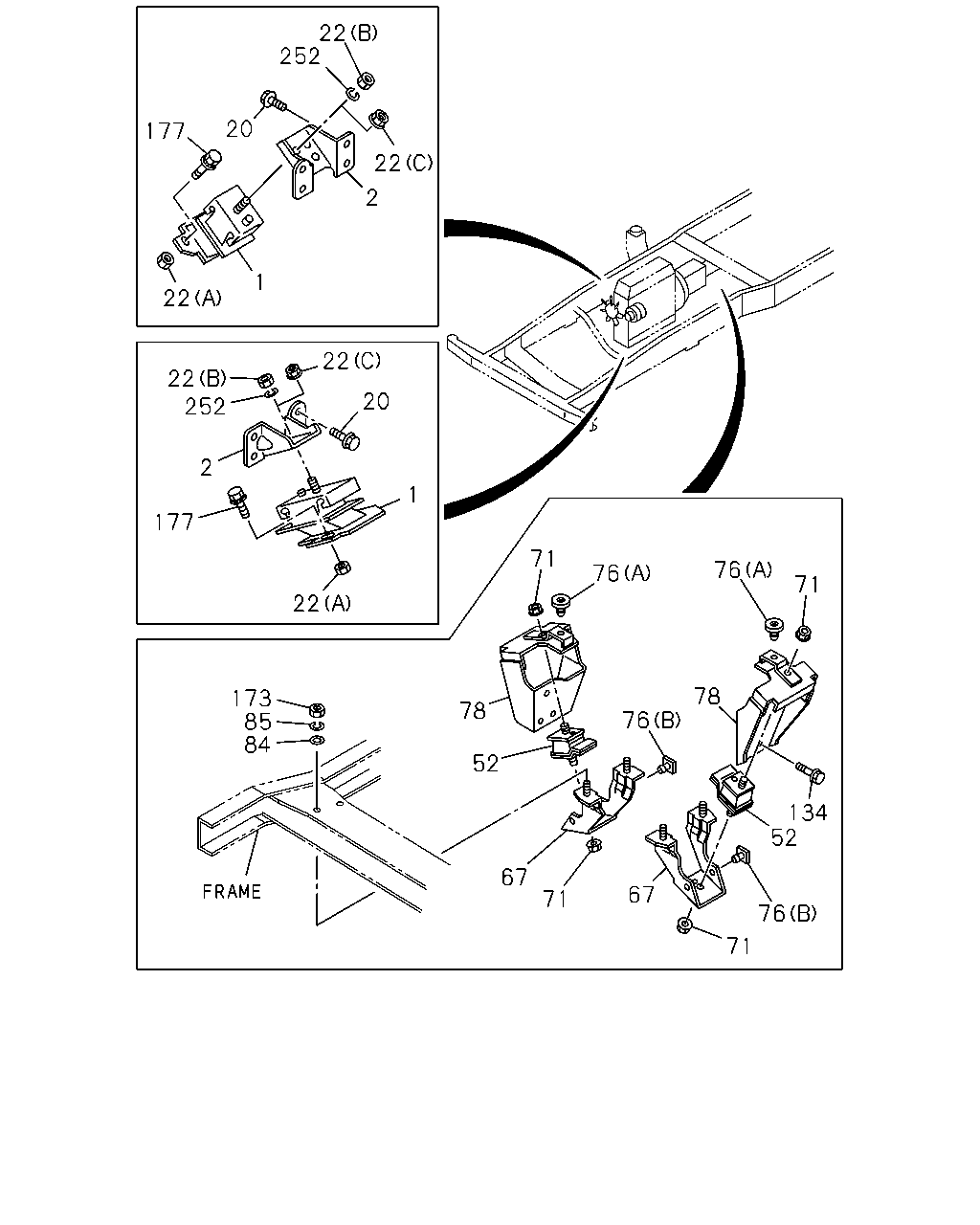

çizim 98638
2 252 20 177 22 2 1 22 22 22 252 20 2 1 177 71 76 76 71 22 78 173 85 84 78 76 2 134 52 67 67 71 76 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0502- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0502- ● ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0211-0501 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0502- ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0211-0501 ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0502-0512 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0211-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0502-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0502-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 		8-94111-903-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-94111-903-1 02 1 0502- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97039-277-0 02 1 0502- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-567-0 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-567-0 01 1 0502- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-AISIN(RNJ) 		8-94111-908-2 02 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97039-282-2 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-566-0 01 1 0211-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97371-918-0 01 1 0307-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97371-918-0 01 1 0502- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0501 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY6P(RSJ),M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 06 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY6P(RSJ),M/T MYY5T(RSM) 00.027 (A) 		8-94111-904-0 06 1 0502- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.027 (A) 		8-94111-904-0 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (A) 		8-94111-904-0 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97039-947-1 02 1 0502- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-619-0 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-564-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-564-0 01 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-565-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-565-0 01 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR
A/T 4 SPEED-AISIN(RNJ) 		8-94458-319-1 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-618-0 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97172-399-1 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97172-399-1 01 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97307-777-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97307-777-0 01 1 0502- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
A/T 4 SPEED-AISIN(RNJ) M12X25 		8-97210-827-0 08 1 0211-0501 ●
134 00.029 BOLT; SUPPORT BRKT
FLOOR REMOTE SHIFT<M11> 03.890 M12X25 		0-28781-225-0 06 1 0211-0501 ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0502-0512 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601- ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0211-0512 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601-0610 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211-0501 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0502- ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0501 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0502-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
