0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#33280) — 78 parça

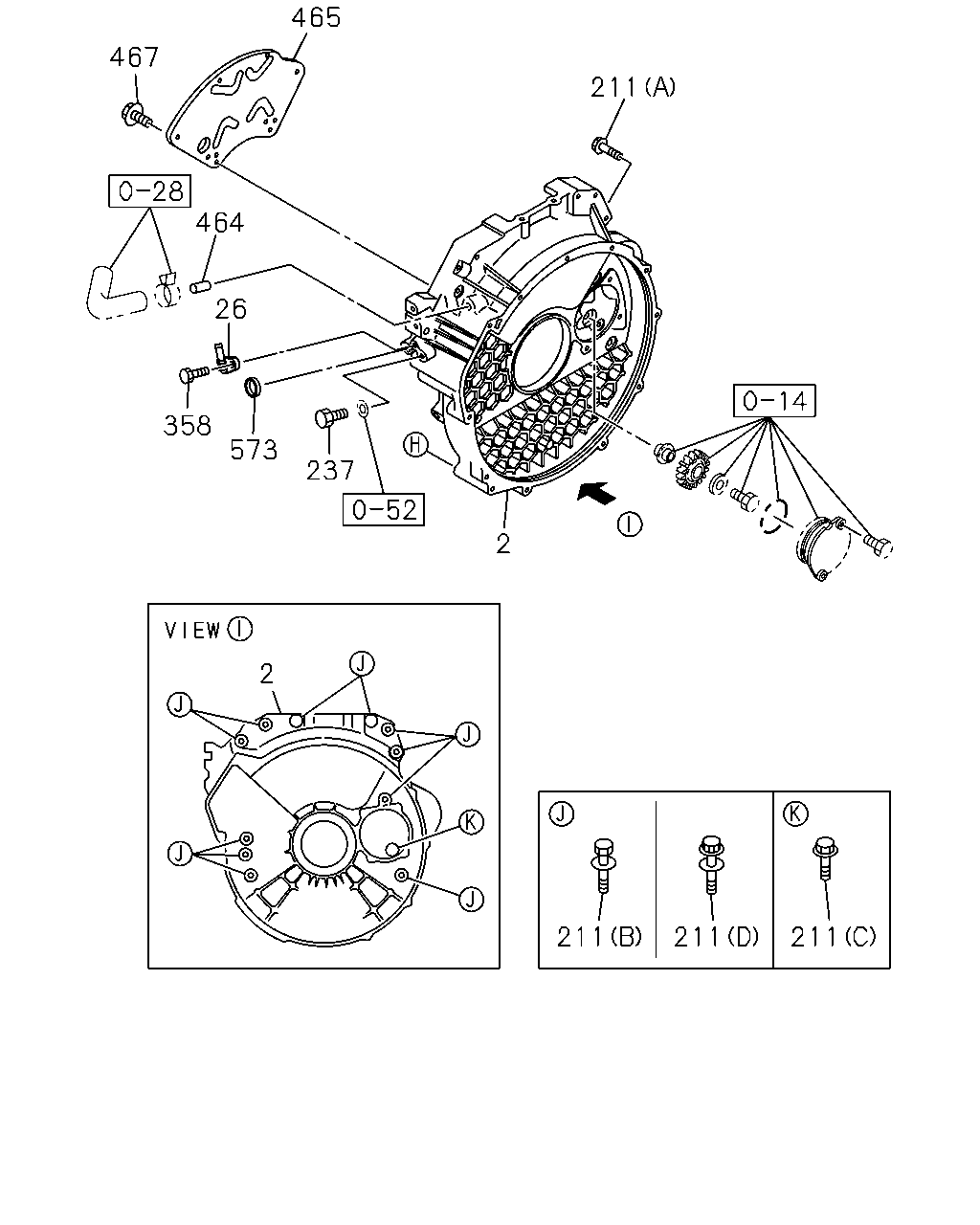

çizim 34795
465 467 211 464 26 358 573 237 2 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.683 HOUSING; FLYWHEEL 8-97209-886-3 01 1 0211-0308 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-0 01 1 0309-0501 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-4 01 1 0502- ● ●
26 03.306 ADAPTER 8-97354-819-0 01 1 0502- ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0211-0501 ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0502- ● ●
211 00.669 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0211-0501 ●
211 00.669 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0502-0512 ● ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 0601- ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0211-0501 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0502-1102 ● ●
211 00.669 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
237 00.686 PLUG; FLYWHEEL HSG
04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0502-0512 ● ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0601- ● ●
358 00.206 BOLT; ADAPTER
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0512 ● ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0211-0501 ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0502- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97212-490-0 01 1 0211-0308 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0309-0501 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0502- ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0211-0501 ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0502-0507 ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0508-0805 ● ●
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 0806- ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0211-0501 ●

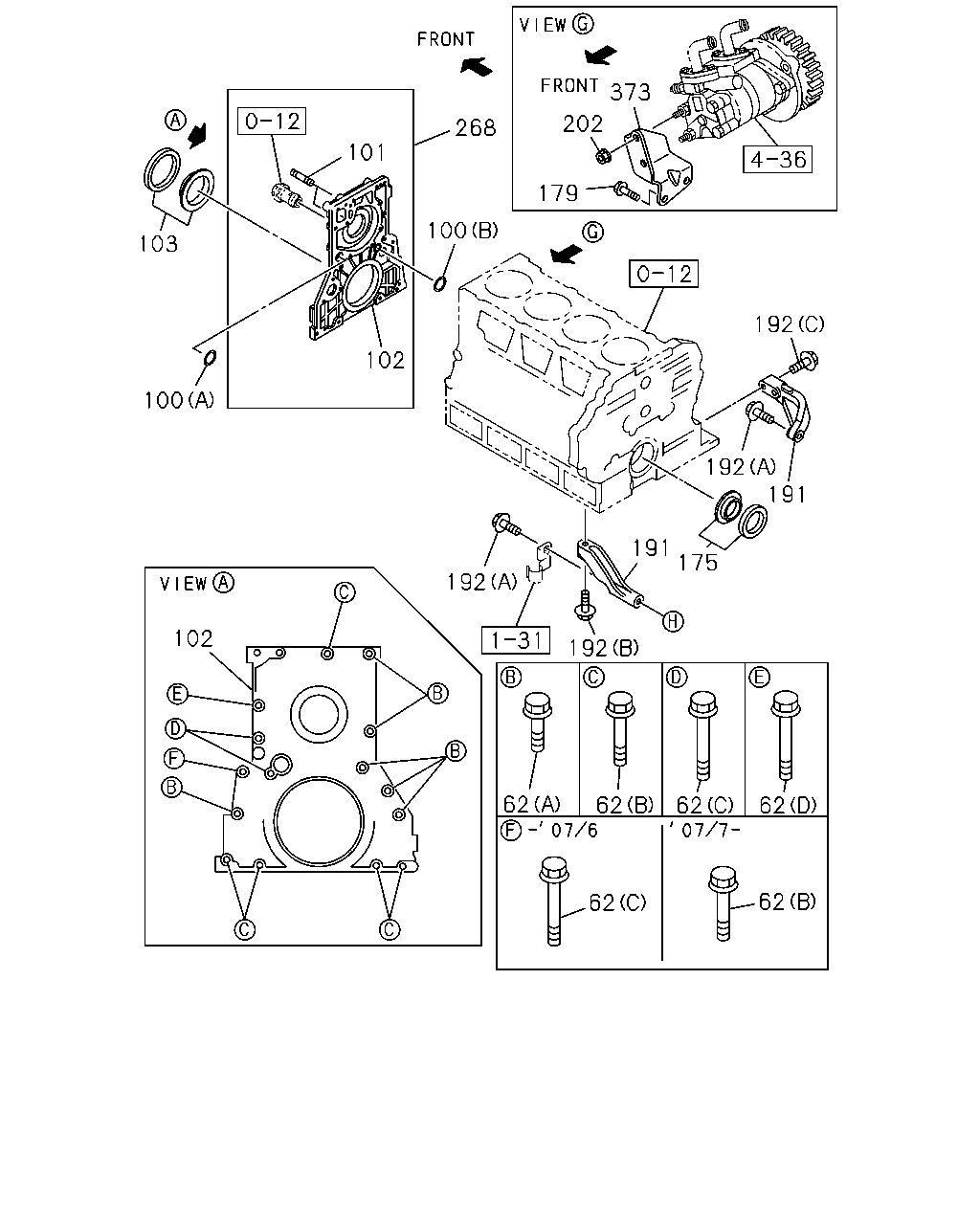

çizim 34797
373 202 268 101 179 100 103 192 102 100 192 191 191 175 192 102 192 62 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0211-0501 ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0502-0512 ● ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0211-0501 ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0502-0512 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0706 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0707- ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0501 ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0502-0512 ● ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0211-0501 ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0502-0706 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0707- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0211-0501 ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0502- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0211-0501 ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0502- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0211-0501 ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0502- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0211-0501 ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0502-0604 ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0605- ● ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0211-0501 ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0502-0706 ● ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 0707- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0211-0501 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0502- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0211-0501 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0502- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 M10X18 FLANGE 		0-28181-018-0 02 1 0502- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0502- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0502- ● ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0502-0512 ● ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ● ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0502-0512 ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0601- ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0502-0512 ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0601- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0311 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0312-0501 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
268 00.206 COVER; FRT 8-97148-937-1 01 1 0211-0501 ●
268 00.206 COVER; FRT 8-97148-937-3 01 1 0502- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0211-0501 ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0502- ● ●
