1-41A — FUEL PIPING; CHASSIS (#3328) — 76 parça

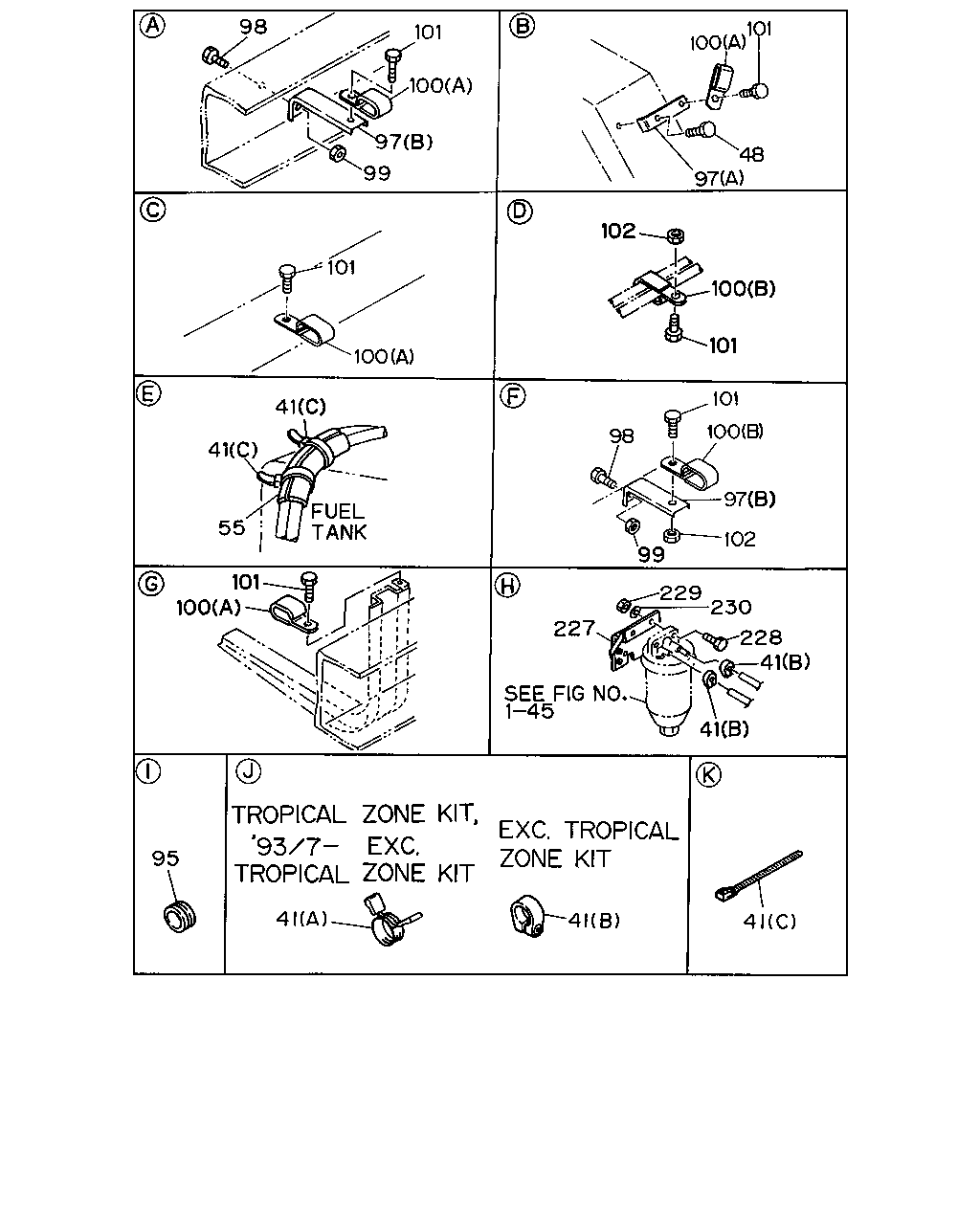

98 101 100 97 99 101 100 48 97 102 100 101 101 100 98 97 102 99 227 229 230 228 41 41 41 41 41 95 100 55 101 41 41 100 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	02	1	9307-
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	5-09707-030-0	01	1	9307-
41	CLIP; FUEL PIPE,FUEL TANK TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	06	1	9002-
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) ID=15	9-09715-098-0	06	1	9002-9306
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	5-09707-030-0	02	1	9005-9306
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	04	1	9307-
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) ID=15	9-09715-098-0	02	1	9307-
48	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
48	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
48	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150	1-09369-006-1	01	1	9005-9306
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=35 T=25	1-09332-011-1	02	1	9002-
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-
95	BUSHING; PIPE,FUEL TANK CXZ&LONG CHASISS(CXZ**F) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-
97	BRACKET; CLIP (B) L=135	1-22518-099-0	02	1	9002-
97	BRACKET; CLIP (A) L=158	1-47475-395-0	01	1	9002-
97	BRACKET; CLIP SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=135	1-22518-099-0	01	1	9002-9306
97	BRACKET; CLIP (B) L=135	1-22518-099-0	01	1	9307-
98	BOLT; BRKT,FUEL PIPE M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
98	BOLT; BRKT,FUEL PIPE M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9303-
98	BOLT; BRKT,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204
98	BOLT; BRKT,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
98	BOLT; BRKT,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9307-
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	02	1	9002-
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9002-
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-
100	CLIP; FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-
100	CLIP; FUEL PIPE CXZ&LONG CHASISS(CXZ**F) (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-
100	CLIP; FUEL PIPE CXZ&LONG CHASISS(CXZ**F) (B) ID=16X2 L=20	9-09535-536-0	01	1	9307-
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8X20 FLANGE	0-28080-820-0	01	1	9307-
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-9306
102	NUT; CLIP,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8	9-09110-408-0	01	1	9307-
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	9002-
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	04	1	9002-
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	9002-

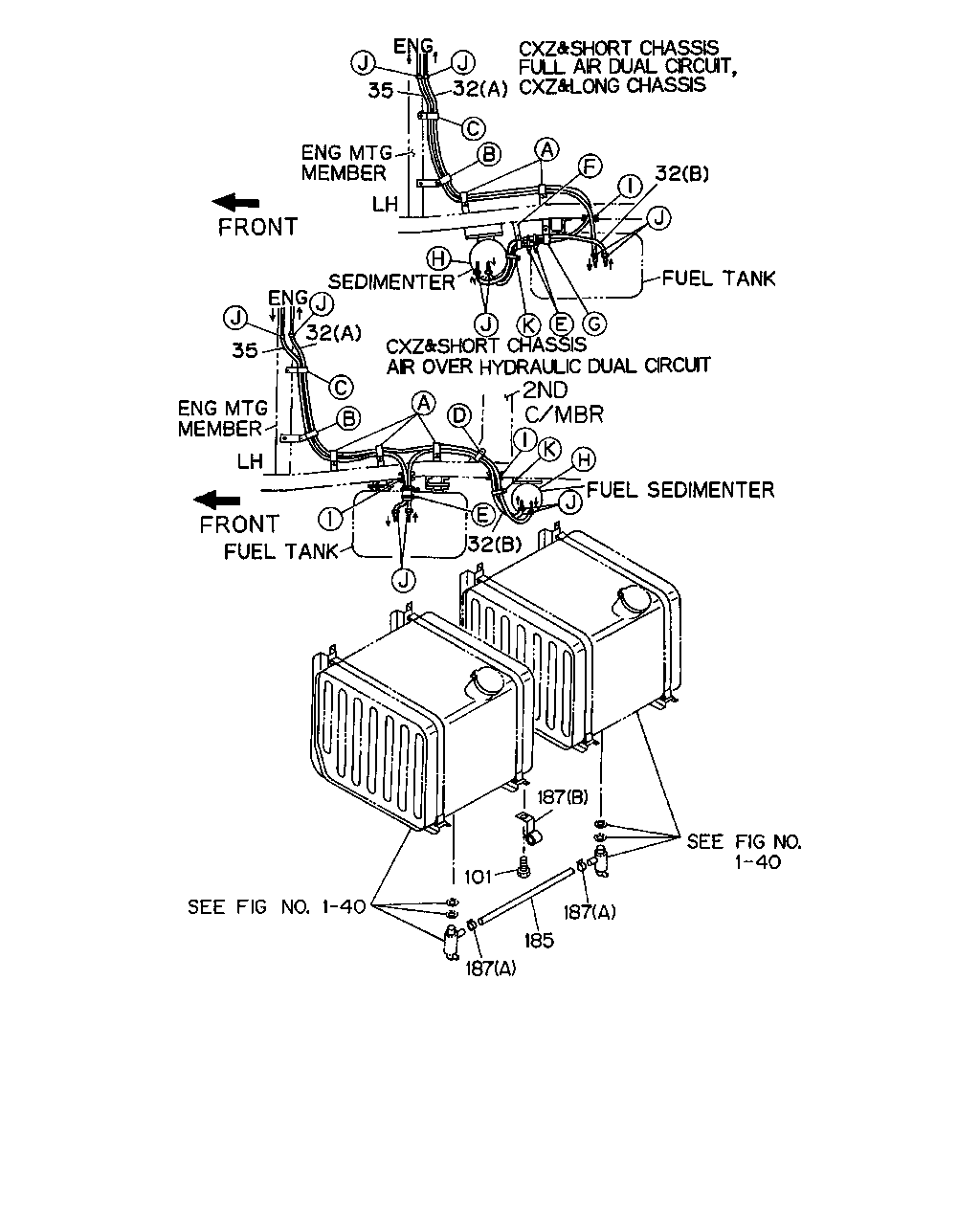

35 32 32 32 35 32 187 101 187 185 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK (A) L=2350 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=10000	9-09914-701-0	01	1	9002-
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9307-
35	PIPE; FUEL TANK,RETURN L=2000 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306
35	PIPE; FUEL TANK,RETURN L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	9307-
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
101	BOLT; CLIP,FUEL PIPE CXZ&LONG CHASISS(CXZ**F) M8X20 FLANGE	0-28080-820-0	01	1	9307-
185	PIPE; FUEL TANK TO TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) L=750	0-01112-750-0	01	1	9002-9306
185	PIPE; FUEL TANK TO TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6) L=750 SERVICED BY L=10000	9-09914-914-0	01	1	9002-
185	PIPE; FUEL TANK TO TANK CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) L=900	0-01112-900-0	01	1	9002-9307
185	PIPE; FUEL TANK TO TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) L=760 SERVICED BY L=3000	0-01262-300-0	01	1	9307-
185	PIPE; FUEL TANK TO TANK CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) '93/8/2- L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9307-
185	PIPE; FUEL TANK TO TANK CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6) L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9002-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) (A)	8-94122-679-0	02	1	9002-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9002-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6) (B) ID=17	1-09700-840-0	02	1	9002-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6) (A) ID=18	1-09707-011-1	02	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
