◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#33274) — 34 parça

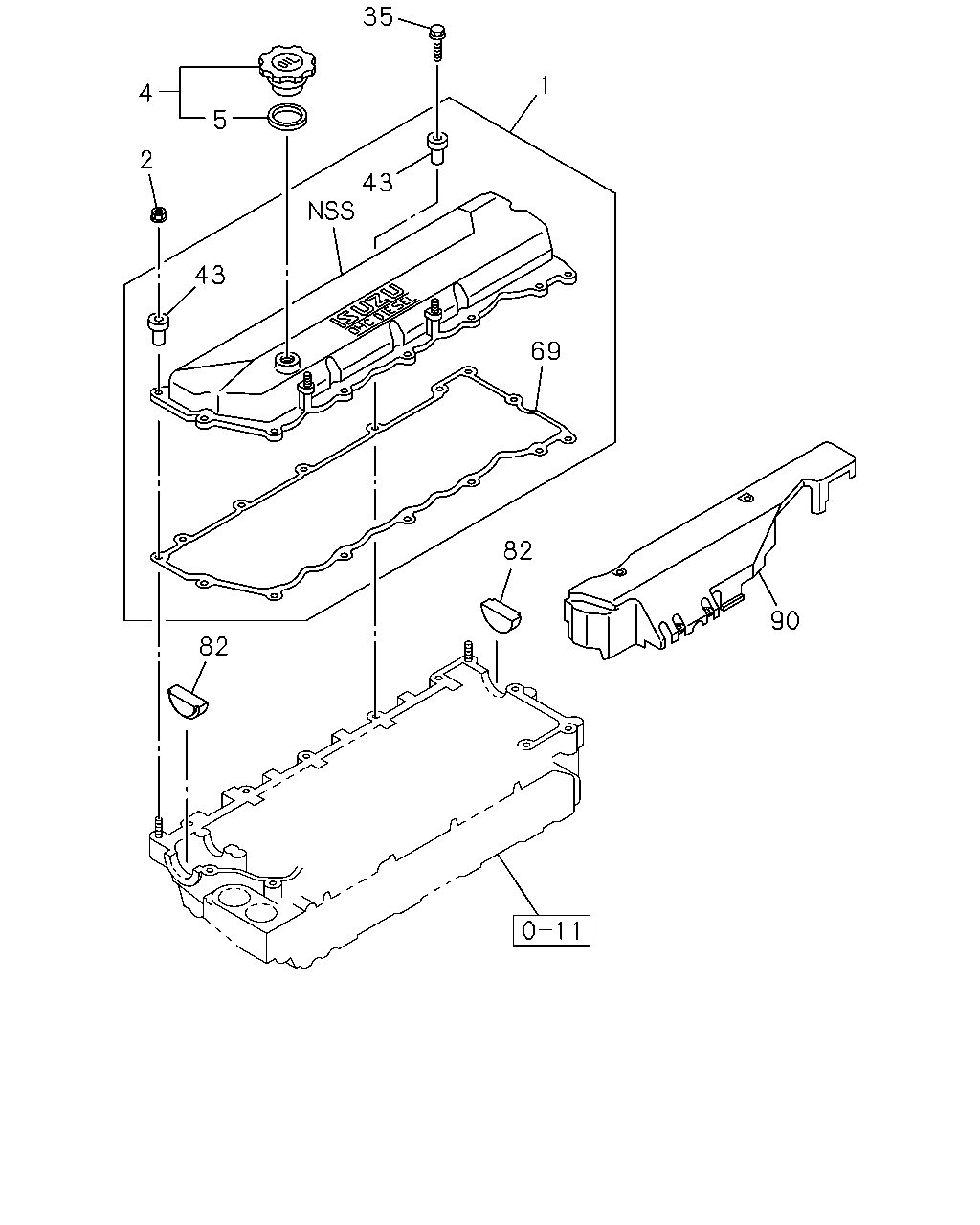

çizim 34494
35 1 4 5 2 43 43 69 82 90 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97331-361-2 01 1 0502- ● ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0211-0501 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0502- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0211-0501 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0502- ● ●
35 00.293 BOLT; NOISE SHIELD COVER
04.686 M8X30 FLANGE 		0-28680-830-0 13 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 0502- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-359-1 01 1 0502- ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0211-0501 ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0502-1005 ● ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1006- ● ●
90 00.386 COVER; NOZZLE,INJ 8-97175-141-0 01 1 0211-0501 ●

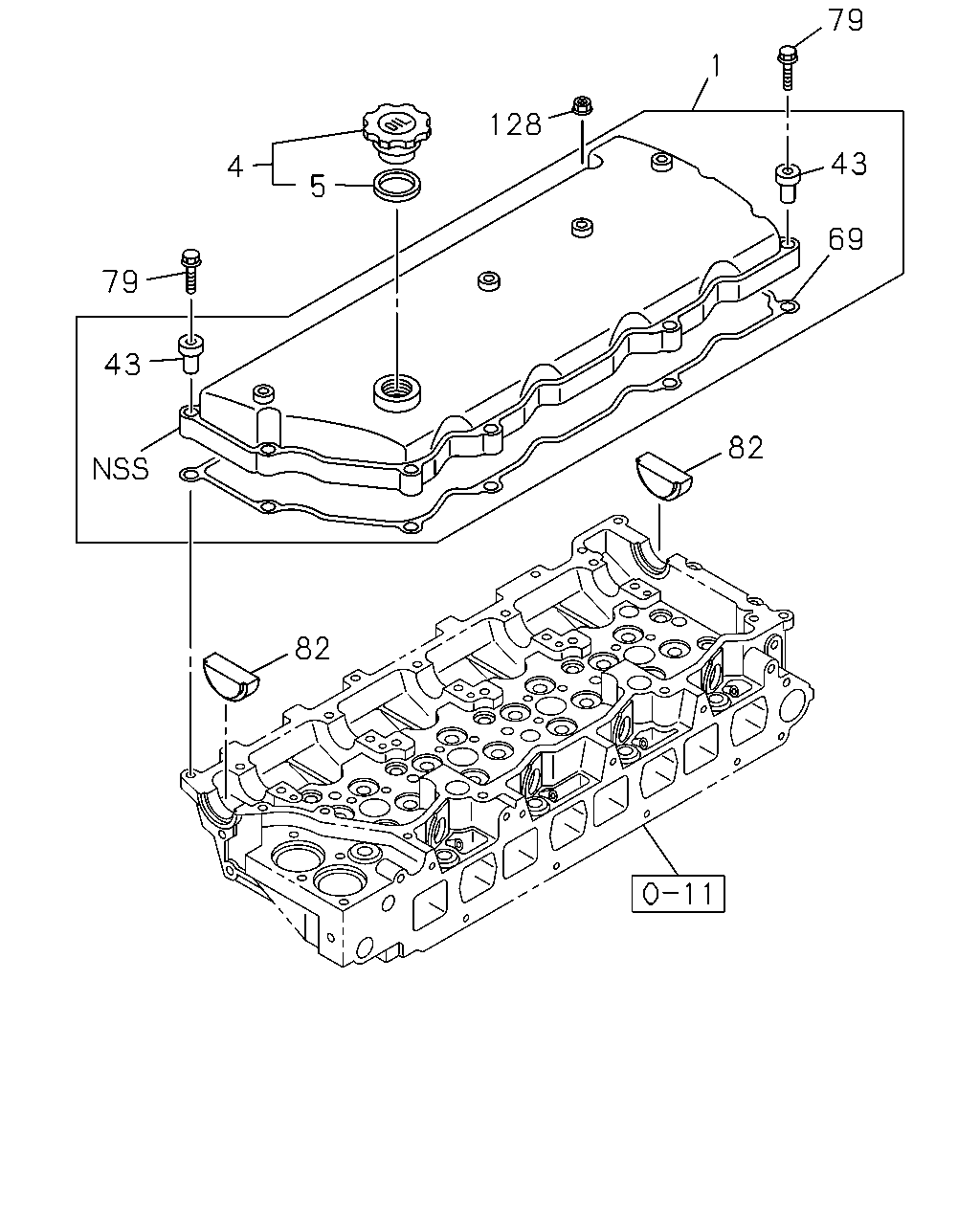

çizim 34495
79 1 128 43 4 5 69 79 43 82 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97331-361-2 01 1 0502- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0211-0501 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0502- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0211-0501 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0502- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 0502- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-359-1 01 1 0502- ● ●
79 00.293 BOLT; COVER
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0502-0512 ● ●
79 00.293 BOLT; COVER
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
79 00.293 BOLT; COVER
01.097 M8X65 FLANGE 		1-09044-072-1 07 1 0502- ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0211-0501 ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0502-1005 ● ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1006- ● ●
128 00.413 NUT; COVER,CYL HEAD COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
128 00.413 NUT; COVER,CYL HEAD COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
