◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#33273) — 48 parça

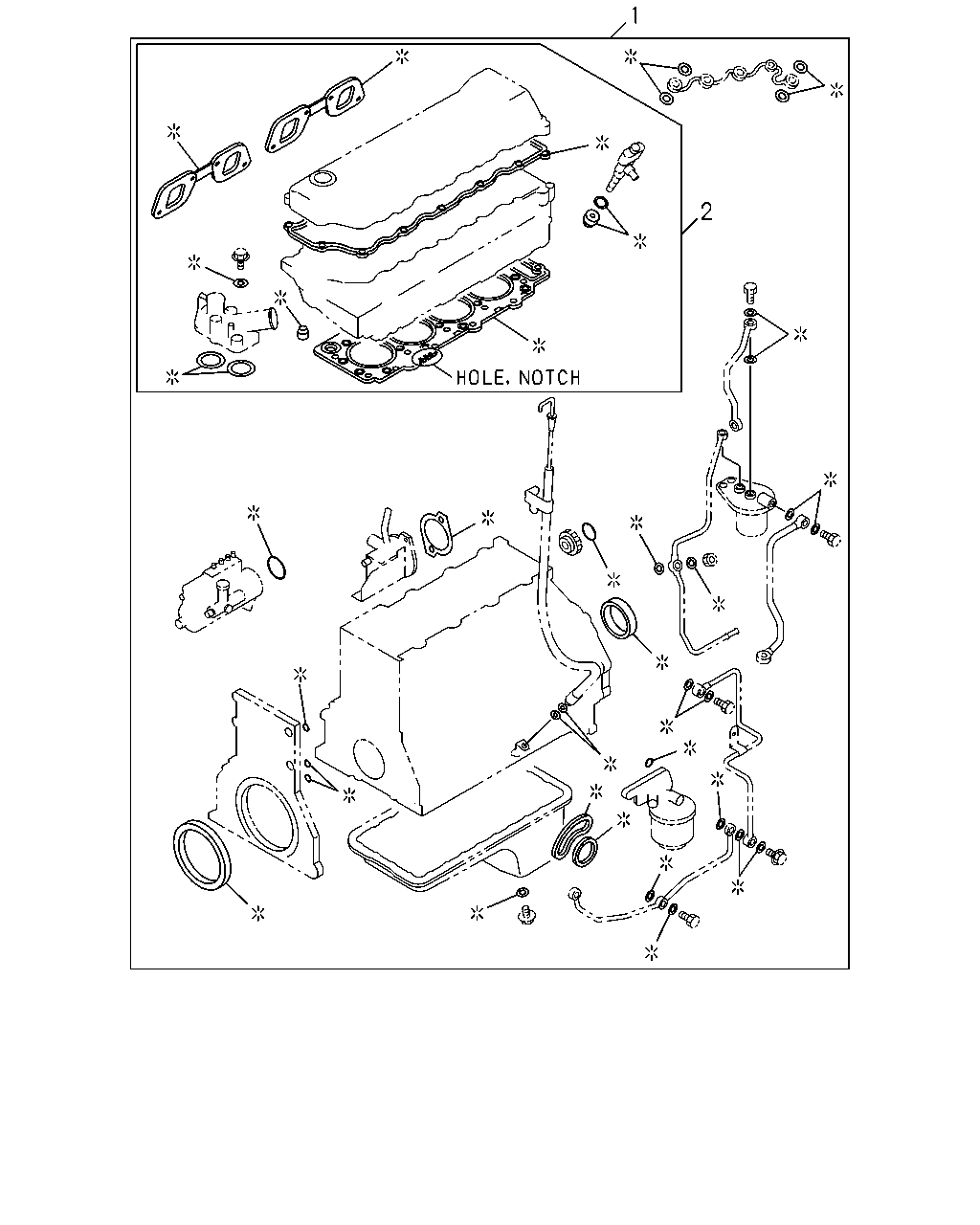

çizim 99559
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-433-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-770-0 01 1 0502-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-881-2 01 1 0508-0707 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-193-1 01 1 0708-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-473-0 01 1 0903-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-540-1 01 1 0909-1005 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-786-0 01 1 1006-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-792-0 01 1 1007-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-999-2 01 1 1102- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-333-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-434-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-771-0 01 1 0502-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-882-2 01 1 0508-0707 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-194-1 01 1 0708-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-474-0 01 1 0903-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-541-1 01 1 0909-1005 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-787-0 01 1 1006-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-793-0 01 1 1007-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87816-001-2 01 1 1102- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-334-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-435-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-772-0 01 1 0502-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-883-2 01 1 0508-0707 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-195-1 01 1 0708-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-475-0 01 1 0903-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-542-1 01 1 0909-1005 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-788-0 01 1 1006-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-794-0 01 1 1007-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87816-002-2 01 1 1102- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-691-0 01 1 0502-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0707 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-127-1 01 1 0708-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-543-3 01 1 0909- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-692-0 01 1 0502-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0707 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-128-1 01 1 0708-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-544-3 01 1 0909- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-693-0 01 1 0502-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0707 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-129-1 01 1 0708-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-545-3 01 1 0909- ● ●
