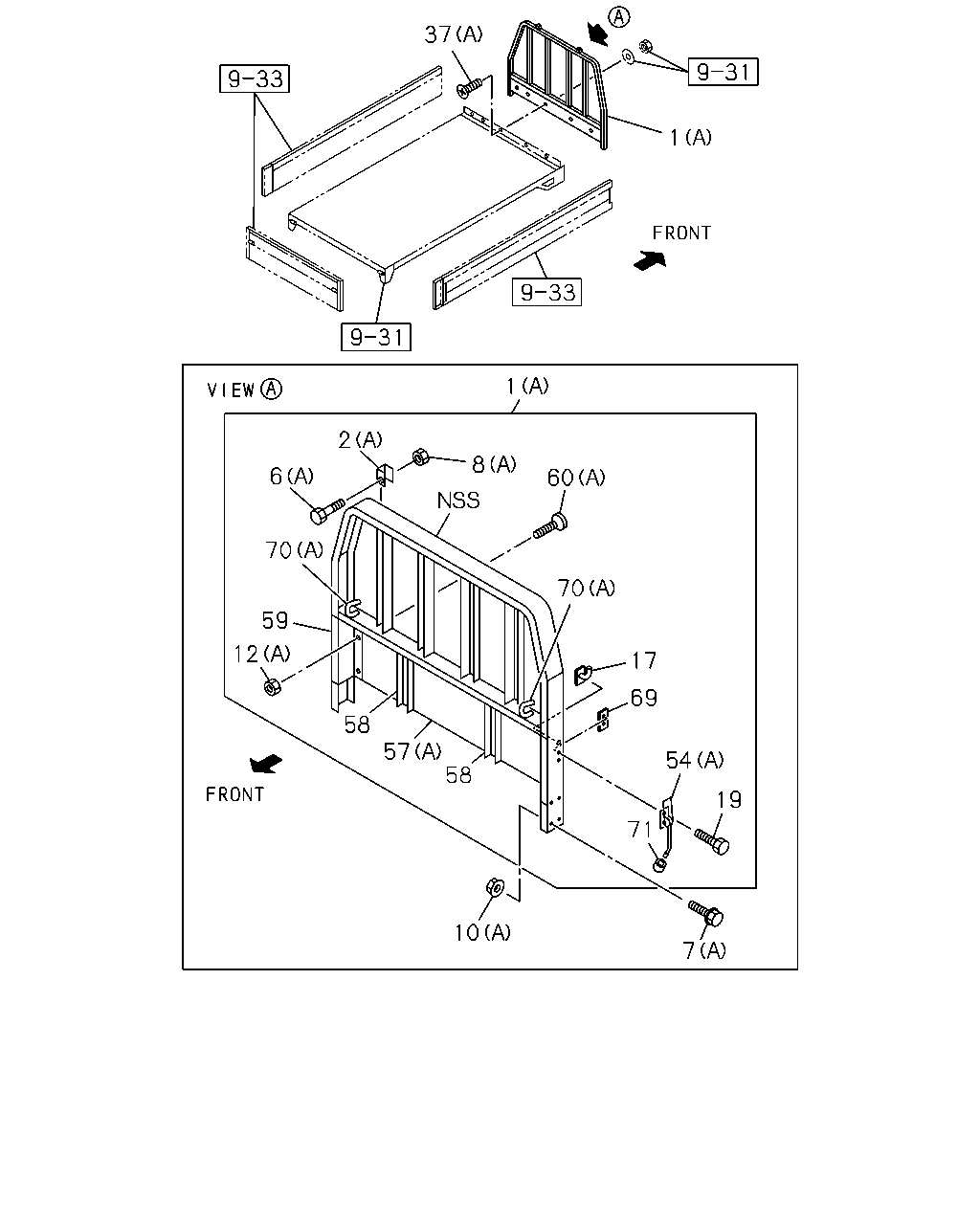

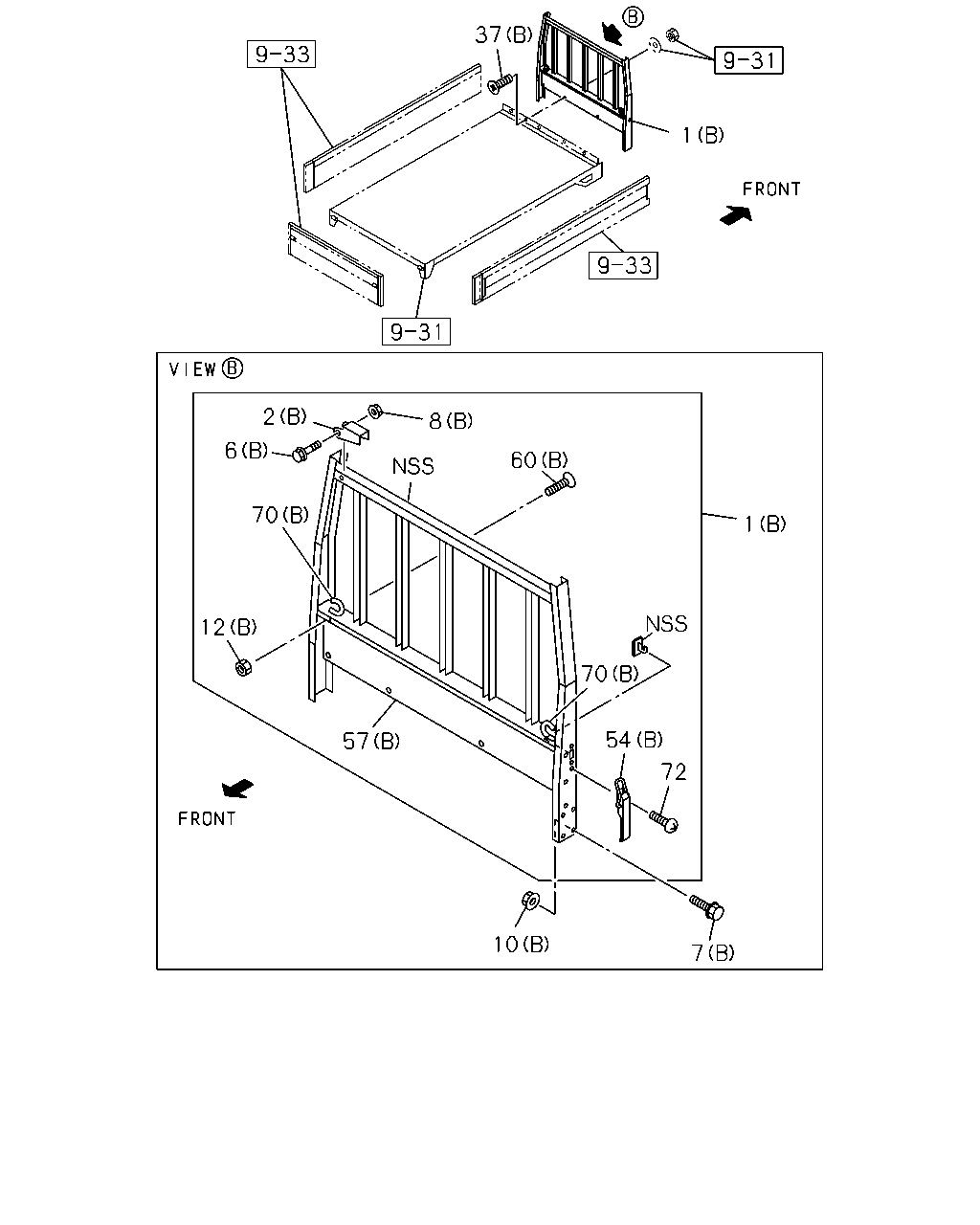

9-32 — REAR BODY; GUARD FRAME (#33270) — 118 parça

37 1 2 8 6 60 70 1 12 70 54 57 72 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	8-98024-567-2	01	1	1012-1110	●
1	17.455 FRAME; GUARD,RR BODY 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-98088-833-1	01	1	1012-1110	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> (A) TAKADA	8-98088-833-1	01	1	1012-1110		●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> (A) TAKADA	8-98088-833-2	01	1	1111-	●	●
2	17.447 STOPPER; GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B)	8-98045-225-0	02	1	1012-1110	●
2	17.447 STOPPER; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A)	8-97590-396-0	02	1	1012-1110	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-396-0	02	1	1012-1110		●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-396-0	02	1	1111-	●	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B)	8-98045-226-0	02	1	1012-1110	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A)	8-97590-488-0	02	1	1012-1110	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-488-0	02	1	1012-1110		●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-488-0	02	1	1111-	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) M12X25 FLANGE	0-28661-225-0	08	1	1012-1110	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-1110	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED<RS6> 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-1110		●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED<RS6> 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1111-	●	●
8	17.447 NUT; STOPPER BOLT 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) M10	8-98045-227-0	02	1	1012-1110	●
8	17.447 NUT; STOPPER BOLT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) M10	8-97590-493-0	02	1	1012-1110	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> (A) M10	8-97590-493-0	02	1	1012-1110		●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> (A) M10	8-97590-493-0	02	1	1111-	●	●
10	17.447 NUT; GUARD FRAME STOPPER 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> 05.816 (B) M12 FLANGE	0-91180-212-0	08	1	1012-1110	●
10	17.447 NUT; GUARD FRAME STOPPER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-1110	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-1110		●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1111-	●	●
12	17.455 NUT; GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> 16.682 (B) M8 LOCK NUT FLANGE	0-91380-008-0	05	1	1012-1110	●
12	17.455 NUT; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-1110	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-1110		●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1111-	●	●
37	17.455 BOLT; GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) SCREW M8X25 PABCO	8-98030-412-0	05	1	1012-1110	●
37	17.455 BOLT; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) SCREW M8X26	8-97065-436-0	05	1	1012-1110	●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED<RS6> (A) SCREW M8X26	8-97065-436-0	05	1	1012-1110		●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED<RS6> (A) SCREW M8X26	8-97065-436-0	05	1	1111-	●	●
54	17.455 HANDLE; LOCK,GATE,FRT 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	8-98045-206-0	02	1	1012-1110	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-97593-639-1	02	1	1012-1110	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> (A) TAKADA	8-97593-639-1	02	1	1012-1110		●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> (A) TAKADA	8-97593-639-1	02	1	1111-	●	●
57	17.400 BOARD; HEADER 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	8-98045-229-2	01	1	1012-1110	●
57	17.400 BOARD; HEADER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-97594-741-0	01	1	1012-1110	●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6> (A) TAKADA	8-97594-741-0	01	1	1012-1110		●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6> (A) TAKADA	8-97594-741-1	01	1	1111-	●	●
60	17.455 SCREW; BOARD 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) M8X25 PABCO	8-98030-412-0	05	1	1012-1110	●
60	17.455 SCREW; BOARD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-1110	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-1110		●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30 TAKADA	8-94193-938-3	04	1	1111-	●	●
70	17.455 HOOK; ROPE,GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	5-87580-001-0	02	1	1012-1110	●
70	17.455 HOOK; ROPE,GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-97592-598-0	02	1	1012-1110	●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED<RS6> (A) TAKADA	8-97592-598-0	02	1	1012-1110		●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED<RS6> (A) TAKADA	8-97592-598-0	02	1	1111-	●	●
72	17.455 SCREW; HANDLE TO GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> M8X13 PABCO	8-98045-180-0	04	1	1012-1110	●

37 1 1 2 8 6 60 70 70 59 12 17 69 58 57 58 54 19 71 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	8-98024-567-2	01	1	1012-1110	●
1	17.455 FRAME; GUARD,RR BODY 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-98088-833-1	01	1	1012-1110	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> (A) TAKADA	8-98088-833-1	01	1	1012-1110		●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> (A) TAKADA	8-98088-833-2	01	1	1111-	●	●
2	17.447 STOPPER; GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B)	8-98045-225-0	02	1	1012-1110	●
2	17.447 STOPPER; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A)	8-97590-396-0	02	1	1012-1110	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-396-0	02	1	1012-1110		●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-396-0	02	1	1111-	●	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B)	8-98045-226-0	02	1	1012-1110	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A)	8-97590-488-0	02	1	1012-1110	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-488-0	02	1	1012-1110		●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> (A)	8-97590-488-0	02	1	1111-	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) M12X25 FLANGE	0-28661-225-0	08	1	1012-1110	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-1110	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED<RS6> 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-1110		●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED<RS6> 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1111-	●	●
8	17.447 NUT; STOPPER BOLT 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) M10	8-98045-227-0	02	1	1012-1110	●
8	17.447 NUT; STOPPER BOLT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) M10	8-97590-493-0	02	1	1012-1110	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> (A) M10	8-97590-493-0	02	1	1012-1110		●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> (A) M10	8-97590-493-0	02	1	1111-	●	●
10	17.447 NUT; GUARD FRAME STOPPER 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> 05.816 (B) M12 FLANGE	0-91180-212-0	08	1	1012-1110	●
10	17.447 NUT; GUARD FRAME STOPPER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-1110	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-1110		●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1111-	●	●
12	17.455 NUT; GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> 16.682 (B) M8 LOCK NUT FLANGE	0-91380-008-0	05	1	1012-1110	●
12	17.455 NUT; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-1110	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-1110		●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1111-	●	●
17	17.455 HOOK; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> TAKADA	8-97593-683-0	02	1	1012-1110	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-97593-683-0	02	1	1012-1110		●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-97593-683-0	02	1	1111-	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> M8X20	8-94193-942-2	04	1	1012-1110	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-2	04	1	1012-1110		●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-2	04	1	1111-	●	●
37	17.455 BOLT; GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) SCREW M8X25 PABCO	8-98030-412-0	05	1	1012-1110	●
37	17.455 BOLT; GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) SCREW M8X26	8-97065-436-0	05	1	1012-1110	●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED<RS6> (A) SCREW M8X26	8-97065-436-0	05	1	1012-1110		●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED<RS6> (A) SCREW M8X26	8-97065-436-0	05	1	1111-	●	●
54	17.455 HANDLE; LOCK,GATE,FRT 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	8-98045-206-0	02	1	1012-1110	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-97593-639-1	02	1	1012-1110	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> (A) TAKADA	8-97593-639-1	02	1	1012-1110		●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> (A) TAKADA	8-97593-639-1	02	1	1111-	●	●
57	17.400 BOARD; HEADER 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	8-98045-229-2	01	1	1012-1110	●
57	17.400 BOARD; HEADER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-97594-741-0	01	1	1012-1110	●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6> (A) TAKADA	8-97594-741-0	01	1	1012-1110		●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6> (A) TAKADA	8-97594-741-1	01	1	1111-	●	●
58	17.505 MEMBER; HEADER BOARD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> TAKADA	8-94194-452-0	02	1	1012-1110	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-452-0	02	1	1012-1110		●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-452-0	02	1	1111-	●	●
59	17.455 REINFORCEMENT; HEADER BOARD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	1012-1110	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	1012-1110		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	1111-	●	●
59	17.455 REINFORCEMENT; HEADER BOARD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	1012-1110	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	1012-1110		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	1111-	●	●
60	17.455 SCREW; BOARD 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) M8X25 PABCO	8-98030-412-0	05	1	1012-1110	●
60	17.455 SCREW; BOARD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-1110	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-1110		●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30 TAKADA	8-94193-938-3	04	1	1111-	●	●
69	17.455 SETTING PLATE; LOCK HANDLE 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> TAKADA	8-97591-976-0	02	1	1012-1110	●
69	17.455 SETTING PLATE; LOCK HANDLE RR BODY FLAT BED<RS6> TAKADA	8-97591-976-0	02	1	1012-1110		●
69	17.455 SETTING PLATE; LOCK HANDLE RR BODY FLAT BED<RS6> TAKADA	8-97591-976-0	02	1	1111-	●	●
70	17.455 HOOK; ROPE,GUARD FRAME 4HK1-TCN ENG(RDQ) RR BODY FLAT BED<RS6> (B) PABCO	5-87580-001-0	02	1	1012-1110	●
70	17.455 HOOK; ROPE,GUARD FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> (A) TAKADA	8-97592-598-0	02	1	1012-1110	●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED<RS6> (A) TAKADA	8-97592-598-0	02	1	1012-1110		●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED<RS6> (A) TAKADA	8-97592-598-0	02	1	1111-	●	●
71	17.204 PIECE; END,FRT HANDLE 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) RR BODY FLAT BED<RS6> 17.615 ID=12	9-61203-650-0	02	1	1012-1110	●
71	17.204 PIECE; END,FRT HANDLE RR BODY FLAT BED<RS6> 17.615 ID=12	9-61203-650-0	02	1	1012-1110		●
71	17.204 PIECE; END,FRT HANDLE RR BODY FLAT BED<RS6> 17.615 ID=12	9-61203-650-0	02	1	1111-	●	●
