Sayfa 1-40B - Isuzu EPC

1-40B — FUEL TANK (#3327) — 303 parça

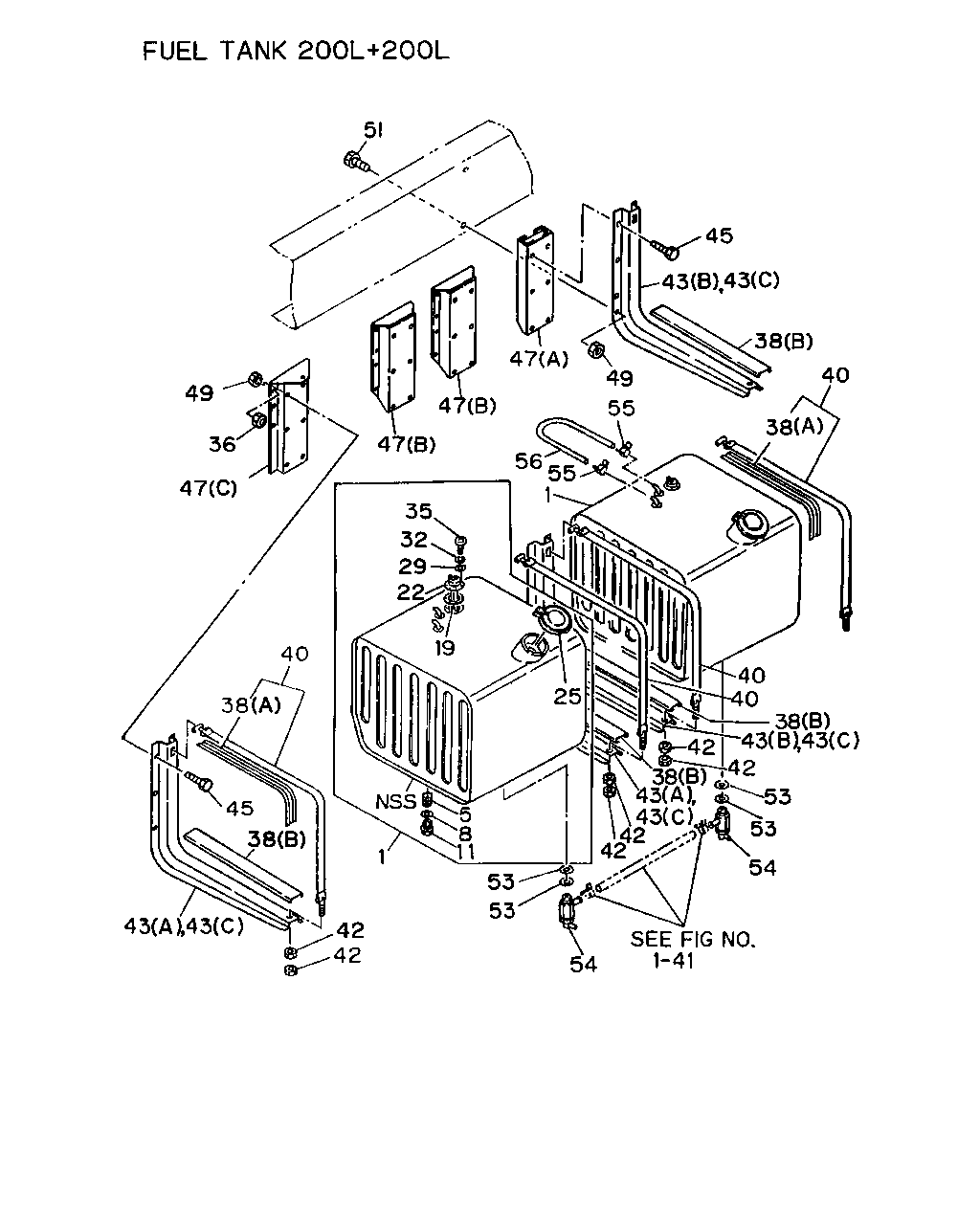

43 42 42 13 16 11 8 5 38 19 22 25 411 29 32 35 40 1 38 47 47 45 38 43 38 42 40 42 40 38 43 51 49 43 38 42 42 38 40 38 42 42 5 8 11 1 16 13 25 35 32 29 22 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> 720X610X496 200L	1-22400-855-0	01	1	9002-	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-854-1	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> 900X649X549 300L	1-22400-859-1	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 900X649X549 300L	1-22400-858-1	01	1	9002-	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-857-0	02	1	9002-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-857-0	02	1	9002-		●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-856-0	02	1	9002-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-856-0	02	1	9002-		●
1	TANK; FUEL LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-855-0	02	1	9002-	●
1	TANK; FUEL LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-854-1	02	1	9002-	●
5	STRAINER; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22460-001-1	02	1	9002-9402	●	●
5	STRAINER; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-22460-001-1	01	1	9002-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9002-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-09604-052-0	01	1	9002-	●	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>	9-99202-318-0	01	1	9002-9106	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>	1-09604-081-0	01	1	9107-	●	●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	9002-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9002-	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9002-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9002-9508	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9509-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9509-	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-081-1	01	1	9002-	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7>	1-83141-081-1	02	1	9002-	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-081-1	02	1	9002-		●
22	UNIT; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7>	1-83141-080-1	02	1	9002-9508	●
22	UNIT; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9509-	●
22	UNIT; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9509-	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-22440-034-1	01	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-22440-033-2	01	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 300L<RF5> ID=4.3	9-09160-504-0	01	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> ID=4.3	9-09160-504-0	02	1	9002-	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=4.3	9-09160-504-0	02	1	9002-		●
29	WASHER; PL,FUEL TANK UNIT LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9002-	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9002-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L<RF5> ID=4.1	9-09150-504-0	05	1	9002-	●	●
32	WASHER; LK,FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> ID=4.1	9-09150-504-0	10	1	9002-	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=4.1	9-09150-504-0	10	1	9002-		●
32	WASHER; LK,FUEL TANK UNIT LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9002-	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9002-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10	9-93497-410-0	05	1	9002-	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M4X10	9-93497-410-0	10	1	9002-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M4X10	9-93497-410-0	10	1	9002-		●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9002-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9002-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	9002-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	9002-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	9002-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	9002-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (B) L=580	1-22553-018-0	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-22550-204-1	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5>	1-22550-208-2	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7>	1-22550-208-2	04	1	9002-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7>	1-22550-208-2	04	1	9002-		●
40	BELT; SUPPORT,FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7>	1-22550-204-1	04	1	9002-	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9002-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9002-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-288-0	02	1	9002-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-244-3	01	1	9002-9212	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-244-3	01	1	9002-9212		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-403-0	01	1	9301-9408	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-403-0	01	1	9301-9408		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-409-1	01	1	9409-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-409-1	01	1	9409-		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-275-2	01	1	9002-9212	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-275-2	01	1	9002-9212		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-404-3	01	1	9301-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-404-3	01	1	9301-		●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) (A) REAR	1-53461-374-0	01	1	9002-9012	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REAR	1-53461-374-0	01	1	9002-9012	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) (A) REAR	1-53461-279-4	01	1	9101-	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REAR	1-53461-279-4	01	1	9101-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REAR	1-53461-279-4	01	1	9101-		●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) (A) FRONT	1-53461-375-0	01	1	9002-	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53461-375-0	01	1	9002-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53461-375-0	01	1	9002-		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (C)	1-53461-376-0	04	1	9002-	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (C)	1-53461-376-0	04	1	9002-		●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> (B)	1-53461-374-0	02	1	9002-9012	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> (B)	1-53461-279-4	02	1	9101-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35	9-01911-235-0	16	1	9002-9005	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	16	1	9006-9302	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	11	1	9007-9307	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	11	1	9308-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X50 M12X50 W/LK WASHER	0-50041-250-0	01	1	9007-9307	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	01	1	9308-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	12	1	9308-9412	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-	●	●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	48	1	9002-9005	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	48	1	9002-9005		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	48	1	9006-9307	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	48	1	9006-9307		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	48	1	9308-9412	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	48	1	9308-9412		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9501-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9501-		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	24	1	9501-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	24	1	9501-		●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5> (A) FRONT L=380	1-53461-289-2	01	1	9002-	●	●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5> (B) REAR L=380	1-53461-290-2	01	1	9002-	●	●
47	SPACER; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (C) L=435	1-53461-190-3	01	1	9002-	●
47	SPACER; FUEL TANK FUEL TANK 200L+200L<NF7> (C) L=435	1-53461-190-3	01	1	9002-		●
47	SPACER; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (A) L=435	1-53461-191-1	01	1	9002-	●
47	SPACER; FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=435	1-53461-191-1	01	1	9002-		●
47	SPACER; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (B) L=435	1-53461-192-3	02	1	9002-	●
47	SPACER; FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=435	1-53461-192-3	02	1	9002-		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	08	1	9002-9006	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	08	1	9002-9006		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	24	1	9002-9304	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	24	1	9002-9304		●
49	NUT; BRKT LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9305-	●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9305-	●
49	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9305-		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	07	1	9007-9304	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	07	1	9007-9304		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-512-0	07	1	9305-	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-512-0	07	1	9305-		●
49	NUT; BRKT LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-412-0	12	1	9002-9304	●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-412-0	12	1	9002-9304	●
49	NUT; BRKT LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9305-	●
51	BOLT; BRKT TO FRAME CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40	9-01911-240-0	12	1	9002-9005	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40	9-01911-240-0	12	1	9002-9005		●
51	BOLT; BRKT TO FRAME CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	12	1	9006-9307	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	12	1	9006-9307		●
51	BOLT; BRKT TO FRAME CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	12	1	9308-	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	12	1	9308-		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45	9-01911-245-0	08	1	9002-9005	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45	9-01911-245-0	08	1	9002-9005		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45 W/LK WASHER	0-50041-245-0	08	1	9006-9102	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45 W/LK WASHER	0-50041-245-0	08	1	9006-9102		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	08	1	9103-9307	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	08	1	9103-9307		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	08	1	9308-	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	08	1	9308-		●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> M12X40	9-01911-240-0	24	1	9002-9005	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> M12X40 W/LK WASHER	0-50041-240-0	24	1	9006-9307	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	24	1	9308-	●
51	BOLT; BRKT TO FRAME CXM(CXM***) FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	24	1	9002-9005	●
51	BOLT; BRKT TO FRAME CXM(CXM***) FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	24	1	9006-9307	●
51	BOLT; BRKT TO FRAME CXM(CXM***) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9308-	●
51	BOLT; BRKT TO FRAME CXM(CXM***) EXC. FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	12	1	9002-9005	●
51	BOLT; BRKT TO FRAME CXM(CXM***) EXC. FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	12	1	9006-9307	●
51	BOLT; BRKT TO FRAME CXM(CXM***) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 300L<RF5> L=50	1-09700-416-0	01	1	9002-	●	●

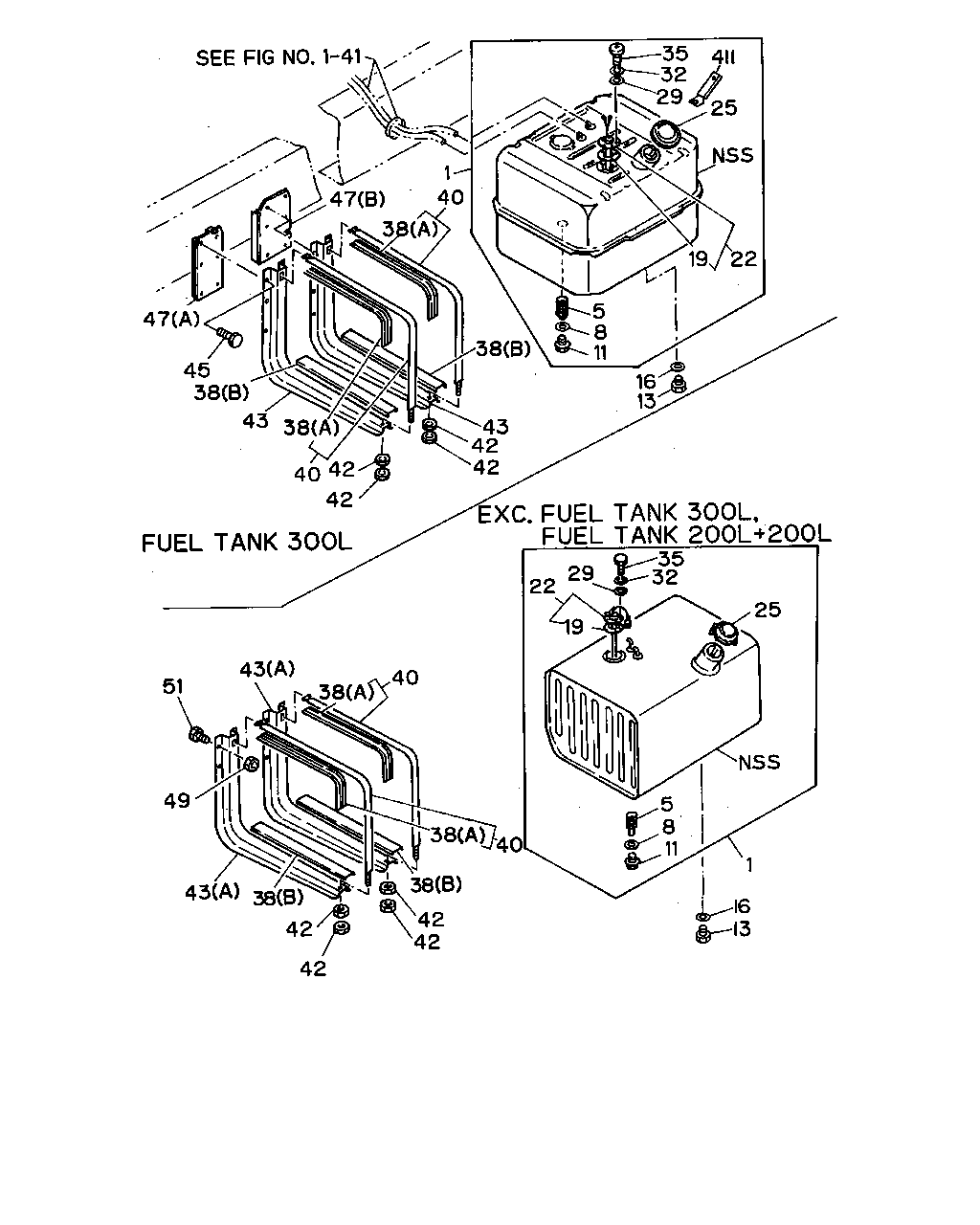

1 55 56 55 49 47 47 47 47 36 49 35 32 29 22 19 40 38 45 38 1 42 42 43 43 53 53 54 5 8 11 25 40 40 38 43 43 42 53 53 54 42 38 43 43 42 42 51 45 43 43 38 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> 720X610X496 200L	1-22400-855-0	01	1	9002-	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-854-1	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> 900X649X549 300L	1-22400-859-1	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 900X649X549 300L	1-22400-858-1	01	1	9002-	●	●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-857-0	02	1	9002-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-857-0	02	1	9002-		●
1	TANK; FUEL SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-856-0	02	1	9002-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-856-0	02	1	9002-		●
1	TANK; FUEL LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-855-0	02	1	9002-	●
1	TANK; FUEL LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-854-1	02	1	9002-	●
5	STRAINER; FUEL TANK FUEL TANK 200L+200L<NF7>	1-22460-001-1	02	1	9002-9402	●	●
5	STRAINER; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-22460-001-1	01	1	9002-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9002-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-09604-052-0	01	1	9002-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9002-	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	9002-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9002-9508	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9509-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9509-	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-081-1	01	1	9002-	●	●
22	UNIT; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7>	1-83141-081-1	02	1	9002-	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-081-1	02	1	9002-		●
22	UNIT; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7>	1-83141-080-1	02	1	9002-9508	●
22	UNIT; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9509-	●
22	UNIT; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9509-	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-22440-034-1	01	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-22440-033-2	01	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 300L<RF5> ID=4.3	9-09160-504-0	01	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> ID=4.3	9-09160-504-0	02	1	9002-	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=4.3	9-09160-504-0	02	1	9002-		●
29	WASHER; PL,FUEL TANK UNIT LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9002-	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9002-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L<RF5> ID=4.1	9-09150-504-0	05	1	9002-	●	●
32	WASHER; LK,FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> ID=4.1	9-09150-504-0	10	1	9002-	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=4.1	9-09150-504-0	10	1	9002-		●
32	WASHER; LK,FUEL TANK UNIT LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9002-	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9002-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10	9-93497-410-0	05	1	9002-	●	●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M4X10	9-93497-410-0	10	1	9002-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M4X10	9-93497-410-0	10	1	9002-		●
35	SCREW; FUEL TANK UNIT SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9002-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9002-		●
36	NUT; SPACER,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12	9-99110-412-0	18	1	9002-9304	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L+200L<NF7> M12	9-99110-412-0	18	1	9002-9304		●
36	NUT; SPACER,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9305-	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	9305-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	9002-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	9002-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	9002-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	9002-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (B) L=580	1-22553-018-0	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-22550-204-1	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5>	1-22550-208-2	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7>	1-22550-208-2	04	1	9002-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7>	1-22550-208-2	04	1	9002-		●
40	BELT; SUPPORT,FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7>	1-22550-204-1	04	1	9002-	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9002-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	9002-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-288-0	02	1	9002-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-244-3	01	1	9002-9212	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-244-3	01	1	9002-9212		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-403-0	01	1	9301-9408	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-403-0	01	1	9301-9408		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-409-1	01	1	9409-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) FRONT	1-53461-409-1	01	1	9409-		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-275-2	01	1	9002-9212	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-275-2	01	1	9002-9212		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-404-3	01	1	9301-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> (A) REAR	1-53461-404-3	01	1	9301-		●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) (A) REAR	1-53461-374-0	01	1	9002-9012	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REAR	1-53461-374-0	01	1	9002-9012	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) (A) REAR	1-53461-279-4	01	1	9101-	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REAR	1-53461-279-4	01	1	9101-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REAR	1-53461-279-4	01	1	9101-		●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) (A) FRONT	1-53461-375-0	01	1	9002-	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53461-375-0	01	1	9002-	●
43	BRACKET; FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53461-375-0	01	1	9002-		●
43	BRACKET; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (C)	1-53461-376-0	04	1	9002-	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (C)	1-53461-376-0	04	1	9002-		●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> (B)	1-53461-374-0	02	1	9002-9012	●
43	BRACKET; FUEL TANK LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> (B)	1-53461-279-4	02	1	9101-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35	9-01911-235-0	16	1	9002-9005	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	16	1	9006-9302	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	11	1	9007-9307	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	11	1	9308-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X50 M12X50 W/LK WASHER	0-50041-250-0	01	1	9007-9307	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	01	1	9308-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	12	1	9308-9412	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-	●	●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	48	1	9002-9005	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	48	1	9002-9005		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	48	1	9006-9307	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	48	1	9006-9307		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	48	1	9308-9412	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	48	1	9308-9412		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9501-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9501-		●
45	BOLT; BRKT,FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	24	1	9501-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	24	1	9501-		●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5> (A) FRONT L=380	1-53461-289-2	01	1	9002-	●	●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5> (B) REAR L=380	1-53461-290-2	01	1	9002-	●	●
47	SPACER; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (C) L=435	1-53461-190-3	01	1	9002-	●
47	SPACER; FUEL TANK FUEL TANK 200L+200L<NF7> (C) L=435	1-53461-190-3	01	1	9002-		●
47	SPACER; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (A) L=435	1-53461-191-1	01	1	9002-	●
47	SPACER; FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=435	1-53461-191-1	01	1	9002-		●
47	SPACER; FUEL TANK SHORT CHASSIS(CX***C) FUEL TANK 200L+200L<NF7> (B) L=435	1-53461-192-3	02	1	9002-	●
47	SPACER; FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=435	1-53461-192-3	02	1	9002-		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	08	1	9002-9006	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	08	1	9002-9006		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	24	1	9002-9304	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	24	1	9002-9304		●
49	NUT; BRKT LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9305-	●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9305-	●
49	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	9305-		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	07	1	9007-9304	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-412-0	07	1	9007-9304		●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-512-0	07	1	9305-	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12	9-99110-512-0	07	1	9305-		●
49	NUT; BRKT LONG CHASSIS(CX***F) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-412-0	12	1	9002-9304	●
49	NUT; BRKT SHORT CHASSIS(CX***C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-412-0	12	1	9002-9304	●
49	NUT; BRKT LONG CHASSIS(CX***F) FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9305-	●
51	BOLT; BRKT TO FRAME CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40	9-01911-240-0	12	1	9002-9005	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40	9-01911-240-0	12	1	9002-9005		●
51	BOLT; BRKT TO FRAME CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	12	1	9006-9307	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	12	1	9006-9307		●
51	BOLT; BRKT TO FRAME CXZ(CXZ***) EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	12	1	9308-	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	12	1	9308-		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45	9-01911-245-0	08	1	9002-9005	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45	9-01911-245-0	08	1	9002-9005		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45 W/LK WASHER	0-50041-245-0	08	1	9006-9102	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X45 W/LK WASHER	0-50041-245-0	08	1	9006-9102		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	08	1	9103-9307	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER	0-50041-240-0	08	1	9103-9307		●
51	BOLT; BRKT TO FRAME SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	08	1	9308-	●
51	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28081-240-0	08	1	9308-		●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> M12X40	9-01911-240-0	24	1	9002-9005	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> M12X40 W/LK WASHER	0-50041-240-0	24	1	9006-9307	●
51	BOLT; BRKT TO FRAME CXZ&LONG CHASISS(CXZ**F) FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	24	1	9308-	●
51	BOLT; BRKT TO FRAME CXM(CXM***) FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	24	1	9002-9005	●
51	BOLT; BRKT TO FRAME CXM(CXM***) FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	24	1	9006-9307	●
51	BOLT; BRKT TO FRAME CXM(CXM***) FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	24	1	9308-	●
51	BOLT; BRKT TO FRAME CXM(CXM***) EXC. FUEL TANK 200L+200L<NF7> M12X35	9-01911-235-0	12	1	9002-9005	●
51	BOLT; BRKT TO FRAME CXM(CXM***) EXC. FUEL TANK 200L+200L<NF7> M12X35 W/LK WASHER	0-50041-235-0	12	1	9006-9307	●
51	BOLT; BRKT TO FRAME CXM(CXM***) EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	02	1	9002-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> T=0.80	1-22416-004-0	02	1	9002-	●	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9002-	●	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6) ID=15	9-09715-098-0	02	1	9002-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
