12 |
17.405 ANGLE; SETTING,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
8-98045-235-0 |
01 |
1 |
1012-1110 |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3800MM(38W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97565-925-1 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3300MM(33W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97565-924-1 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3300MM(33W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97565-921-1 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3800MM(38W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97565-922-1 |
01 |
1 |
1409- |
● |
|
| |
81 |

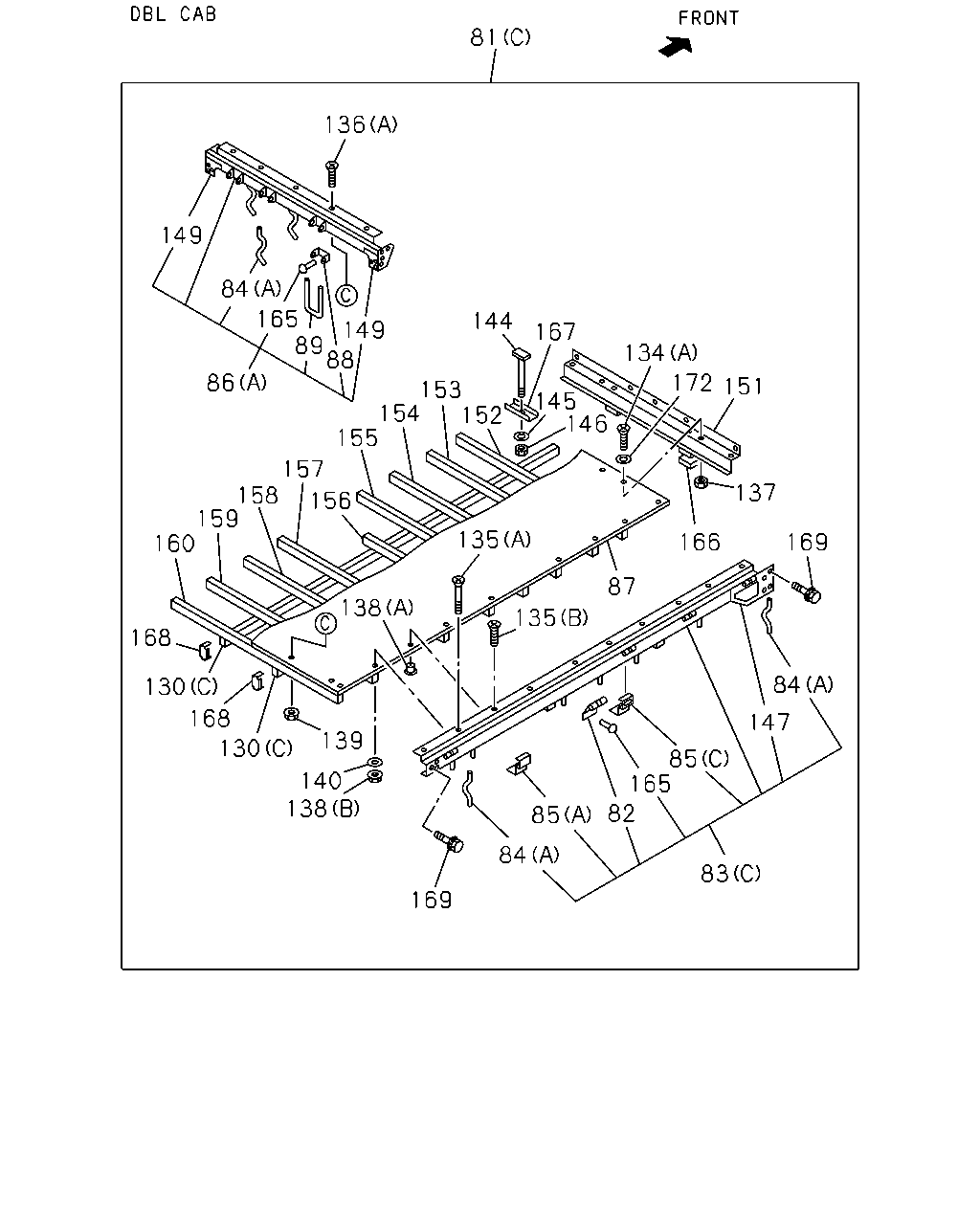

17.400 FLOOR ASM; RR BODY
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97565-923-1 |
01 |
1 |
1409- |
|
● |
| |
81 |

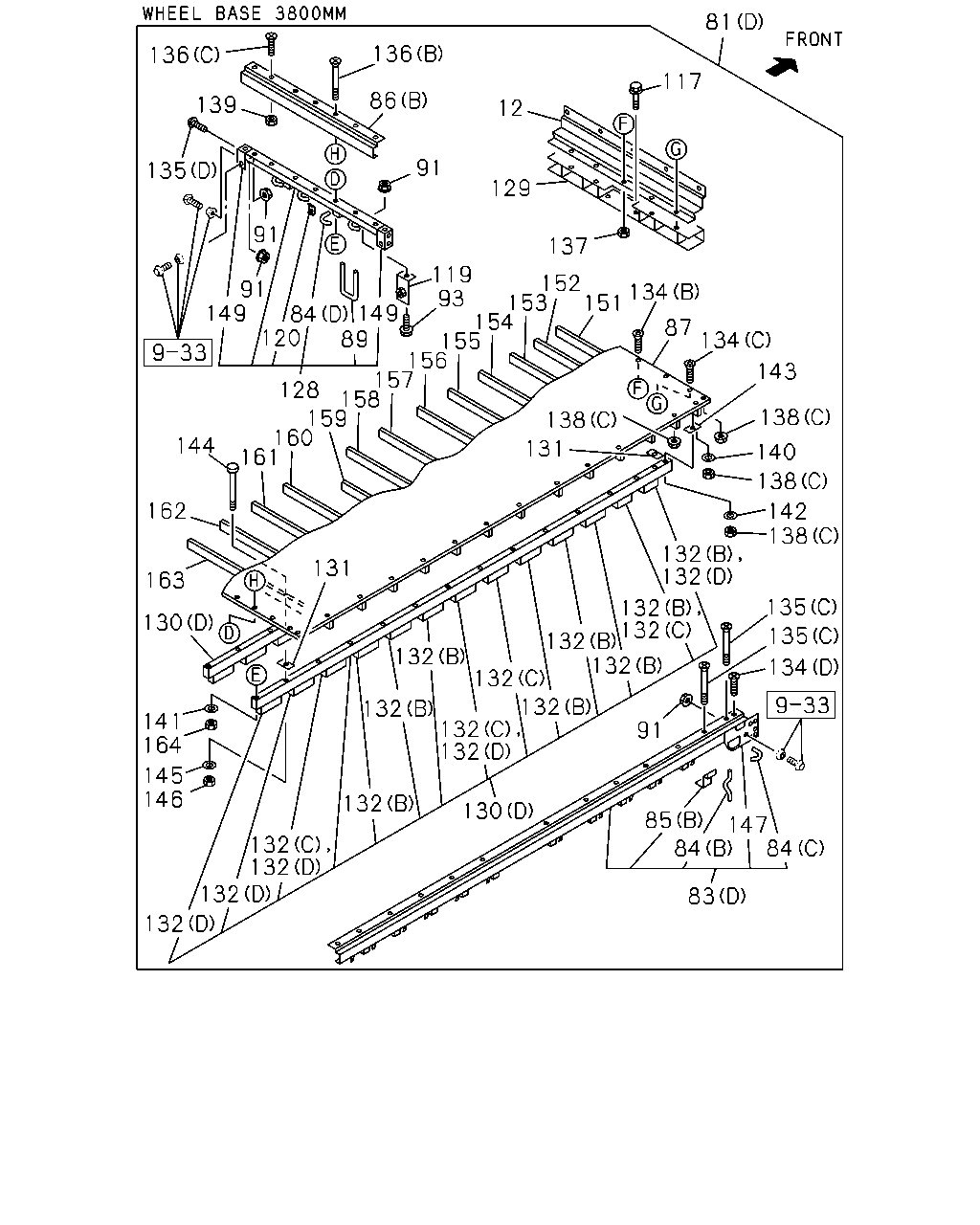

17.400 FLOOR ASM; RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
PABCO
|
8-98089-976-1 |
01 |
1 |
1012-1110 |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-771-4 |
01 |
1 |
1012-1110 |
● |
|
| |
81 |

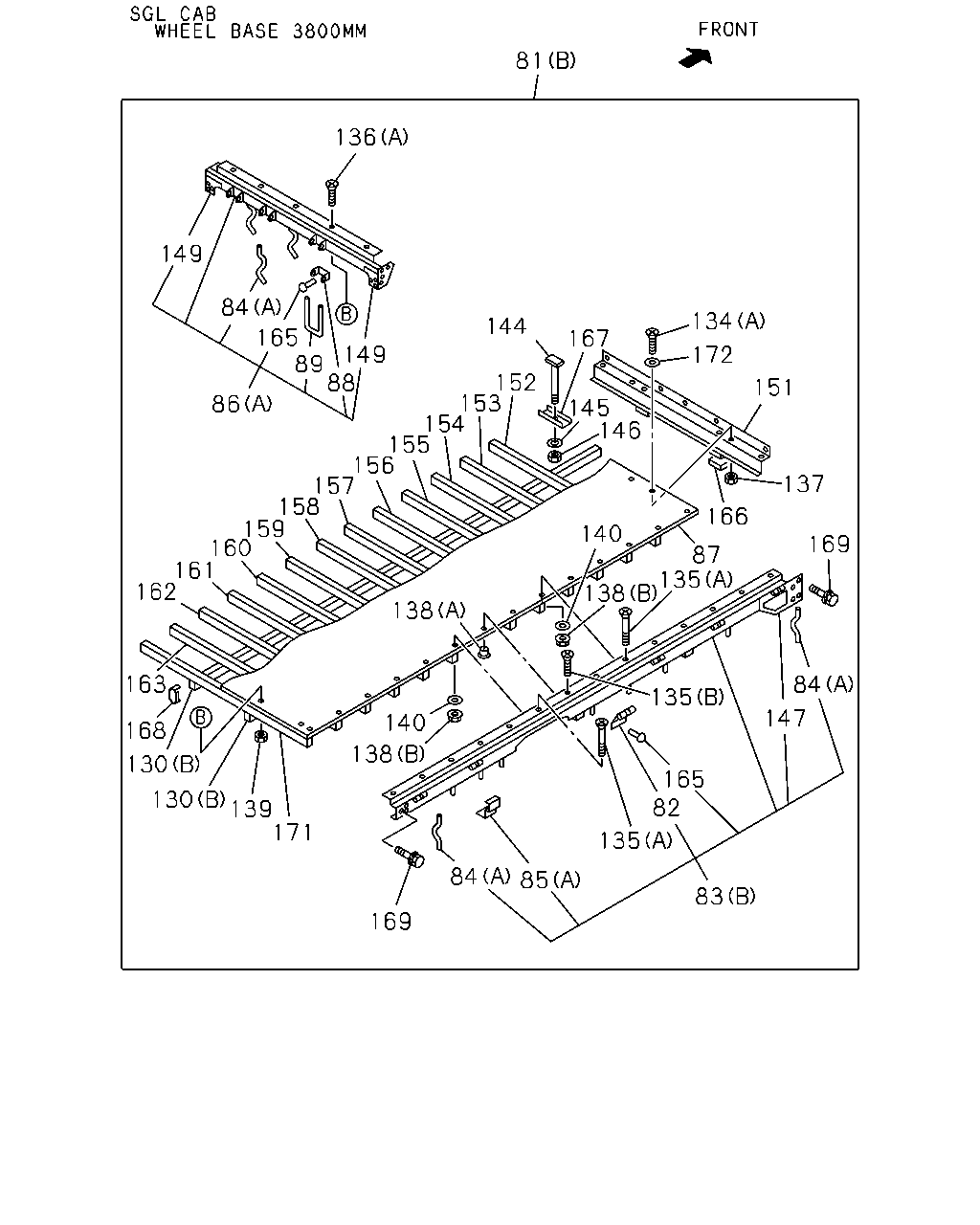

17.400 FLOOR ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-771-7 |
01 |
1 |
1111-1408 |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
EXC. COUNTRY - SAUDI ARABIA<CU8>
(B)
TAKADA
|
8-97594-771-8 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-770-6 |
01 |
1 |
1012-1408 |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
EXC. COUNTRY - SAUDI ARABIA<CU8>
(A)
TAKADA
|
8-97594-770-7 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-502-5 |
01 |
1 |
1012-1408 |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME
STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-502-6 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-503-6 |
01 |
1 |
1012-1408 |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME
STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-503-7 |
01 |
1 |
1409- |
● |
|
| |
81 |
17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97594-507-5 |
01 |
1 |
1012-1408 |
|
● |
| |
81 |
17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
(C)
TAKADA
|
8-97594-507-6 |
01 |
1 |
1409- |
|
● |
| |
83 |
08.309 FRAME; SIDE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
PABCO
|
8-98045-231-0 |
01 |
1 |
1012-1110 |
● |
|
| |
83 |
08.309 FRAME; SIDE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
PABCO
|
8-98045-232-0 |
01 |
1 |
1012-1110 |
● |
|
| |
83 |
08.309 FRAME; SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-808-0 |
01 |
1 |
1012-1110 |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-808-0 |
01 |
1 |
1111- |
● |
|
| |
83 |
08.309 FRAME; SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-809-0 |
01 |
1 |
1012-1110 |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-809-0 |
01 |
1 |
1111- |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-514-0 |
01 |
1 |
1012- |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-515-0 |
01 |
1 |
1012- |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-518-0 |
01 |
1 |
1012- |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-519-0 |
01 |
1 |
1012- |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-520-0 |
01 |
1 |
1012- |
● |
|
| |
83 |
08.309 FRAME; SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-521-0 |
01 |
1 |
1012- |
● |
|
| |
83 |
08.309 FRAME; SIDE
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97594-522-0 |
01 |
1 |
1012- |
|
● |
| |
83 |
08.309 FRAME; SIDE
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97594-523-0 |
01 |
1 |
1012- |
|
● |
| |
84 |
08.820 HOOK; ROPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B) SIDE
PABCO
|
5-87580-069-0 |
24 |
1 |
1012-1110 |
● |
|
| |
84 |
08.820 HOOK; ROPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(C) SIDE
PABCO
|
5-87580-070-0 |
02 |
1 |
1012-1110 |
● |
|
| |
84 |
08.820 HOOK; ROPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D) REAR
PABCO
|
5-87580-077-0 |
03 |
1 |
1012-1110 |
● |
|
| |
84 |
08.820 HOOK; ROPE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-866-0 |
25 |
1 |
1012-1110 |
● |
|
| |
84 |
08.820 HOOK; ROPE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-866-0 |
25 |
1 |
1012-1110 |
● |
|
| |
84 |
08.820 HOOK; ROPE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97593-866-0 |
25 |
1 |
1111- |
● |
|
| |
84 |
08.820 HOOK; ROPE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97593-866-0 |
21 |
1 |
1012- |
● |
|
| |
84 |
08.820 HOOK; ROPE
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97593-866-0 |
15 |
1 |
1012- |
|
● |
| |
85 |
08.212 BRACKET; SIDE FRAME
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97594-849-0 |
02 |
1 |
1012- |
|
● |
| |
85 |
08.212 BRACKET; SIDE FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
PABCO
|
5-87580-068-0 |
22 |
1 |
1012-1110 |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER ME
T(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-864-0 |
02 |
1 |
1012-1110 |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97593-864-0 |
02 |
1 |
1012-1110 |
|
● |
| |
85 |
08.212 BRACKET; SIDE FRAME
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER ME
T(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-864-0 |
02 |
1 |
1111- |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97593-864-0 |
02 |
1 |
1111- |
|
● |
| |
85 |
08.212 BRACKET; SIDE FRAME
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-865-0 |
04 |
1 |
1012-1110 |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-865-0 |
04 |
1 |
1111- |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-865-0 |
06 |
1 |
1012- |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97593-865-0 |
06 |
1 |
1012- |
● |
|
| |
86 |
17.202 FRAME; RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
PABCO
|
8-98045-233-0 |
01 |
1 |
1012-1110 |
● |
|
| |
86 |
17.202 FRAME; RR
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-525-0 |
01 |
1 |
1012-1110 |
● |
|
| |
86 |
17.202 FRAME; RR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-525-0 |
01 |
1 |
1012-1110 |
● |
|
| |
86 |
17.202 FRAME; RR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97594-525-0 |
01 |
1 |
1012-1110 |
● |
|
| |
86 |
17.202 FRAME; RR
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97594-525-0 |
01 |
1 |
1012-1110 |
|
● |
| |
86 |
17.202 FRAME; RR
RR BODY FLAT BED<RS6>
(A)
TAKADA
|
8-97594-525-0 |
01 |
1 |
1111- |
● |
● |
| |
87 |
17.400 BOARD; FLOOR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
5-87580-105-0 |
01 |
1 |
1012-1110 |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97565-210-1 |
01 |
1 |
1111- |
● |
|
| |
87 |
17.400 BOARD; FLOOR
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97594-811-0 |
01 |
1 |
1012-1110 |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97594-810-0 |
01 |
1 |
1012-1110 |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97565-208-1 |
01 |
1 |
1111- |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97594-532-0 |
01 |
1 |
1012-1110 |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97565-209-1 |
01 |
1 |
1111- |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97594-533-0 |
01 |
1 |
1012-1110 |
● |
|
| |
87 |
17.400 BOARD; FLOOR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97565-211-1 |
01 |
1 |
1111- |
● |
|
| |
87 |
17.400 BOARD; FLOOR
RR BODY FLAT BED<RS6>
TAKADA
|
8-97594-534-0 |
01 |
1 |
1012-1110 |
|
● |
| |
87 |
17.400 BOARD; FLOOR
RR BODY FLAT BED<RS6>
TAKADA
|
8-97565-206-1 |
01 |
1 |
1111- |
|
● |
| |
89 |
17.400 STEP; RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
5-87580-142-0 |
01 |
1 |
1012-1110 |
● |
|
| |
89 |
17.400 STEP; RR
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-886-0 |
01 |
1 |
1012-1110 |
● |
|
| |
89 |
17.400 STEP; RR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-886-0 |
01 |
1 |
1012-1110 |
● |
|
| |
89 |
17.400 STEP; RR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-886-0 |
01 |
1 |
1012-1110 |
● |
|
| |
89 |
17.400 STEP; RR
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-886-0 |
01 |
1 |
1012-1110 |
|
● |
| |
89 |
17.400 STEP; RR
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-886-0 |
01 |
1 |
1111- |
● |
● |
| |
91 |
17.447 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
01.062
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
1012-1110 |
● |
|
| |
93 |
17.447 BOLT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
09.242
M6X16 FLANGE
|
0-28050-616-0 |
06 |
1 |
1012-1110 |
● |
|
| |
117 |
17.400 BOLT; SILL
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
03.890
M10X30 FLANGE
|
0-28051-030-0 |
02 |
1 |
1012-1110 |
● |
|
| |
119 |
02.662 BRACKET; COMB LAMP
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
8-98045-126-0 |
01 |
1 |
1012-1110 |
● |
|
| |
119 |
02.662 BRACKET; COMB LAMP
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
8-98045-127-0 |
01 |
1 |
1012-1110 |
● |
|
| |
120 |
07.800 BRACKET; NUMBER PLATE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
5-87580-080-0 |
02 |
1 |
1012-1110 |
● |
|
| |
128 |
17.208 BOLSTER; RR END,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
8-98045-234-0 |
01 |
1 |
1012-1110 |
● |
|
| |
129 |
17.400 SUPPORT; GUARD FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
8-98045-101-0 |
02 |
1 |
1012-1110 |
● |
|
| |
130 |

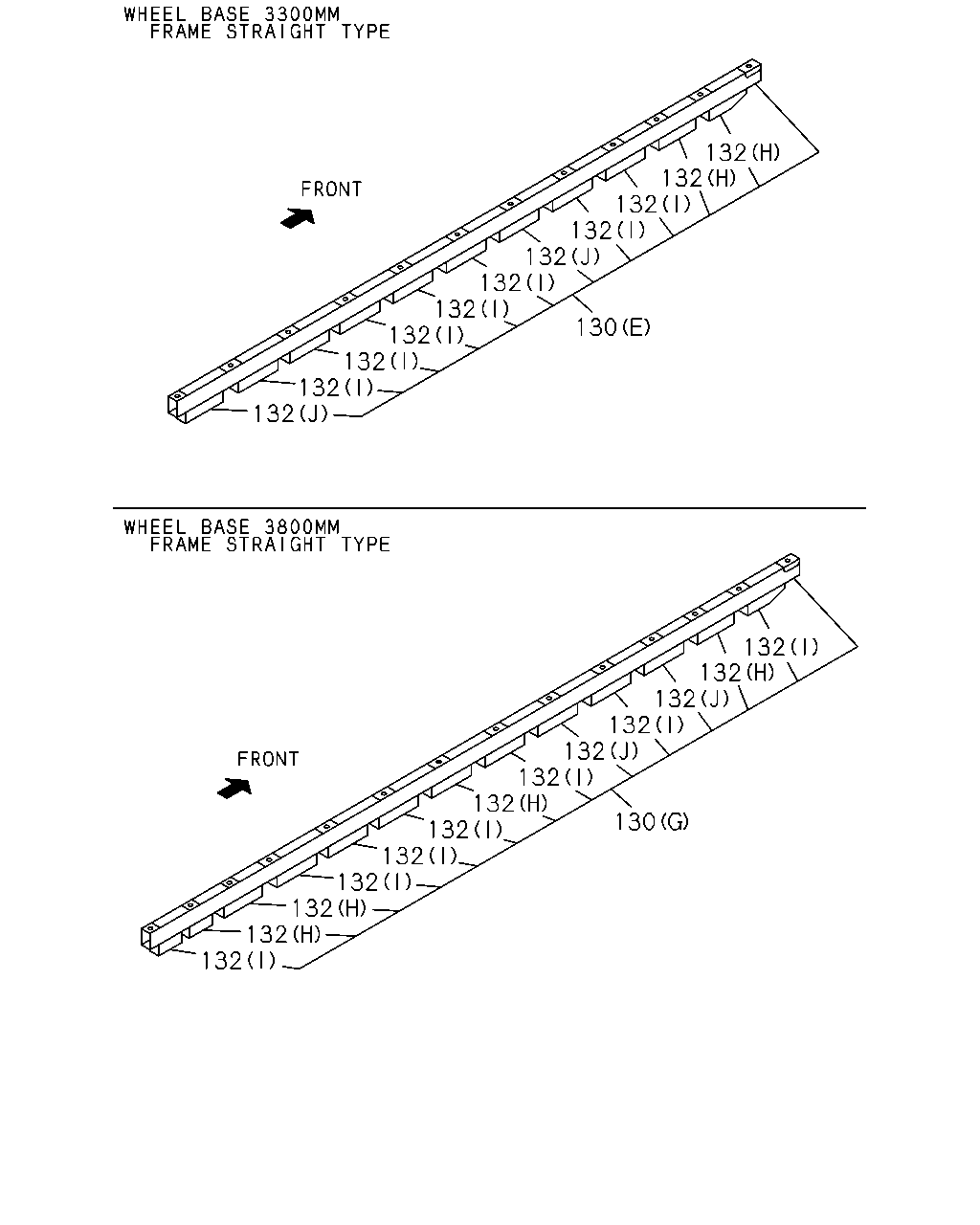

17.208 SILL ASM; RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
PABCO
|
5-87580-110-1 |
01 |
1 |
1012-1110 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
PABCO
|
5-87580-111-1 |
01 |
1 |
1012-1110 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-820-0 |
01 |
1 |
1012-1110 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-820-0 |
01 |
1 |
1111-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
TAKADA
|
8-97565-242-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-821-0 |
01 |
1 |
1012-1110 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-821-0 |
01 |
1 |
1111-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
TAKADA
|
8-97565-243-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-818-0 |
01 |
1 |
1012-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(E)
TAKADA
|
8-97565-240-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-819-0 |
01 |
1 |
1012-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(E)
TAKADA
|
8-97565-241-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-560-0 |
01 |
1 |
1012-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
TAKADA
|
8-97565-234-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-561-0 |
01 |
1 |
1012-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
TAKADA
|
8-97565-235-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-562-0 |
01 |
1 |
1012-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(H)
TAKADA
|
8-97565-236-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
TAKADA
|
8-97594-563-0 |
01 |
1 |
1012-1203 |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(H)
TAKADA
|
8-97565-237-0 |
01 |
1 |
1204- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97594-564-0 |
01 |
1 |
1012-1203 |
|
● |
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED<RS6>
(I)
TAKADA
|
8-97565-238-0 |
01 |
1 |
1204- |
|
● |
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED<RS6>
(C)
TAKADA
|
8-97594-565-0 |
01 |
1 |
1012-1203 |
|
● |
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED<RS6>
(I)
TAKADA
|
8-97565-239-0 |
01 |
1 |
1204- |
|
● |
| |
131 |
07.800 PLATE; BOLSTER,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
5-87580-103-0 |
26 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-97565-164-0 |
12 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(I)
|
8-97565-165-0 |
12 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=280 PABCO
|
5-87580-041-0 |
14 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250 PABCO
|
5-87580-042-0 |
02 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
L=210 PABCO
|
5-87580-082-0 |
10 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(F)
|
8-97594-158-0 |
16 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
|
8-97594-158-0 |
16 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(F)
|
8-97594-158-0 |
16 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(F)
|
8-97594-158-0 |
16 |
1 |
1111-1203 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-97565-164-0 |
08 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-156-0 |
01 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-156-0 |
01 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-156-0 |
01 |
1 |
1111-1203 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(J)
|
8-97565-166-0 |
04 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-157-0 |
01 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-157-0 |
01 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-157-0 |
01 |
1 |
1111-1203 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(I)
|
8-97565-165-0 |
14 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-97594-160-0 |
08 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-97594-160-0 |
08 |
1 |
1012-1110 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
(E)
|
8-97594-160-0 |
08 |
1 |
1111-1203 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-97565-164-0 |
04 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(H)
|
8-97565-164-0 |
04 |
1 |
1204- |
|
● |
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(E)
|
8-97594-160-0 |
04 |
1 |
1012-1203 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(I)
|
8-97565-165-0 |
16 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97594-159-0 |
02 |
1 |
1012-1203 |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(J)
|
8-97565-166-0 |
06 |
1 |
1204- |
● |
|
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(F)
|
8-97594-158-0 |
12 |
1 |
1012-1203 |
|
● |
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(K)
|
8-97565-163-0 |
04 |
1 |
1204- |
|
● |
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(E)
|
8-97594-160-0 |
02 |
1 |
1012-1203 |
|
● |
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(I)
|
8-97565-165-0 |
10 |
1 |
1204- |
|
● |
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(A)
|
8-97594-161-0 |
04 |
1 |
1012-1203 |
|
● |
| |
132 |
17.208 SPACER; SILL,RR BODY
RR BODY FLAT BED<RS6>
(J)
|
8-97565-166-0 |
02 |
1 |
1204- |
|
● |
| |
134 |
17.505 SCREW; BOARD,FRT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
M8X32 PABCO
|
8-98045-186-0 |
03 |
1 |
1012-1110 |
● |
|
| |
134 |
17.505 SCREW; BOARD,FRT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(C)
M8X34 PABCO
|
8-98045-187-0 |
04 |
1 |
1012-1110 |
● |
|
| |
134 |
17.505 SCREW; BOARD,FRT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(D)
M8X30 PABCO
|
8-98045-189-0 |
02 |
1 |
1012-1110 |
● |
|
| |
134 |
17.505 SCREW; BOARD,FRT
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
06 |
1 |
1012-1110 |
● |
|
| |
134 |
17.505 SCREW; BOARD,FRT
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
06 |
1 |
1012-1110 |
● |
|
| |
134 |
17.505 SCREW; BOARD,FRT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
06 |
1 |
1012-1110 |
● |
|
| |
134 |
17.505 SCREW; BOARD,FRT
RR BODY FLAT BED<RS6>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
06 |
1 |
1012-1110 |
|
● |
| |
134 |
17.505 SCREW; BOARD,FRT
RR BODY FLAT BED<RS6>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1111- |
● |
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(C)
M8X124 PABCO
|
8-98045-173-0 |
24 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.185
(D)
M8X20 PABCO
|
8-98045-181-0 |
04 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED<RS6>
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1012-1110 |
|
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED<RS6>
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1111- |
● |
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(A)
M8X99 TAKADA
|
8-97594-760-0 |
22 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
M8X99 TAKADA
|
8-97594-760-0 |
22 |
1 |
1012-1110 |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
(A)
M8X99 TAKADA
|
8-97594-760-0 |
22 |
1 |
1111- |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(A)
M8X99 TAKADA
|
8-97594-760-0 |
18 |
1 |
1012- |
● |
|
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED<RS6>
(A)
M8X99 TAKADA
|
8-97594-760-0 |
14 |
1 |
1012- |
|
● |
| |
136 |
17.505 SCREW; BOARD,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
M10X220 PABCO
|
8-98045-172-0 |
02 |
1 |
1012-1110 |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(C)
M8X30 PABCO
|
8-98045-189-0 |
07 |
1 |
1012-1110 |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1012-1110 |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1012-1110 |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1012-1110 |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
RR BODY FLAT BED<RS6>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1012-1110 |
|
● |
| |
136 |
17.505 SCREW; BOARD,RR
RR BODY FLAT BED<RS6>
17.455
(A)
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1111- |
● |
● |
| |
137 |
17.447 NUT; BOARD,FRT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
16.682
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
07 |
1 |
1012-1110 |
● |
|
| |
137 |
17.447 NUT; BOARD,FRT
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
|
8-94193-939-2 |
06 |
1 |
1012-1110 |
● |
|
| |
137 |
17.447 NUT; BOARD,FRT
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
|
8-94193-939-2 |
06 |
1 |
1012-1110 |
● |
|
| |
137 |
17.447 NUT; BOARD,FRT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
M8 FLANGE
|
8-94193-939-2 |
06 |
1 |
1012-1110 |
● |
|
| |
137 |
17.447 NUT; BOARD,FRT
RR BODY FLAT BED<RS6>
M8 FLANGE
|
8-94193-939-2 |
06 |
1 |
1012-1110 |
|
● |
| |
137 |
17.447 NUT; BOARD,FRT
RR BODY FLAT BED<RS6>
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1111- |
● |
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
(B)
M8 FLANGE
|
8-94193-939-2 |
16 |
1 |
1409- |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
16.682
(C)
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
24 |
1 |
1012-1110 |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.185
(A)
M8
|
8-94193-954-1 |
02 |
1 |
1012-1110 |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
17.185
(A)
M8
|
8-94193-954-1 |
02 |
1 |
1012-1110 |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
17.185
(A)
M8
|
8-94193-954-1 |
02 |
1 |
1012-1110 |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED<RS6>
17.185
(A)
M8
|
8-94193-954-1 |
02 |
1 |
1012-1110 |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED<RS6>
17.185
(A)
M8
|
8-94193-954-1 |
02 |
1 |
1111-1303 |
● |
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED<RS6>
(A)
M8
|
8-97565-434-0 |
02 |
1 |
1304- |
● |
● |
| |
138 |
17.447 NUT; BOARD,SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(B)
M8 FLANGE
|
8-94193-939-2 |
22 |
1 |
1012-1110 |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
M8 FLANGE
|
8-94193-939-2 |
22 |
1 |
1012-1110 |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
(B)
M8 FLANGE
|
8-94193-939-2 |
22 |
1 |
1111- |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(B)
M8 FLANGE
|
8-94193-939-2 |
18 |
1 |
1012- |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED<RS6>
(B)
M8 FLANGE
|
8-94193-939-2 |
14 |
1 |
1012-1203 |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED<RS6>
(B)
M8 FLANGE
|
8-94193-939-2 |
16 |
1 |
1204-1408 |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
(B)
M8 FLANGE
|
8-94193-939-2 |
14 |
1 |
1409- |
|
● |
| |
139 |
17.447 NUT; BOARD,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
02 |
1 |
1012-1110 |
● |
|
| |
139 |
17.447 NUT; BOARD,RR
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1012-1110 |
● |
|
| |
139 |
17.447 NUT; BOARD,RR
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1012-1110 |
● |
|
| |
139 |
17.447 NUT; BOARD,RR
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1012-1110 |
● |
|
| |
139 |
17.447 NUT; BOARD,RR
RR BODY FLAT BED<RS6>
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1012-1110 |
|
● |
| |
139 |
17.447 NUT; BOARD,RR
RR BODY FLAT BED<RS6>
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1111- |
● |
● |
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
03.706
ID=8.4 OD=26
|
0-91614-808-0 |
04 |
1 |
1012-1110 |
● |
|
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
16 |
1 |
1012-1110 |
● |
|
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
16 |
1 |
1012-1110 |
● |
|
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
16 |
1 |
1111- |
● |
|
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
12 |
1 |
1012- |
● |
|
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
RR BODY FLAT BED<RS6>
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
10 |
1 |
1012- |
|
● |
| |
141 |
17.447 WASHER; PL,RR FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
01.270
ID=10.5
|
0-91610-710-0 |
02 |
1 |
1012-1110 |
● |
|
| |
142 |
17.447 WASHER; PL,SILL
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
02 |
1 |
1012-1110 |
● |
|
| |
143 |
17.447 SHIM; SUPPORT,GUARD FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
8-98045-210-0 |
02 |
1 |
1012-1110 |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
M10X202 TAKADA
|
8-97592-730-0 |
14 |
1 |
1409- |
|
● |
| |
144 |
17.447 BOLT; BOLSTER TO SILL
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
M10X194 PABCO
|
5-87580-047-0 |
26 |
1 |
1012-1110 |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
M10X202 TAKADA
|
8-97592-730-0 |
24 |
1 |
1012-1110 |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
M10X202 TAKADA
|
8-97592-730-0 |
24 |
1 |
1012-1110 |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
M10X202 TAKADA
|
8-97592-730-0 |
24 |
1 |
1111- |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
M10X202 TAKADA
|
8-97592-730-0 |
20 |
1 |
1012- |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
RR BODY FLAT BED<RS6>
M10X202 TAKADA
|
8-97592-730-0 |
14 |
1 |
1012-1408 |
|
● |
| |
144 |
17.447 BOLT; BOLSTER TO SILL
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
M10X202 TAKADA
|
8-97592-730-0 |
16 |
1 |
1409- |
|
● |
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
01.270
ID=10.5
|
0-91610-710-0 |
26 |
1 |
1012-1110 |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
03.706
ID=10.5 OD=32
|
9-09164-810-0 |
28 |
1 |
1012-1110 |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.706
ID=10.5 OD=32
|
9-09164-810-0 |
28 |
1 |
1012-1110 |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
03.706
ID=10.5 OD=32
|
9-09164-810-0 |
28 |
1 |
1111-1203 |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
28 |
1 |
1204- |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
03.706
ID=10.5 OD=32
|
9-09164-810-0 |
24 |
1 |
1012-1203 |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
24 |
1 |
1204- |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
RR BODY FLAT BED<RS6>
03.706
ID=10.5 OD=32
|
9-09164-810-0 |
20 |
1 |
1012-1203 |
|
● |
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
RR BODY FLAT BED<RS6>
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
20 |
1 |
1204- |
|
● |
| |
146 |
17.447 NUT; BOLSTER TO SILL
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
M10 TAKADA
|
8-97594-444-0 |
18 |
1 |
1409- |
|
● |
| |
146 |
17.447 NUT; BOLSTER TO SILL
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
04.634
M10 LOCK NUT FLANGE
|
0-91380-010-0 |
26 |
1 |
1012-1110 |
● |
|
| |
146 |
17.447 NUT; BOLSTER TO SILL
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
M10 TAKADA
|
8-97594-444-0 |
28 |
1 |
1012-1110 |
● |
|
| |
146 |
17.447 NUT; BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
M10 TAKADA
|
8-97594-444-0 |
28 |
1 |
1012-1110 |
● |
|
| |
146 |
17.447 NUT; BOLSTER TO SILL
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
M10 TAKADA
|
8-97594-444-0 |
28 |
1 |
1111- |
● |
|
| |
146 |
17.447 NUT; BOLSTER TO SILL
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
M10 TAKADA
|
8-97594-444-0 |
24 |
1 |
1012- |
● |
|
| |
146 |
17.447 NUT; BOLSTER TO SILL
RR BODY FLAT BED<RS6>
M10 TAKADA
|
8-97594-444-0 |
18 |
1 |
1012-1408 |
|
● |
| |
146 |
17.447 NUT; BOLSTER TO SILL
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
M10 TAKADA
|
8-97594-444-0 |
20 |
1 |
1409- |
|
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.447
PABCO
|
5-87580-066-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.447
PABCO
|
5-87580-067-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED<RS6>
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1012-1110 |
|
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED<RS6>
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1111- |
● |
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1012-1110 |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED<RS6>
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1012-1110 |
|
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED<RS6>
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1111- |
● |
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
5-87580-075-1 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
PABCO
|
5-87580-076-1 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-186-0 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-186-0 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-186-0 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-186-0 |
01 |
1 |
1012-1110 |
|
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-186-0 |
01 |
1 |
1111- |
● |
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-187-0 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-187-0 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-187-0 |
01 |
1 |
1012-1110 |
● |
|
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-187-0 |
01 |
1 |
1012-1110 |
|
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED<RS6>
TAKADA
|
8-97593-187-0 |
01 |
1 |
1111- |
● |
● |
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97565-882-0 |
01 |
1 |
1409- |
|
● |
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-217-0 |
01 |
1 |
1111-1203 |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-223-0 |
01 |
1 |
1204- |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-812-0 |
01 |
1 |
1012-1110 |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-812-0 |
01 |
1 |
1012-1110 |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-264-0 |
01 |
1 |
1012-1110 |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-218-0 |
01 |
1 |
1111-1203 |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-198-0 |
01 |
1 |
1204- |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-540-0 |
01 |
1 |
1012-1110 |
|
● |
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97565-216-0 |
01 |
1 |
1111-1203 |
|
● |
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97565-222-0 |
01 |
1 |
1204-1408 |
|
● |
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97565-222-0 |
01 |
1 |
1409- |
|
● |
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-934-1 |
01 |
1 |
1409- |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-933-1 |
01 |
1 |
1409- |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97565-883-1 |
01 |
1 |
1409- |
|
● |
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-107-0 |
01 |
1 |
1012-1110 |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1012-1110 |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1012-1110 |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1111-1408 |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97594-814-1 |
01 |
1 |
1409- |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-0 |
01 |
1 |
1012-1408 |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-266-0 |
01 |
1 |
1012-1408 |
|
● |
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME
STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-1 |
01 |
1 |
1409- |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97594-266-1 |
01 |
1 |
1409- |
|
● |
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1111- |
● |
|
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
|
● |
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3800MM(38W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-934-1 |
01 |
1 |
1409- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3800MM(38W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-933-1 |
01 |
1 |
1409- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97565-883-1 |
01 |
1 |
1409- |
|
● |
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-107-0 |
01 |
1 |
1012-1110 |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1012-1110 |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1111-1408 |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97594-814-1 |
01 |
1 |
1409- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1012- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-0 |
01 |
1 |
1012-1408 |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-266-0 |
01 |
1 |
1012-1408 |
|
● |
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME
STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-1 |
01 |
1 |
1409- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97594-266-1 |
01 |
1 |
1409- |
|
● |
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1111- |
● |
|
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-267-1 |
01 |
1 |
1012- |
|
● |
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3300MM(33W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-934-1 |
01 |
1 |
1409- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3300MM(33W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-933-1 |
01 |
1 |
1409- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1111- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1012-1408 |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97594-814-1 |
01 |
1 |
1409- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-0 |
01 |
1 |
1012-1408 |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME
STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-1 |
01 |
1 |
1409- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
RR BODY FLAT BED<RS6>
L=850 TAKADA
|
8-97594-167-1 |
01 |
1 |
1012- |
|
● |
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3800MM(38W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-934-1 |
01 |
1 |
1409- |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3800MM(38W)
COUNTRY - SAUDI ARABIA<CU8>
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97565-933-1 |
01 |
1 |
1409- |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-107-0 |
01 |
1 |
1012-1110 |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1012-1110 |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-814-0 |
01 |
1 |
1111-1408 |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
EXC. COUNTRY - SAUDI ARABIA<CU8>
L=2048 TAKADA
|
8-97594-814-1 |
01 |
1 |
1409- |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-815-1 |
01 |
1 |
1012- |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-267-1 |
01 |
1 |
1012- |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-267-1 |
01 |
1 |
1012- |
|
● |
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-0 |
01 |
1 |
1012-1408 |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME
STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-266-1 |
01 |
1 |
1409- |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-108-0 |
01 |
1 |
1012-1110 |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-815-0 |
01 |
1 |
1012-1110 |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-815-1 |
01 |
1 |
1111- |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=1888 TAKADA
|
8-97594-816-1 |
01 |
1 |
1012- |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=850 TAKADA
|
8-97594-167-1 |
01 |
1 |
1012- |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-267-1 |
01 |
1 |
1012- |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
|
● |
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=980 PABCO
|
5-87580-109-0 |
01 |
1 |
1012-1110 |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=1888 TAKADA
|
8-97594-816-0 |
01 |
1 |
1012-1110 |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=1888 TAKADA
|
8-97594-816-1 |
01 |
1 |
1111- |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-815-1 |
01 |
1 |
1012- |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-267-1 |
01 |
1 |
1012- |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=850 TAKADA
|
8-97594-167-1 |
01 |
1 |
1012- |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
|
● |
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-108-0 |
01 |
1 |
1012-1110 |
● |
|
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-815-0 |
01 |
1 |
1012-1110 |
● |
|
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-815-1 |
01 |
1 |
1111- |
● |
|
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1012- |
● |
|
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-267-1 |
01 |
1 |
1012- |
● |
|
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
RR BODY FLAT BED<RS6>
L=2048 TAKADA
|
8-97594-548-0 |
01 |
1 |
1012- |
|
● |
| |
161 |
17.208 BOLSTER; NO 11,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
161 |
17.208 BOLSTER; NO 11,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
161 |
17.208 BOLSTER; NO 11,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
161 |
17.208 BOLSTER; NO 11,RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1111- |
● |
|
| |
161 |
17.208 BOLSTER; NO 11,RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1111- |
● |
|
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-817-0 |
01 |
1 |
1012- |
● |
|
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-548-0 |
01 |
1 |
1012- |
● |
|
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
163 |
17.208 BOLSTER; NO 13,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2055 PABCO
|
5-87580-106-0 |
01 |
1 |
1012-1110 |
● |
|
| |
163 |
17.208 BOLSTER; NO 13,RR BODY
4HG1 ENG(RJH)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-0 |
01 |
1 |
1012-1110 |
● |
|
| |
163 |
17.208 BOLSTER; NO 13,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-813-1 |
01 |
1 |
1111- |
● |
|
| |
163 |
17.208 BOLSTER; NO 13,RR BODY
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=2048 TAKADA
|
8-97594-265-1 |
01 |
1 |
1012- |
● |
|
| |
164 |
17.447 NUT; SILL,RR BODY
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
03.704
M10 LOCK NUT
|
0-91370-010-0 |
02 |
1 |
1012-1110 |
● |
|
