Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#33259) — 136 parça

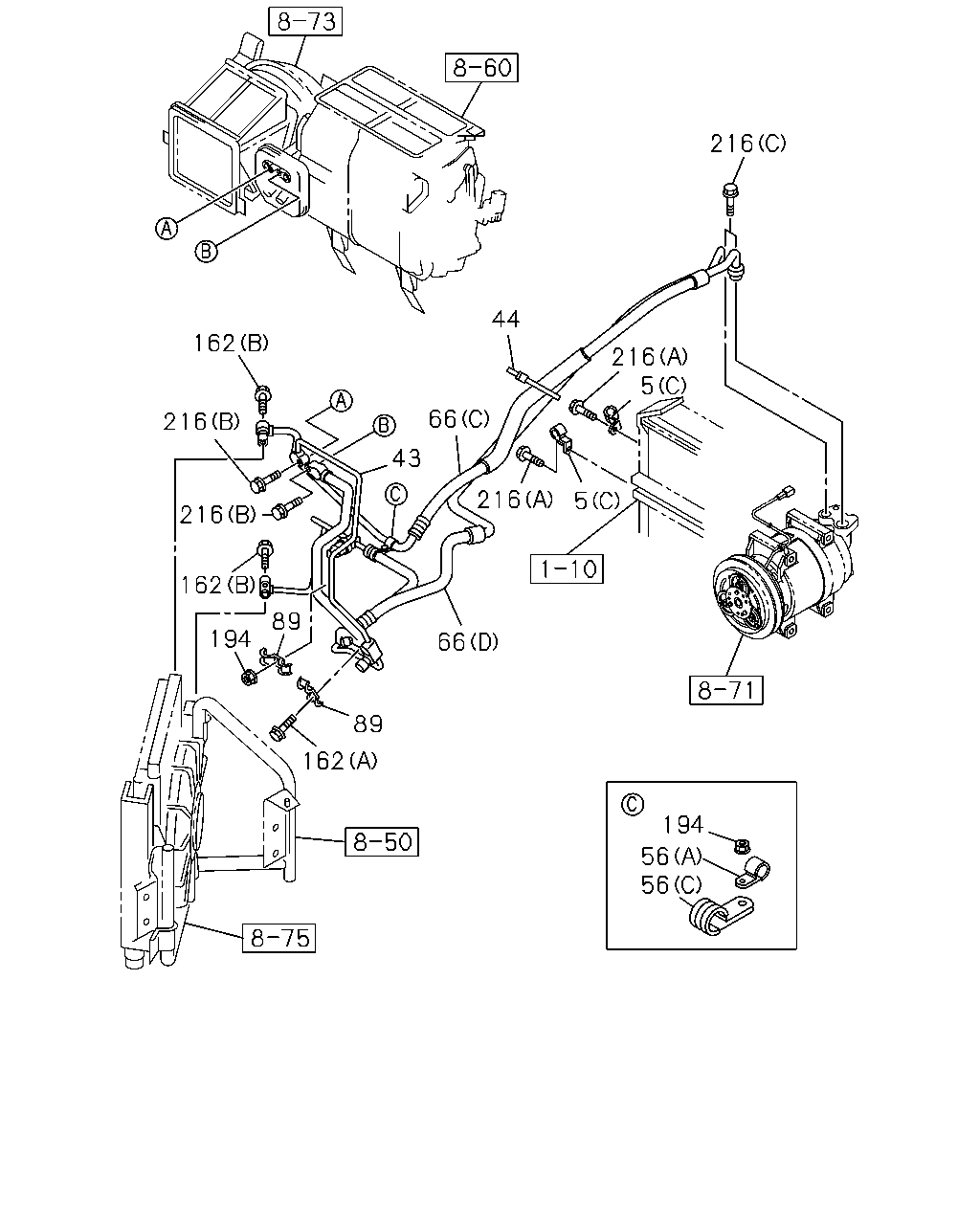

216 44 162 216 5 66 216 43 216 5 216 162 89 194 66 89 162 194 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	09.242 CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=16 H=24 L=20	0-95207-315-0	02	1	1012-1210	●
5	09.242 CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=16 H=24 L=20	0-95207-315-0	02	1	1012-1210		●
5	09.242 CLIP; FLEX HOSE,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=16 H=24 L=20	0-95207-315-0	02	1	1211-1211	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	1012-1307	●		●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1012-	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1012-	●		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1012-	●		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-641-0	01	1	1012-	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-641-0	01	1	1012-		●
56	09.242 CLIP; PIPE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98006-103-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-618-1	01	1	1012-1210	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98222-312-0	01	1	1211-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98021-656-3	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98245-983-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-624-1	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98245-984-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98100-102-2	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-637-1	01	1	1012-1211	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98229-872-0	01	1	1212-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1012-	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1012-	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1012-	●		●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
194	09.242 NUT; HOSE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-		●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-			●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1012-	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
216	09.173 BOLT; HOSE FIX 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1012-	●	●

50 202 50 147 148 67 43 66 67 67 67 148 147 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1012-	●		●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-	●
50	09.222 GASKET; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-		●
50	09.222 GASKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98006-103-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-618-1	01	1	1012-1210	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98222-312-0	01	1	1211-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98021-656-3	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98245-983-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-624-1	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98245-984-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98100-102-2	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-637-1	01	1	1012-1211	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98229-872-0	01	1	1212-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1012-	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1012-	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1012-	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-	●
147	09.242 CAP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-			●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1012-	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-	●
148	09.262 VALVE; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-		●
148	09.262 VALVE; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-			●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-	●
202	09.275 SWITCH; PRESSURE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-		●
202	09.275 SWITCH; PRESSURE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-			●

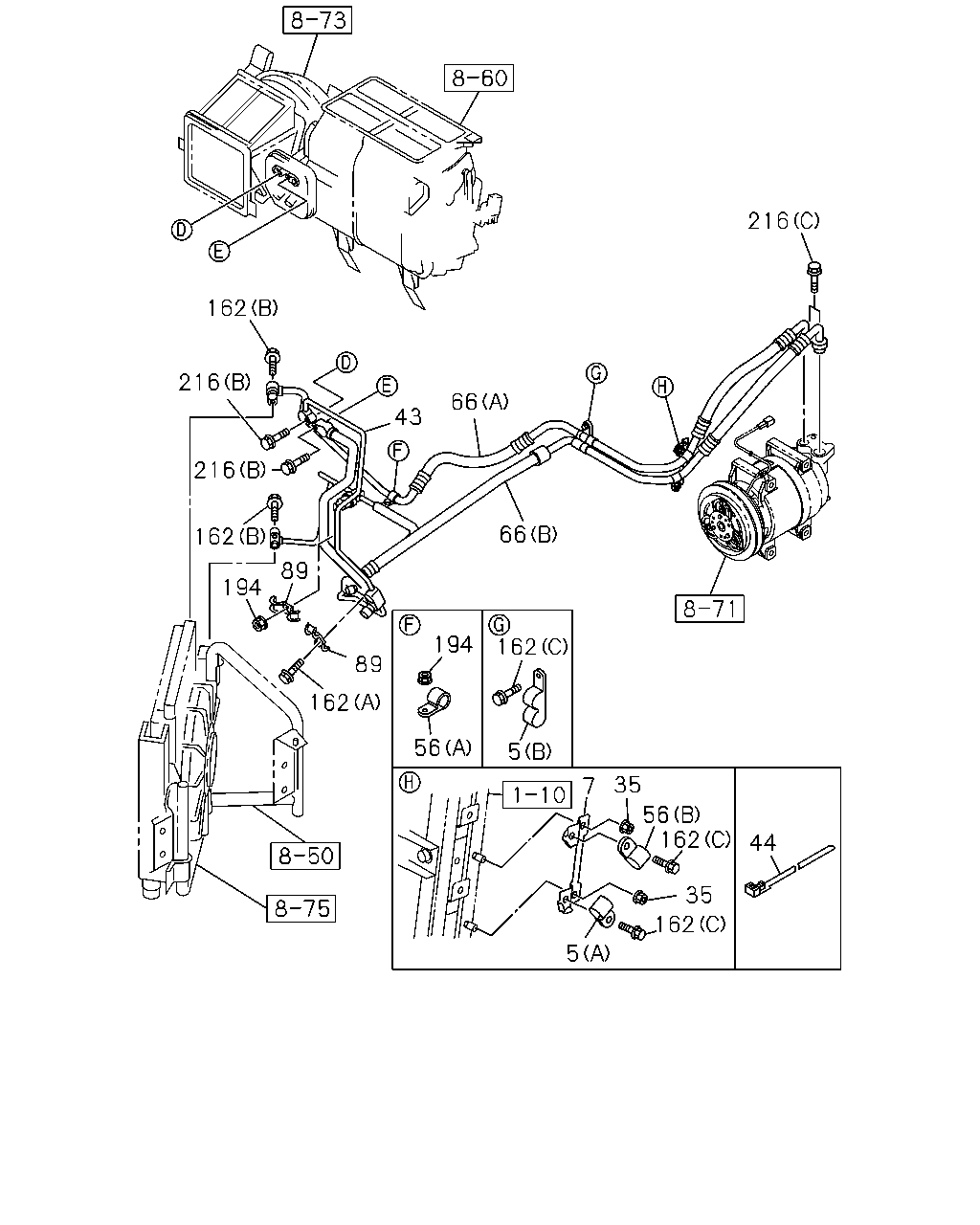

216 162 216 66 43 216 66 162 89 194 162 194 89 162 56 5 35 7 56 162 44 35 162 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	09.242 CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=16 H=24 L=20	0-95207-315-0	02	1	1012-1210	●
5	09.242 CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=16 H=24 L=20	0-95207-315-0	02	1	1012-1210		●
5	09.242 CLIP; FLEX HOSE,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=16 H=24 L=20	0-95207-315-0	02	1	1211-1211	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	1012-1307	●		●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1012-	●		●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1012-	●		●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1012-	●		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1012-	●		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-641-0	01	1	1012-	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98032-641-0	01	1	1012-		●
56	09.242 CLIP; PIPE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98006-103-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-618-1	01	1	1012-1210	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98222-312-0	01	1	1211-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98021-656-3	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98245-983-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-624-1	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98245-984-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98100-102-2	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-637-1	01	1	1012-1211	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98229-872-0	01	1	1212-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1012-	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1012-	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1012-	●		●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
194	09.242 NUT; HOSE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-		●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-			●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1012-	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
216	09.173 BOLT; HOSE FIX 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1012-	●	●

50 202 50 43 67 66 147 148 67 49 67 49 148 147 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1012-	●		●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-461-0	01	1	1308-	●		●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1308-	●		●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-	●
50	09.222 GASKET; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-		●
50	09.222 GASKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98006-103-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-618-1	01	1	1012-1210	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98222-312-0	01	1	1211-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98021-656-3	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98245-983-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-624-1	01	1	1012-1307	●		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98245-984-0	01	1	1308-	●		●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98100-102-2	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-637-1	01	1	1012-1211	●
66	09.225 HOSE; FLEX,A/C 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98229-872-0	01	1	1212-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1012-	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1012-	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1012-	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-	●
147	09.242 CAP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-			●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1012-	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-	●
148	09.262 VALVE; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-		●
148	09.262 VALVE; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-			●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-	●
202	09.275 SWITCH; PRESSURE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-		●
202	09.275 SWITCH; PRESSURE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
