8-50 — AIR CONDITIONING SYSTEM; FRONT (#33258) — 78 parça

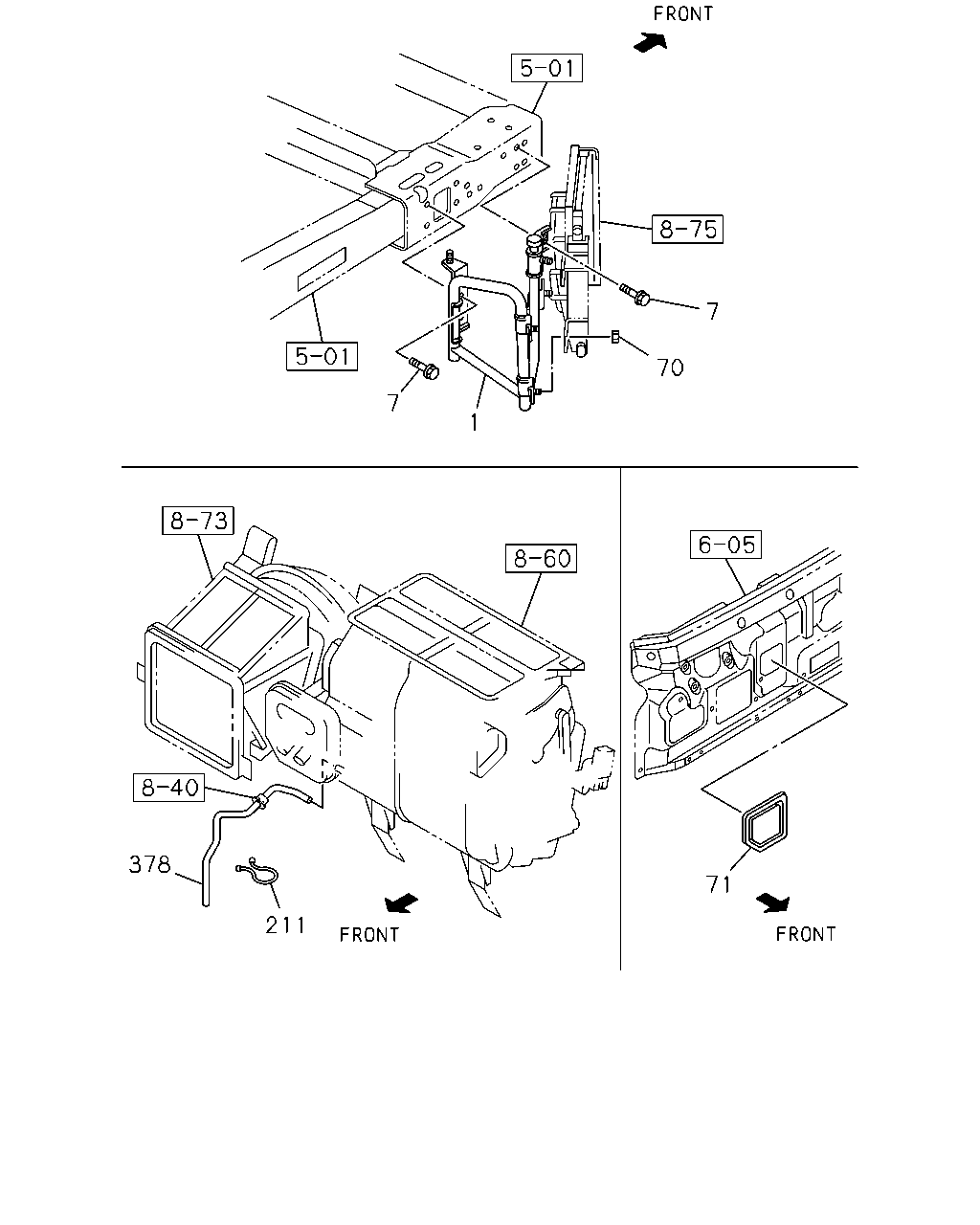

7 70 7 1 378 71 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98006-339-0	01	1	1012-1303	●	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98214-412-0	01	1	1304-	●	●	●
7	09.242 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE	0-28651-230-0	04	1	1012-	●	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●	●
71	09.190 COVER; EVAP,A/C EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-235-1	01	1	1012-1301	●	●	●
71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-235-1	01	1	1302-	●	●	●
211	09.190 CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44	8-94463-508-0	01	1	1012-	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98006-239-3	01	1	1012-	●	●	●

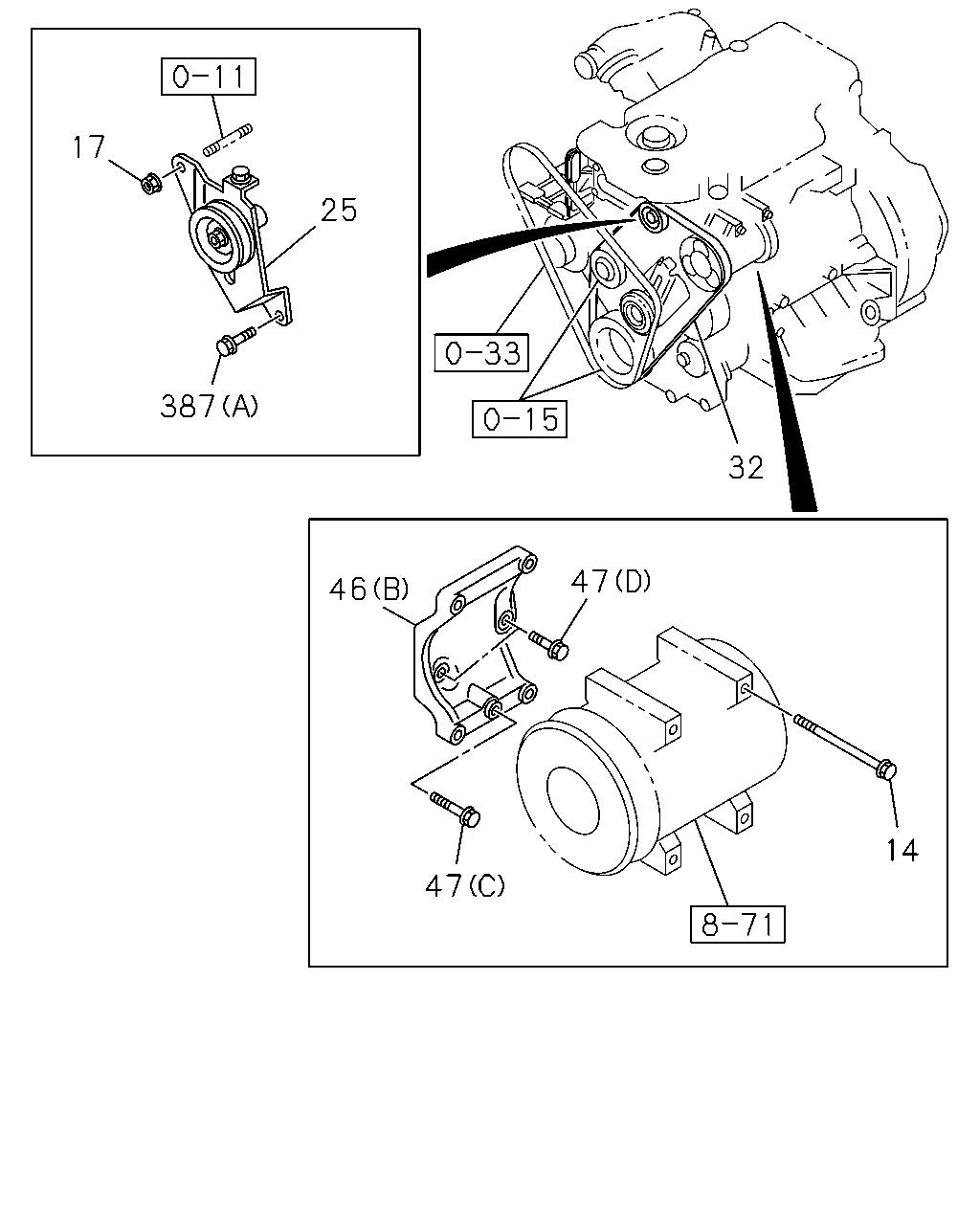

17 25 387 32 47 46 14 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-	●
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-		●
14	09.171 BOLT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-	●		●
17	09.171 NUT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1012-	●		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-		●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1012-	●		●
32	01.066 BELT; A/C CMPR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1012-	●
32	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1674	8-98010-841-1	01	1	1012-	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-	●		●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1012-	●		●
46	09.171 BRACKET; CMPR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 (C)	8-97305-489-0	01	1	1012-	●
46	09.171 BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-98006-515-3	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B)	8-98037-322-0	01	1	1012-	●		●
47	09.173 BOLT; BRKT TO BODY 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (F) M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
47	09.173 BOLT; BRKT TO BODY 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (E) M10X55 FLANGE	8-97365-449-0	02	1	1012-	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE	0-28151-090-0	02	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE	0-28156-012-0	01	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C) M8X45 FLANGE	0-28050-845-0	01	1	1012-	●		●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●		●
387	09.190 BOLT; TENSIONER FIX 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (B) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (C) M10X65 FLANGE	8-94344-540-1	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●		●

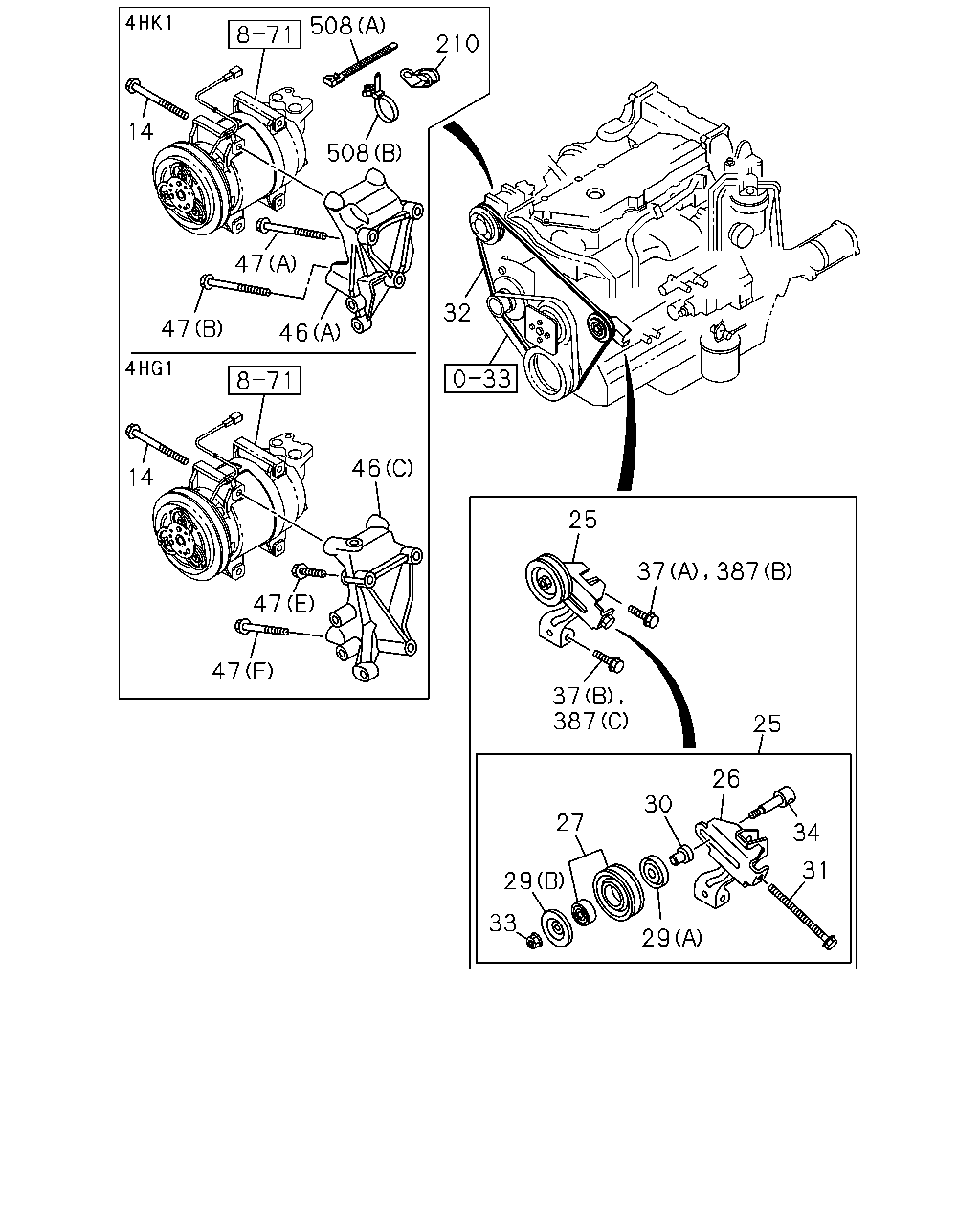

508 210 14 508 47 32 47 46 46 14 25 37 47 47 37 387 25 26 30 27 34 31 29 33 29 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-	●
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-		●
14	09.171 BOLT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-	●		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-		●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1012-	●		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1012-	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1012-		●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1012-	●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1012-		●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1012-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1012-		●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	1012-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	1012-		●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1012-	●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1012-		●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1012-	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1012-		●
32	01.066 BELT; A/C CMPR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1012-	●
32	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1674	8-98010-841-1	01	1	1012-	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-	●		●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1012-	●		●
33	09.181 NUT; IDLER PULLEY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1012-	●
33	09.181 NUT; IDLER PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1012-		●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1012-	●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1012-		●
37	09.173 BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●	●
37	09.173 BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 (C)	8-97305-489-0	01	1	1012-	●
46	09.171 BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-98006-515-3	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B)	8-98037-322-0	01	1	1012-	●		●
47	09.173 BOLT; BRKT TO BODY 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (F) M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
47	09.173 BOLT; BRKT TO BODY 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (E) M10X55 FLANGE	8-97365-449-0	02	1	1012-	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE	0-28151-090-0	02	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE	0-28156-012-0	01	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C) M8X45 FLANGE	0-28050-845-0	01	1	1012-	●		●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●		●
210	09.242 CLIP; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (B) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (C) M10X65 FLANGE	8-94344-540-1	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●		●
508	09.181 CLIP; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 02.559 (B) L=170.3	1-09987-182-0	01	1	1012-	●
508	09.181 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (B) L=170.3	1-09987-182-0	01	1	1012-		●
508	09.181 CLIP; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (A) L=140	5-09707-031-1	01	1	1012-	●
