Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#33257) — 119 parça

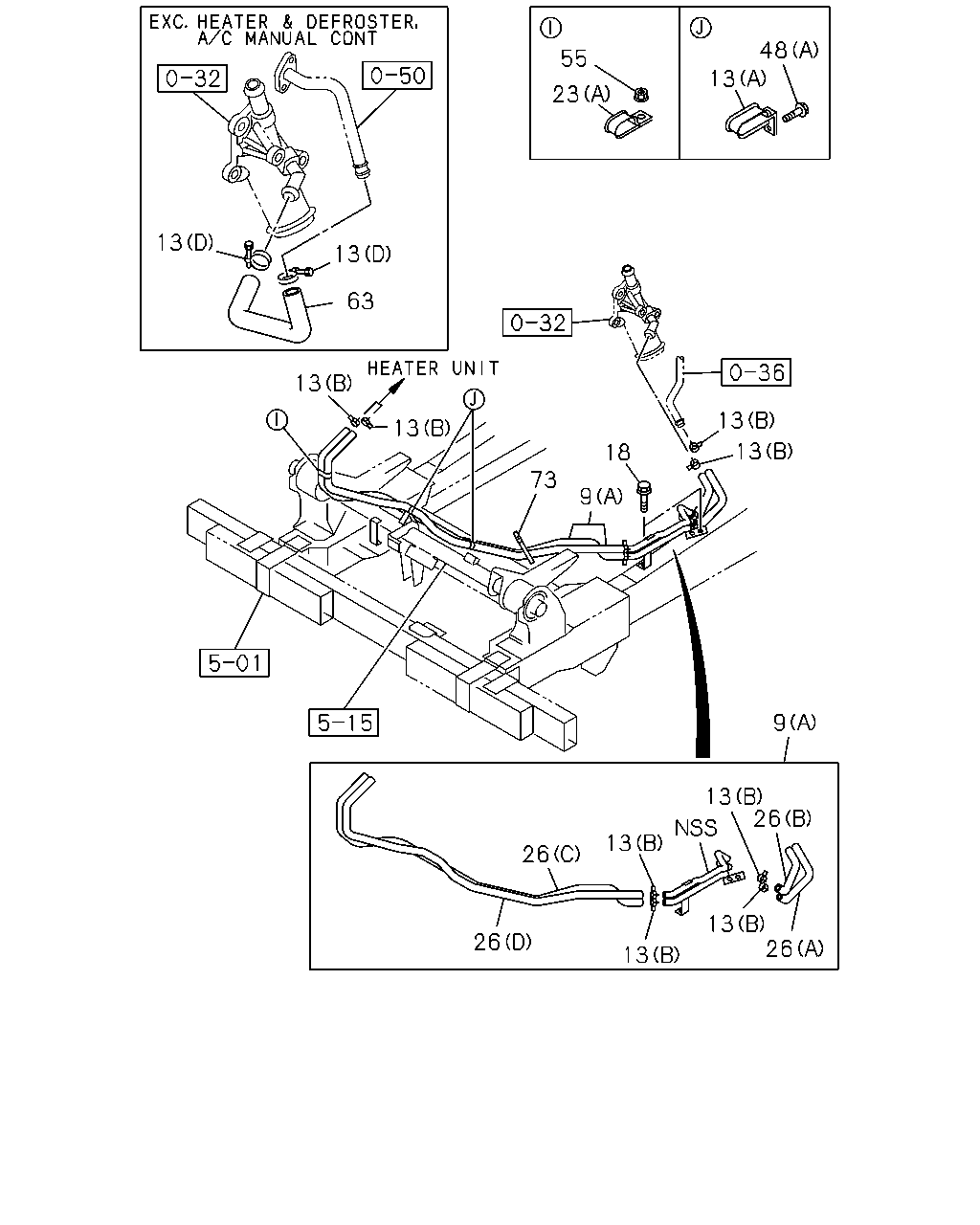

48 55 13 23 13 13 63 13 13 13 13 18 73 9 9 13 26 13 26 13 26 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98006-433-1	01	1	1012-	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98006-433-1	01	1	1012-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1012-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1012-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98028-829-1	01	1	1012-	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1012-	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (D) ID=25	8-94233-115-0	02	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●		●
18	08.866 BOLT; WATER HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
18	08.866 BOLT; WATER HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-97359-144-0	01	1	1012-1205	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1206-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1012-	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1012-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (F)	8-97383-048-1	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98000-099-1	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (H)	8-98000-101-2	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (E)	8-98143-868-0	01	1	1012-	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	1012-	●	●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1012-	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-	●
73	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-		●
73	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-			●

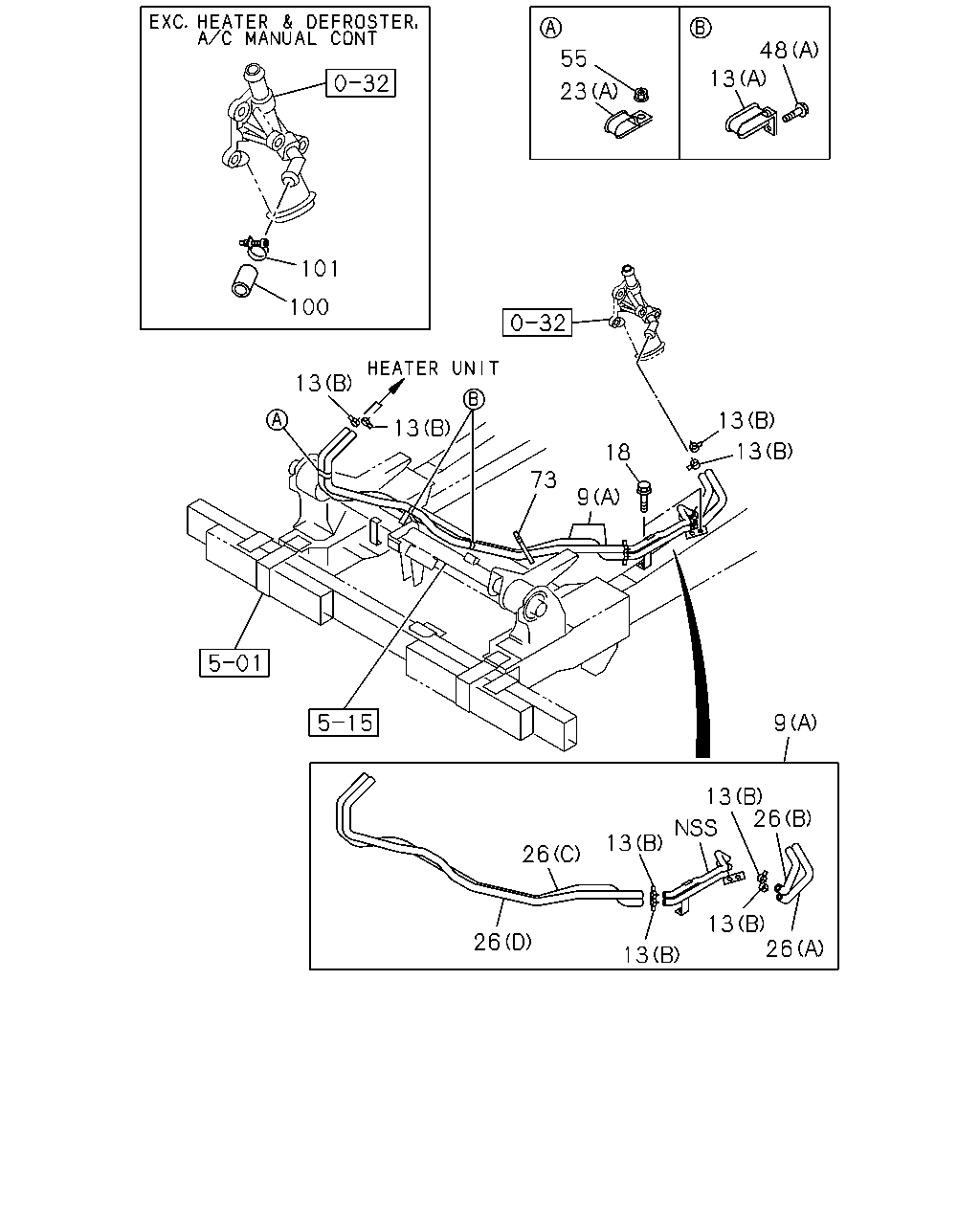

48 55 13 23 101 100 13 13 13 13 18 73 9 9 13 26 13 26 13 26 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98006-433-1	01	1	1012-	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98006-433-1	01	1	1012-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1012-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1012-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98028-829-1	01	1	1012-	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1012-	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (D) ID=25	8-94233-115-0	02	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●		●
18	08.866 BOLT; WATER HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
18	08.866 BOLT; WATER HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-97359-144-0	01	1	1012-1205	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1206-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1012-	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1012-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (F)	8-97383-048-1	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98000-099-1	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (H)	8-98000-101-2	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (E)	8-98143-868-0	01	1	1012-	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-	●
73	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-		●
73	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-			●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HYDRO BRAKE BOOSTE R(7QQ) 01.166	8-94107-793-0	01	1	1012-1202	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HYDRO BRAKE BOOSTE R(7QQ) 01.166 ID=25	8-94233-115-0	01	1	1012-1202	●

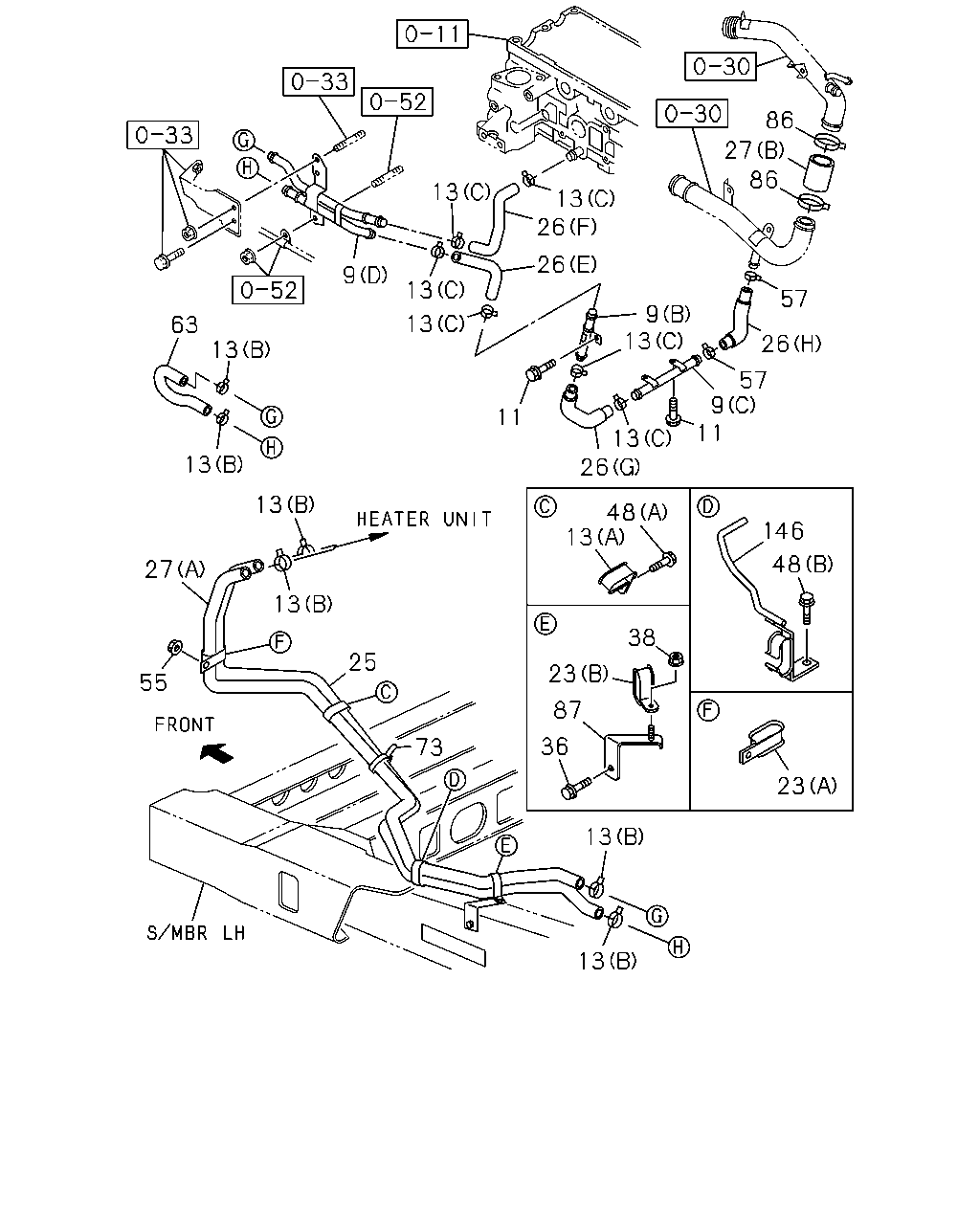

86 27 86 13 13 26 26 9 13 57 9 13 13 63 26 13 57 9 11 11 13 26 13 13 48 13 146 48 27 13 38 25 23 55 87 36 73 23 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98006-433-1	01	1	1012-	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98006-433-1	01	1	1012-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1012-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1012-	●		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98028-829-1	01	1	1012-	●		●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1012-	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (D) ID=25	8-94233-115-0	02	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-97359-144-0	01	1	1012-1205	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1206-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=14	8-98029-678-0	01	1	1012-	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-671-2	01	1	1012-	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-295-0	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-296-0	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98059-457-1	01	1	1012-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1012-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98059-458-1	01	1	1012-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (F)	8-97383-048-1	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98000-099-1	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (H)	8-98000-101-2	01	1	1012-	●		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (E)	8-98143-868-0	01	1	1012-	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-670-3	01	1	1012-	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1012-	●		●
36	08.846 BOLT; BRKT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●		●
38	08.846 NUT; BRKT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1012-	●		●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	1012-	●	●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1012-	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-	●
73	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-		●
73	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-			●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	1012-	●		●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98025-918-4	01	1	1012-	●		●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98108-314-0	01	1	1012-	●		●
