8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#33253) — 57 parça

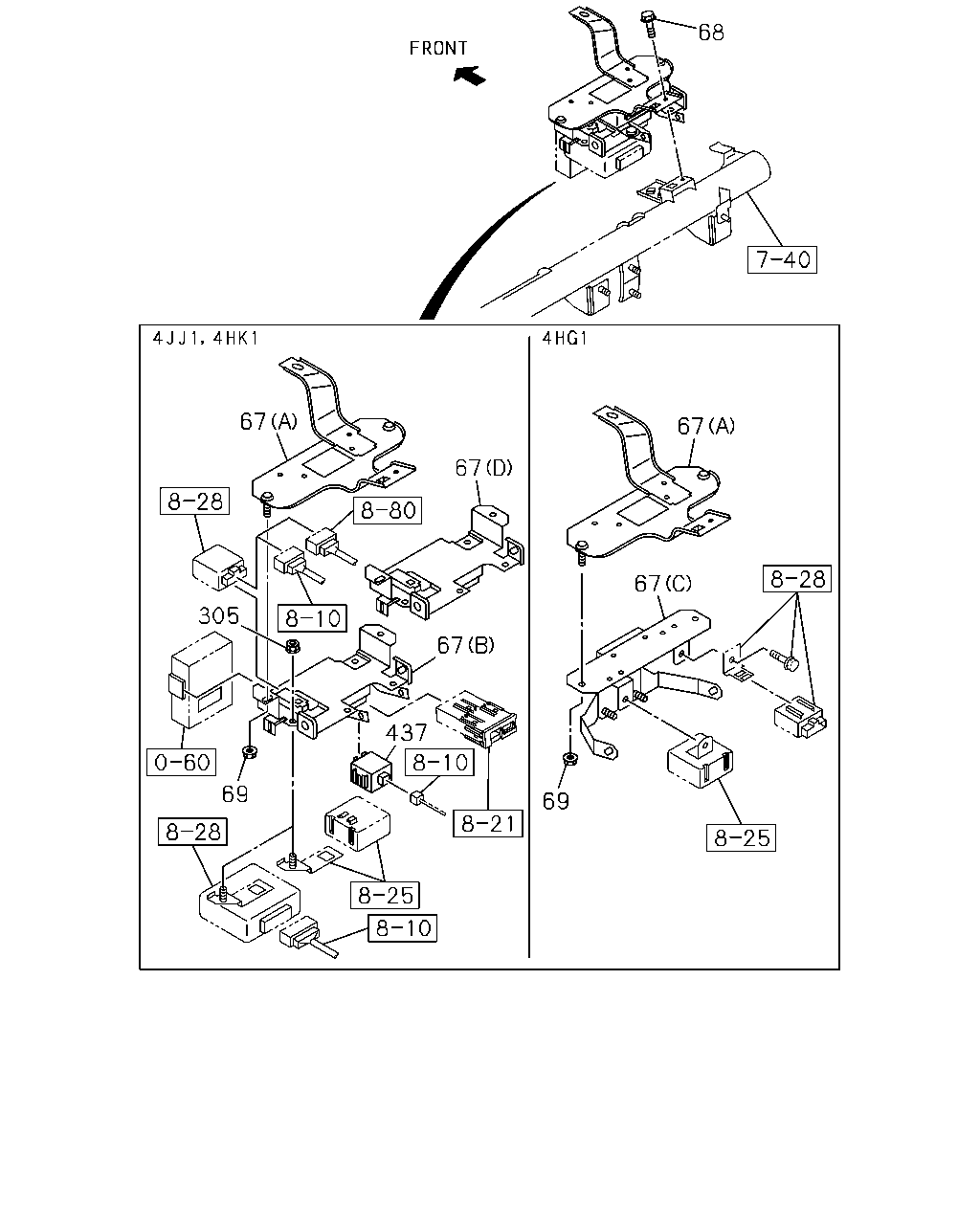

çizim 84205
68 67 67 69 67 67 437 67 305 69
BalonParca AdiParca NoAdetTipApplied Date A B C
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 1012-1111 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98022-206-2 01 1 1012-1111 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 1012-1111 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C) 		8-98110-224-1 01 1 1012-1212 ●
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98110-224-1 01 1 1301- ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1012- ● ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1012- ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1012- ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1012- ● ● ●

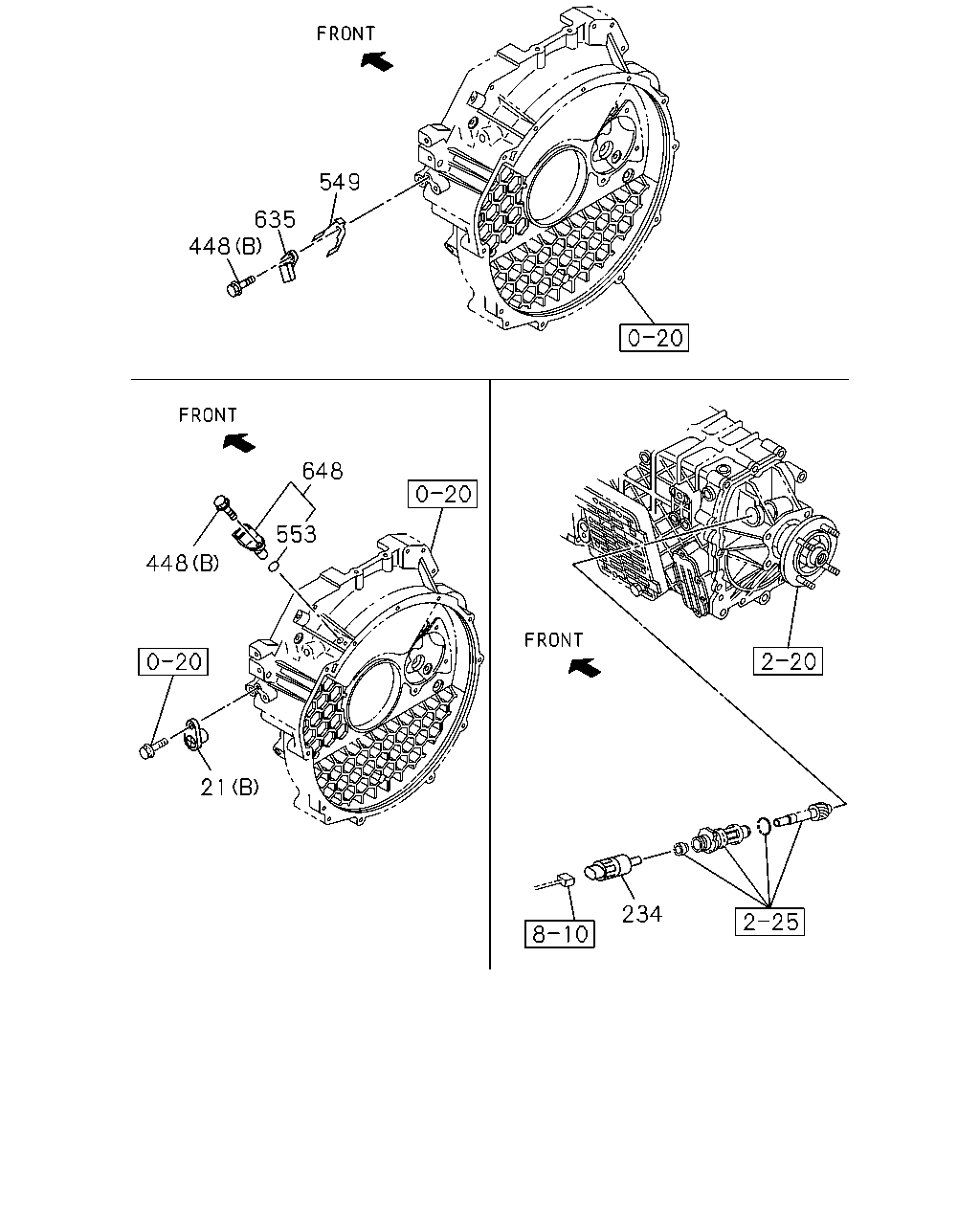

çizim 84441
549 635 448 648 553 448 21 234
BalonParca AdiParca NoAdetTipApplied Date A B C
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 09.748 (B) 		8-97101-974-0 01 1 1012- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1012-1511 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 02 1 1012-1511 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1012- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1012- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1012- ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1012- ● ●
549 02.510 SHEET
4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 1012- ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 1012- ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 1012- ● ●

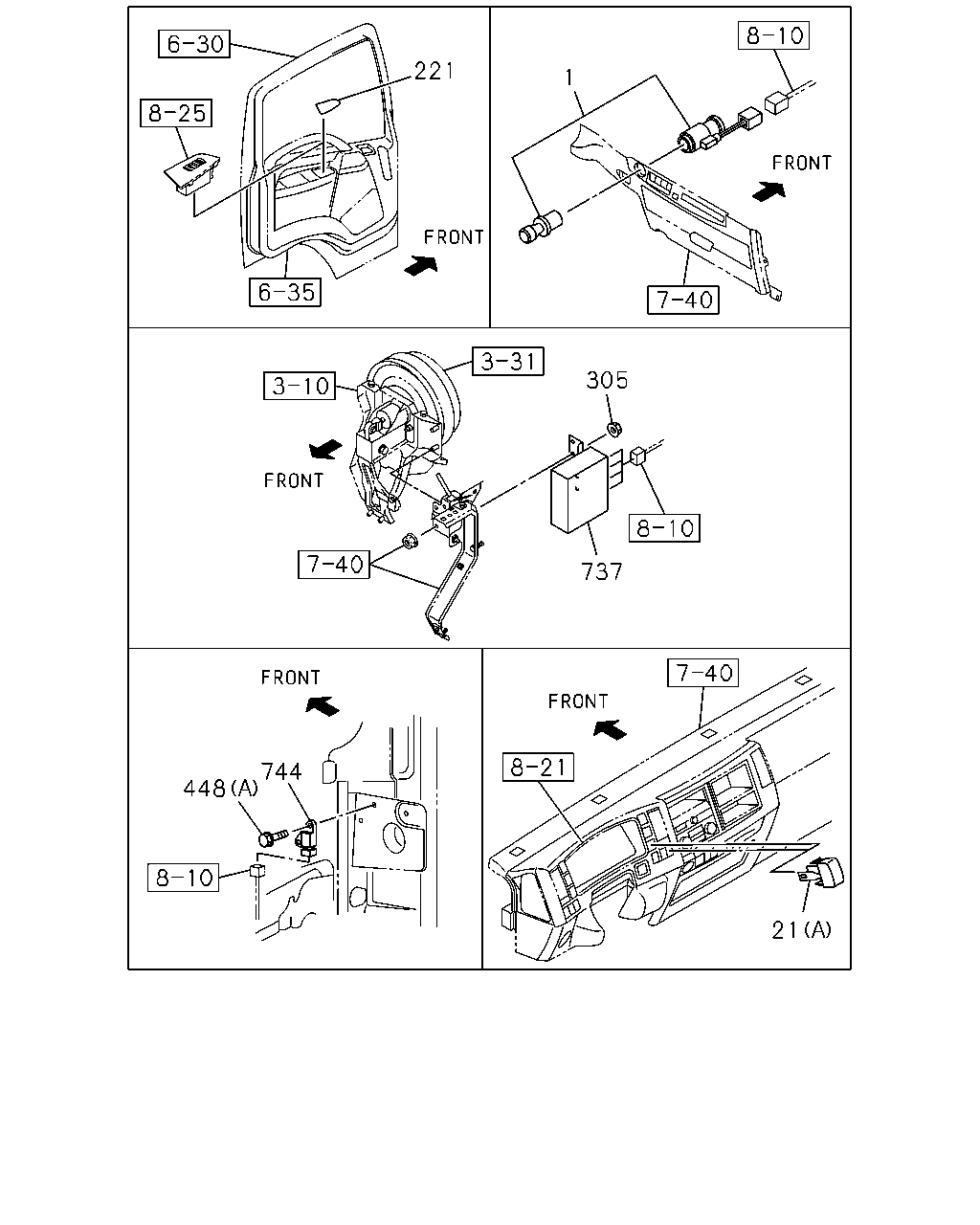

çizim 103259
221 1 305 737 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1012- ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 09.748 (B) 		8-97101-974-0 01 1 1012- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1012-1511 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 02 1 1012-1511 ● ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1012- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1012- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1012- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1012- ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1012- ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1012- ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1012- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98236-777-0 01 1 1303-1304 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98246-646-0 01 1 1305-1308 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98249-919-0 01 1 1309-1309 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98254-378-0 01 1 1310-1403 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-495-0 01 1 1404- ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-712-5 01 1 1012- ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1012- ●
