Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#33252) — 300 parça

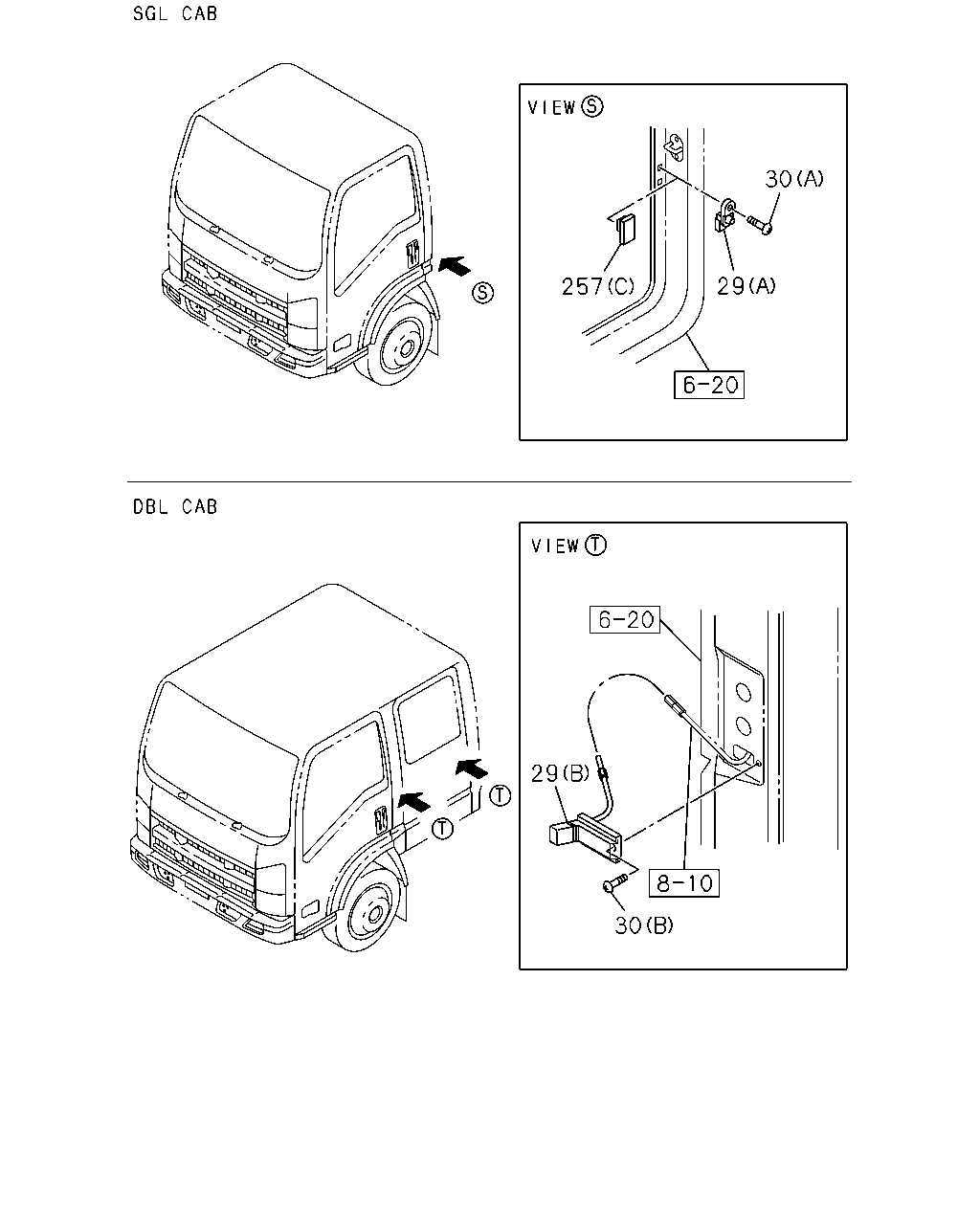

257 257 639 498 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
257	16.081 COVER; HOLE,SW 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B)	8-98029-914-1	01	1	1012-	●
257	16.081 COVER; HOLE,SW 4HK1-TCN ENG(RDQ) (B)	8-98029-914-1	01	1	1012-		●
257	16.081 COVER; HOLE,SW 4JJ1-TCC ENG(RDU) (B)	8-98029-914-1	01	1	1012-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1012-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1012-	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	1012-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1408-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-			●
498	03.883 SWITCH; ASR THROTTLE CONTROL SYSTEM<6XH>	8-97386-920-2	01	1	1012-	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1012-	●

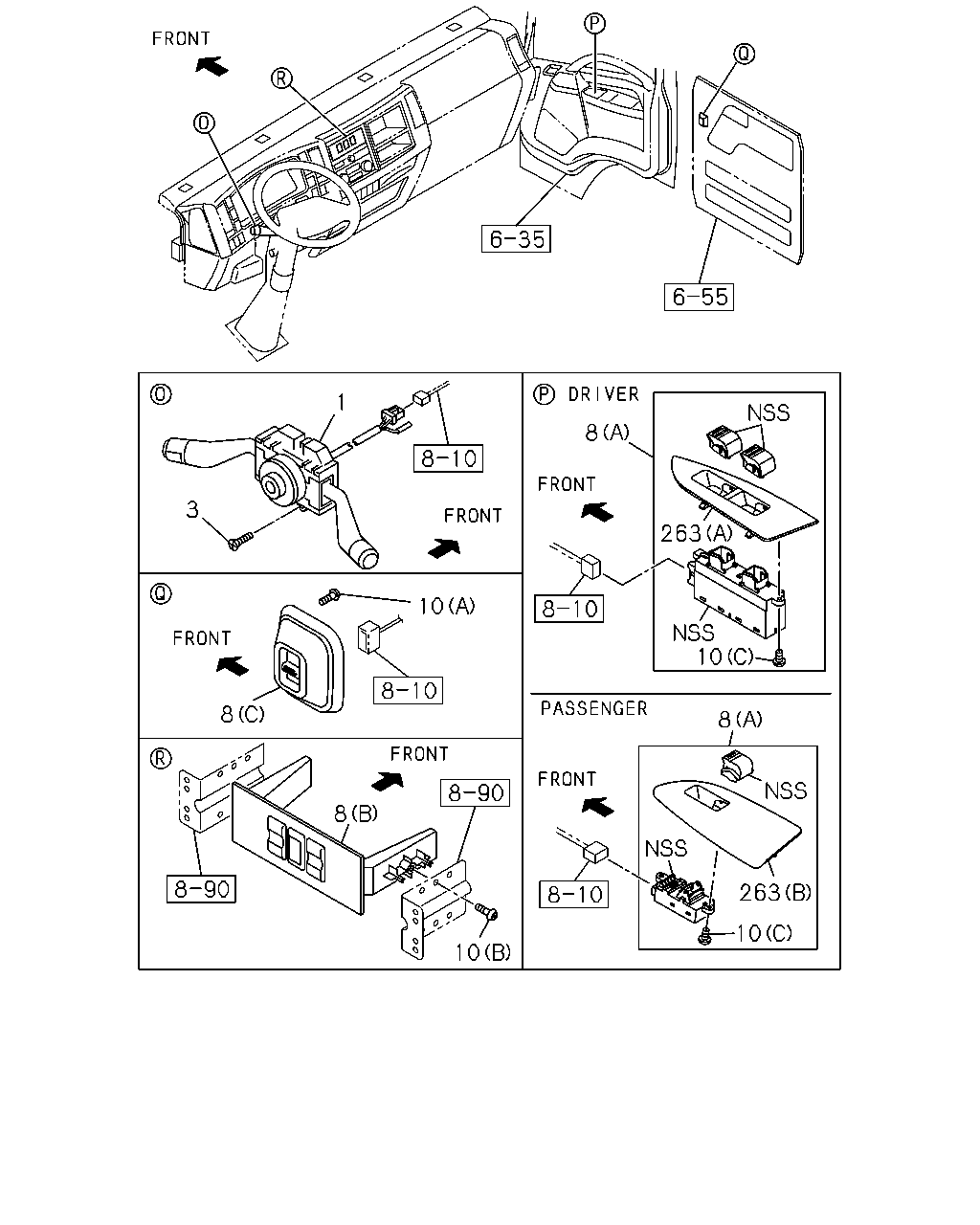

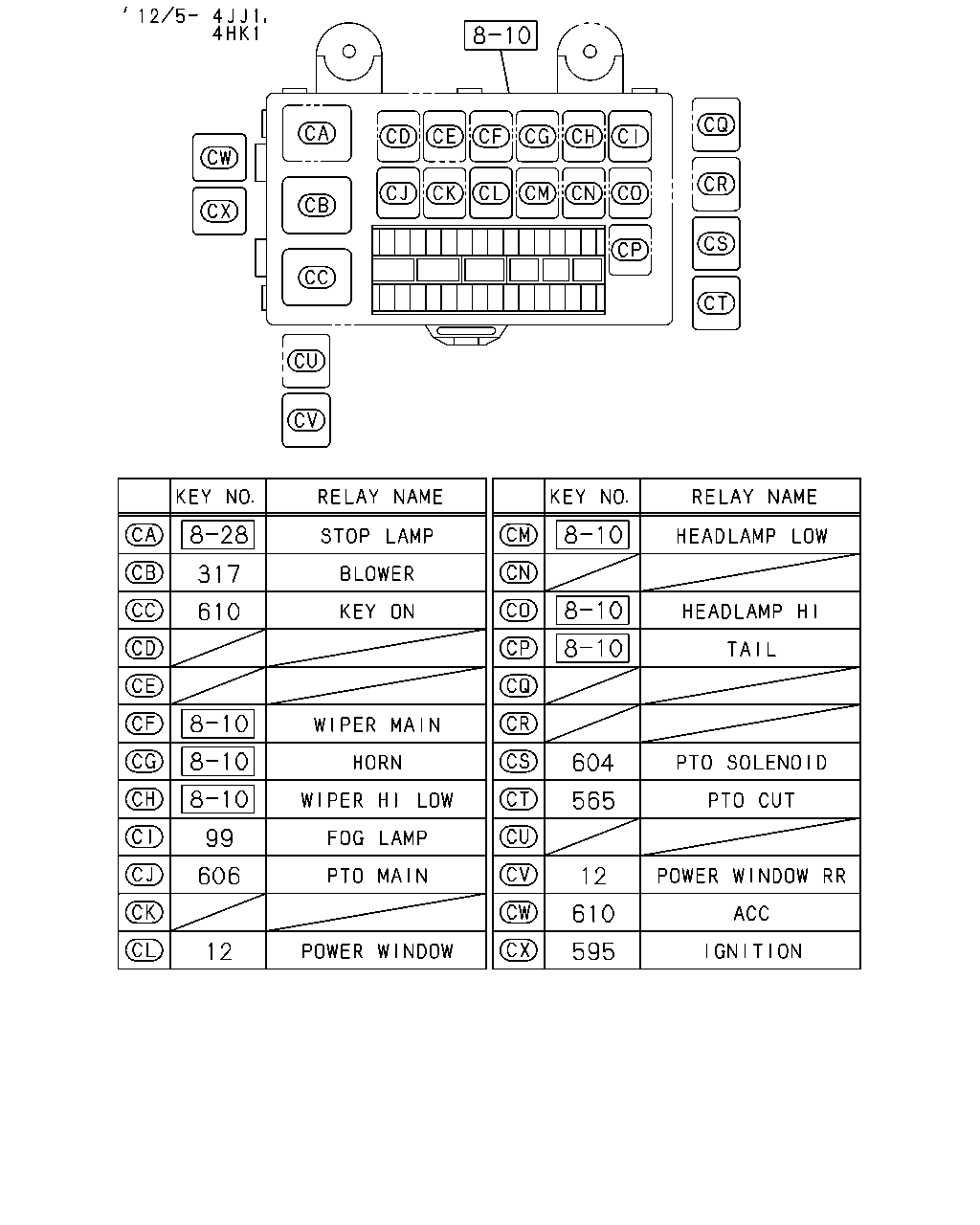

317 610 604 565 99 606 12 610 595 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4HK1-TCN ENG(RDQ) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-		●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-			●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●
565	02.510 RELAY; PTO CUT 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●
595	02.510 RELAY; IGNITION 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●	●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●
604	02.510 RELAY; PTO SOLENOID 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1204	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●

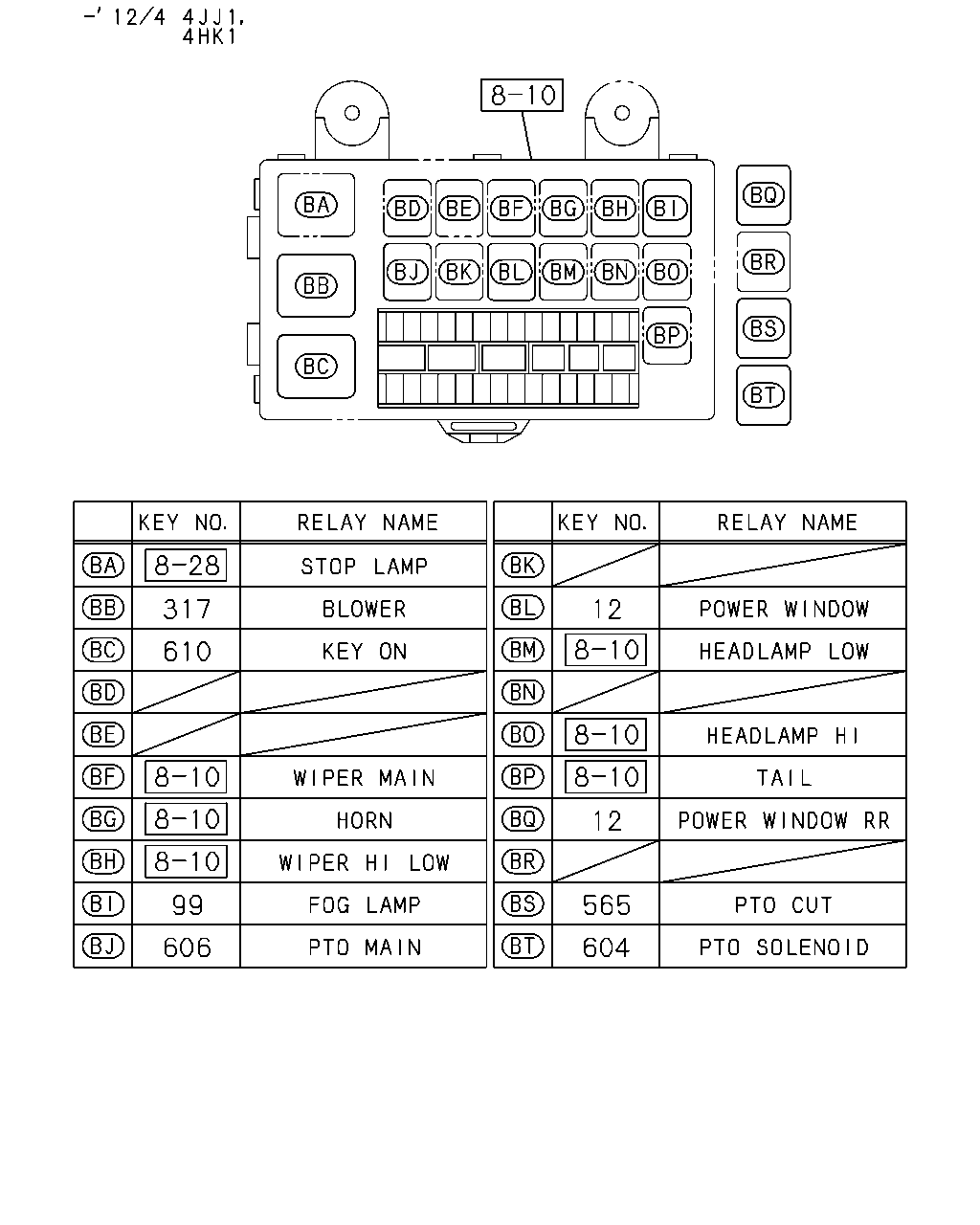

317 12 610 12 99 565 606 604

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4HK1-TCN ENG(RDQ) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-		●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-			●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●
565	02.510 RELAY; PTO CUT 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●
604	02.510 RELAY; PTO SOLENOID 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1204	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●

608 151 154 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●	●	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1106	●	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1107-	●	●
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1107-	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1012-1402	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●

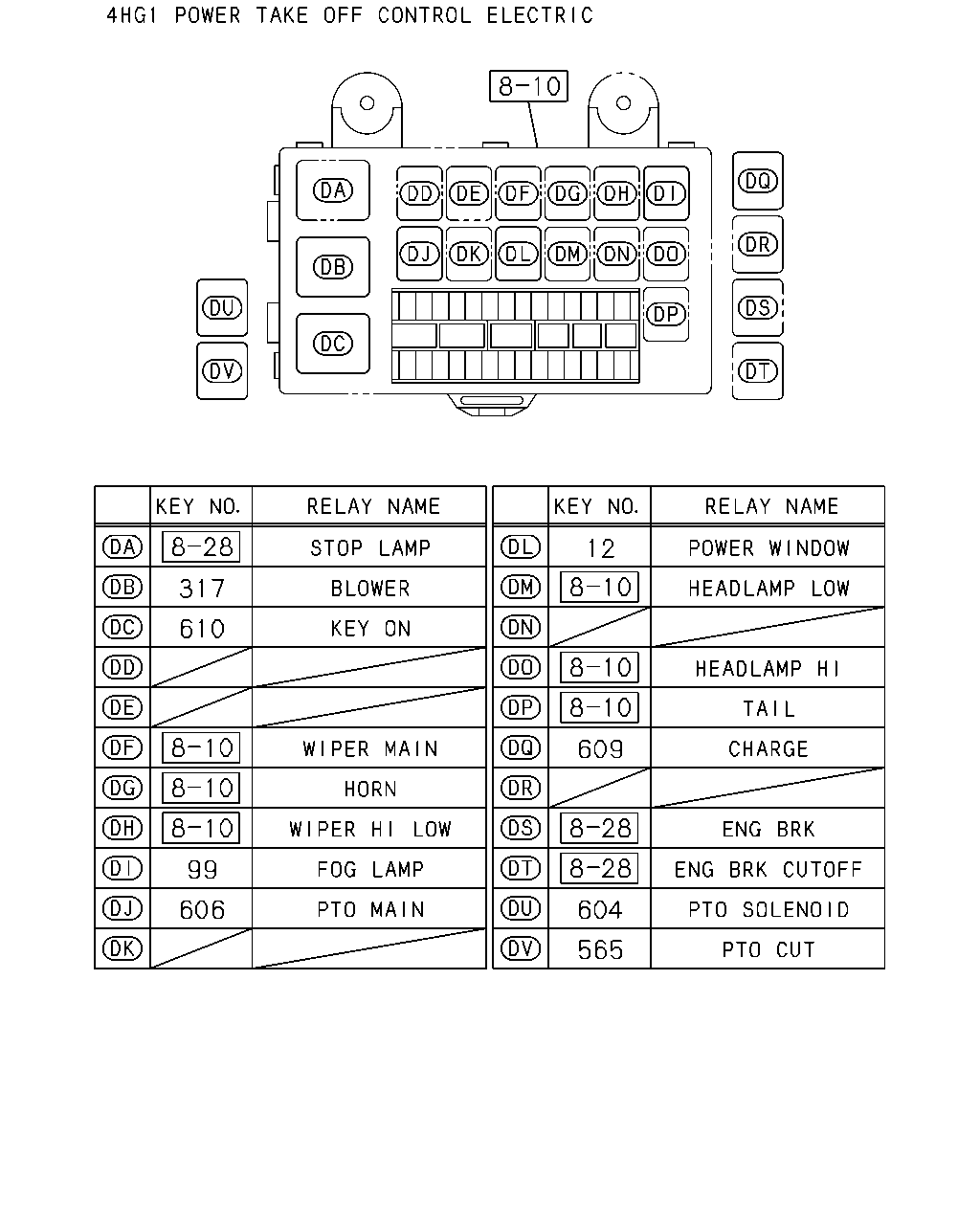

12 317 610 609 99 606 604 565

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4HK1-TCN ENG(RDQ) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-		●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-			●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●
565	02.510 RELAY; PTO CUT 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●
604	02.510 RELAY; PTO SOLENOID 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407	●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-	●	●
609	02.485 RELAY; CHARGE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1204	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●

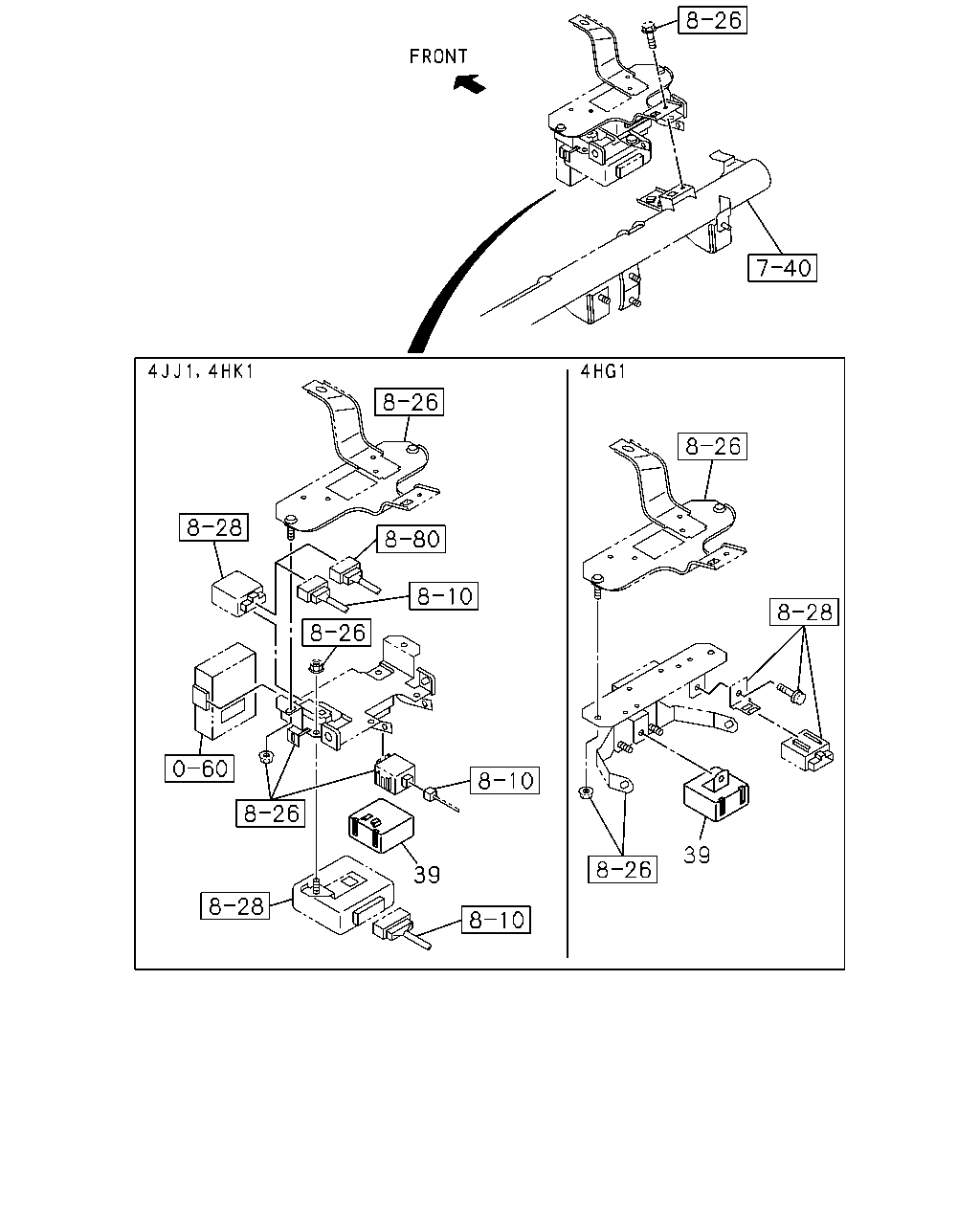

39 39

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	1012-	●	●	●

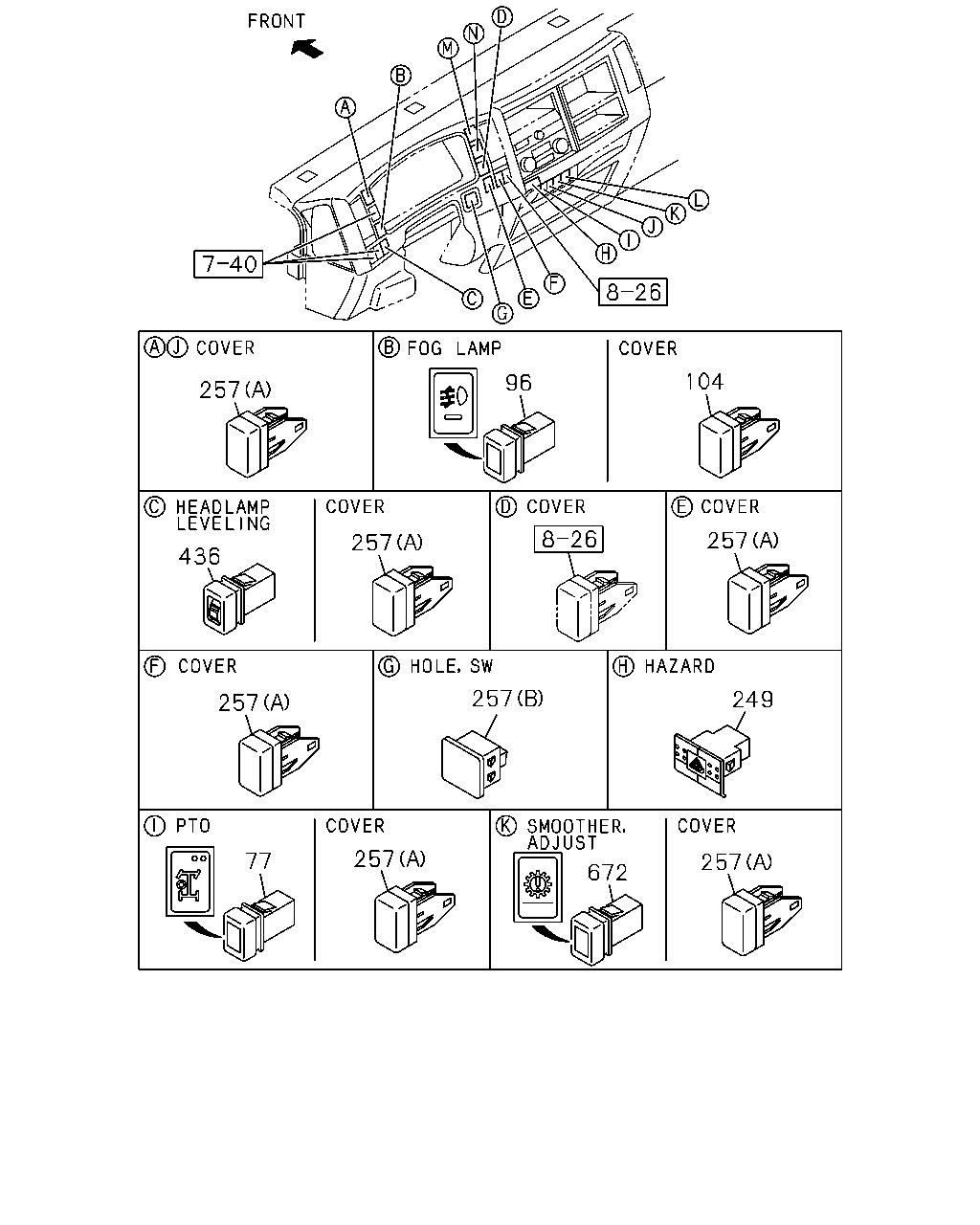

104 96 257 257 257 436 257 249 257 257 77 257 672

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
77	04.439 SWITCH; PTO DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-97386-964-2	01	1	1012-	●
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	1012-	●
77	04.439 SWITCH; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97386-993-4	01	1	1012-1407	●
77	04.439 SWITCH; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97386-993-4	01	1	1408-	●
77	04.439 SWITCH; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97386-993-4	01	1	1408-		●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	1012-	●	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	1012-	●	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1012-	●	●	●
257	16.081 COVER; HOLE,SW 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B)	8-98029-914-1	01	1	1012-	●
257	16.081 COVER; HOLE,SW 4HK1-TCN ENG(RDQ) (B)	8-98029-914-1	01	1	1012-		●
257	16.081 COVER; HOLE,SW 4JJ1-TCC ENG(RDU) (B)	8-98029-914-1	01	1	1012-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1012-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1012-	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	1012-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1408-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-			●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	1012-	●	●	●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-949-1	01	1	1012-	●

154 21 26 191 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447	8-94109-863-0	01	1	1012-1407	●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447	8-94109-863-0	01	1	1408-	●
21	02.575 SWITCH; CLU POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447	8-94109-863-0	01	1	1408-		●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	1012-1407	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1012-1407		●	●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	1408-	●
21	02.575 SWITCH; CLU EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97358-248-0	01	1	1408-		●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1408-			●
26	03.636 SWITCH; ACCEL 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97358-315-0	01	1	1012-1012	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●	●	●
191	02.510 RELAY; EXH BRK CUT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1106	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1106	●	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1107-	●	●
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1107-	●

1 8 3 263 10 10 8 8 8 263 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>	8-98146-640-0	01	1	1012-1107	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87>	8-98146-640-0	01	1	1108-1210	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87>	8-98217-813-0	01	1	1211-1310	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87>	8-98243-739-0	01	1	1311-	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>	8-98146-638-0	01	1	1012-1107	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>	8-98146-638-0	01	1	1108-1210	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>	8-98217-811-0	01	1	1211-1310	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>	8-98243-738-0	01	1	1311-	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-010-1	01	1	1012-1310	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13>	8-98070-010-1	01	1	1012-1310		●
1	02.895 SWITCH; COMB 4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13>	8-98070-010-1	01	1	1012-1310			●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-749-0	01	1	1311-	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13>	8-98243-749-0	01	1	1311-		●
1	02.895 SWITCH; COMB 4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13>	8-98243-749-0	01	1	1311-			●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	1012-1310	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ) EXC. INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	1012-1310		●
1	02.895 SWITCH; COMB 4JJ1-TCC ENG(RDU) EXC. INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	1012-1310			●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1311-	●
1	02.895 SWITCH; COMB 4HK1-TCN ENG(RDQ) EXC. INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1311-		●
1	02.895 SWITCH; COMB 4JJ1-TCC ENG(RDU) EXC. INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1311-			●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98114-334-1	01	1	1012-1310	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-760-0	01	1	1311-	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,EXHAUST BRAKE<NF8>	8-98072-669-1	01	1	1012-1310	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,EXHAUST BRAKE<NF8>	8-98243-751-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,EXHAUST BRAKE<NF8>	8-98243-751-0	01	1	1510-	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98114-333-1	01	1	1012-1310	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-759-0	01	1	1311-	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,EXHAUST BRAKE<NF8>	8-98072-667-2	01	1	1012-1310	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,EXHAUST BRAKE<NF8>	8-98243-752-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB 4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,EXHAUST BRAKE<NF8>	8-98243-752-0	01	1	1510-	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1012-	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98001-737-2	01	1	1012-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98001-737-2	01	1	1012-1509			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98316-418-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98316-418-0	01	1	1510-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1012-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1012-1509			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98298-751-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98298-751-0	01	1	1510-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	1012-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	1012-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	1012-	●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	03	1	1012-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING	0-74360-414-0	04	1	1012-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-			●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	1012-	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98153-838-0	01	1	1012-			●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	1012-	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98153-843-0	01	1	1012-			●

30 29 257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	1012-	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	1012-	●
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	1012-	●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	1012-			●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	1012-			●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	1012-			●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	1012-			●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	1012-	●
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	1012-	●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	01	1	1012-	●
30	16.263 SCREW; DOOR SW (A) M5X18	8-98047-201-0	01	1	1012-		●
30	16.263 SCREW; DOOR SW (B) M5X16	8-94279-341-0	04	1	1012-			●
257	16.081 COVER; HOLE,SW 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B)	8-98029-914-1	01	1	1012-	●
257	16.081 COVER; HOLE,SW 4HK1-TCN ENG(RDQ) (B)	8-98029-914-1	01	1	1012-		●
257	16.081 COVER; HOLE,SW 4JJ1-TCC ENG(RDU) (B)	8-98029-914-1	01	1	1012-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1012-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1012-	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	1012-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407	●	●	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1012-1407	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1012-1407		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-	●	●	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1408-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-		●	●
257	16.081 COVER; HOLE,SW EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	1408-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1408-			●

527 86 87 609 317 610 45 693 12 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1112			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
45	02.252 RELAY; HORN 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
86	02.485 RELAY; HI-BEAM 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
87	02.485 RELAY; LOW-BEAM 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4HK1-TCN ENG(RDQ) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-		●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-			●
527	02.510 RELAY; TAIL 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
609	02.485 RELAY; CHARGE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1204	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1212	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●
610	02.510 RELAY; KEY ON 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1301-	●	●	●
693	16.742 RELAY; A/C.COMP.CUT 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
