◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#33251) — 36 parça

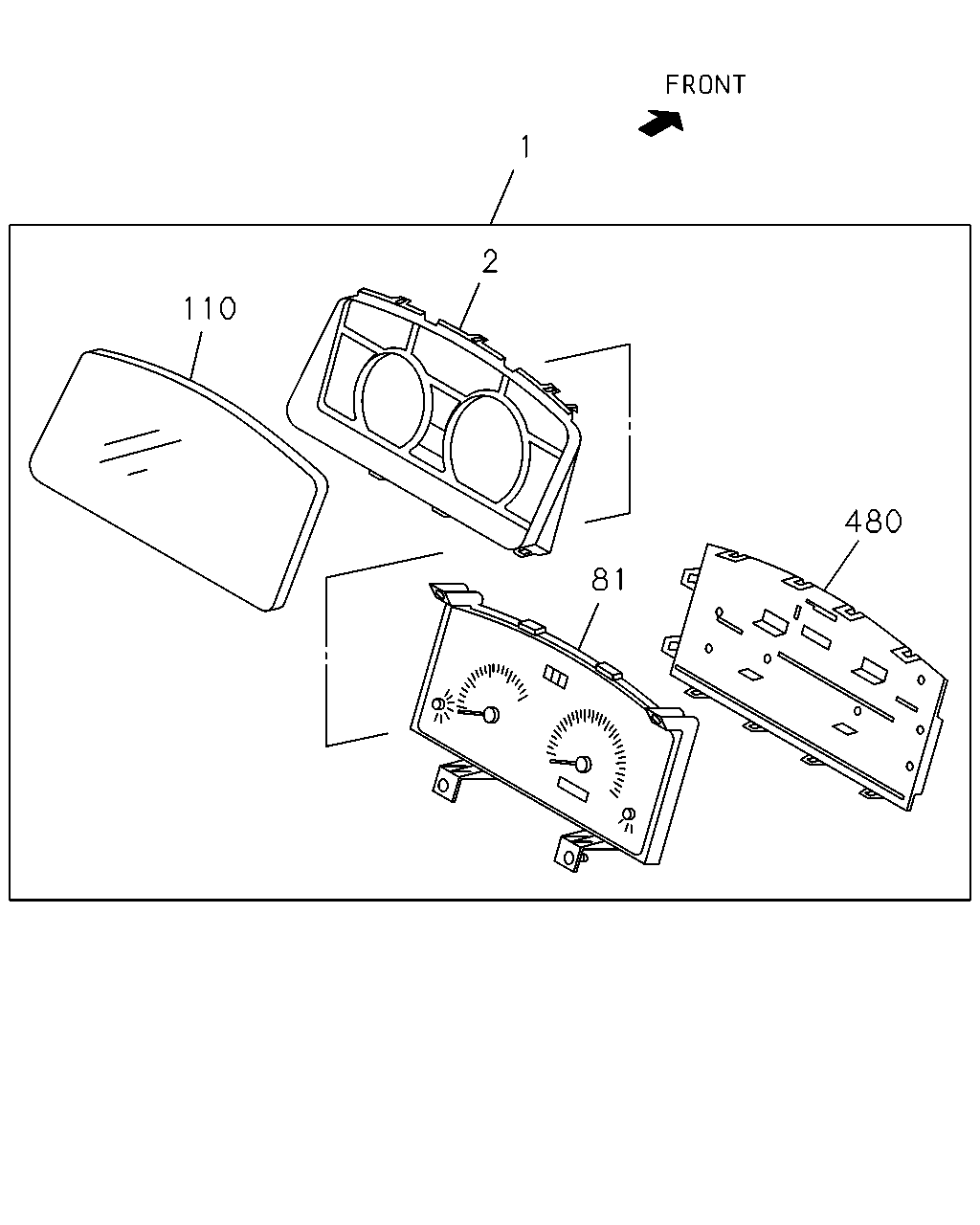

çizim 84143
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98100-883-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-250-5 01 1 1012-1111 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-250-5 01 1 1012-1111 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-430-0 01 1 1112- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98203-430-0 01 1 1112- ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98113-283-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98113-283-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98115-972-3 01 1 1012-1107 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-972-3 01 1 1108- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1012- ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98101-272-0 01 1 1012- ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-679-0 01 1 1012-1111 ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) 		8-98073-679-0 01 1 1012-1111 ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-431-0 01 1 1112- ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) 		8-98203-431-0 01 1 1112- ●
81 09.735 METER SUB ASM
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98113-317-0 01 1 1012- ●
81 09.735 METER SUB ASM
4JJ1-TCC ENG(RDU) 		8-98113-317-0 01 1 1012- ●
81 09.735 METER SUB ASM
4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98118-375-0 01 1 1012-1107 ●
81 09.735 METER SUB ASM
4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98118-375-0 01 1 1108- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1012- ● ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1012- ● ● ●

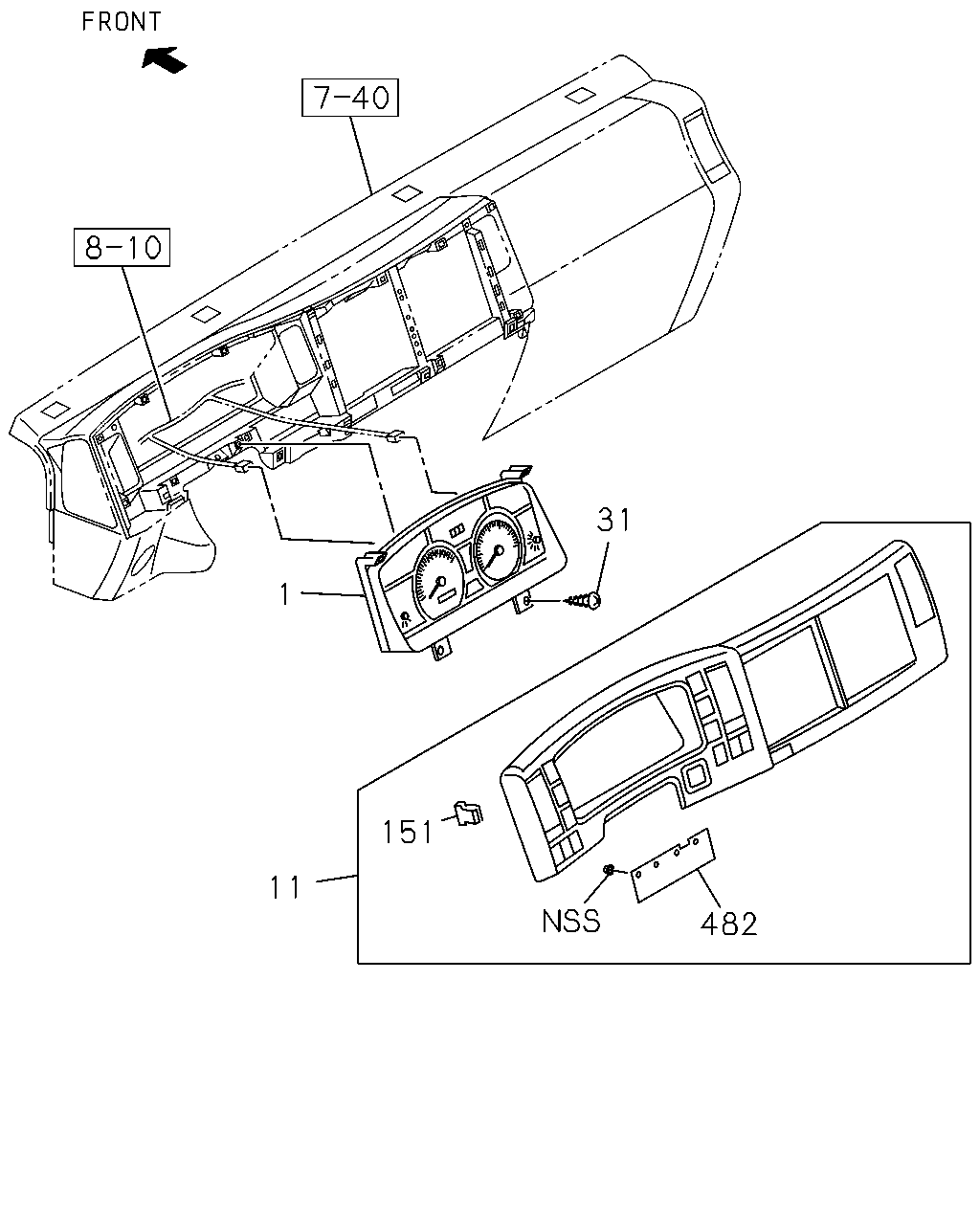

çizim 84415
31 1 151 11 482
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98100-883-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-250-5 01 1 1012-1111 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-250-5 01 1 1012-1111 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-430-0 01 1 1112- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98203-430-0 01 1 1112- ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98113-283-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98113-283-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98115-972-3 01 1 1012-1107 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-972-3 01 1 1108- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1012- ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1012 ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1101-1212 ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1012- ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1012- ● ● ●
