Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#33250) — 581 parça

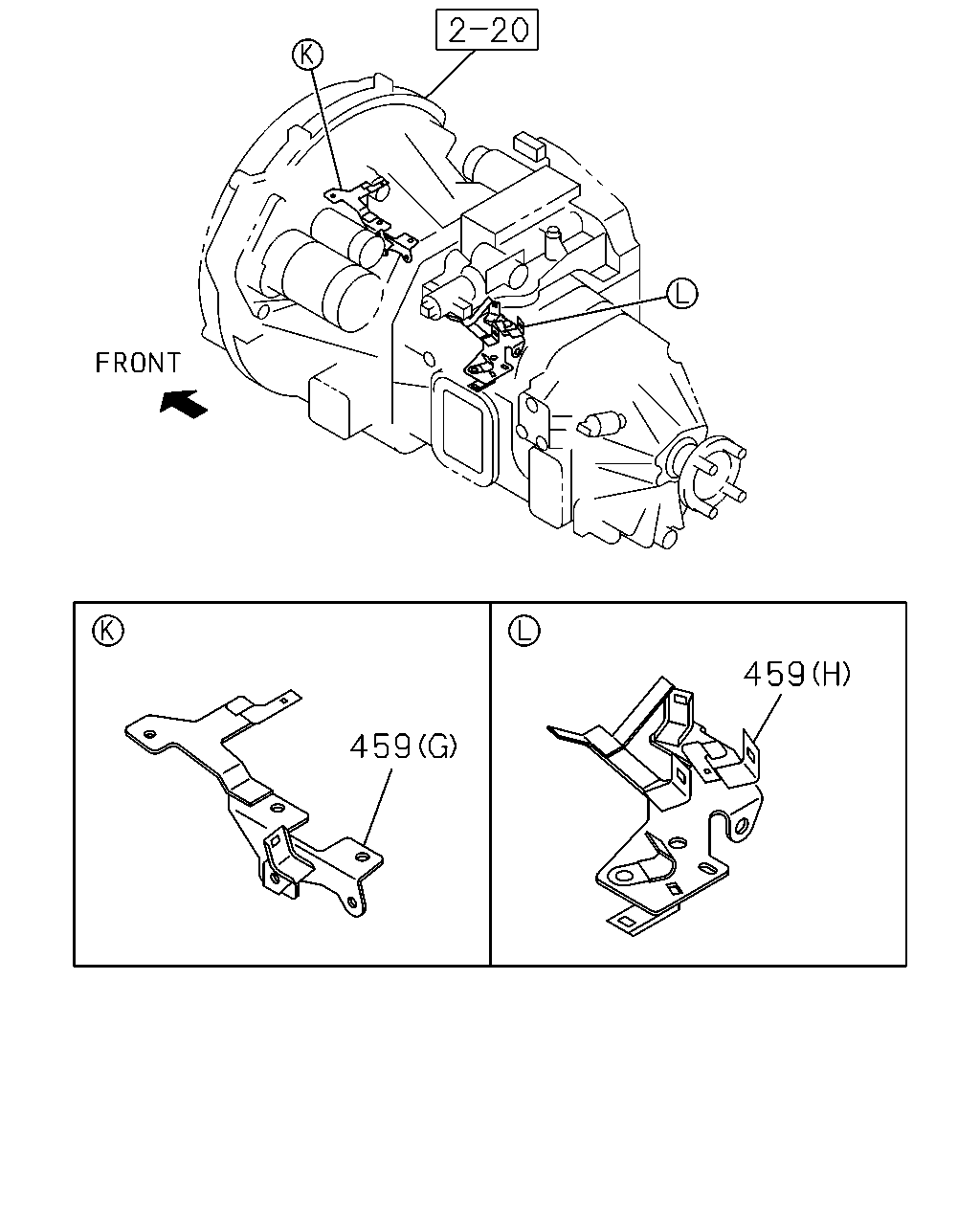

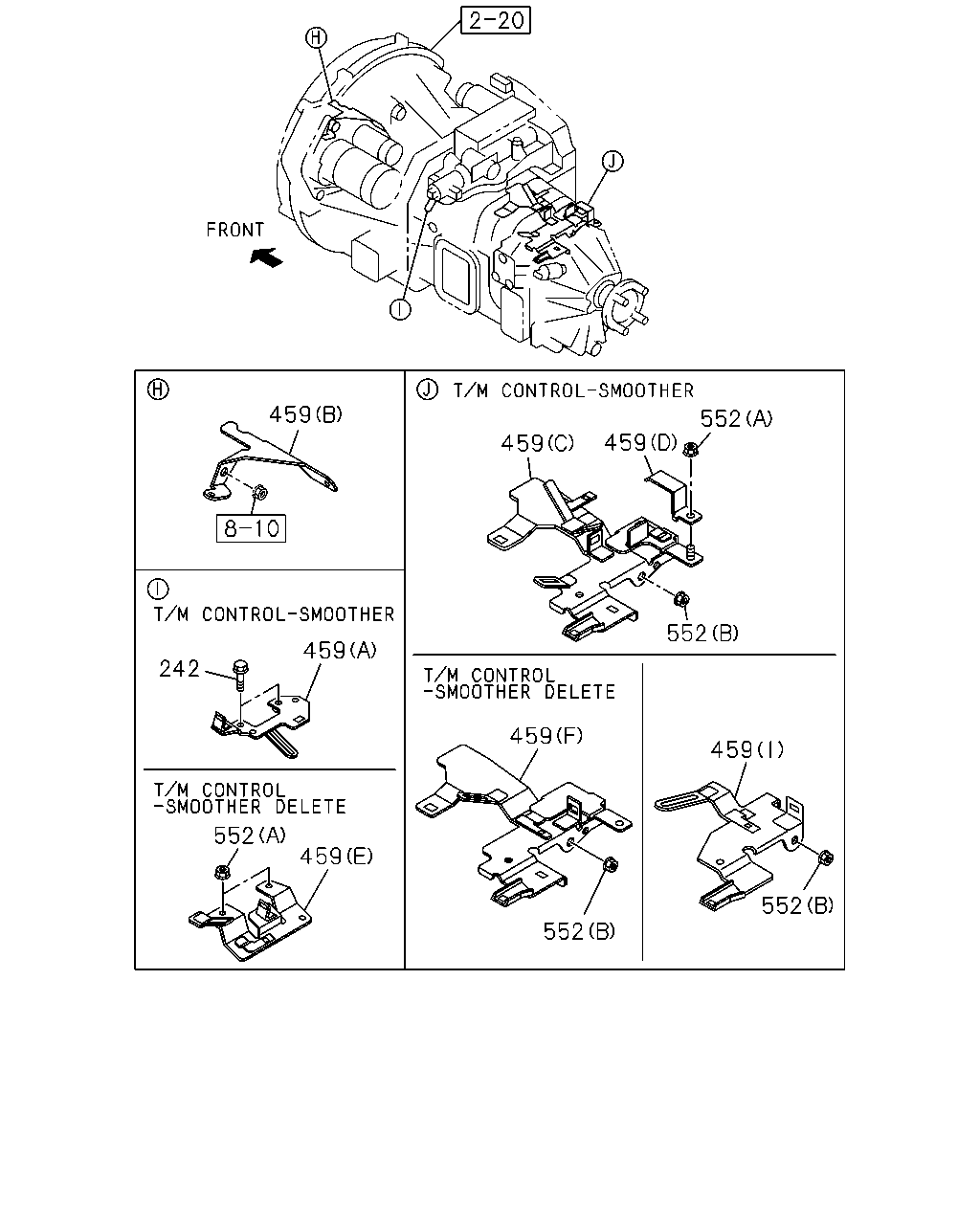

459 552 459 459 552 459 242 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98020-227-3	01	1	1012-		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (E)	8-98020-227-3	01	1	1012-			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	1012-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98030-990-2	01	1	1012-1109		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (F)	8-98030-990-2	01	1	1012-1109			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I)	8-98196-974-0	01	1	1110-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98196-974-0	01	1	1110-		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98196-974-0	01	1	1110-			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98123-282-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H)	8-98123-286-1	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-			●

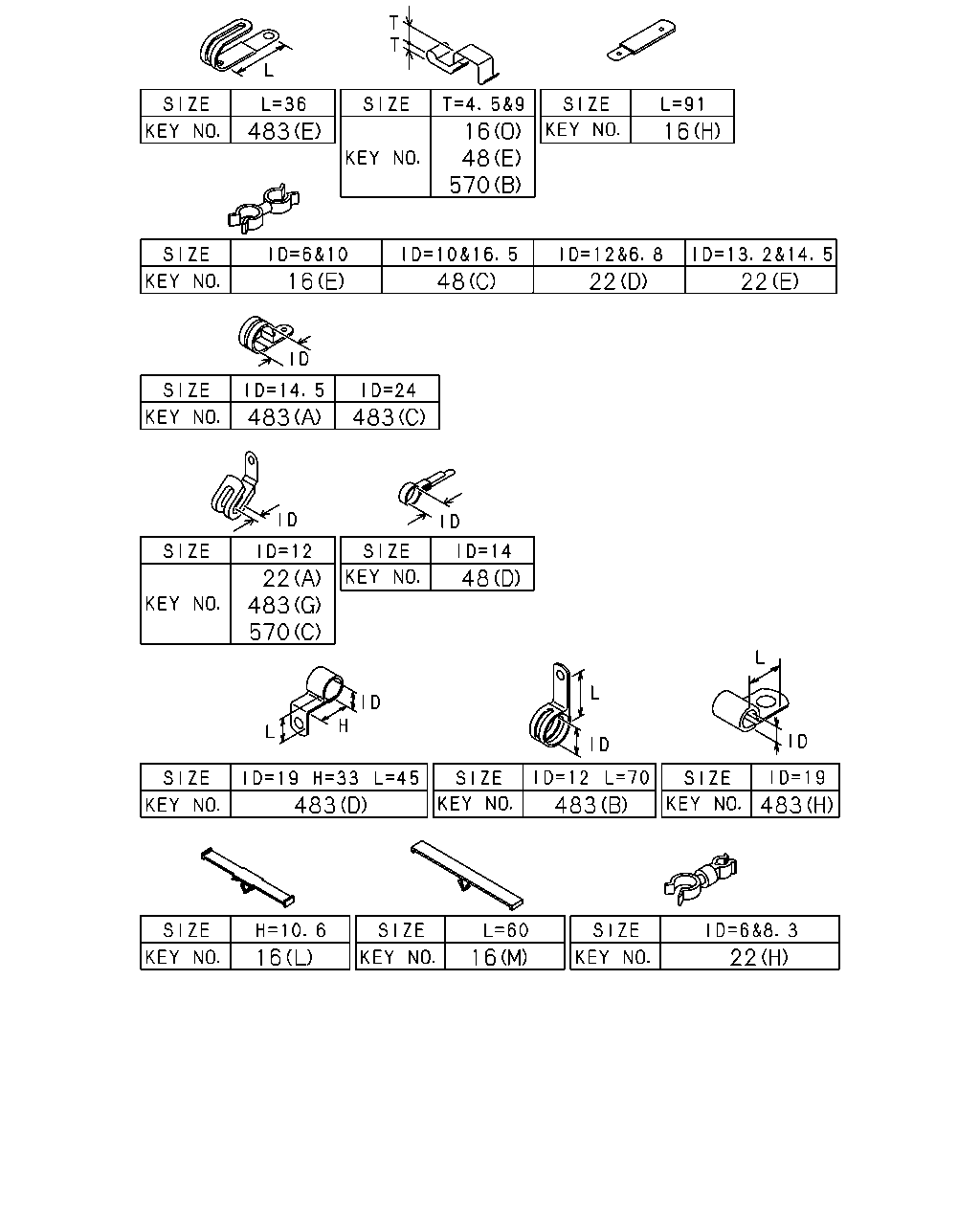

16 483 16 48 570 16 48 22 22 483 483 22 483 570 48 483 483 483 16 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

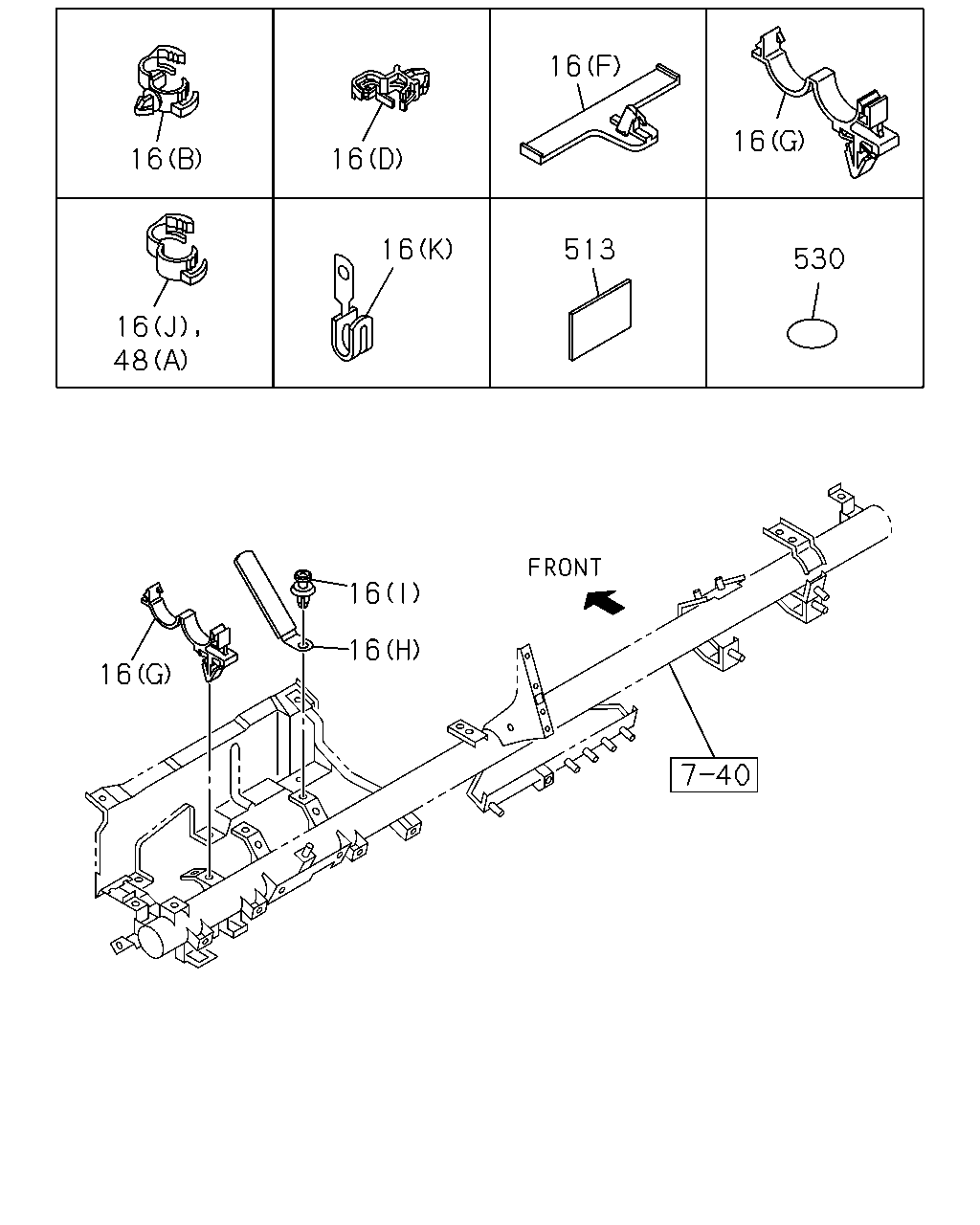

16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1304-	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (O) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (K)	8-97101-436-0	01	1	1012-		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	1012-			●
16	02.559 CLIP; HARNESS RR BODY FLAT BED<RS6> 02.587 (P) L=112	8-94232-618-0	05	1	1012-	●		●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (G) ID=28	8-94362-106-0	01	1	1012-	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1012-1302	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-			●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (N) L=250	5-09707-030-1	01	1	1012-	●		●
16	02.559 CLIP; HARNESS (N) L=250	5-09707-030-1	01	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-94449-165-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (M) L=60	8-97063-335-0	02	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) ANTI EROSION SPEC<7XK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FAST GLOW SYSTEM<KM6>,HYDRO BRAKE BOOSTER(7QQ),GLOW SYSTEM DELETE<7RK> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1303-1311	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1303-1311	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1303-1311	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1312-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (F) L=119.5	1-09707-197-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (G) L=100	5-09707-036-1	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (E) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (B) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=170.3	1-09987-182-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (F) L=450	1-09707-142-1	01	1	1012-1308	●
48	02.559 CLIP; FRAME HARNESS 03.483 (F) L=450	1-09707-142-1	01	1	1012-1308		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (F) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.483 (F) L=450	1-09707-142-1	01	1	1309-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1110	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1110		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1111-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1111-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1412			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1501-	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) (A) ID=20	8-94241-972-0	01	1	1501-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1501		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1502-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1502-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-1501		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1502-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1502-		●
48	02.559 CLIP; FRAME HARNESS 08.852 (B) L=350	8-94152-256-1	01	1	1012-			●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (H) ID=19 L=60	0-95235-896-0	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.152 (E) L=36	8-94224-891-1	01	1	1012-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1501		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) L=140	5-09707-031-1	02	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) 03.162 (A) L=140	5-09707-031-1	02	1	1502-1504		●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1505-	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1501		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (B) T=4.5 & 9	8-97371-947-0	01	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) (B) T=4.5 & 9	8-97371-947-0	01	1	1502-1504		●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1505-	●	●

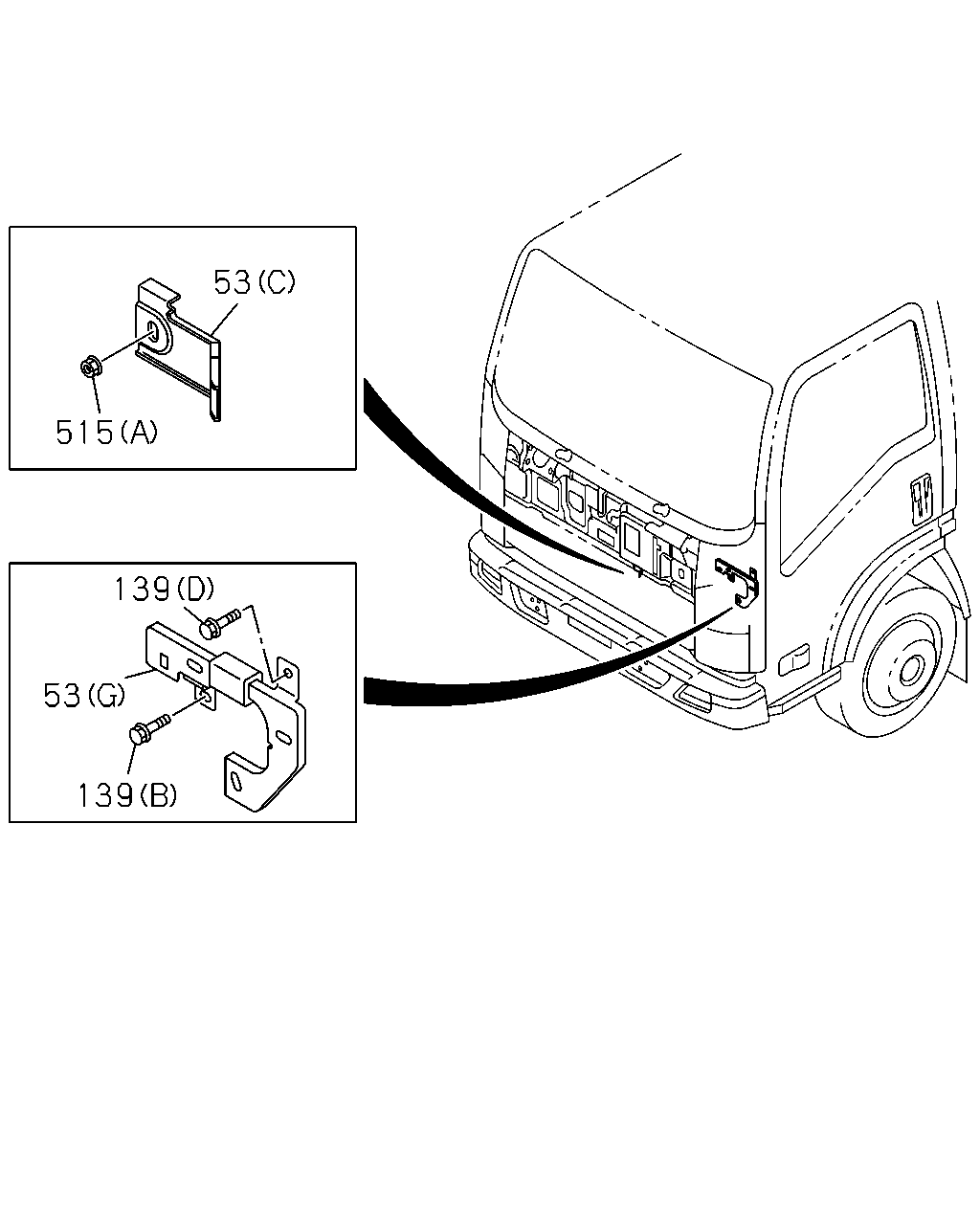

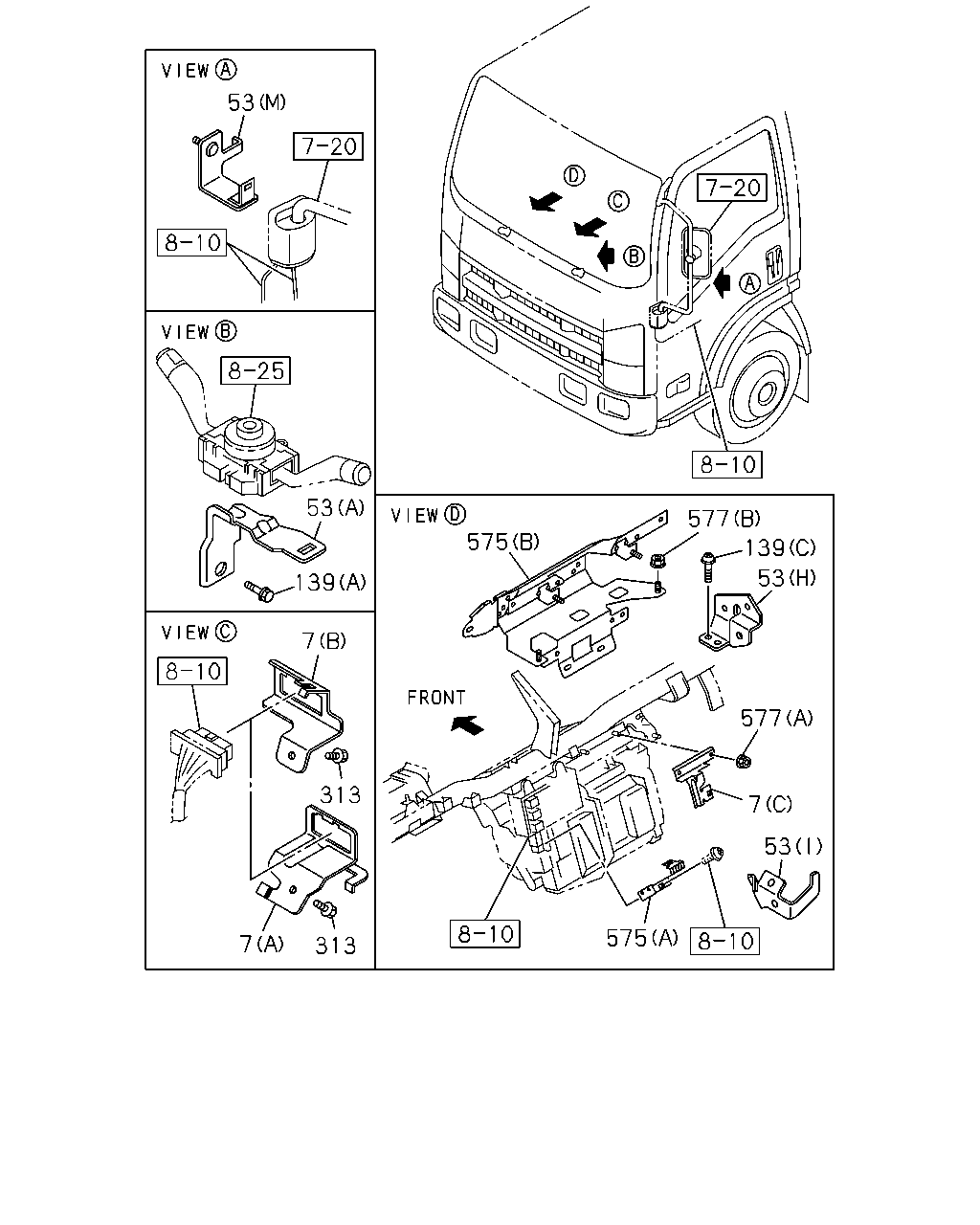

53 53 577 575 139 53 139 7 577 313 7 53 575 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (C)	8-98056-073-3	01	1	1012-	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98056-073-3	01	1	1012-		●
7	02.559 BRACKET; CONNECTOR 4JJ1-TCC ENG(RDU) (C)	8-98056-073-3	01	1	1012-			●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	1012-	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	1012-	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98043-070-1	01	1	1012-		●
7	02.559 BRACKET; CONNECTOR 4JJ1-TCC ENG(RDU) (B)	8-98043-070-1	01	1	1012-			●

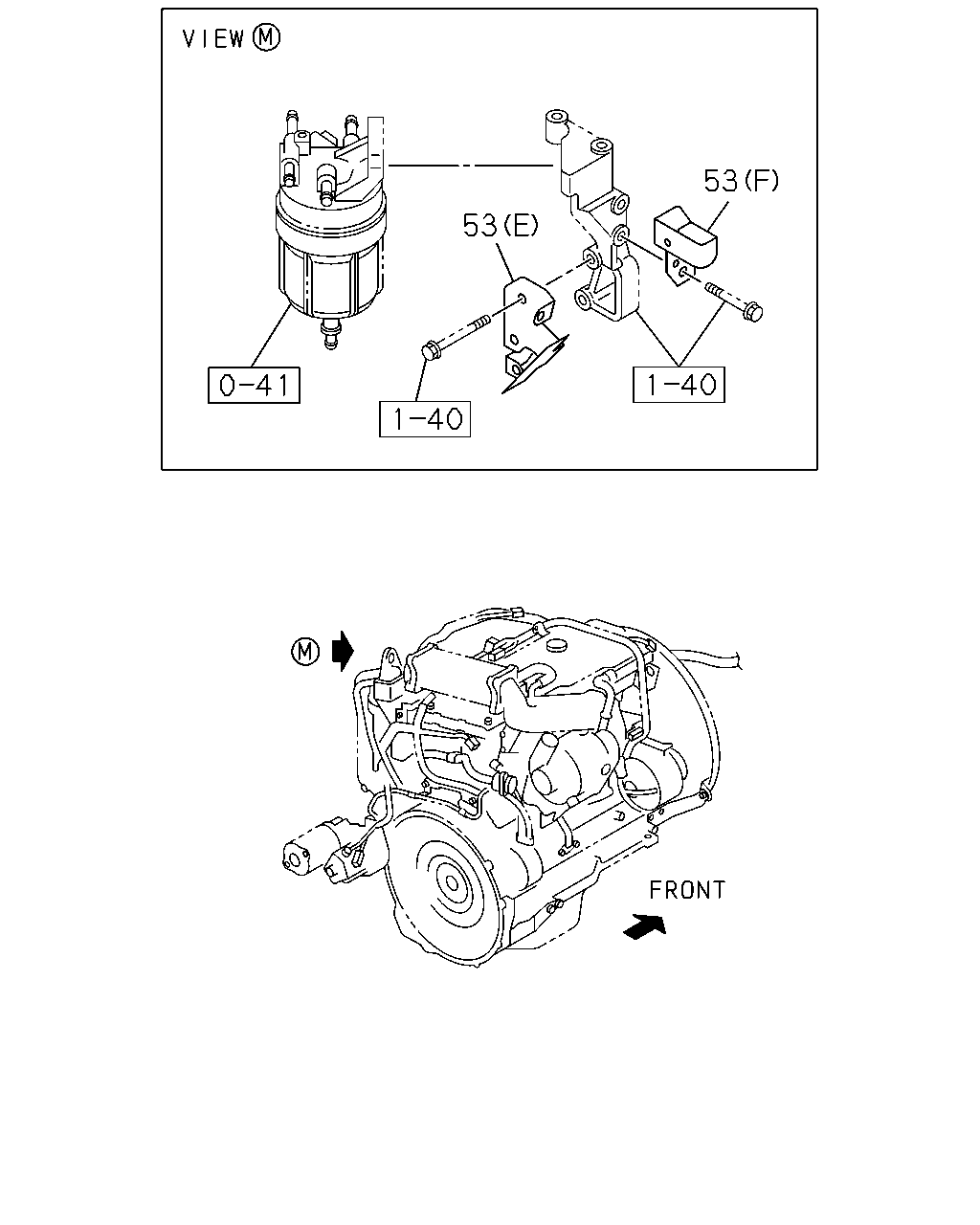

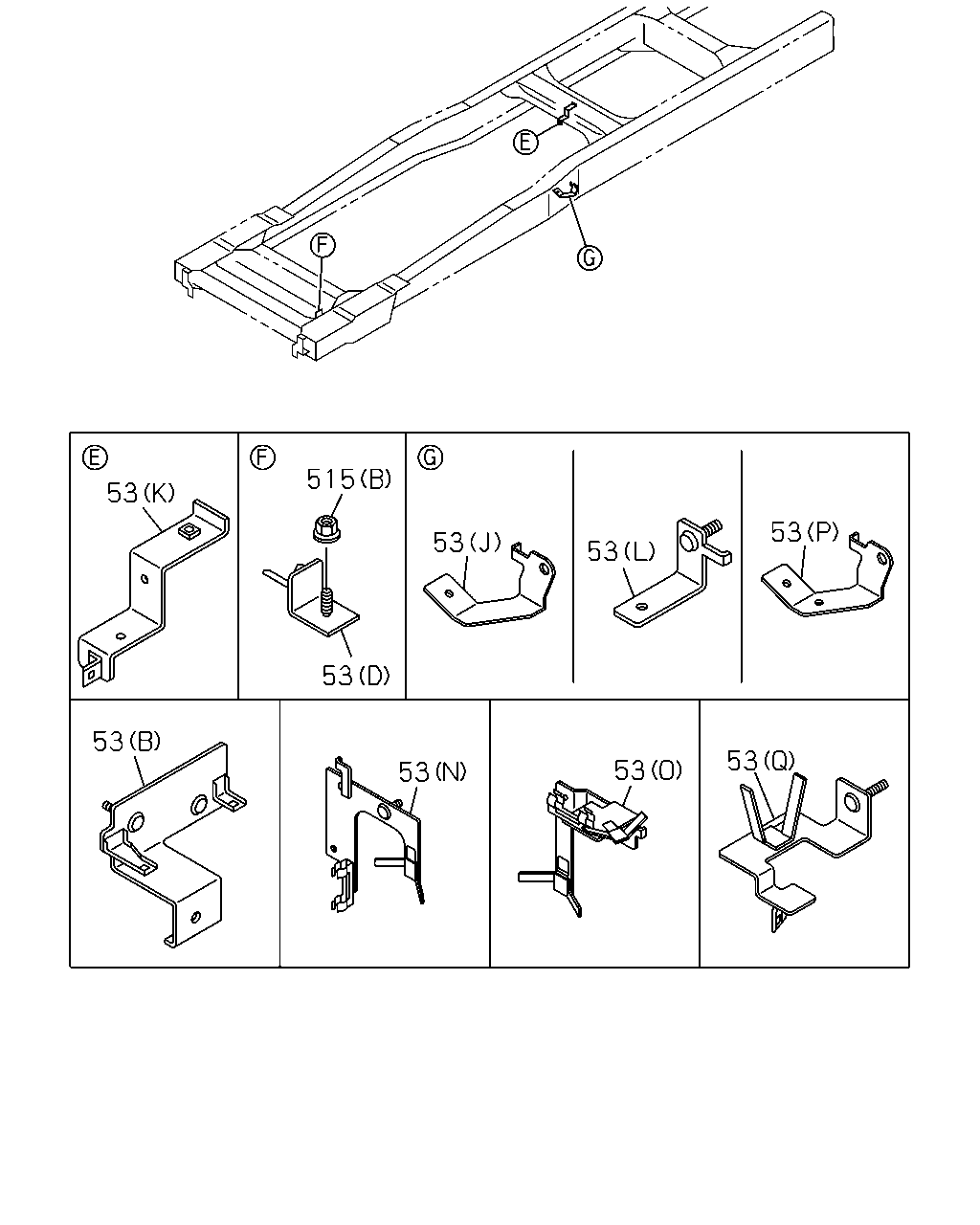

53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (Q)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1012-			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-		●
313	02.559 BOLT; BRKT 4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-			●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98054-320-2	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98054-320-2	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98054-320-2	01	1	1012-		●
575	02.559 BRACKET; FUSE BOX 4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98054-320-2	01	1	1012-			●
575	02.559 BRACKET; FUSE BOX POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98132-932-1	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98132-932-1	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98132-932-1	01	1	1012-		●
575	02.559 BRACKET; FUSE BOX 4JJ1-TCC ENG(RDU) EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98132-932-1	01	1	1012-			●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-145-3	01	1	1012-	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-		●
577	02.559 NUT; FUSE BOX 4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-			●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-	●

515 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (Q)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1012-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●	●

14 102 48 16 16 16 22 14 22 102 483 570 617 16 102 22 48 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1304-	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (O) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (K)	8-97101-436-0	01	1	1012-		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	1012-			●
16	02.559 CLIP; HARNESS RR BODY FLAT BED<RS6> 02.587 (P) L=112	8-94232-618-0	05	1	1012-	●		●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (G) ID=28	8-94362-106-0	01	1	1012-	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1012-1302	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-			●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (N) L=250	5-09707-030-1	01	1	1012-	●		●
16	02.559 CLIP; HARNESS (N) L=250	5-09707-030-1	01	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-94449-165-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (M) L=60	8-97063-335-0	02	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) ANTI EROSION SPEC<7XK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FAST GLOW SYSTEM<KM6>,HYDRO BRAKE BOOSTER(7QQ),GLOW SYSTEM DELETE<7RK> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1012-1111			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1112-1207			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1208-1302			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1303-1311	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1303-1311	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1303-1311	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	1312-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (F) L=119.5	1-09707-197-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (G) L=100	5-09707-036-1	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (E) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (B) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=170.3	1-09987-182-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (F) L=450	1-09707-142-1	01	1	1012-1308	●
48	02.559 CLIP; FRAME HARNESS 03.483 (F) L=450	1-09707-142-1	01	1	1012-1308		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (F) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.483 (F) L=450	1-09707-142-1	01	1	1309-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1110	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1110		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1111-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1111-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1412			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1501-	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) (A) ID=20	8-94241-972-0	01	1	1501-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1501		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1502-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1502-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-1501		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1502-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1502-		●
48	02.559 CLIP; FRAME HARNESS 08.852 (B) L=350	8-94152-256-1	01	1	1012-			●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (C) L=170	5-09707-054-0	01	1	1104-	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	04	1	1012-1202	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	1203-	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1012-1103	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) L=250	5-09707-030-1	01	1	1104-	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (A) L=140	5-09707-031-1	03	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (H) ID=19 L=60	0-95235-896-0	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.152 (E) L=36	8-94224-891-1	01	1	1012-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1501		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) L=140	5-09707-031-1	02	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) 03.162 (A) L=140	5-09707-031-1	02	1	1502-1504		●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1505-	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1501	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1501		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (B) T=4.5 & 9	8-97371-947-0	01	1	1502-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B) (B) T=4.5 & 9	8-97371-947-0	01	1	1502-1504		●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1505-	●	●
617	02.559 STRAP; BAND 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1104-1106	●
617	02.559 STRAP; BAND 4JJ1-TCC ENG(RDU) 03.162 L=140	5-09707-031-1	01	1	1104-1106			●

16 16 16 16 16 513 530 16 48 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1304-	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (O) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (K)	8-97101-436-0	01	1	1012-		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	1012-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	1012-			●
16	02.559 CLIP; HARNESS RR BODY FLAT BED<RS6> 02.587 (P) L=112	8-94232-618-0	05	1	1012-	●		●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (G) ID=28	8-94362-106-0	01	1	1012-	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1012-1302	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-			●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (N) L=250	5-09707-030-1	01	1	1012-	●		●
16	02.559 CLIP; HARNESS (N) L=250	5-09707-030-1	01	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-94449-165-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (M) L=60	8-97063-335-0	02	1	1012-			●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (F) L=450	1-09707-142-1	01	1	1012-1308	●
48	02.559 CLIP; FRAME HARNESS 03.483 (F) L=450	1-09707-142-1	01	1	1012-1308		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (F) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.483 (F) L=450	1-09707-142-1	01	1	1309-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1110	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1110		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1111-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1111-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1412			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1501-	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) (A) ID=20	8-94241-972-0	01	1	1501-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1501		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1502-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1502-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-1501		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1502-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1502-		●
48	02.559 CLIP; FRAME HARNESS 08.852 (B) L=350	8-94152-256-1	01	1	1012-			●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1012-	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1012-	●	●	●

516 150 38 313 139 481 38 139 139 516 150 480 480 529 242 304 529 480 377 377 386 386 139 577 24 294 515 577 294 515 515 524 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1409	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (B) M6X12 FLANGE	0-28250-612-0	02	1	1012-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111			●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-1207	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-1207	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-1207	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-1207			●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1208-1301	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1208-1301	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1208-1301	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1208-1301			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1302	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1302	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1302	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1302	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1302			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-1407	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-1407	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-1407	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-1407	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-1407	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-1407			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1408-			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	04	1	1012-	●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●
294	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-			●
294	02.559 NUT 4HG1 ENG(RJH) 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	1012-	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-		●
313	02.559 BOLT; BRKT 4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-			●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-	●	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●	●
480	02.483 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1208-	●
480	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
480	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
480	02.483 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-			●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1012-	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111	●		●
516	02.559 BOLT; HARNESS 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-	●	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
529	02.559 BOLT; RELAY BOX 4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●
529	02.559 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●
529	02.559 BOLT; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●
529	02.559 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-		●
529	02.559 BOLT; RELAY BOX 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-			●
529	02.559 BOLT; RELAY BOX 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-			●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-		●
577	02.559 NUT; FUSE BOX 4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-			●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-	●

53 515 139 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (Q)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1012-			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●	●

459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98020-227-3	01	1	1012-		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (E)	8-98020-227-3	01	1	1012-			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	1012-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98030-990-2	01	1	1012-1109		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (F)	8-98030-990-2	01	1	1012-1109			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I)	8-98196-974-0	01	1	1110-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98196-974-0	01	1	1110-		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98196-974-0	01	1	1110-			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98123-282-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H)	8-98123-286-1	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	1012-	●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (Q)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (Q)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
