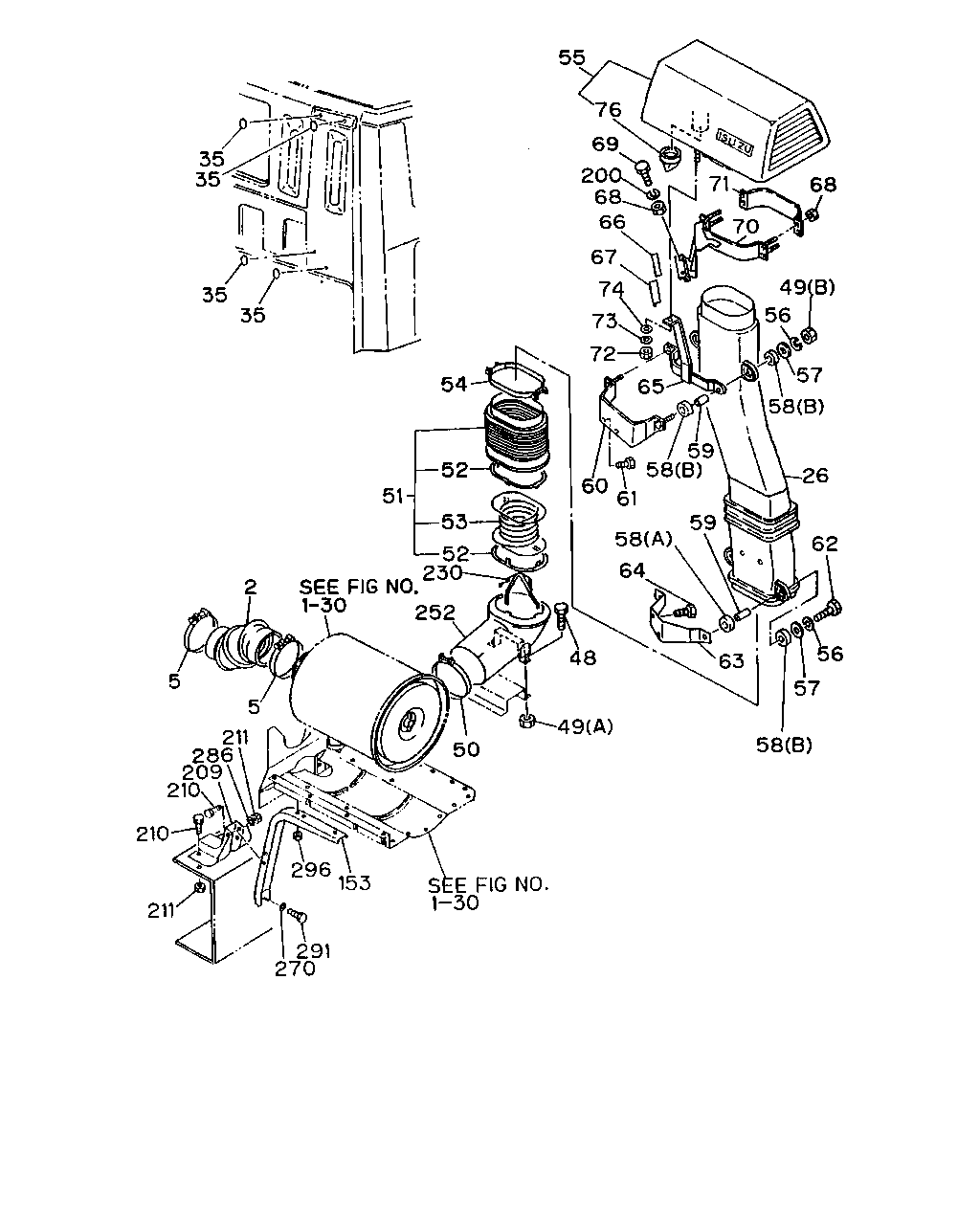

1-31B — AIR DUCT (#3325) — 116 parça

54 35 35 35 35 65 72 73 74 67 66 68 200 69 76 55 58 57 56 49 70 71 68 26 62 56 57 58 63 64 58 59 61 60 58 59 52 51 52 53 230 252 48 49 50 153 296 291 270 211 210 5 211 286 209 210 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-811-0	01	1	9002-	●
2	HOSE; ACL	1-14231-756-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-	●	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	9002-	●	●
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	9002-	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9002-	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	08	1	9002-9306	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9307-	●	●
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	9002-	●	●
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	9002-	●	●
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9002-	●	●
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	9002-	●	●
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9002-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	9002-	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9002-	●	●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108	●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●	●
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-	●	●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108	●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●	●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-	●	●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304	●
296	NUT; ACL M12	9-99110-512-0	02	1	9305-	●	●

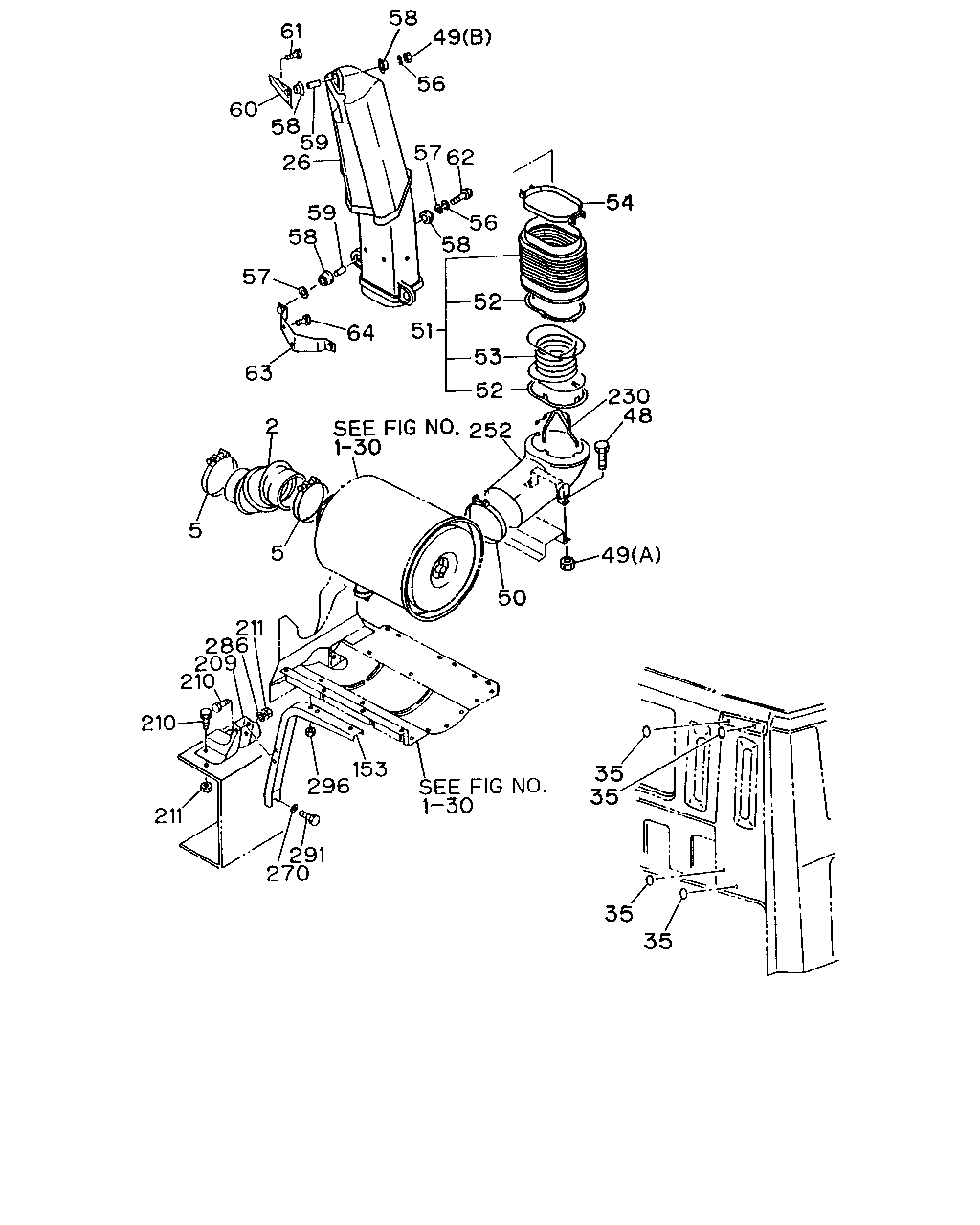

58 61 49 56 62 57 26 59 58 60 59 58 57 56 58 54 52 51 64 63 2 5 5 53 52 230 252 48 49 50 35 35 35 35 153 296 291 270 211 210 211 286 209 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-811-0	01	1	9002-	●
2	HOSE; ACL	1-14231-756-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-	●	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108	●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●	●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108	●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●	●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-	●	●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304	●
296	NUT; ACL M12	9-99110-512-0	02	1	9305-	●	●
