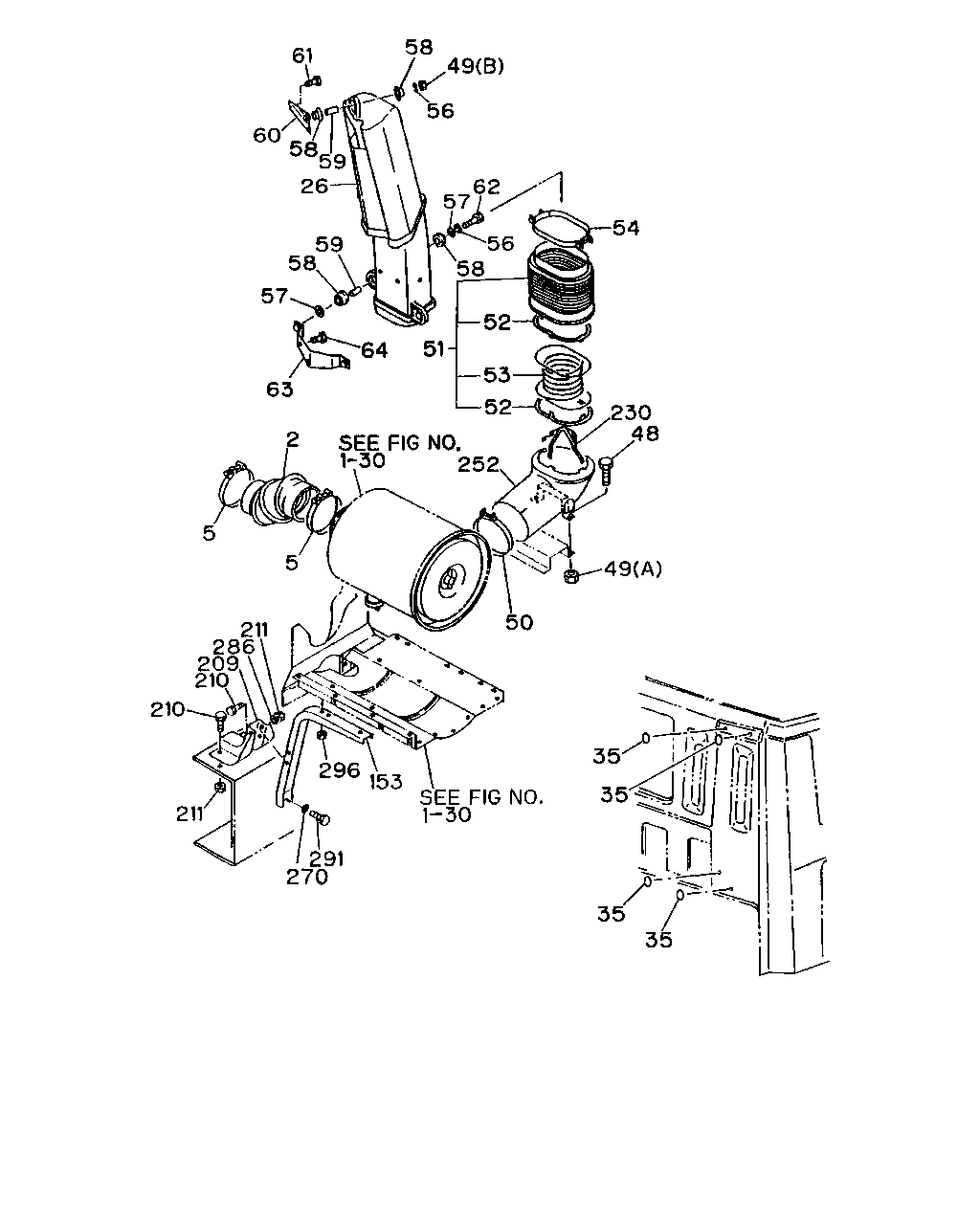

1-31A — AIR DUCT (#3324) — 124 parça

61 58 56 49 26 59 58 60 57 58 59 58 56 57 62 54 52 51 64 63 2 5 5 53 52 252 230 48 49 50 35 35 35 35 153 296 291 270 211 210 211 286 209 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-500-0	01	1	9002-
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-501-0	01	1	9002-
5	CLIP; AIR DUCT ID=87-116	1-09707-144-0	01	1	9002-
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9002-
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9002-
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9002-
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-
52	SEAT; SPR	1-14239-111-1	02	1	9002-
53	SPRING	1-14239-113-2	01	1	9002-
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108
209	BRACKET; ACL	1-53419-248-0	01	1	9109-
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-
230	GUIDE	1-14239-125-0	01	1	9002-
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-399-2	01	1	9002-9306
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304
296	NUT; ACL M12	9-99110-512-0	02	1	9305-

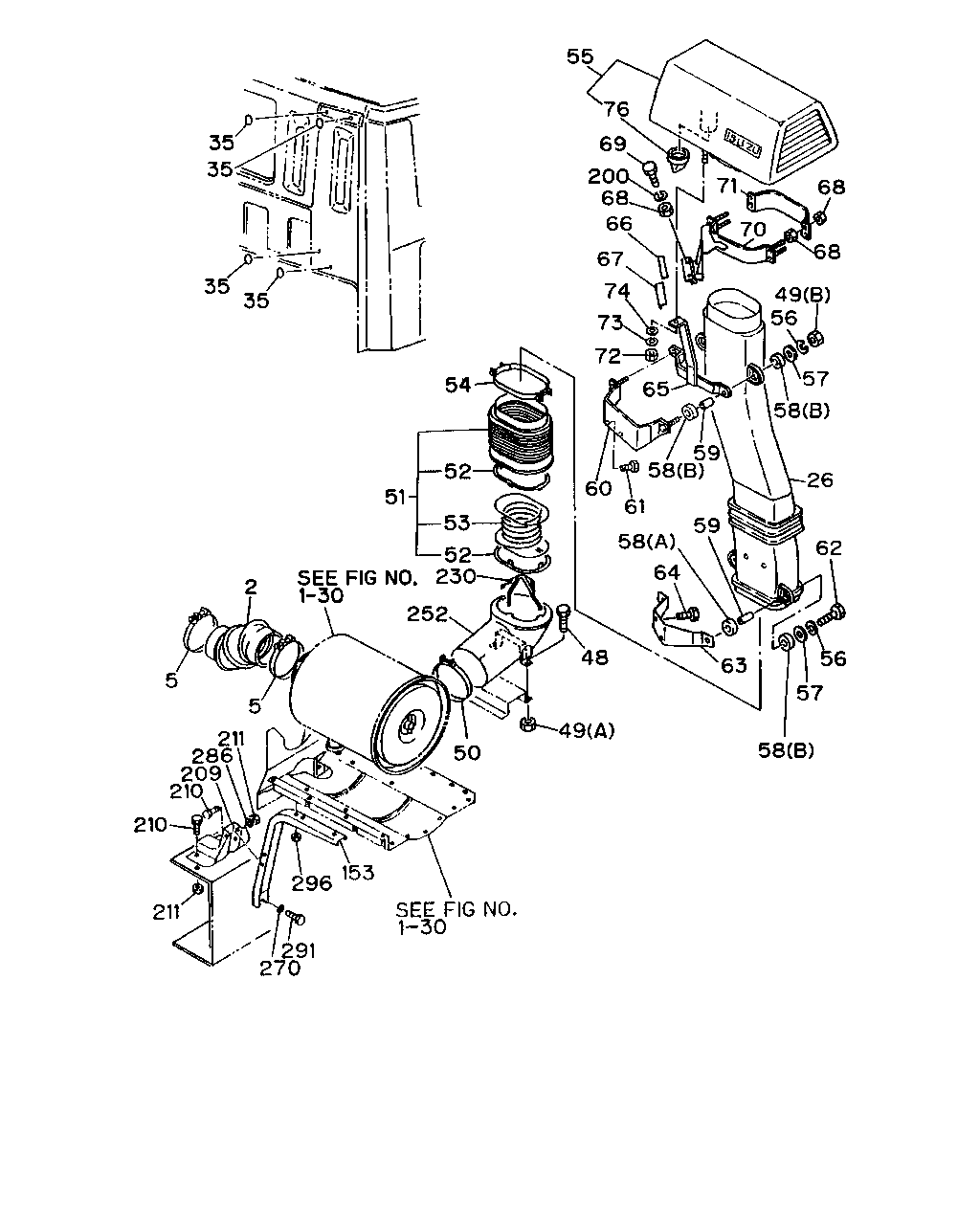

35 35 35 35 54 65 72 73 74 67 66 68 200 69 76 55 57 56 49 68 68 71 70 58 26 62 56 57 58 63 59 59 61 60 58 58 64 48 49 50 252 52 230 53 52 51 2 5 5 211 286 209 210 210 211 291 270 296 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-500-0	01	1	9002-
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-501-0	01	1	9002-
5	CLIP; AIR DUCT ID=87-116	1-09707-144-0	01	1	9002-
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9002-
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9002-
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9002-
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-
52	SEAT; SPR	1-14239-111-1	02	1	9002-
53	SPRING	1-14239-113-2	01	1	9002-
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	9002-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	9002-
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	9002-
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9002-
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	08	1	9002-9306
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9307-
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	9002-
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	9002-
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9002-
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	9002-
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9002-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	9002-
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9002-
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108
209	BRACKET; ACL	1-53419-248-0	01	1	9109-
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-
230	GUIDE	1-14239-125-0	01	1	9002-
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-399-2	01	1	9002-9306
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304
296	NUT; ACL M12	9-99110-512-0	02	1	9305-
