◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#33239) — 228 parça

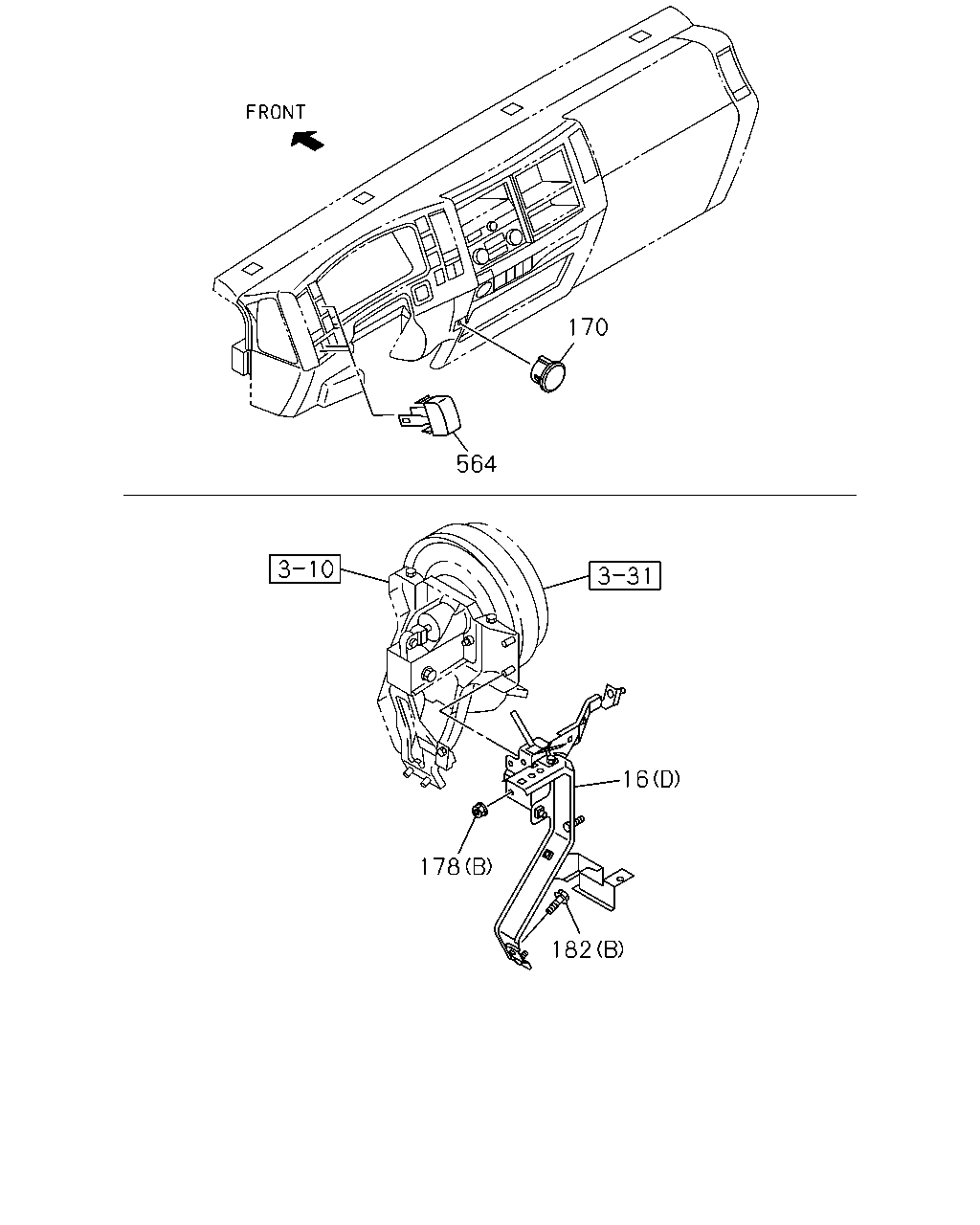

çizim 103031
170 564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1012-1511 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1012-1511 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1012-1511 ● ●
16 16.085 BRACKET; INST PNL
DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98100-403-1 01 1 1512- ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1512- ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1512- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1012-1503 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ●
16 16.085 BRACKET; INST PNL
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1012- ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1012- ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1012- ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1012- ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1012- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1012- ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1012- ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1012- ● ● ●

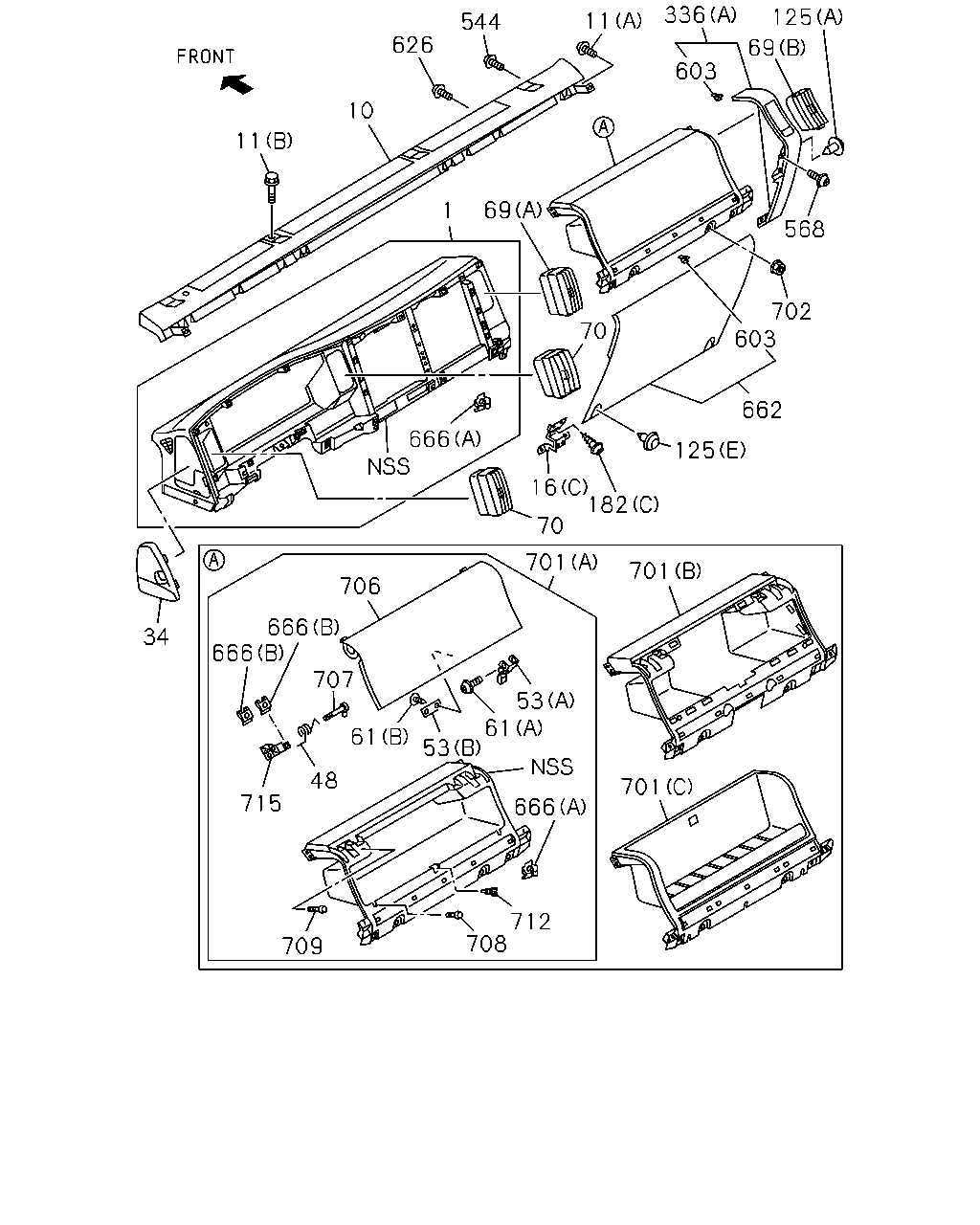

çizim 103032
662 603 702 568 125 69 336 603 11 544 626 10 69 1 11 70 125 182 16 666 70 706 666 34 666 707 61 48 715 709 708 712 701 701 701 53 61 53 666
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1012- ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1012- ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1012-1012 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1101-1212 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1012-1511 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1012-1511 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1012-1511 ● ●
16 16.085 BRACKET; INST PNL
DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98100-403-1 01 1 1512- ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1512- ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1512- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1012-1503 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ●
16 16.085 BRACKET; INST PNL
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1012- ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1012- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1012- ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1012-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1012-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1012-1405 ● ● ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1012-1405 ● ● ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1012- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1012- ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1012-1511 ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1512- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1012- ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1012- ● ● ●
336 16.081 COVER; INST PANEL SIDE
DUMP CHASSIS(V4D) (B) GRAY 		8-97415-670-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY 		8-97415-670-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1012-1511 ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1012- ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1012-1511 ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97406-000-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) (B) GRAY 		8-97406-000-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1512- ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1012-1101 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1012- ● ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1012- ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1012- ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1012- ● ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1012- ● ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1012-1311 ● ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1012- ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT-I/P ASSIS SIDE WITH LID <JDN>,COMPARTMENT-I/P ASSIS SIDE WITHOUTLID<JDP> (B) GRAY 		8-97416-908-2 01 1 1012- ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1012-1405 ● ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY 		8-97422-091-1 01 1 1012- ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1012-1405 ● ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1012-1311 ● ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1012- ● ● ●
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ● ● ●
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1012- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1012-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1012-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ●

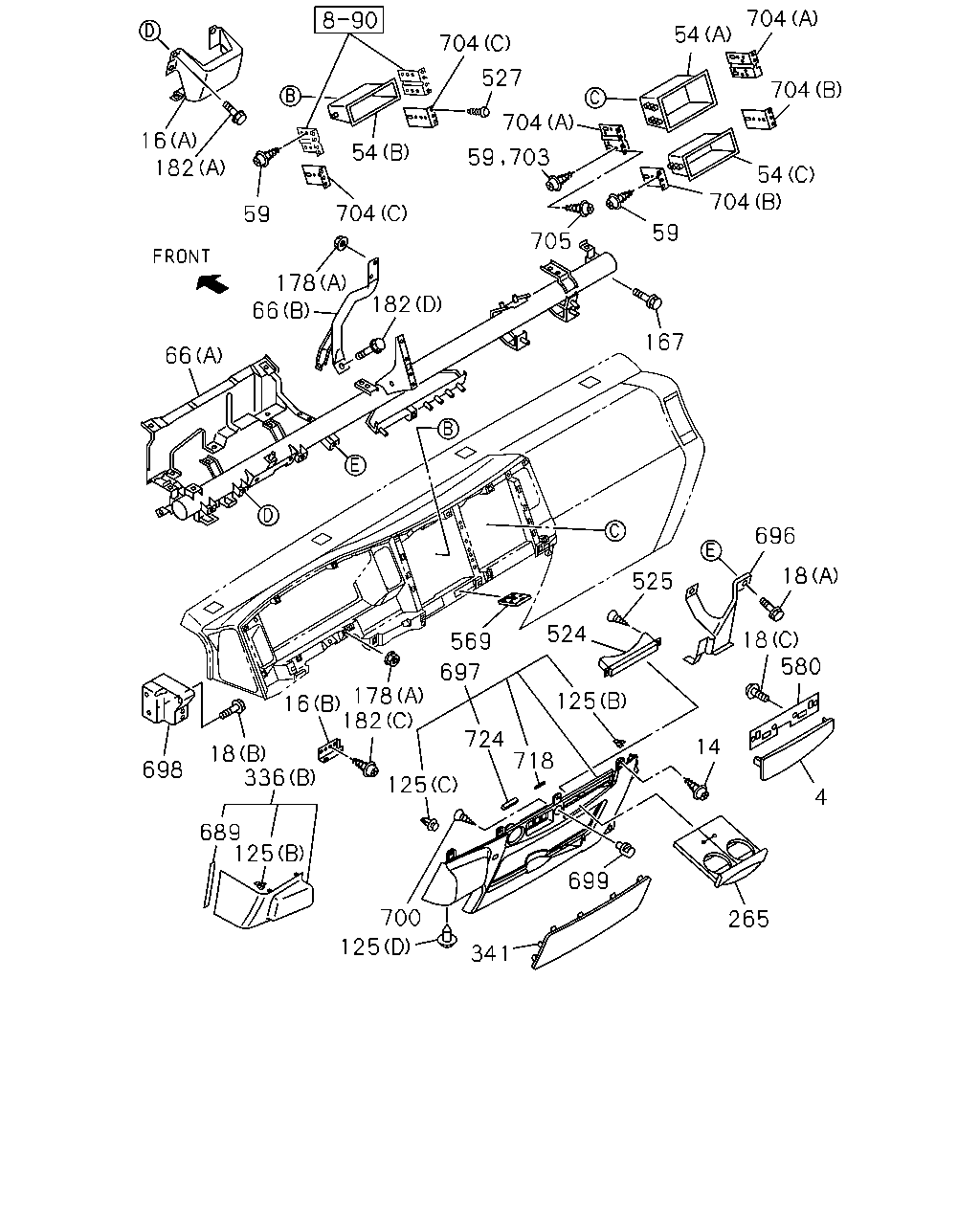

çizim 103034
704 54 704 527 704 704 16 182 54 54 704 704 59 59 705 178 66 182 167 66 696 18 525 524 18 580 569 178 16 182 697 125 724 718 14 18 336 698 125 4 689 125 699 700 265 125 341 59 703
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1012- ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1012 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1101-1212 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1012-1511 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1012-1511 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1012-1511 ● ●
16 16.085 BRACKET; INST PNL
DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98100-403-1 01 1 1512- ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) 		8-98100-403-1 01 1 1512- ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1512- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 1012-1503 ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ●
16 16.085 BRACKET; INST PNL
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1012- ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1012- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1012 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1101-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1012- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-945-0 01 1 1310- ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5>,KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-944-0 01 1 1310- ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98192-944-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98098-028-3 01 1 1012-1309 ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98098-028-3 01 1 1310- ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1012- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1012-1309 ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-365-3 01 1 1012-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1310- ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1012-1511 ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1512- ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1012- ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1012- ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1012- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1012- ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1012- ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1012- ● ● ●
336 16.081 COVER; INST PANEL SIDE
DUMP CHASSIS(V4D) (B) GRAY 		8-97415-670-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY 		8-97415-670-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1012-1511 ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1012- ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1012-1511 ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97406-000-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) (B) GRAY 		8-97406-000-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1512- ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 1012-1205 ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1012- ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1012-1012 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1101-1212 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1012- ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1012- ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1012- ● ● ●
689 09.743 SEAL; INST
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1012-1511 ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1012-1511 ● ●
689 09.743 SEAL; INST
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98068-244-0 01 1 1512- ●
689 09.743 SEAL; INST
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-98068-244-0 01 1 1512- ●
689 09.743 SEAL; INST
4HK1-TCN ENG(RDQ) EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1512- ●
689 09.743 SEAL; INST
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1512- ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 1012-1109 ● ● ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 1012-1205 ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1012- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1012- ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1012- ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1012- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1012- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1012- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1012- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1012-1012 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1012-1012 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1101-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1101-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1012-1012 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1101-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
