7-30 — LOCK CYLINDER SET (#33238) — 15 parça

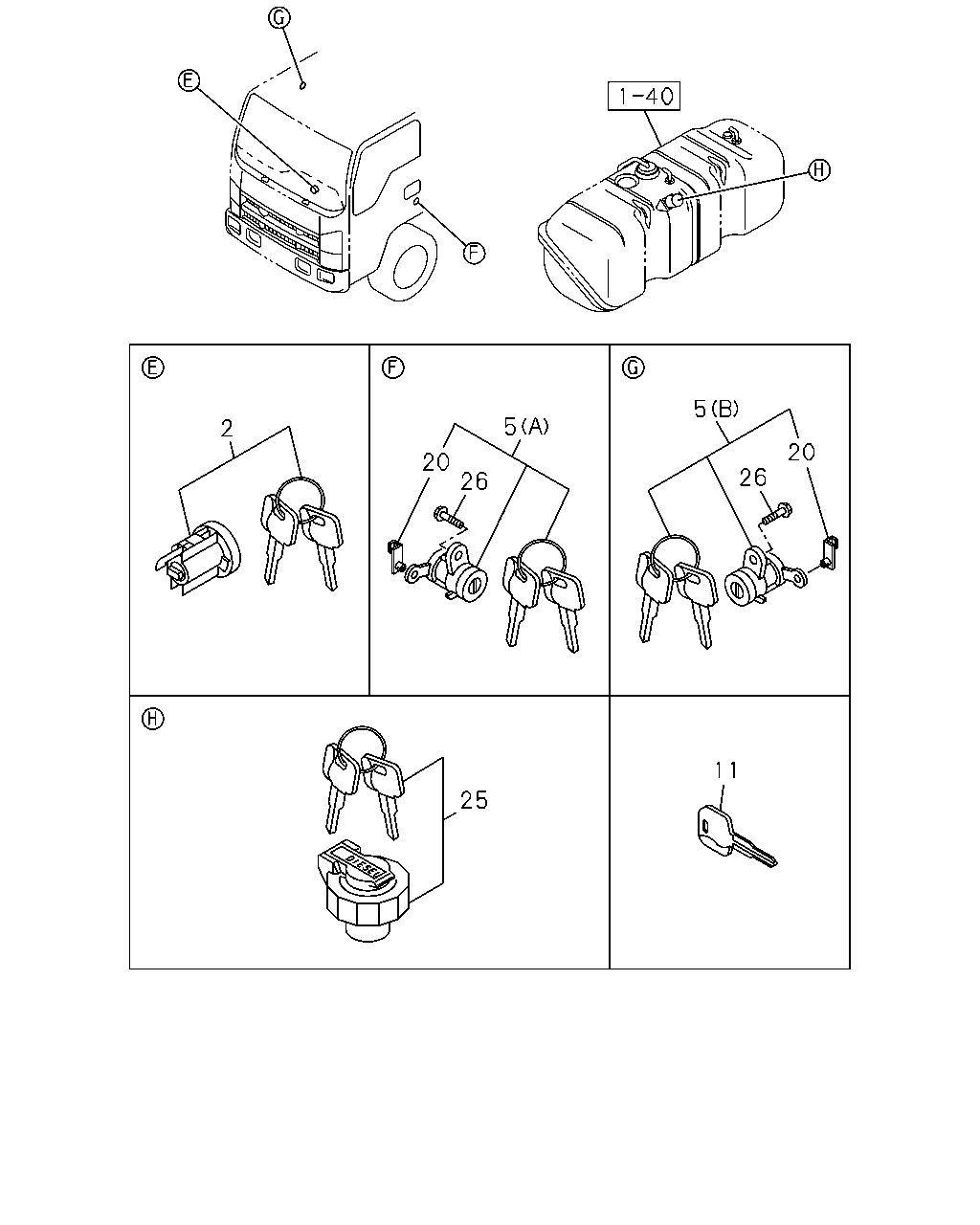

çizim 83396
5 5 2 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 1012-1203 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1204- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1012- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1012- ● ● ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 1012- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012- ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1012- ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1012- ● ● ●

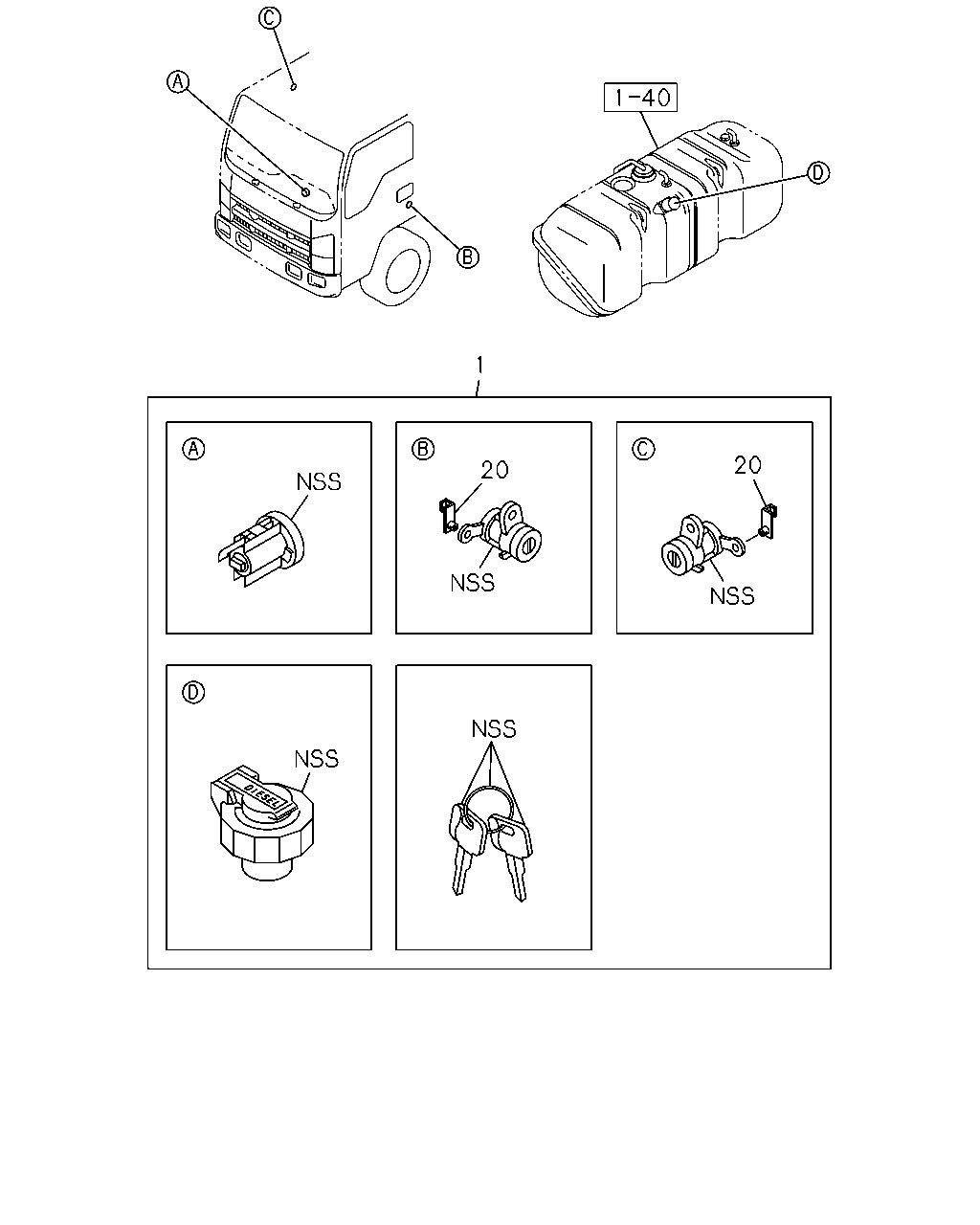

çizim 83397
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98145-979-0 01 1 1012-1203 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1204- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 1012-1203 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1204- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012- ● ● ●
