Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#33234) — 173 parça

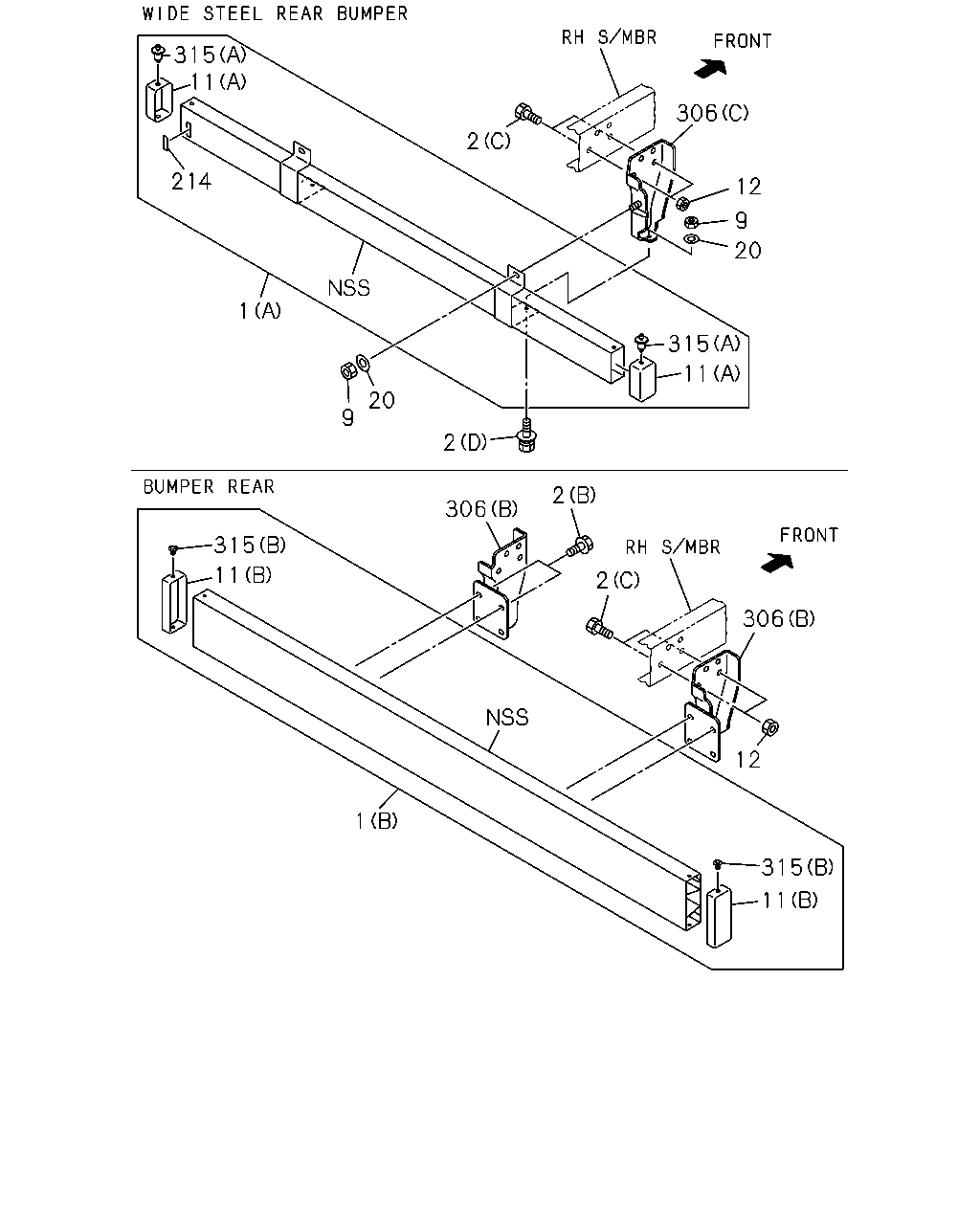

2 2 2 315 11 1 9 12 306 2 2 306 306 12 1 315 11 315 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	1112-1509	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	1510-	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1112-1408	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1112-1408		●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1409-	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. COUNTRY - SAUDI ARABIA<CU8> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1409-		●
1	07.070 BUMPER; RR COUNTRY - SAUDI ARABIA<CU8> WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP A IJ3K	8-98193-256-2	01	1	1409-	●
1	07.070 BUMPER; RR COUNTRY - SAUDI ARABIA<CU8> WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP A IJ3K	8-98193-256-2	01	1	1409-		●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1409-1508	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1409-1508			●
1	07.070 BUMPER; RR COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1509-	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1509-			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1012-1110	●		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1111-1408	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1111-1408			●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1409-1508	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1409-1508			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1509-	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1509-			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8P	8-98088-674-0	01	1	1012-	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	1012-1209	●	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-1509	●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1510-	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1012-	●		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1012-1110	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1012-1110			●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	1012-1110		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1111-1509	●	●	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1510-	●	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	1012-1209	●	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-1509	●	●
9	07.070 NUT; BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1510-	●	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	1112-1509	●	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-008-0	02	1	1510-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-008-0	02	1	1510-	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	1510-		●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	1-71290-064-0	02	1	1012-1110	●		●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	1-71290-064-0	02	1	1111-1408	●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> (B)	1-71290-064-0	02	1	1111-1408			●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1409-1508	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1409-1508			●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1509-			●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1012-1408	●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1409-1508	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1409-1508	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B)	8-98070-331-0	02	1	1409-1508			●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B)	8-98070-331-0	02	1	1509-			●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1012-1110	●
12	07.833 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1012-1110			●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1012-1110		●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1111-1509	●	●	●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1510-	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-406-0	01	1	1012-1209	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1210-1509	●	●
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1510-	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-407-0	01	1	1012-1209	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1210-1509	●	●
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1510-	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	1012-	●		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	1012-	●		●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1112-1509	●	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1510-	●
315	07.829 RIVET; CAP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1510-	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1510-		●
315	07.829 RIVET; CAP BUMPER REAR<7HZ> (B)	1-71290-062-0	04	1	1012-	●		●

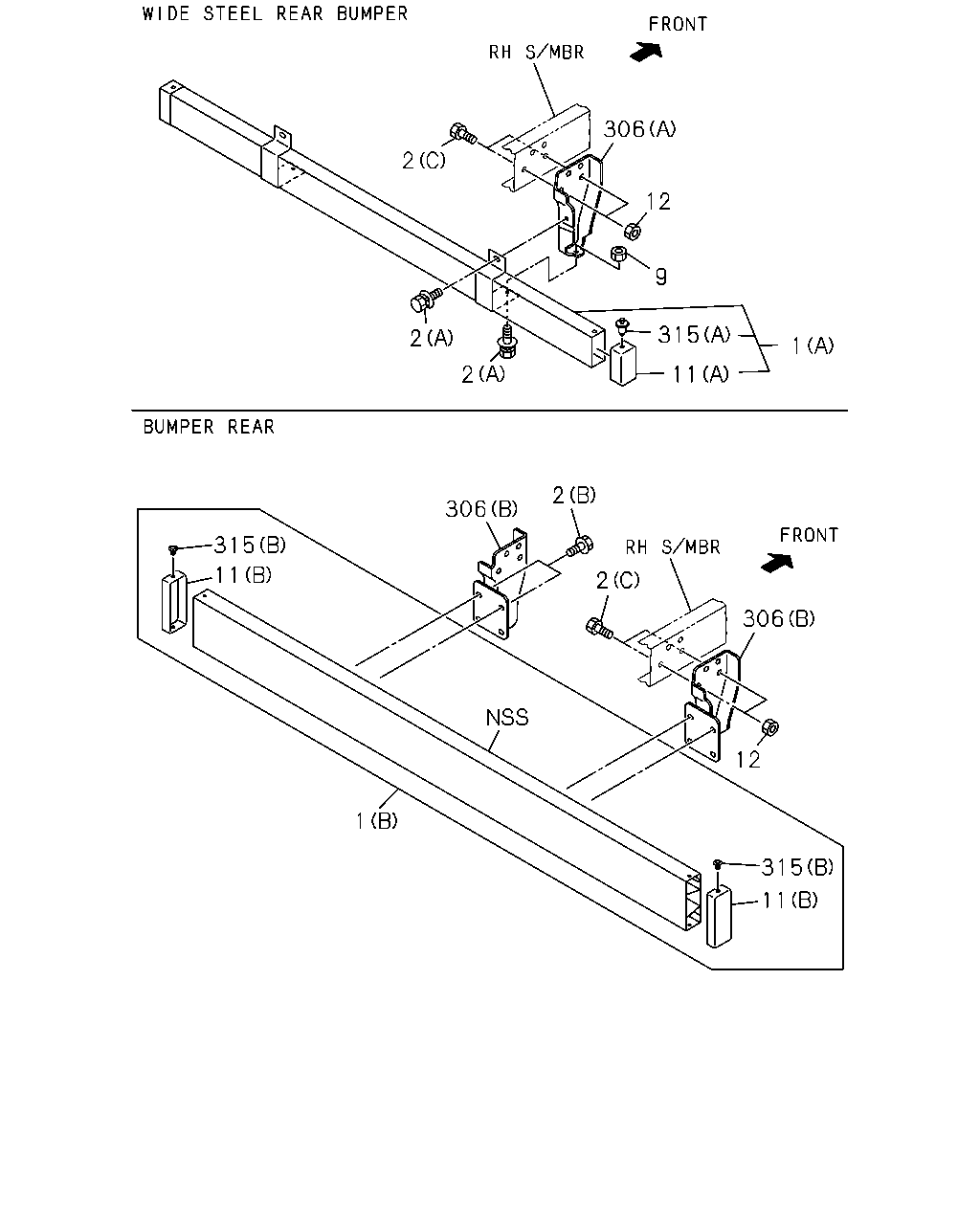

315 11 214 1 9 20 315 11 1 315 11 12 306 2 306 2 2 315 11 20 9 12 306 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	1112-1509	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	1510-	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1112-1408	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1112-1408		●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. COUNTRY - SAUDI ARABIA<CU8>,FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1409-	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. COUNTRY - SAUDI ARABIA<CU8> (A) STEEL BUMPER STAMP IJ2K	8-98000-147-1	01	1	1409-		●
1	07.070 BUMPER; RR COUNTRY - SAUDI ARABIA<CU8> WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP A IJ3K	8-98193-256-2	01	1	1409-	●
1	07.070 BUMPER; RR COUNTRY - SAUDI ARABIA<CU8> WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP A IJ3K	8-98193-256-2	01	1	1409-		●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1409-1508	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1409-1508			●
1	07.070 BUMPER; RR COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1509-	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	1509-			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1012-1110	●		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1111-1408	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1111-1408			●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1409-1508	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1409-1508			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1509-	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1509-			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8P	8-98088-674-0	01	1	1012-	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	1012-1209	●	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-1509	●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1510-	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1012-	●		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1012-1110	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1012-1110			●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	1012-1110		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1111-1509	●	●	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1510-	●	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	1012-1209	●	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-1509	●	●
9	07.070 NUT; BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1510-	●	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	1112-1509	●	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-008-0	02	1	1510-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-008-0	02	1	1510-	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	1510-		●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	1-71290-064-0	02	1	1012-1110	●		●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	1-71290-064-0	02	1	1111-1408	●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> (B)	1-71290-064-0	02	1	1111-1408			●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1409-1508	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1409-1508			●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> (B)	1-71290-064-0	02	1	1509-			●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1012-1408	●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1409-1508	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1409-1508	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B)	8-98070-331-0	02	1	1409-1508			●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-331-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> (B)	8-98070-331-0	02	1	1509-			●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1012-1110	●
12	07.833 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1012-1110			●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1012-1110		●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1111-1509	●	●	●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1510-	●	●
20	07.070 WASHER; PL,BUMPER WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-1509	●	●
20	07.070 WASHER; PL,BUMPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1510-	●	●
214	08.131 SEAL; RR BUMPER COUNTRY - SAUDI ARABIA<CU8> WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> STAMP A IJ3K	8-98217-031-0	01	1	1409-	●
214	08.131 SEAL; RR BUMPER COUNTRY - SAUDI ARABIA<CU8> WIDE STEEL REAR BUMPER<SMS> STAMP A IJ3K	8-98217-031-0	01	1	1409-		●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-406-0	01	1	1012-1209	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1210-1509	●	●
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1510-	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-407-0	01	1	1012-1209	●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1210-1509	●	●
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1510-	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	1012-	●		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	1012-	●		●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1112-1509	●	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1510-	●
315	07.829 RIVET; CAP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1510-	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1510-		●
315	07.829 RIVET; CAP BUMPER REAR<7HZ> (B)	1-71290-062-0	04	1	1012-	●		●

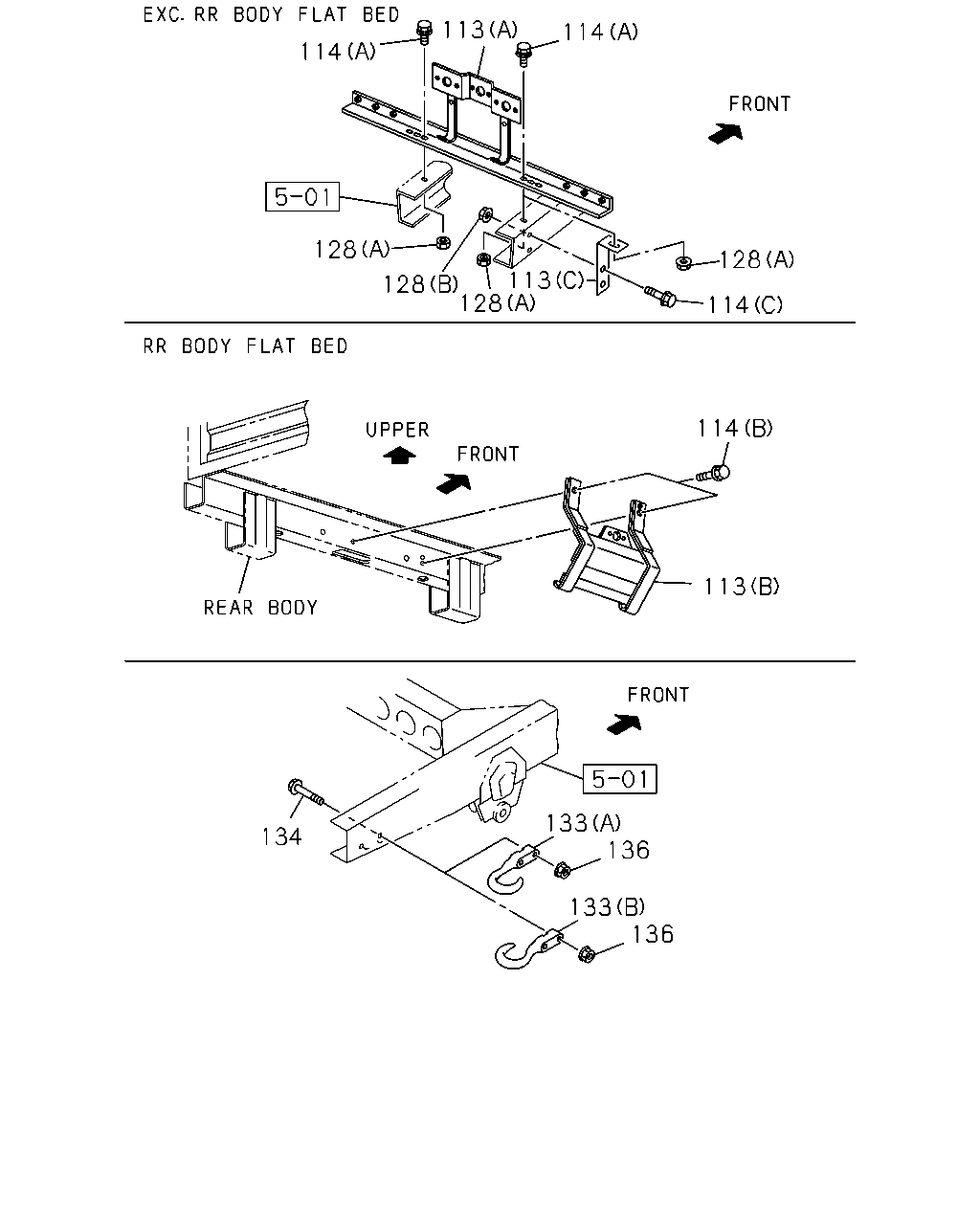

136 133 136 133 134 113 114 114 128 113 128 128 128 114 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	1012-	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> (A)	8-98029-390-3	01	1	1012-	●	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	1012-			●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W) (C)	8-98091-681-0	02	1	1012-1501			●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED<RS6> (C)	8-98091-681-0	02	1	1502-	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W) (C)	8-98091-681-0	02	1	1502-			●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1012-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1012-			●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W) 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	1012-1501			●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED<RS6> 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	1502-	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W) 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	1502-			●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-			●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1012-1501			●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED<RS6> 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1502-	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1502-			●
133	07.112 HOOK EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 (A)	8-97387-665-0	01	1	1012-	●
133	07.112 HOOK 07.068 (A)	8-97387-665-0	01	1	1012-		●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> 07.068 (B)	8-94249-270-2	01	1	1012-1012	●
133	07.112 HOOK EXC. MINI BUS CHASSIS(V4B) 07.068 (B)	8-94249-270-2	01	1	1012-1012			●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> 07.068 (B)	8-94249-270-2	01	1	1012-	●
133	07.112 HOOK EXC. MINI BUS CHASSIS(V4B) 07.068 (B)	8-94249-270-2	01	1	1012-			●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50	0-10856-450-0	02	1	1208-	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	1012-1012	●	●
134	07.068 BOLT; HOOK EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1012-1012			●
134	07.068 BOLT; HOOK M14X60	0-10861-460-0	02	1	1012-1207	●	●
134	07.068 BOLT; HOOK EXC. MINI BUS CHASSIS(V4B) M14X60	0-10861-460-0	02	1	1012-1207			●
134	07.068 BOLT; HOOK EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1208-	●
134	07.068 BOLT; HOOK EXC. MINI BUS CHASSIS(V4B) M14X60	0-10861-460-0	02	1	1208-			●
134	07.068 BOLT; HOOK M14X60	0-10861-460-0	02	1	1208-		●
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	1012-	●	●
136	07.068 NUT; HOOK EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
