Isuzu WW
▶
TRUCKS
▶
NPR
▶
51297 - NPR/NQR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#33228) — 26 parça
Tümü
A - NPR6SN
B - NPR6SS
C - NPR6WN
◀

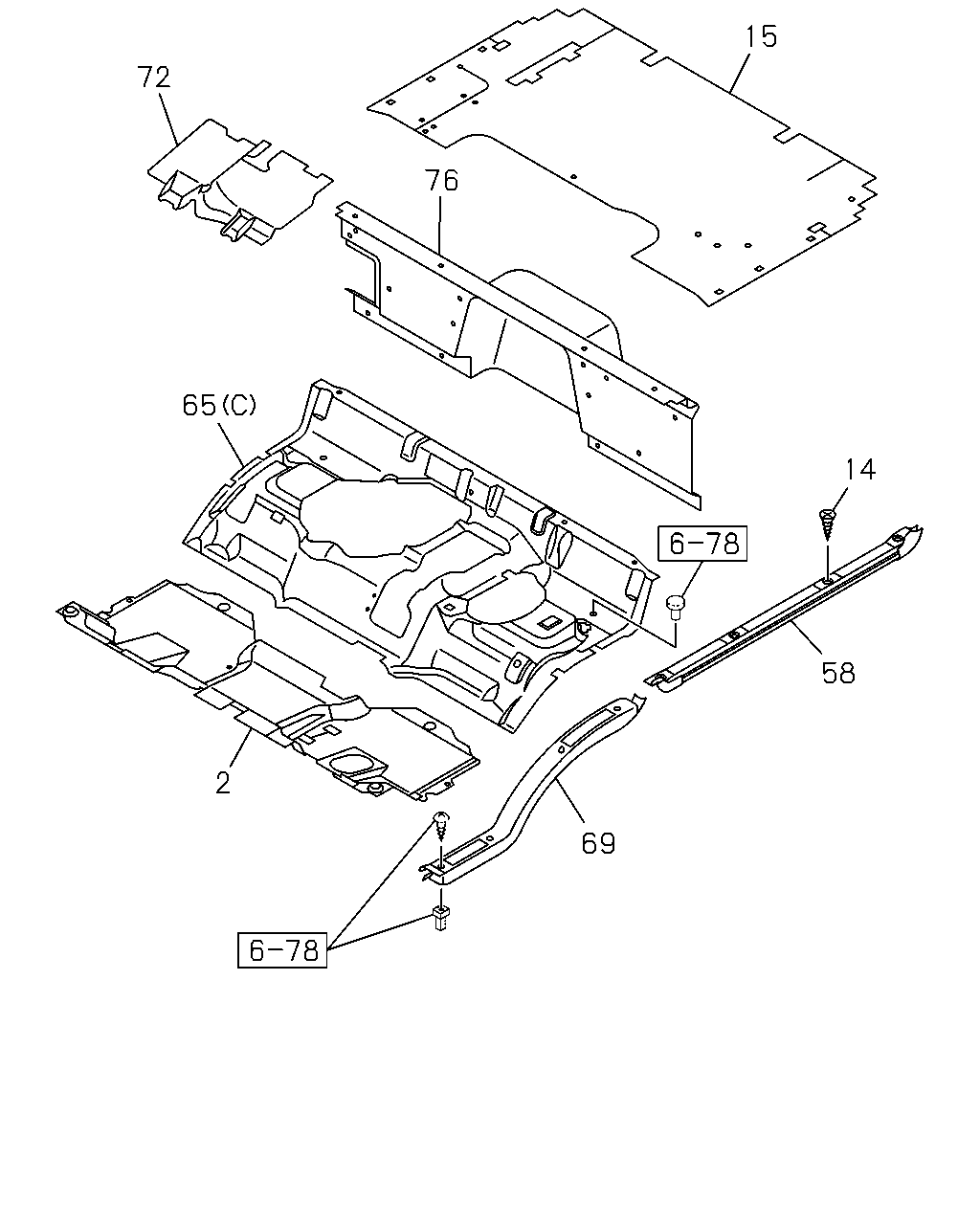

[675A] DBL CAB (15 parça)

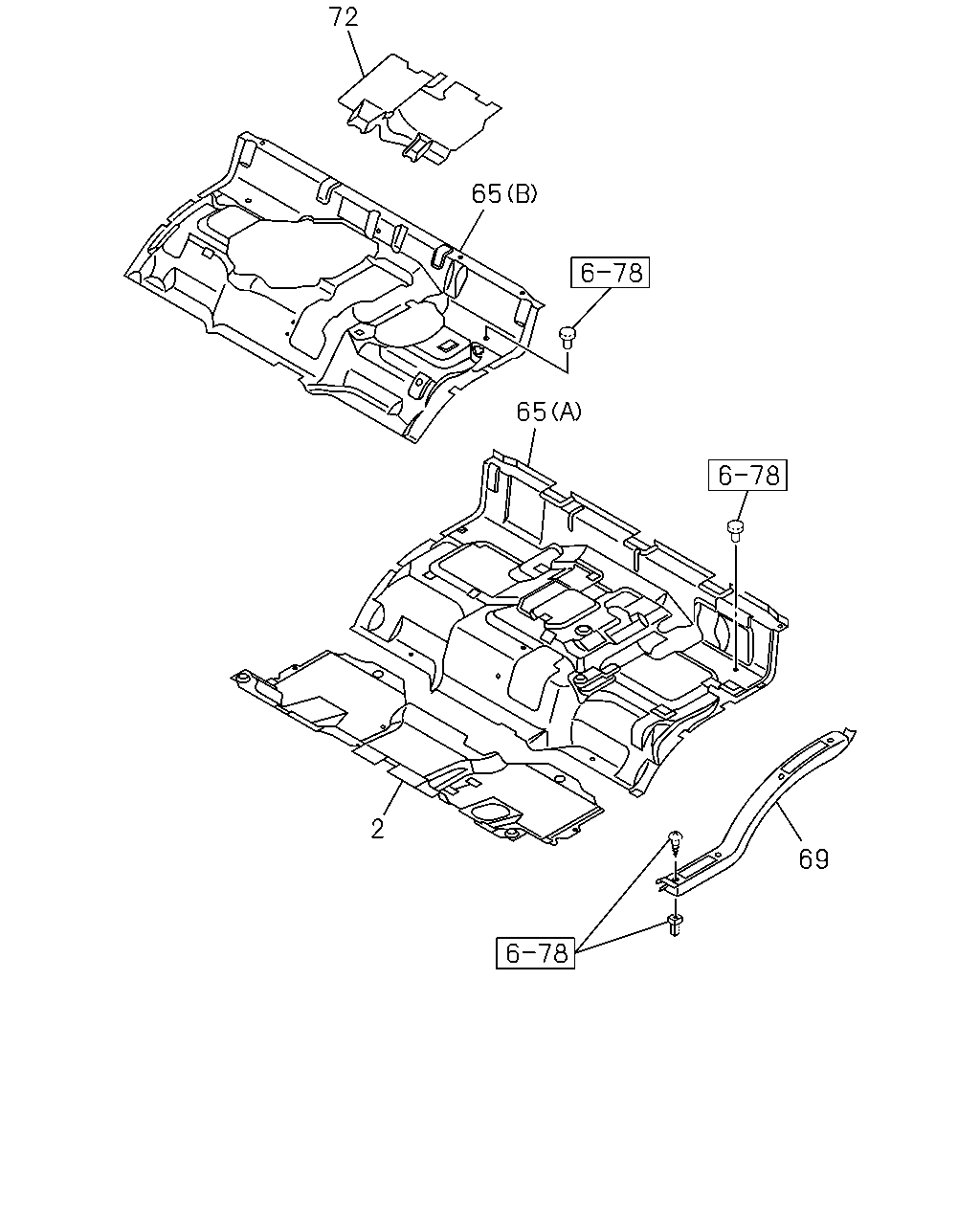

[675A] SGL CAB (11 parça)
▶
15
72
76
65
14
58
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
GRAY
8-97422-059-0
01
1
1012-
●
●
●
14
16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1012-
●
15
16.800 MAT; FLOOR REAR
4JJ1-TCC ENG(RDU) GRAY
8-97412-601-2
01
1
1012-
●
58
08.153 PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
1012-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-889-4
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-127-0
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-98112-607-4
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97425-115-0
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-98112-608-4
01
1
1012-1303
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97425-116-0
01
1
1304-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1012-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1012-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97417-599-1
01
1
1012-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97417-599-1
01
1
1012-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1-TCC ENG(RDU) GRAY
8-97412-599-1
01
1
1012-
●
72
65
65
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
GRAY
8-97422-059-0
01
1
1012-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-889-4
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-127-0
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-98112-607-4
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97425-115-0
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-98112-608-4
01
1
1012-1303
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97425-116-0
01
1
1304-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1012-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1012-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97417-599-1
01
1
1012-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97417-599-1
01
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
