Isuzu WW
▶
TRUCKS
▶
NPR
▶
51297 - NPR/NQR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-52 - REAR DOOR LOCK AND HANDLE
▶
6-52 — REAR DOOR LOCK AND HANDLE
(#33223) — 39 parça
◀

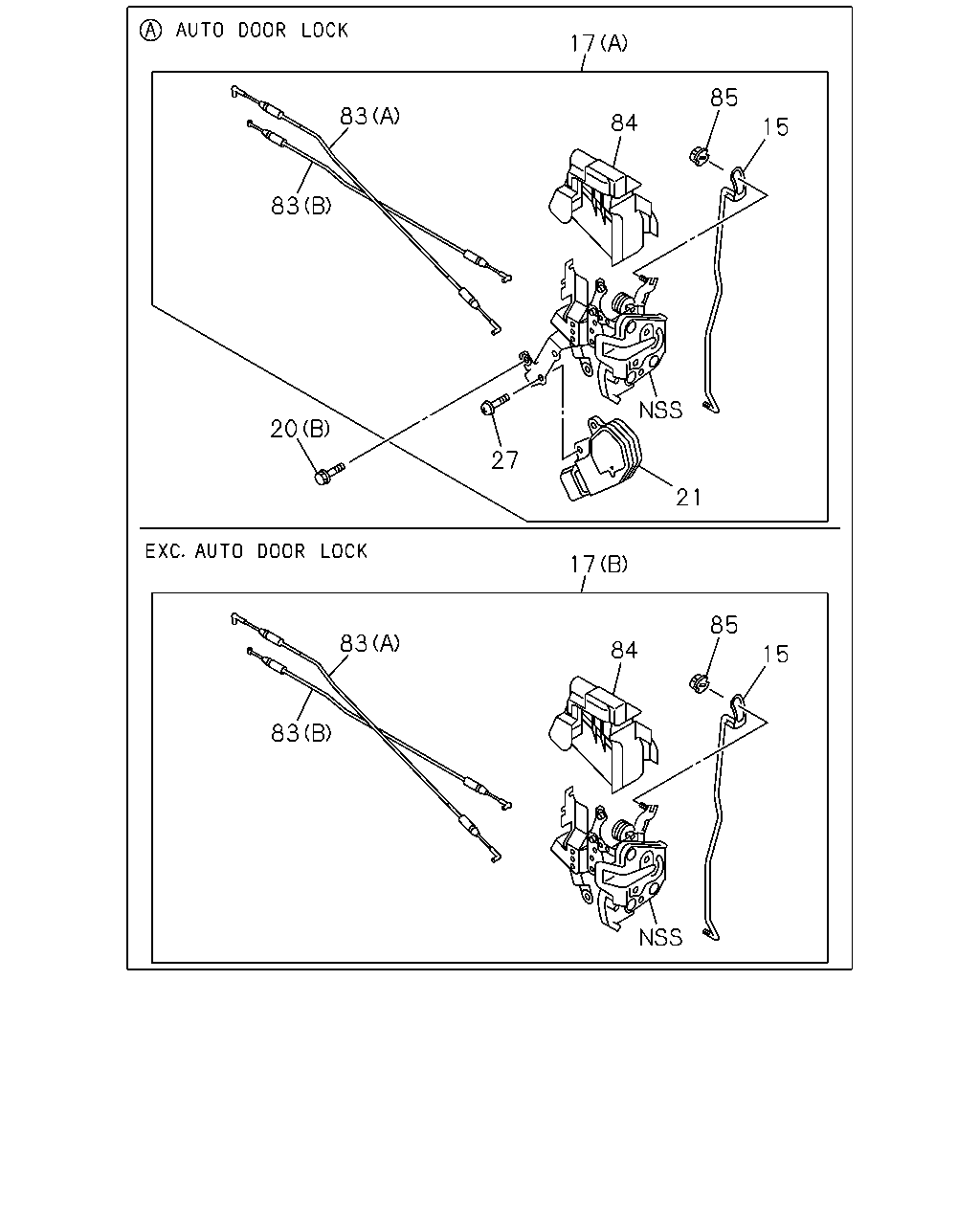

[652A] NO.2 (22 parça)
[652A] NO.3 (8 parça)

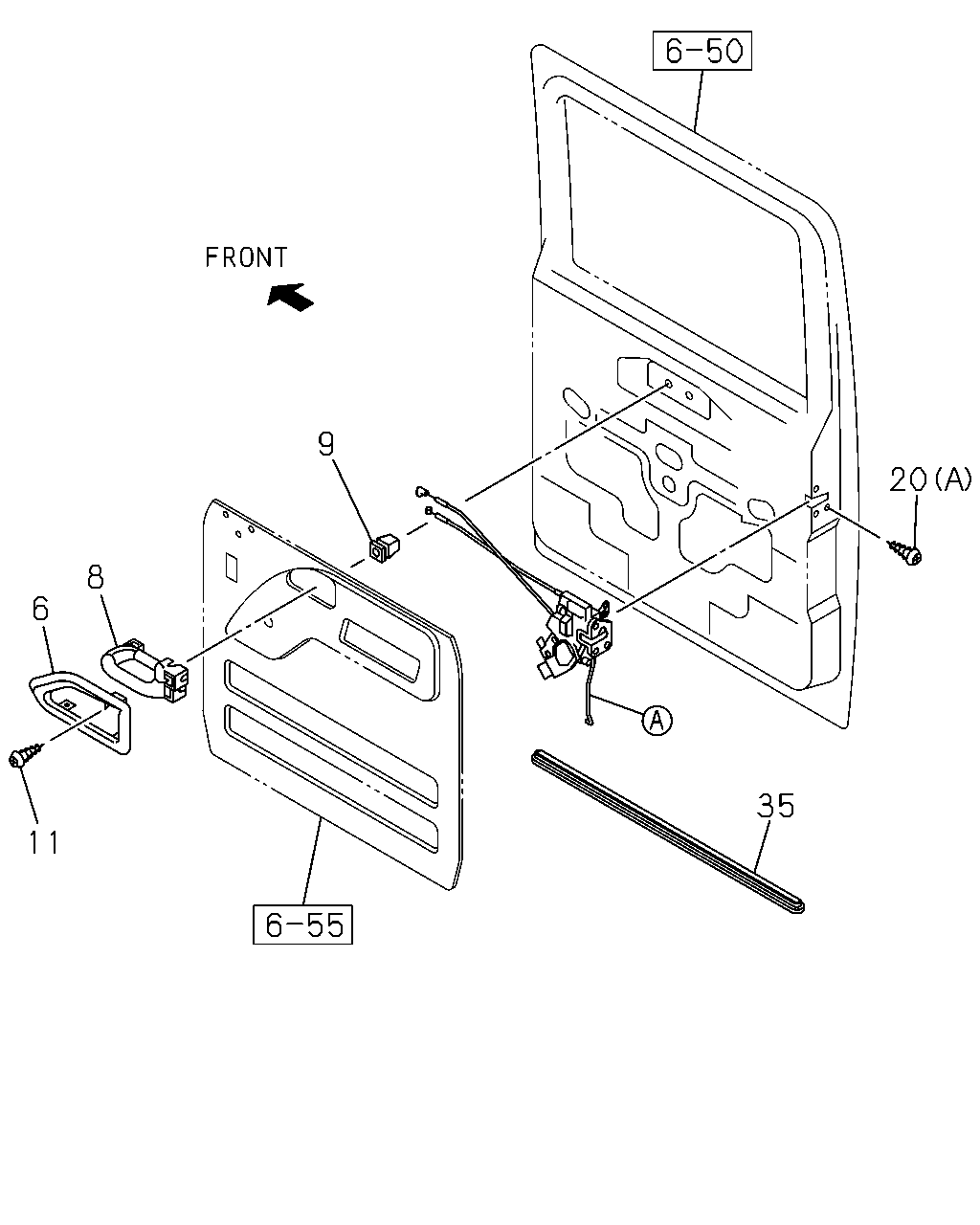

[652A] NO.1 (9 parça)
▶
17
85
83
84
15
83
20
27
21
17
85
83
84
15
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
16.341 LINK; RR DOOR LK
8-98058-335-0
01
1
1012-
15
16.341 LINK; RR DOOR LK
8-98058-336-0
01
1
1012-
17
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A)
8-97587-658-3
01
1
1012-1203
17
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A)
8-98202-461-0
01
1
1204-
17
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A)
8-97587-659-3
01
1
1012-1203
17
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A)
8-98202-462-0
01
1
1204-
17
16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (B)
8-98006-865-2
01
1
1012-
17
16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (B)
8-98006-867-2
01
1
1012-
20
16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1012-
20
16.330 SCREW; DOOR LK
(A) M6X14.5
8-98004-342-0
06
1
1012-
21
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
8-98058-231-0
01
1
1012-
21
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 16.263
8-98089-562-0
01
1
1012-
27
16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
8-97310-549-0
04
1
1012-
83
16.341 CABLE ASM; LOCK CONTROL
(A)
8-98058-342-0
01
1
1012-
83
16.341 CABLE ASM; LOCK CONTROL
(A)
8-98058-344-0
01
1
1012-
83
16.341 CABLE ASM; LOCK CONTROL
(B)
8-98058-345-0
02
1
1012-
84
16.270 COVER; DOOR LOCK
8-98058-238-0
01
1
1012-
84
16.270 COVER; DOOR LOCK
8-98058-239-0
01
1
1012-
85
16.155 SNAP; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 16.335 NATURAL
8-98058-226-0
01
1
1012-
85
16.155 SNAP; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 16.335 BLUE
8-98058-227-0
01
1
1012-
85
16.155 SNAP; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 16.335 NATURAL
8-98058-226-0
02
1
1012-
85
16.155 SNAP; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 16.335 BLUE
8-98058-227-0
02
1
1012-
3
37
14
1
30
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.360 HANDLE; OUTSIDE,RR DOOR
8-98040-991-2
01
1
1012-
1
16.360 HANDLE; OUTSIDE,RR DOOR
8-98040-992-2
01
1
1012-
3
16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE
0-28050-610-0
04
1
1012-
14
16.330 HOLDER; DOOR LK ROD
WHITE
8-97333-303-0
01
1
1012-
14
16.330 HOLDER; DOOR LK ROD
16.350 BLACK
8-98095-813-0
01
1
1012-
30
16.335 STRIKER; RR DOOR
8-98029-173-2
02
1
1012-
32
16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD
8-98004-343-2
04
1
1012-
37
16.157 GROMMET; RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 16.570
8-94279-724-0
04
1
1012-
9
20
8
6
35
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY
8-97405-311-0
01
1
1012-
6
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY
8-97405-312-0
01
1
1012-
8
16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY
8-97409-816-0
01
1
1012-
8
16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY
8-97409-817-0
01
1
1012-
9
16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1012-
11
16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
02
1
1012-
20
16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1012-
20
16.330 SCREW; DOOR LK
(A) M6X14.5
8-98004-342-0
06
1
1012-
35
16.155 PLUG; RR DOOR LWR HOLE
8-98009-201-4
02
1
1012-
