3-02 — FRONT DISC BRAKE CALIPER (#33221) — 30 parça

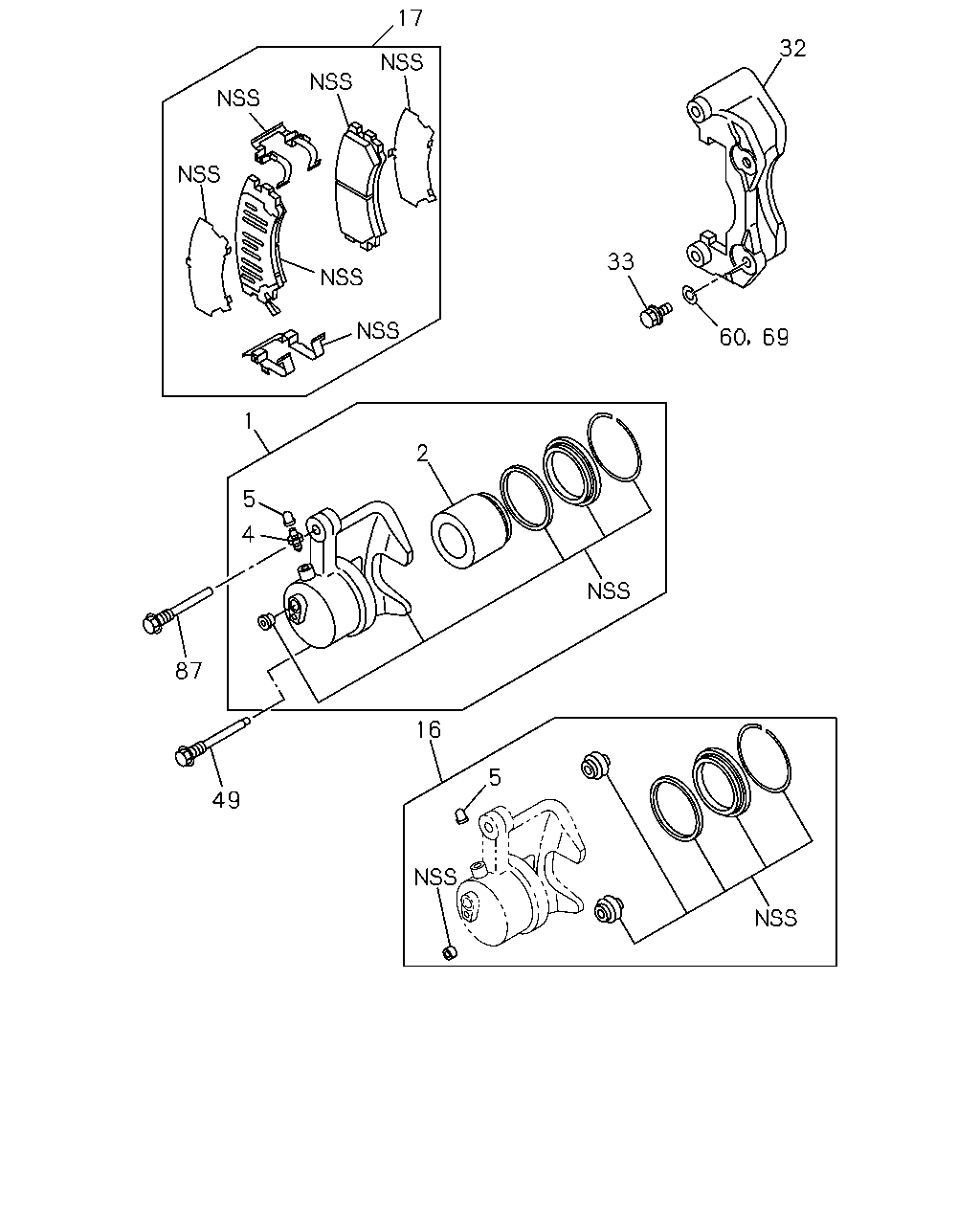

çizim 66356
17 32 33 60 69 1 2 5 4 87 16 5 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; FRT DISC BRK 8-97035-249-0 01 1 9112-9601 ● ●
1 CALIPER; FRT DISC BRK
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97035-249-0 01 1 9602-9602 ● ●
1 CALIPER; FRT DISC BRK 8-97035-248-0 01 1 9112-9601 ● ●
1 CALIPER; FRT DISC BRK
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97035-248-0 01 1 9602-9602 ● ●
1 CALIPER; FRT DISC BRK
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97144-477-0 01 1 9602-9602 ● ●
1 CALIPER; FRT DISC BRK 8-97144-477-0 01 1 9603- ● ●
1 CALIPER; FRT DISC BRK
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97144-476-0 01 1 9602-9602 ● ●
1 CALIPER; FRT DISC BRK 8-97144-476-0 01 1 9603- ● ●
2 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9112- ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-94438-713-0 02 1 9112-9601 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-94438-713-0 02 1 9602-9602 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97113-867-0 02 1 9602-9602 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-97113-867-0 02 1 9603- ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9112- ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97035-256-1 01 1 9112-9601 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97035-256-1 01 1 9602-9602 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97134-716-0 01 1 9602-9602 ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97134-716-0 01 1 9603- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-526-1 01 1 9112-9409 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EUROPE/CANARY EQUIPMENT(EK4) 		8-97113-888-0 01 1 9410-9504 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97113-888-0 01 1 9505- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97035-257-1 01 1 9112-9504 ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97035-257-1 01 1 9505- ● ●
32 SUPPORT; FRT DISC BRK 8-97035-250-1 02 1 9112- ● ●
33 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-94423-252-0 04 1 9112-9502 ● ●
33 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-97126-347-0 04 1 9503- ● ●
49 PIN; SLIDE,CALIPER 8-97035-254-0 02 1 9112- ● ●
60 WASHER; LK,SUPPORT BRKT TO KNUCKLE
ID=14.2 		9-09150-814-0 02 1 9112- ● ●
69 WASHER; LK,FRT DISC BRK
ID=14.2 		9-09150-814-0 02 1 9112- ● ●
87 PIN; LOCK 8-97035-255-0 02 1 9112- ● ●
