1-30A — AIR CLEANER (#3322) — 108 parça

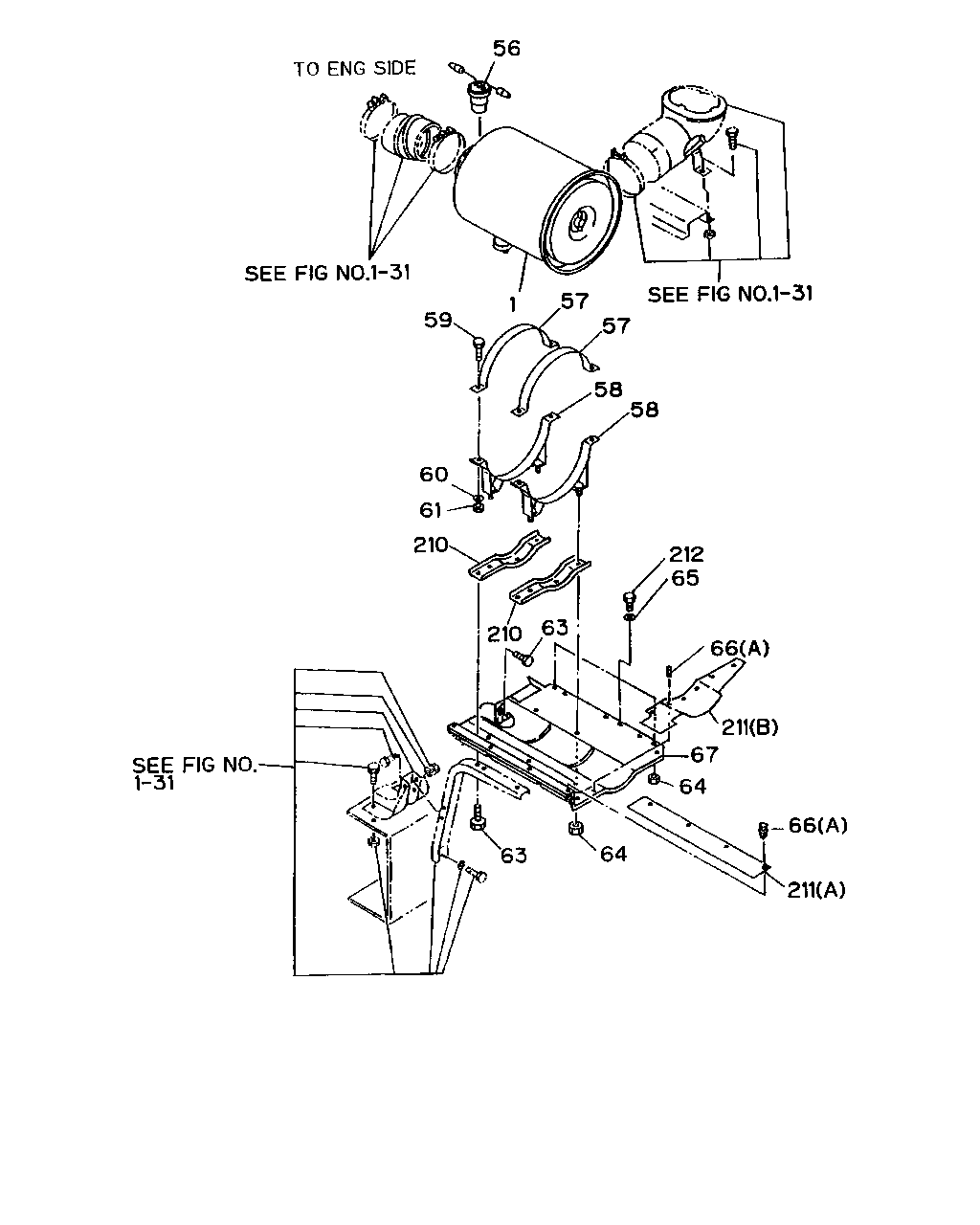

56 59 1 57 58 57 58 60 61 210 210 63 212 65 66 211 67 64 66 211 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-530-3	01	1	9002-
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-433-5	01	1	9002-
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-498-3	01	1	9002-
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-529-3	01	1	9002-
56	SWITCH; ACL	1-81530-011-0	01	1	9002-9306
56	SWITCH; ACL	1-81530-016-0	01	1	9307-
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-131-1	02	1	9002-9304
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-252-0	02	1	9305-
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-126-1	02	1	9002-9304
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-251-0	02	1	9305-
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-146-3	02	1	9002-9106
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-250-0	02	1	9107-
58	BRACKET; ACL BAND EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-124-3	01	1	9002-
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9002-
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9002-
63	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9009
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9010-9302
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9303-9304
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9305-
63	BOLT; BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-
64	NUT; BAND BRKT M10 FLANGE	5-09440-006-0	04	1	9002-
64	NUT; BAND BRKT M10	9-09110-410-0	05	1	9002-9009
64	NUT; BAND BRKT M10	9-09110-510-0	04	1	9010-
64	NUT; BAND BRKT M8	9-09110-408-0	01	1	9010-
64	NUT; BAND BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10 FLANGE	5-09440-006-0	02	1	9002-
65	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9002-
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9002-9304
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	9002-
66	CLIP; ACL (A)	5-09987-033-0	08	1	9002-9306
66	CLIP; ACL (A)	5-09987-033-0	08	1	9307-
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9002-9306
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9307-
67	COVER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-123-9	01	1	9002-
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-208-0	02	1	9002-9202
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-239-0	02	1	9203-
210	BRACKET; ACL MTG EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-209-0	02	1	9002-
211	RUBBER; SEAL (B)	1-53499-006-0	01	1	9002-
211	RUBBER; SEAL (A)	1-79930-358-1	01	1	9002-
212	BOLT; MUD COVER M10X25 W/LK WASHER	0-50041-025-0	05	1	9002-9506
212	BOLT; MUD COVER M10X20 FLANGE	0-28081-020-0	05	1	9507-

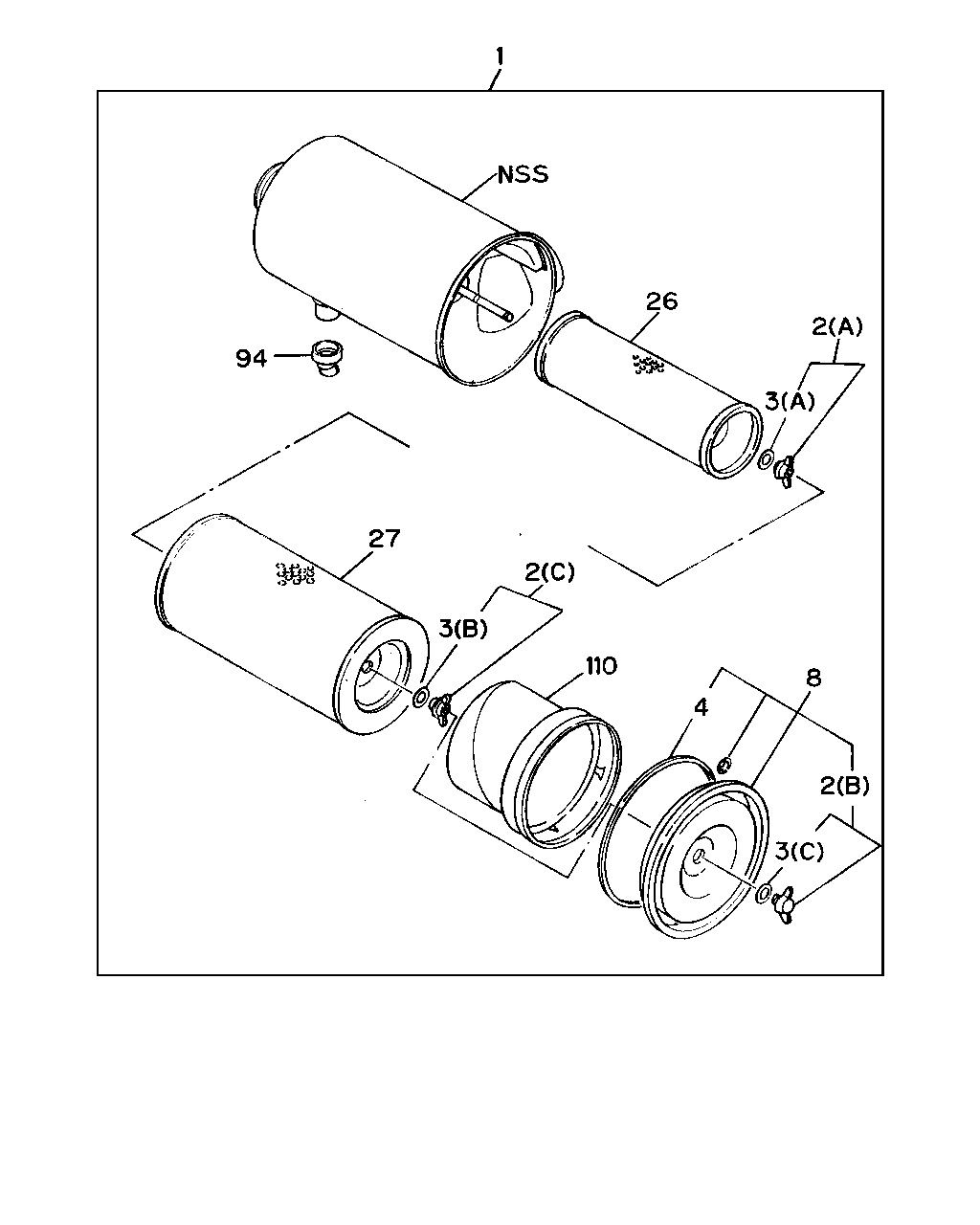

1 94 26 2 3 8 2 3 4 110 2 3 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-530-3	01	1	9002-
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-433-5	01	1	9002-
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-498-3	01	1	9002-
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-529-3	01	1	9002-
2	NUT; WING,ELEMENT (A)	1-14217-003-0	01	1	9002-
2	NUT; WING,ELEMENT (B)	1-14217-049-0	01	1	9002-
2	NUT; WING,ELEMENT (C)	1-14217-050-0	01	1	9002-
3	WASHER; SEAL,WING NUT (A)	1-14219-032-0	01	1	9002-
3	WASHER; SEAL,WING NUT (B)	1-14219-118-0	01	1	9002-
3	WASHER; SEAL,WING NUT (C)	1-14219-156-0	01	1	9002-
4	GASKET; COVER TO BODY AIR CLEANER HEAVY DUTY<K45>	1-14219-130-0	01	1	9002-
4	GASKET; COVER TO BODY EXC. AIR CLEANER HEAVY DUTY<K45>	1-14219-128-0	01	1	9002-
8	COVER ASM; ACL AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-090-0	01	1	9002-
8	COVER ASM; ACL AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-091-0	01	1	9002-
8	COVER ASM; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14212-099-0	01	1	9002-
8	COVER ASM; ACL CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14212-098-0	01	1	9002-
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-127-0	01	1	9002-
26	FILTER; ACL,INNER EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-125-0	01	1	9002-
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-192-0	01	1	9002-
27	FILTER; ACL,OUTER EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-183-0	01	1	9002-
94	VALVE; VACUATOR	1-14219-129-0	01	1	9002-
110	ADAPTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14219-175-0	01	1	9002-

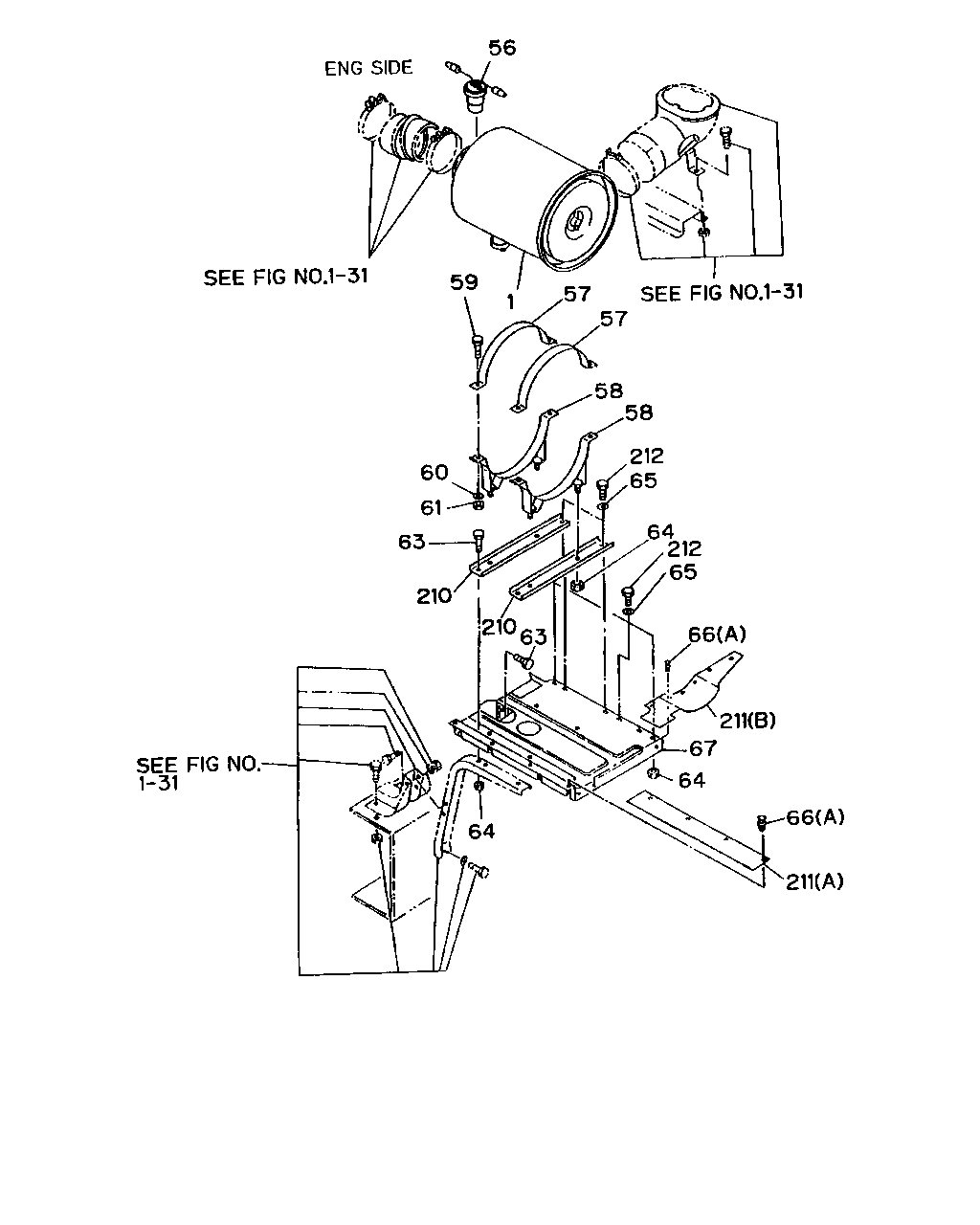

56 59 57 1 57 58 58 212 65 64 212 65 66 211 67 64 66 211 64 63 210 210 63 60 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-530-3	01	1	9002-
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-433-5	01	1	9002-
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-14210-498-3	01	1	9002-
1	CLEANER ASM; AIR CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-529-3	01	1	9002-
56	SWITCH; ACL	1-81530-011-0	01	1	9002-9306
56	SWITCH; ACL	1-81530-016-0	01	1	9307-
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-131-1	02	1	9002-9304
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-252-0	02	1	9305-
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-126-1	02	1	9002-9304
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-251-0	02	1	9305-
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-146-3	02	1	9002-9106
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-250-0	02	1	9107-
58	BRACKET; ACL BAND EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-124-3	01	1	9002-
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9002-
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9002-
63	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9009
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9010-9302
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9303-9304
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9305-
63	BOLT; BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-
64	NUT; BAND BRKT M10 FLANGE	5-09440-006-0	04	1	9002-
64	NUT; BAND BRKT M10	9-09110-410-0	05	1	9002-9009
64	NUT; BAND BRKT M10	9-09110-510-0	04	1	9010-
64	NUT; BAND BRKT M8	9-09110-408-0	01	1	9010-
64	NUT; BAND BRKT EXC. AIR CLEANER HEAVY DUTY<K45> M10 FLANGE	5-09440-006-0	02	1	9002-
65	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9002-
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9002-9304
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	9002-
66	CLIP; ACL (A)	5-09987-033-0	08	1	9002-9306
66	CLIP; ACL (A)	5-09987-033-0	08	1	9307-
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9002-9306
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9307-
67	COVER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-123-9	01	1	9002-
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-208-0	02	1	9002-9202
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-239-0	02	1	9203-
210	BRACKET; ACL MTG EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-209-0	02	1	9002-
211	RUBBER; SEAL (B)	1-53499-006-0	01	1	9002-
211	RUBBER; SEAL (A)	1-79930-358-1	01	1	9002-
212	BOLT; MUD COVER M10X25 W/LK WASHER	0-50041-025-0	05	1	9002-9506
212	BOLT; MUD COVER M10X20 FLANGE	0-28081-020-0	05	1	9507-
