2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#33218) — 93 parça

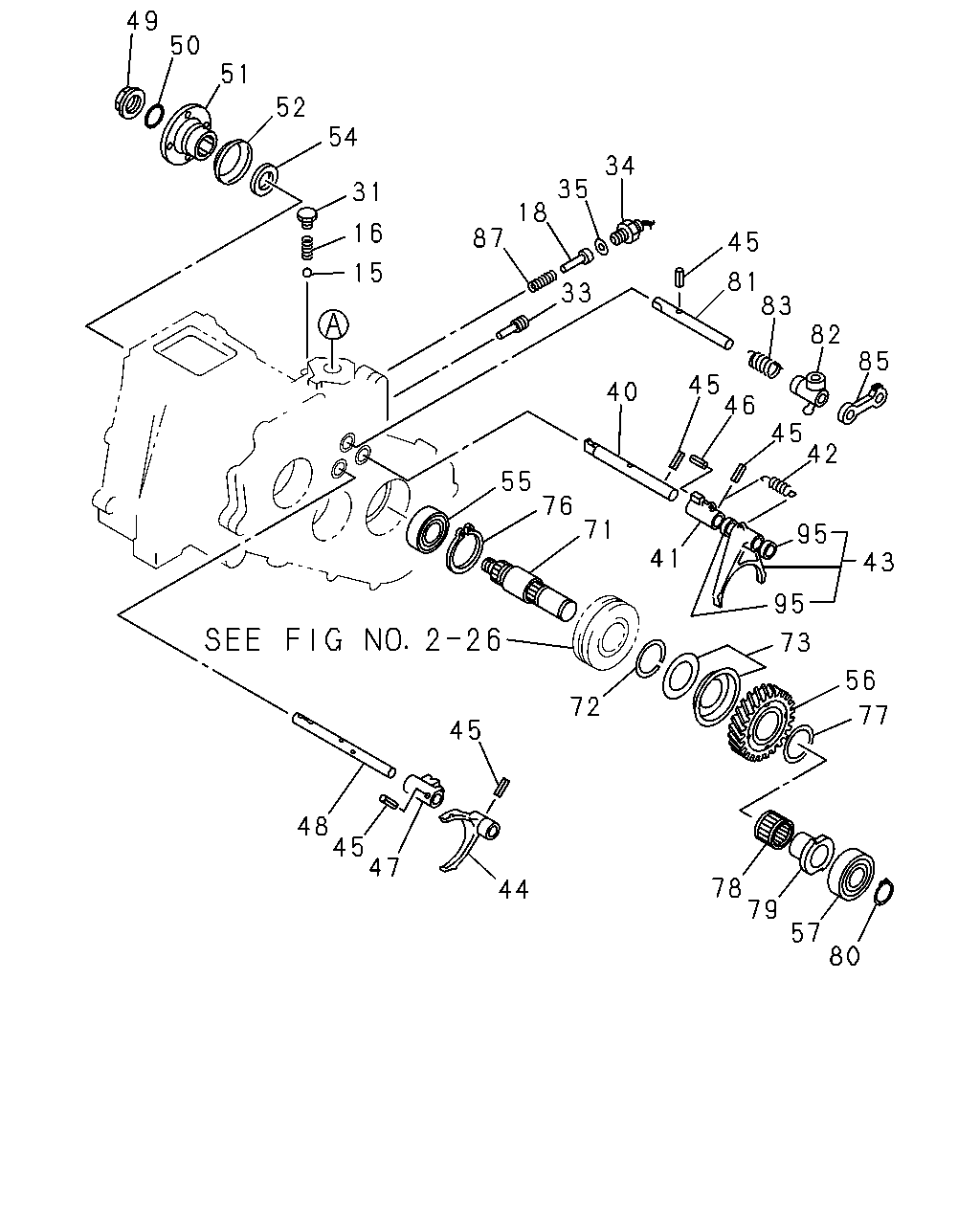

49 51 52 54 34 35 18 87 31 16 15 45 33 81 83 82 85 46 45 42 55 76 71 95 41 43 95 73 56 77 72 45 48 45 47 78 79 57 80 44 40 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	9112-	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER L=26.8	8-94320-193-0	02	1	9112-9607	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER L=23.4	8-97145-374-0	02	1	9608-	●	●
18	PIN; INTER LOCK,SHIFT ROD,TRANSFER	8-94461-898-0	01	1	9112-	●	●
31	PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	9112-	●	●
33	SCREW; STOPPER,TRANSFER M6X18	8-94448-812-1	01	1	9112-	●	●
34	SWITCH; TRANSFER INDICATOR	5-82440-018-0	01	1	9112-9505	●	●
34	SWITCH; TRANSFER INDICATOR	5-82440-018-0	01	1	9505-9510	●	●
34	SWITCH; TRANSFER INDICATOR	8-97143-604-0	01	1	9511-9609	●	●
34	SWITCH; TRANSFER INDICATOR	8-97138-632-0	01	1	9610-	●	●
35	GASKET; INDICATOR SWITCH,TRANSFER ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER	8-94421-920-3	01	1	9112-9505	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER SHIFT ON THE FLY(7EX)	8-97070-675-1	01	1	9505-9505	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER	8-97070-675-1	01	1	9506-	●	●
41	BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97033-094-2	01	1	9112-	●	●
42	SPRING; GEAR LOCK RELEASE,TRANSFER L=30	8-94422-188-0	01	1	9112-	●	●
43	ARM; SHIFT,4X2-4X4,TRANSFER	8-94377-525-1	01	1	9112-9409	●	●
43	ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	9410-	●	●
44	ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	9112-	●	●
45	PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	06	1	9112-	●	●
46	PIN; SPR,SELECT LEVER	8-94448-816-1	01	1	9112-	●	●
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97033-090-1	01	1	9112-9607	●	●
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	9608-	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER	8-94421-919-3	01	1	9112-9607	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER	8-97141-882-1	01	1	9608-9708	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-0	01	1	9709-	●	●
49	NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	9112-	●	●
50	GASKET; COUPLING DRIVER,FRT OUTPUT	8-94483-035-0	01	1	9112-	●	●
51	FLANGE ASM; COUPLING DRIVER,TRANSFER	8-94453-699-5	01	1	9112-	●	●
52	COVER; DUST,TRANSFER FLANGE	8-94320-867-2	01	1	9112-	●	●
54	SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	9112-	●	●
54	SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	9302-	●	●
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE NSK	8-94422-172-0	01	1	9112-	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-94482-317-1	01	1	9112-9502	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-97120-120-0	01	1	9503-9504	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-97120-125-0	01	1	9505-9607	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	9608-	●	●
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE NSK	8-94422-052-0	01	1	9112-	●	●
71	SHAFT; TRANSFER OUTPUT	8-94421-900-5	01	1	9112-9504	●	●
71	SHAFT; TRANSFER OUTPUT	8-94377-437-3	01	1	9505-	●	●
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9112-	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED(RMN)	8-94320-569-0	01	1	9112-9607	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9608-	●	●
76	RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	9112-	●	●
77	SPRING; BELLEVILLE,ANTI LASH PLATE M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9112-9505	●	●
77	SPRING; BELLEVILLE,ANTI LASH PLATE M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9505-	●	●
78	BEARING; FRT OUTPUT GEAR,TRANSFER NSK	8-94422-064-0	01	1	9112-	●	●
79	COLLAR; FRT OUTPUT GEAR,TRANSFER	8-97031-079-0	01	1	9112-9412	●	●
79	COLLAR; FRT OUTPUT GEAR,TRANSFER	8-94422-076-1	01	1	9501-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	9112-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	9112-	●	●
81	ROD; TRANSFER SELECT	8-94370-499-2	01	1	9112-	●	●
82	BLOCK; TRANSFER	8-97033-092-1	01	1	9112-	●	●
83	SPRING; SELECT	8-94462-235-0	01	1	9112-	●	●
85	BRIDGE; CONT ROD,TRANSFER	8-94422-440-0	01	1	9112-9508	●	●
85	BRIDGE; CONT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94422-440-0	01	1	9509-9509	●	●
85	BRIDGE; CONT ROD,TRANSFER A/T THM(RMQ)	8-97128-522-0	01	1	9509-9509	●	●
85	BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	9510-	●	●
87	SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	9112-	●	●
95	BUSHING	8-97103-115-0	02	1	9410-	●	●

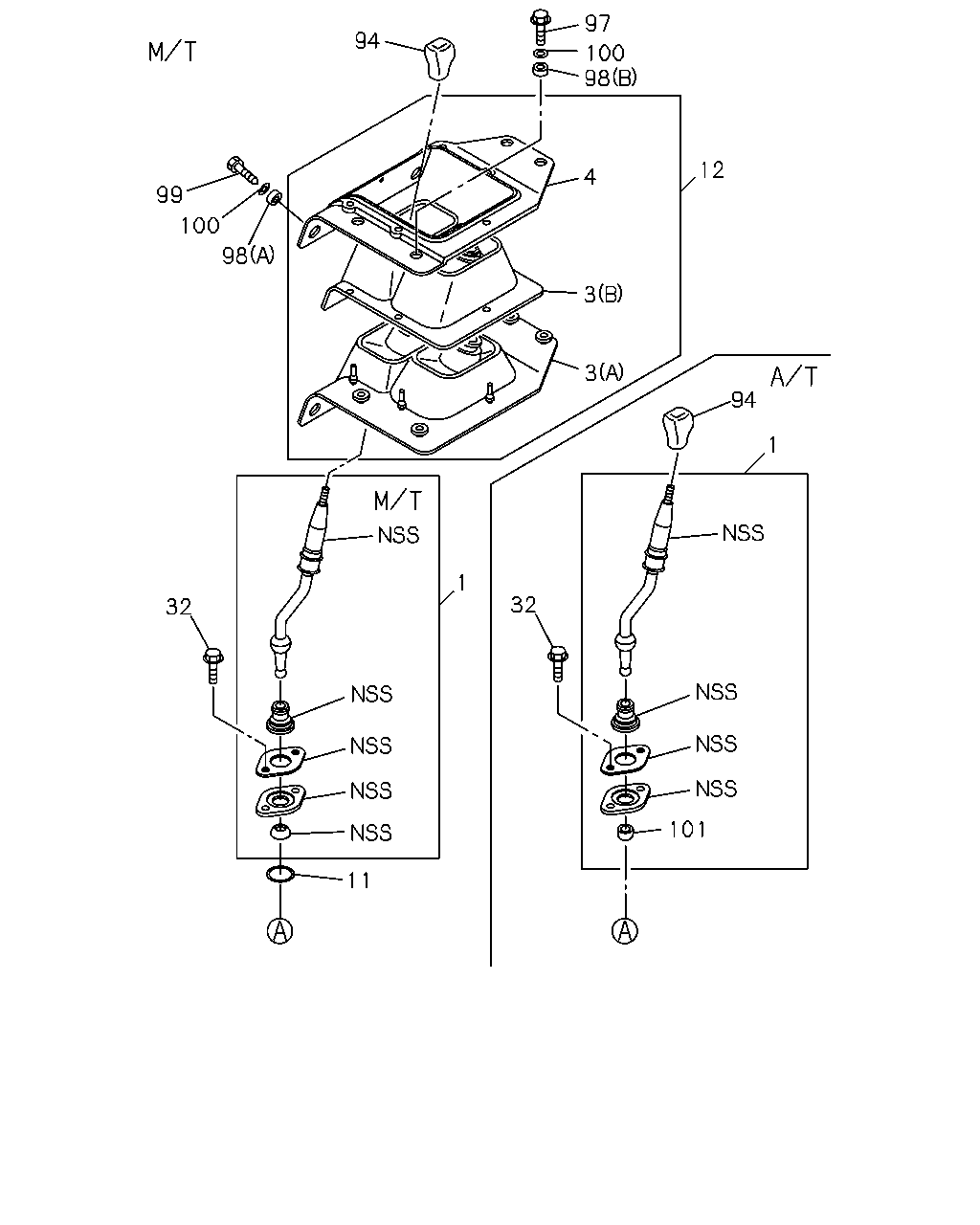

97 100 98 94 12 4 99 100 98 3 3 94 1 1 32 32 101 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ)	8-94375-557-3	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) BROWN MARK	8-97090-612-0	01	1	9505-	●	●
1	LEVER ASM; TRANSFER CONT M/T MUA 5 SPEED(RMN)	8-94375-556-4	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) PINK MARK	8-97090-611-1	01	1	9505-9707	●	●
1	LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97179-998-0	01	1	9708-	●	●
1	LEVER ASM; TRANSFER CONT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) BLUE MARK	8-97090-610-1	01	1	9505-9707	●	●
1	LEVER ASM; TRANSFER CONT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97179-996-0	01	1	9708-	●	●
3	COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN) (A)	8-94381-105-2	01	1	9112-	●	●
3	COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN) (B)	8-94381-106-1	01	1	9112-	●	●
4	RETAINER; CHANGE LEVER,TRANSFER M/T MUA 5 SPEED(RMN)	8-94381-046-1	01	1	9112-	●	●
11	GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) ID=35.2	9-09561-235-0	01	1	9112-	●	●
12	GROMMET; TRANSFER LEVER M/T MUA 5 SPEED(RMN)	8-94380-946-2	01	1	9112-	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE M8X16 FLANGE	0-28010-816-0	02	1	9112-9204	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE M8X16 FLANGE	0-28080-816-0	02	1	9205-9711	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●
94	KNOB; TRANSFER LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-142-1	01	1	9112-9308	●	●
94	KNOB; TRANSFER LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-144-1	01	1	9112-9308	●	●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9309-	●	●
97	BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25	0-28410-825-0	04	1	9112-9204	●	●
97	BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25 FLANGE	0-28480-825-0	04	1	9205-9302	●	●
97	BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9303-	●	●
98	PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN) (A) OD=13 T=4.5	8-94230-464-1	02	1	9112-	●	●
98	PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN) (B) OD=15 T=6.8	8-94437-495-0	04	1	9112-	●	●
99	SCREW; GROMMET M/T MUA 5 SPEED(RMN)	8-94220-277-0	02	1	9112-	●	●
100	WASHER; GROMMET M/T MUA 5 SPEED(RMN) ID=8.4 OD=22	9-09164-708-0	06	1	9112-9302	●	●
100	WASHER; GROMMET M/T MUA 5 SPEED(RMN) ID=8.4 OD=22	9-09164-708-0	02	1	9303-	●	●
101	BUSHING; CHANGE LEVER A/T THM(RMQ)	8-94442-099-0	01	1	9112-	●	●
