◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#33217) — 27 parça

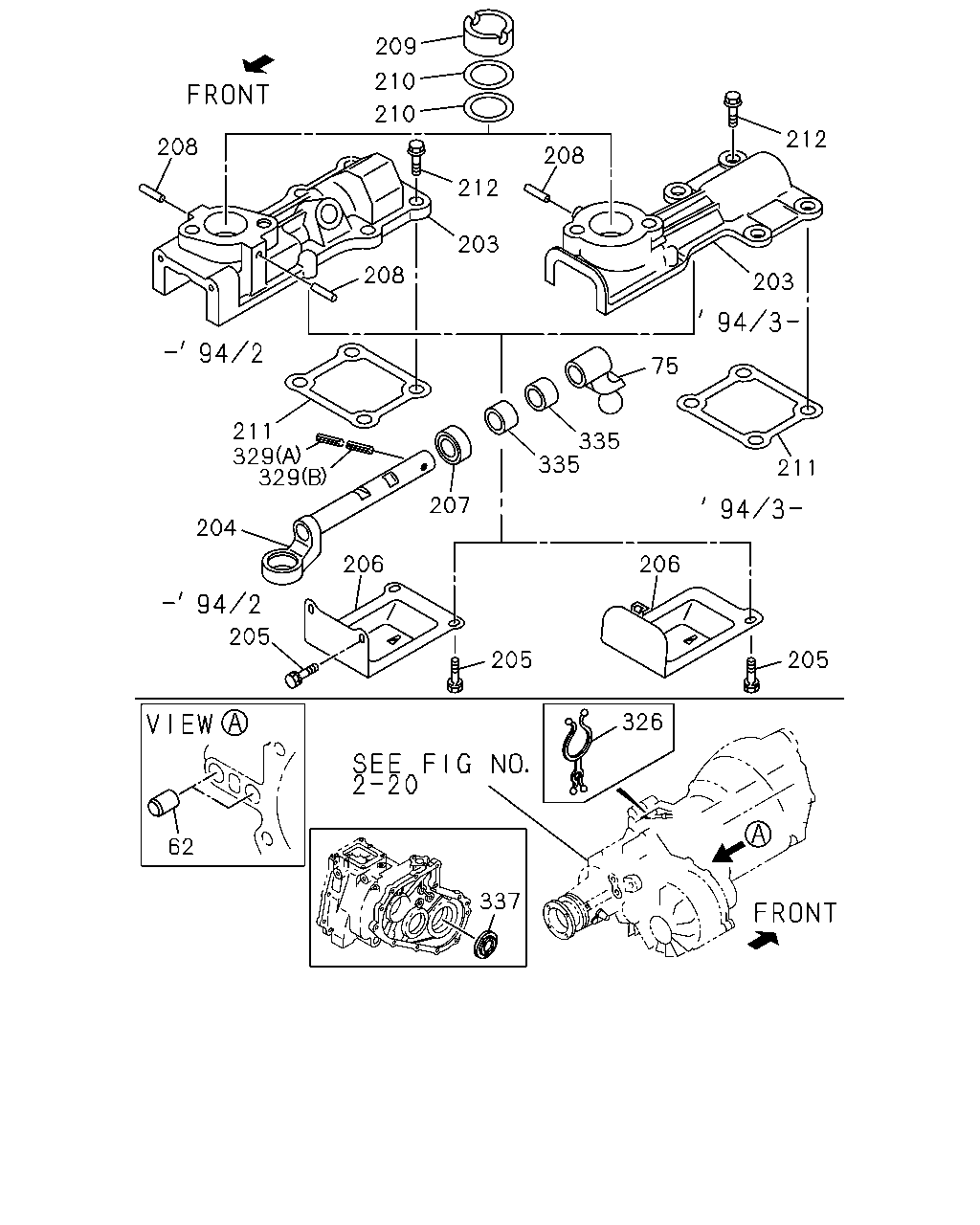

çizim 67901
209 210 210 212 208 208 212 203 208 203 75 211 329 329 335 335 211 207 204 206 206 205 205 205 326 62 337
BalonParca AdiParca NoAdetTipApplied Date A B
62 CAP; SHIFT ROD
A/T THM(RMQ) 		8-94321-479-1 02 1 9112- ● ●
75 LEVER ASM; L-H CONT,INTERNAL
A/T THM(RMQ) 		8-94367-929-2 01 1 9112- ● ●
203 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-94367-926-1 01 1 9112-9402 ● ●
203 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-97106-782-2 01 1 9403- ● ●
204 ROD; SHIFT,TRANSFER CONT
A/T THM(RMQ) 		8-94367-928-3 01 1 9112- ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X12 W/LK WASHER 		9-01900-612-0 04 1 9112-9204 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X12 W/LK WASHER 		0-50040-612-0 04 1 9205-9402 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X10 		9-03497-610-0 01 1 9403-9509 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X8 		9-03490-608-0 01 1 9510- ● ●
206 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94367-927-1 01 1 9112-9402 ● ●
206 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-97106-784-1 01 1 9403- ● ●
207 SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
A/T THM(RMQ) 		8-94221-533-1 01 1 9112- ● ●
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94204-186-0 02 1 9112-9402 ● ●
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94204-186-0 01 1 9403- ● ●
209 SEAT; BALL,CHANGE LEVER,TRANSFER
A/T THM(RMQ) 		5-33619-042-0 01 1 9112- ● ●
210 SPRING; BALL SEAT,CHANGE LEVER,TRANSFE
A/T THM(RMQ) 		9-33619-632-0 02 1 9112- ● ●
211 GASKET; CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94368-327-0 01 1 9112- ● ●
212 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) M8X22 FLANGE 		0-28080-822-0 04 1 9112-9706 ● ●
212 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) M8X25 FLANGE 		0-28680-825-0 04 1 9707- ● ●
326 CLIP; HARNESS
ID=44 		8-94420-658-0 01 1 9112-9211 ● ●
326 CLIP; HARNESS
4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ID=44 		8-94420-658-0 01 1 9212-9504 ● ●
326 CLIP; HARNESS
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ID=44 		8-94420-658-0 01 1 9505- ● ●
326 CLIP; HARNESS
4ZE1 ENG(RLJ) ID=11.5 		1-09709-083-0 01 1 9212- ● ●
329 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) (A) OD=5.4 		9-09678-510-0 01 1 9112- ● ●
329 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) (B) OD=3.3 		9-09678-519-0 01 1 9112-9402 ● ●
335 BUSHING
A/T THM(RMQ) 		8-94388-205-1 02 1 9112- ● ●
337 PLATE; LOCK
M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) 		8-97102-940-0 01 1 9505- ● ●
