Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶

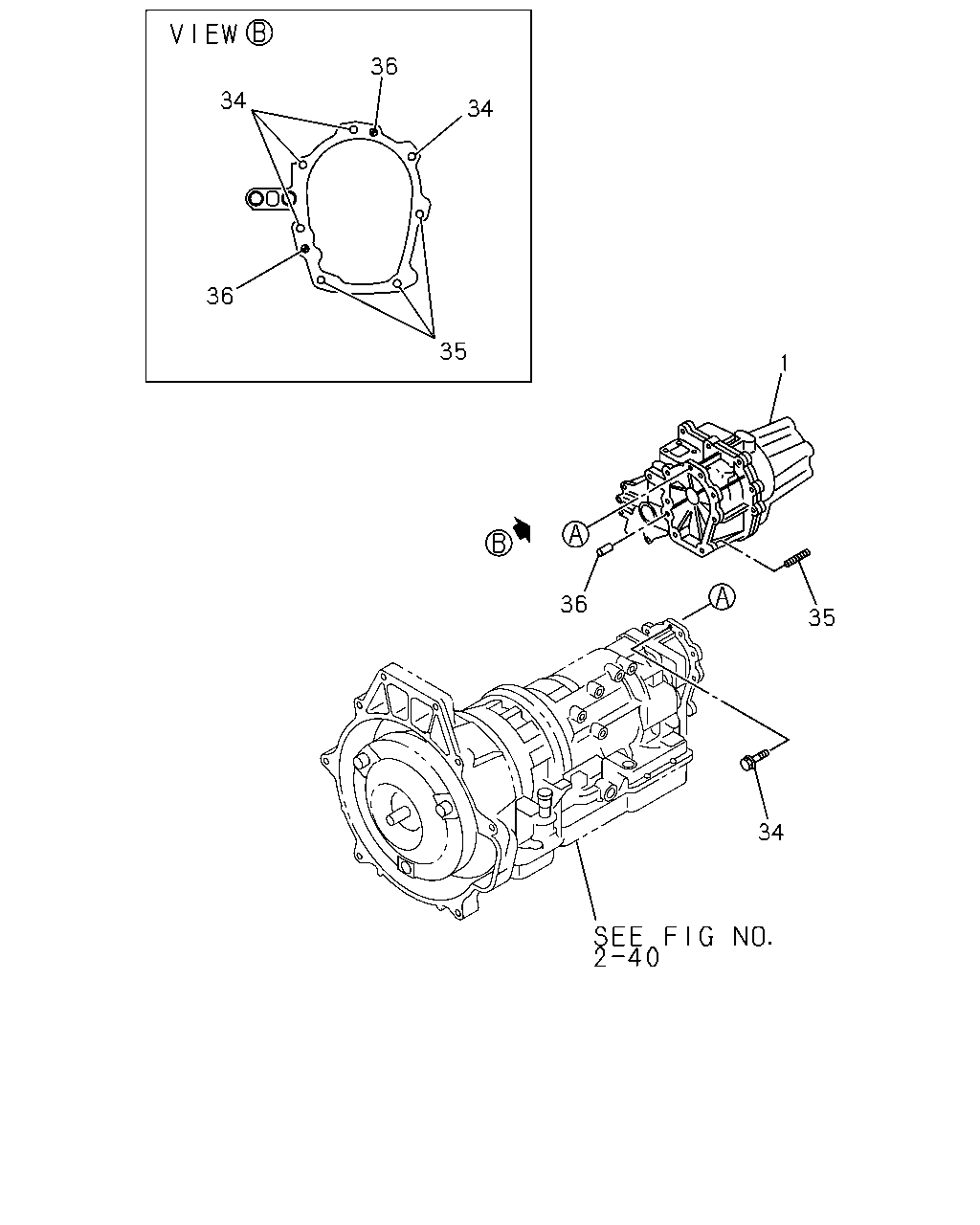

2-60 — TRANSFER
(#33216) — 13 parça
Tümü
A - UBS6VC
B - UBS6VF
36
34
34
36
35
1
36
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TRANSFER ASM
A/T THM(RMQ)
8-97069-207-0
01
1
9112-9404
●
●
1
TRANSFER ASM
A/T THM(RMQ)
8-97041-215-0
01
1
9405-9409
●
●
1
TRANSFER ASM
A/T THM(RMQ)
8-97104-003-0
01
1
9410-9504
●
●
1
TRANSFER ASM
A/T THM(RMQ) SHIFT ON THE FLY(7EX)
8-97104-005-0
01
1
9505-9607
●
●
1
TRANSFER ASM
A/T THM(RMQ) SHIFT ON THE FLY(7EX)
8-97145-378-0
01
1
9608-
●
●
1
TRANSFER ASM
A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)
8-97104-004-0
01
1
9505-9607
●
●
1
TRANSFER ASM
A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)
8-97145-377-0
01
1
9608-
●
●
34
BOLT; TRANSFER
A/T THM(RMQ) M10X30 FLANGE
0-28081-030-0
04
1
9112-9609
●
●
34
BOLT; TRANSFER
A/T THM(RMQ) M10X35 FLANGE
0-28681-035-0
07
1
9610-9708
●
●
34
BOLT; TRANSFER
A/T THM(RMQ) M10X35 FLANGE
0-28081-035-0
07
1
9709-
●
●
35
STUD; TRANSFER
A/T THM(RMQ) M10X35 L=50
5-09300-050-0
03
1
9112-9609
●
●
36
PIN; KNOCK,TRANSFER
A/T THM(RMQ) OD=10 L=20
9-08161-020-0
02
1
9112-9507
●
●
36
PIN; KNOCK,TRANSFER
A/T THM(RMQ) OD=10 L=20
8-97135-423-0
02
1
9508-
●
●
