2-55 — AUTO TRANS SHIFT CONTROL LEVER (#33214) — 69 parça

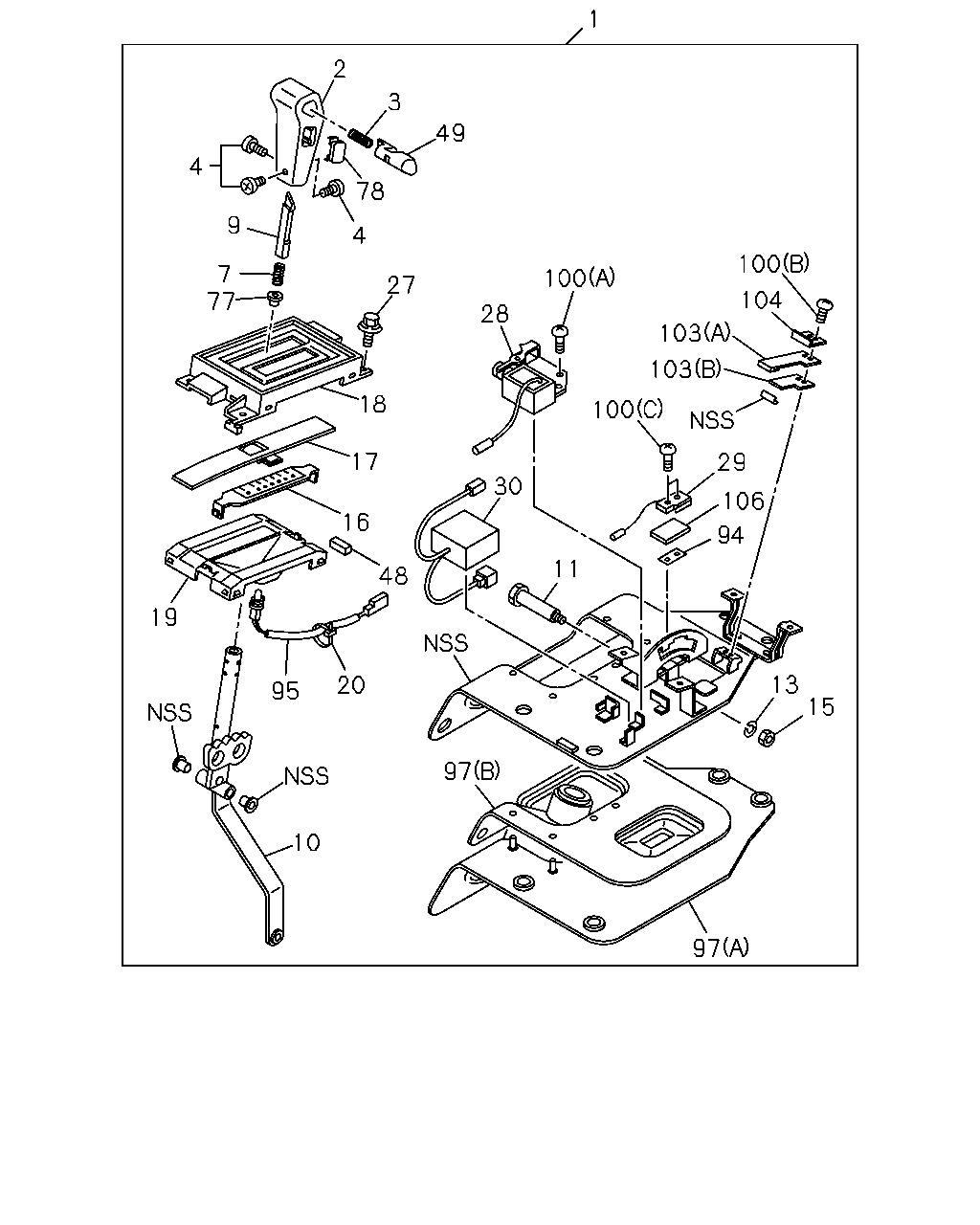

1 2 3 49 4 78 9 4 100 104 103 103 7 77 100 27 28 18 100 17 29 30 106 94 16 11 48 19 13 15 20 95 97 10 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; SHIFT,A/T EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97098-091-9	01	1	9309-9311
1	LEVER; SHIFT,A/T EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97098-276-1	01	1	9312-9504
1	LEVER; SHIFT,A/T EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97154-266-1	01	1	9505-
1	LEVER; SHIFT,A/T EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97098-092-8	01	1	9309-9504
1	LEVER; SHIFT,A/T EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97154-447-1	01	1	9505-
1	LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN	8-97003-138-9	01	1	9112-9308
1	LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN	8-97006-716-6	01	1	9112-9308
1	LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97003-140-9	01	1	9112-9308
1	LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97006-717-6	01	1	9112-9308
2	KNOB ASM; AUTO CONT LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-292-0	01	1	9112-9308
2	KNOB ASM; AUTO CONT LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-294-0	01	1	9112-9308
2	KNOB ASM; AUTO CONT LEVER BLACK	8-94389-629-0	01	1	9309-
3	SPRING; RETURN,KNOB	8-94370-126-0	01	1	9112-
4	SCREW; KNOB TO LEVER	8-94370-128-0	03	1	9112-
7	SPRING; RETURN,ROD	8-97029-913-0	01	1	9112-
9	SLEEVE; KNOB,SHIFT LEVER	8-94370-129-0	01	1	9112-
10	LEVER; A/T CONT	8-97035-006-2	01	1	9112-9504
10	LEVER; A/T CONT	8-97125-744-0	01	1	9505-
11	LEVER; A/T SHIFT LEVER TO LINK	8-97066-339-0	01	1	9112-
13	WASHER; LEVER TO SHAFT ID=8.2	9-09150-608-0	01	1	9112-
15	NUT; LEVER TO SHAFT M8	9-09111-408-0	01	1	9112-
16	LENS; INDICATOR	8-97035-010-0	01	1	9112-9504
16	LENS; INDICATOR	8-97123-315-0	01	1	9505-
17	PLATE; INDICATOR	8-97032-482-0	01	1	9112-9408
17	PLATE; INDICATOR	8-97113-989-0	01	1	9409-
18	COVER; INDICATOR,UPR	8-97035-002-0	01	1	9112-
19	COVER; INDICATOR,LWR	8-97035-003-0	01	1	9112-
20	CLIP; INHIBITOR SW EUROPE/CANARY EQUIPMENT(EK4)	8-94389-647-0	02	1	9112-
20	CLIP; INHIBITOR SW EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94389-647-0	01	1	9112-
27	SCREW; INDICATOR TO BRKT M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9112-
28	SOLENOID ASM EUROPE/CANARY EQUIPMENT(EK4)	8-97035-005-0	01	1	9112-
29	SWITCH; A/T EUROPE/CANARY EQUIPMENT(EK4)	8-97035-007-0	01	1	9112-
30	CONTROLLER; A/T EUROPE/CANARY EQUIPMENT(EK4)	8-97035-008-0	01	1	9112-
48	INSULATION; PLATE	8-97066-477-0	02	1	9505-
49	BUTTON; PUSH,KNOB INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-288-0	01	1	9112-9308
49	BUTTON; PUSH,KNOB INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-290-0	01	1	9112-9308
49	BUTTON; PUSH,KNOB BLACK	8-94389-614-0	01	1	9309-
77	SUPPORT; SPRING,A/T CONT LEVER	8-94370-130-0	01	1	9112-
78	PROTECTOR; LAMP CABLE,A/T CONT LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-314-0	01	1	9112-9308
78	PROTECTOR; LAMP CABLE,A/T CONT LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-316-0	01	1	9112-9308
78	PROTECTOR; LAMP CABLE,A/T CONT LEVER BLACK	8-97098-096-0	01	1	9309-
94	PLATE; SWITCH EUROPE/CANARY EQUIPMENT(EK4)	8-97035-011-0	01	1	9112-9305
95	LAMP; INDICATOR	8-97035-013-0	01	1	9112-
97	BOOT (A)	8-97034-998-5	01	1	9112-
97	BOOT (B)	8-97034-999-0	01	1	9112-
100	SCREW (C) M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	9112-
100	SCREW EUROPE/CANARY EQUIPMENT(EK4) (A) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9112-9305
100	SCREW EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97024-167-1	02	1	9112-
100	SCREW EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97093-499-0	02	1	9306-
103	SPRING; PLATE (A)	8-97035-014-0	01	1	9112-
103	SPRING; PLATE (B)	8-97066-443-0	01	1	9112-
104	PLATE; LINK	8-97035-016-1	01	1	9112-
106	SHEET; SWITCH EUROPE/CANARY EQUIPMENT(EK4)	8-97035-009-0	01	1	9112-

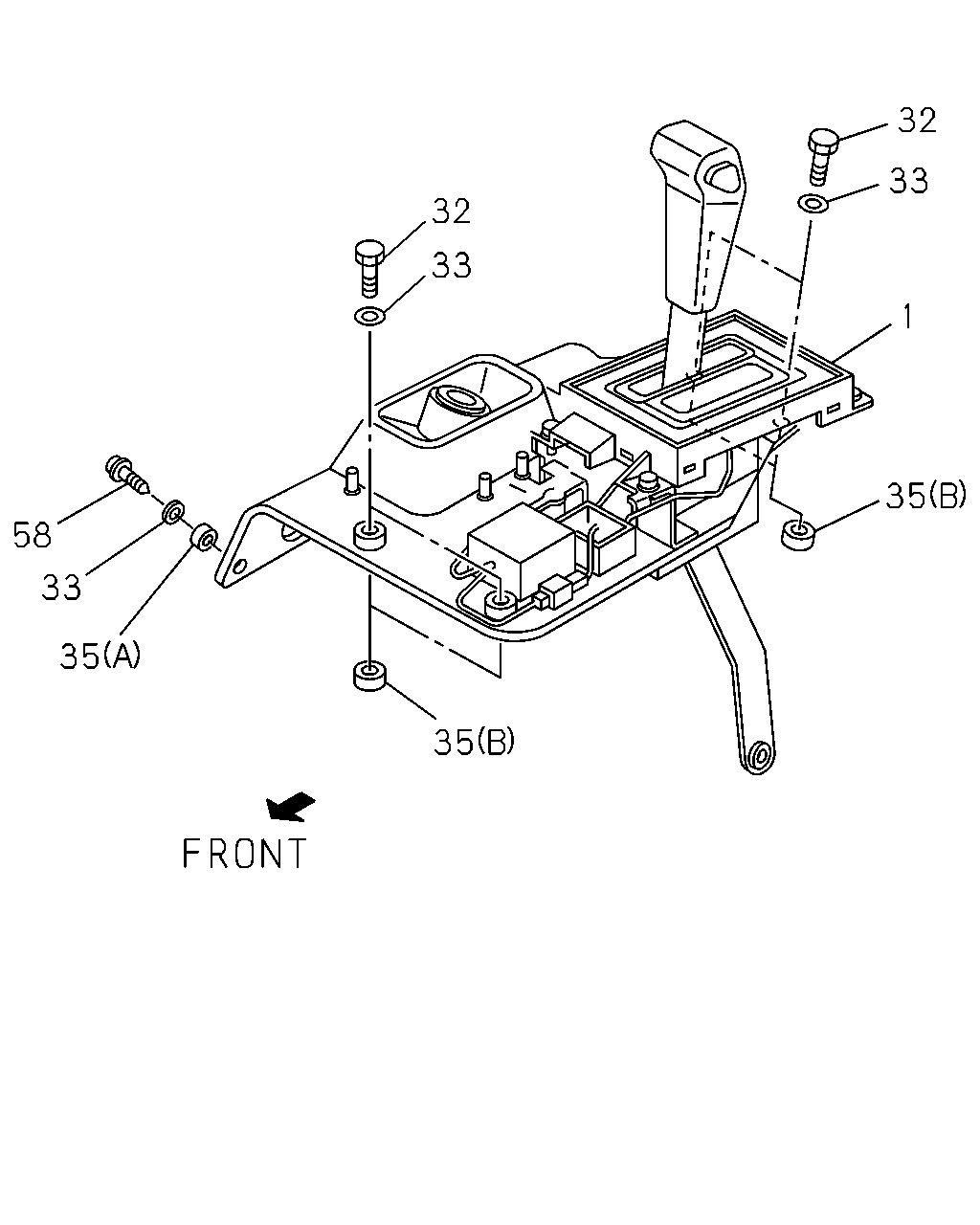

32 33 32 33 1 35 58 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; SHIFT,A/T EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97098-091-9	01	1	9309-9311
1	LEVER; SHIFT,A/T EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97098-276-1	01	1	9312-9504
1	LEVER; SHIFT,A/T EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97154-266-1	01	1	9505-
1	LEVER; SHIFT,A/T EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97098-092-8	01	1	9309-9504
1	LEVER; SHIFT,A/T EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK	8-97154-447-1	01	1	9505-
1	LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN	8-97003-138-9	01	1	9112-9308
1	LEVER; SHIFT,A/T INTERIOR COLOR BROWN(130) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN	8-97006-716-6	01	1	9112-9308
1	LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97003-140-9	01	1	9112-9308
1	LEVER; SHIFT,A/T INTERIOR COLOR GRAY(153) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97006-717-6	01	1	9112-9308
32	BOLT; CONT LEVER TO BODY M8X25 FLANGE	0-28480-825-0	04	1	9112-9302
32	BOLT; CONT LEVER TO BODY M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9303-
33	WASHER; PL,CONT LEVER TO BODY ID=8.4 OD=22	9-09164-708-0	06	1	9112-9302
33	WASHER; PL,CONT LEVER TO BODY ID=8.4 OD=22	9-09164-708-0	02	1	9303-
35	SPACER; BRKT TO FLOOR,SELECT LEVER (A) OD=13 T=4.5	8-94230-464-1	02	1	9112-
35	SPACER; BRKT TO FLOOR,SELECT LEVER (B)	8-94437-495-0	04	1	9112-
58	SCREW; BRKT	8-94220-277-0	02	1	9112-
