◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-49 - AUTO TRANS INHIBITOR SWITCH ▶

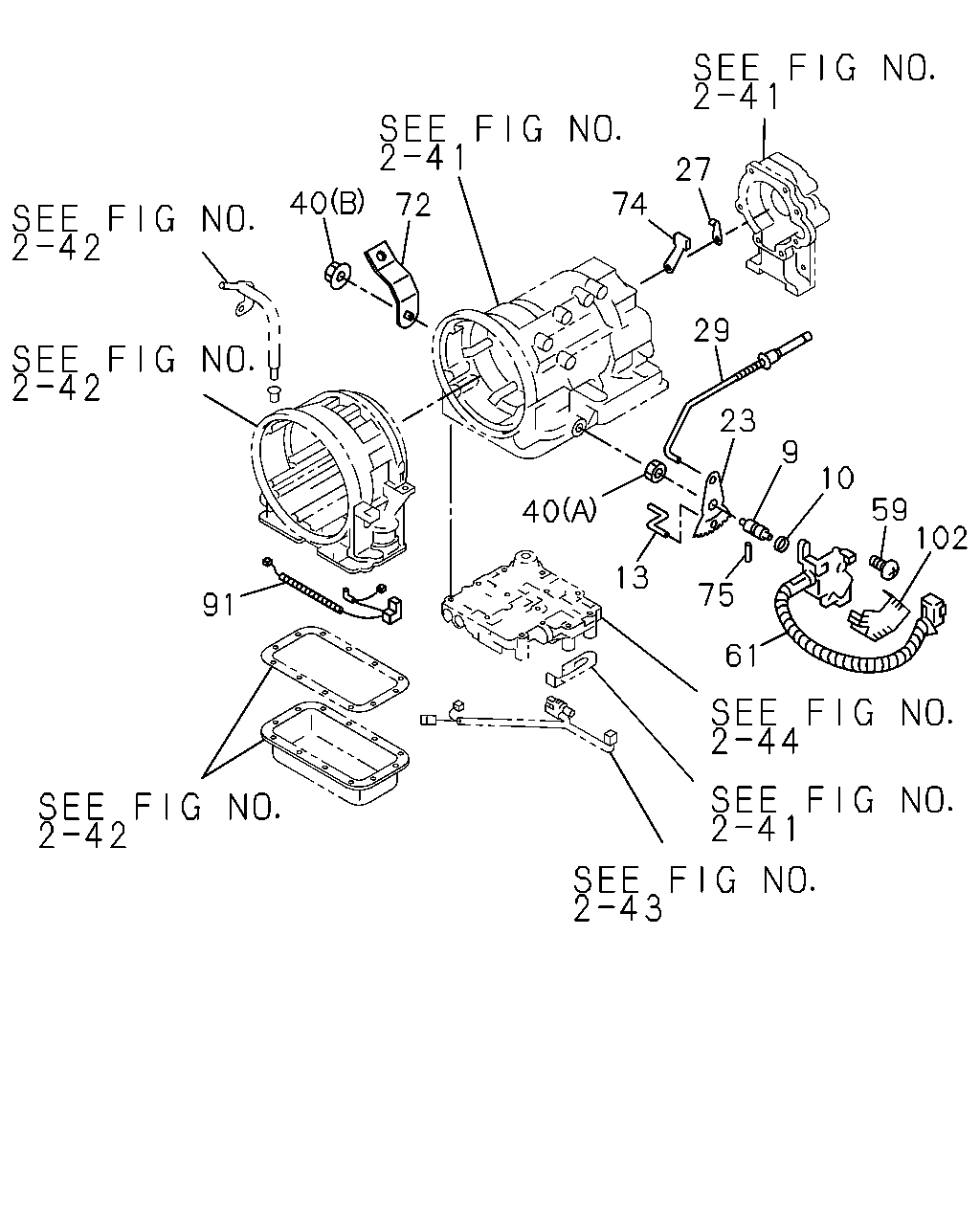

2-49 — AUTO TRANS INHIBITOR SWITCH (#33211) — 23 parça
çizim 65808
27 74 29 23 9 10 59 102 40 13 75 91 61 72 40
BalonParca AdiParca NoAdetTipApplied Date
9 SHAFT; MANUAL,A/T 8-96014-268-0 01 1 9112-
10 GASKET; MANUAL SHIFT,A/T 8-08644-709-0 01 1 9112-
13 LEVER; SELECT,MANUAL SHAFT,A/T 8-05258-243-0 01 1 9112-
23 LEVER; PARKING ROD,A/T 8-96014-551-0 01 1 9112-9410
23 LEVER; PARKING ROD,A/T 8-96017-378-0 01 1 9411-
27 SPRING; PAWL RETURN,A/T 8-05258-076-0 01 1 9112-
29 ROD ASM; CONT,A/T 8-96016-702-0 01 1 9112-9408
29 ROD ASM; CONT,A/T 8-96017-286-0 01 1 9409-9607
29 ROD ASM; CONT,A/T 8-96014-271-0 01 1 9608-9703
29 ROD ASM; CONT,A/T 8-96017-286-0 01 1 9704-
40 NUT; LEVER TO SHAFT
(B) M10 FLANGE 		0-91250-110-0 01 1 9112-
40 NUT; LEVER TO SHAFT
(A) 		8-11067-223-0 01 1 9112-
59 SCREW; SW,A/T 8-96014-453-0 02 1 9112-
61 SWITCH ASM; POSITION 8-96015-275-0 01 1 9112-9302
61 SWITCH ASM; POSITION 8-96017-178-0 01 1 9303-9410
61 SWITCH ASM; POSITION 8-96017-620-0 01 1 9411-
72 LEVER; SELECT CONT 8-97013-518-1 01 1 9112-
74 PAWL; PARKING BRK LK,A/T 8-96016-620-0 01 1 9112-
75 PIN; PARKING BRK LK,A/T 8-05259-654-0 01 1 9112-
91 HARNESS ASM; CABLE,A/T CONT 8-96014-184-0 01 1 9112-9302
91 HARNESS ASM; CABLE,A/T CONT 8-96017-030-0 01 1 9303-9607
91 HARNESS ASM; CABLE,A/T CONT 8-96018-278-0 01 1 9608-
102 SHIELD; MODE SWITCH,A/T 8-96014-454-0 01 1 9112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
