◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#33209) — 57 parça

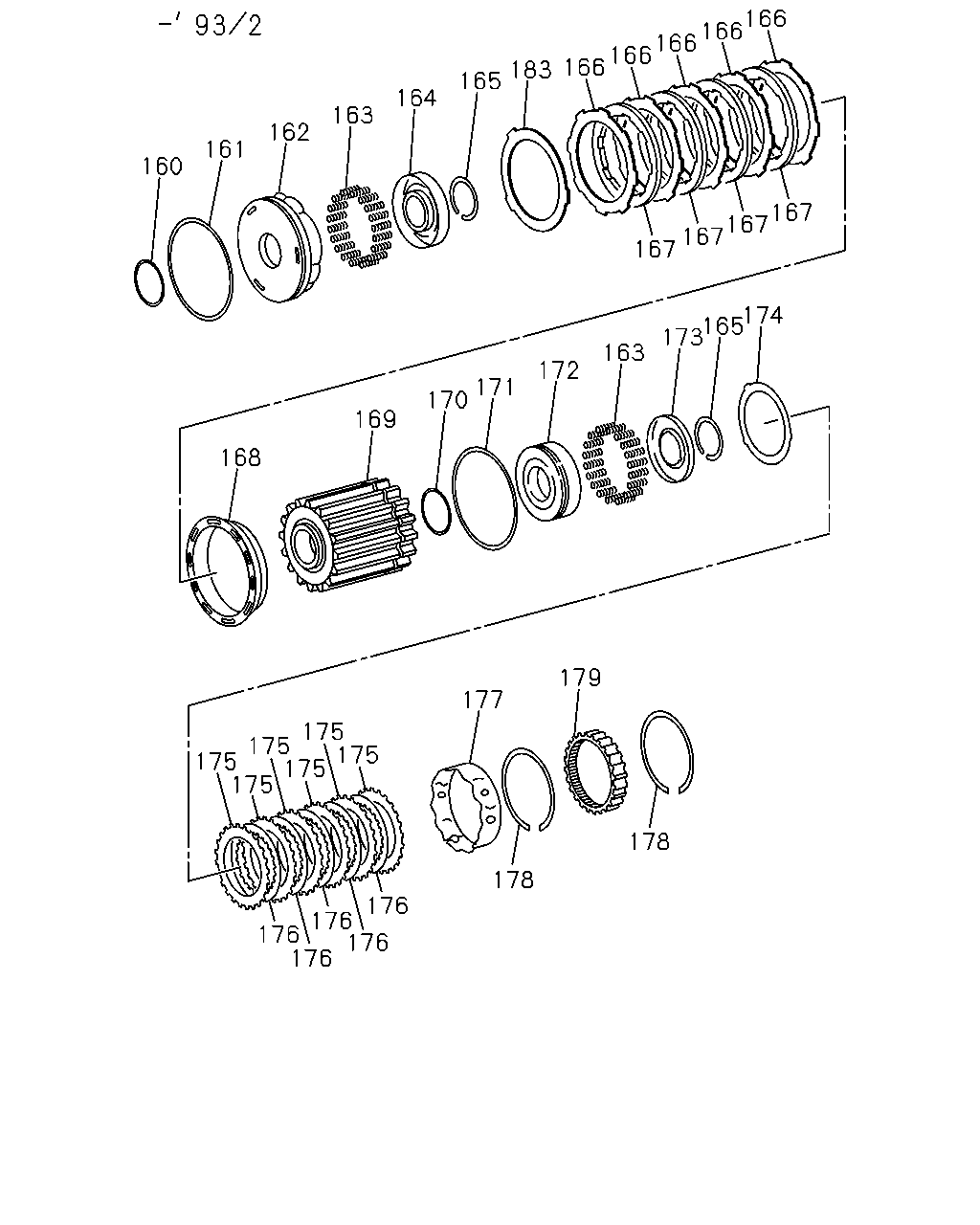

çizim 16521
166 166 166 166 183 166 165 164 163 162 161 160 167 167 167 167 174 165 173 163 172 171 170 169 168 179 177 175 175 175 175 175 175 178 178 176 176 176 176 176
BalonParca AdiParca NoAdetTipApplied Date
160 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9112-
161 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9112-
162 PISTON; REV CLU 8-96014-964-0 01 1 9112-
163 SPRING; PISTON CLU 8-08958-719-0 46 1 9112-
164 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9112-
165 RING; RET 8-05258-093-0 02 1 9112-
166 PLATE; REV CLU 8-05258-957-0 05 1 9112-9312
166 PLATE; REV CLU 8-96017-283-0 05 1 9401-
167 PLATE ASM; REV CLU 8-96014-269-0 04 1 9112-
168 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9112-9302
168 PLATE; REV CLU PRESS 8-96041-050-0 01 1 9303-9312
168 PLATE; REV CLU PRESS 8-96041-217-0 01 1 9401-9607
168 PLATE; REV CLU PRESS
T=6.35 T=6.35 		8-96014-622-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=6.64 T=6.64 		8-96014-623-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=6.93 T=6.93 		8-96014-624-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=7.22 T=7.22 		8-96014-625-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=7.51 T=7.51 		8-96014-626-0 01 1 9608-
169 DRUM; 2ND CLU 8-96014-950-0 01 1 9112-9302
169 DRUM; 2ND CLU 8-96041-122-0 01 1 9303-
170 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9112-
171 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9112-
172 PISTON; 2ND CLU 8-96016-384-0 01 1 9112-9302
173 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9112-
174 PLATE; 2ND CLU 8-05258-990-0 01 1 9112-9302
175 PLATE; 2ND CLU 8-05258-956-0 06 1 9112-9302
176 PLATE ASM; 2ND CLU 8-96014-843-0 05 1 9112-9302
177 SPACER; 2ND CLU 8-08958-937-0 01 1 9112-9302
178 RING; RET 8-08958-619-0 02 1 9112-
179 GEAR; RING 8-96014-576-0 01 1 9112-
183 PLATE; REV CLU 8-05258-989-0 01 1 9112-9312
183 PLATE; REV CLU 8-96017-451-0 01 1 9401-

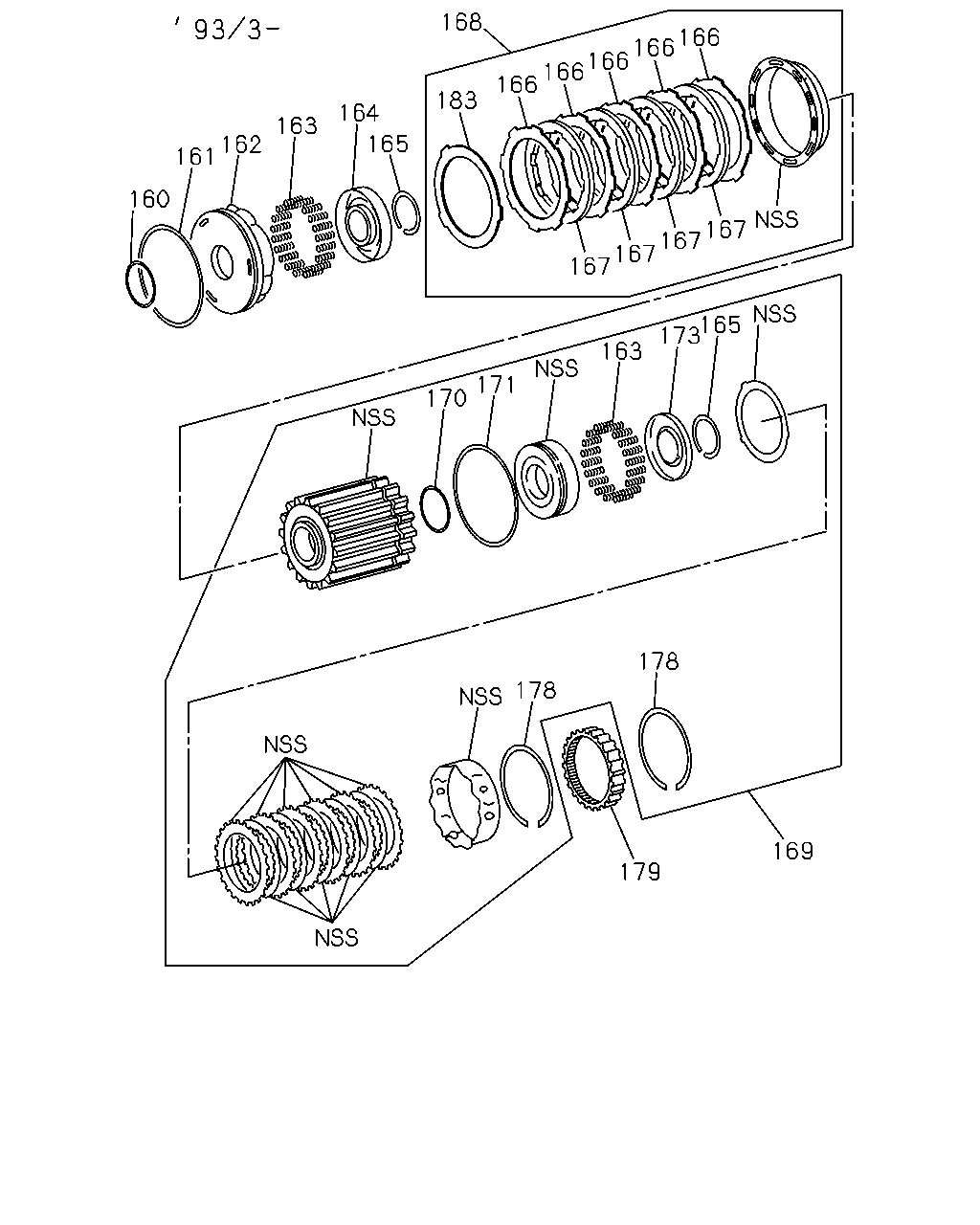

çizim 65874
168 166 166 166 166 166 183 164 165 163 162 161 160 167 167 167 167 165 173 163 171 170 178 178 169 179
BalonParca AdiParca NoAdetTipApplied Date
160 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9112-
161 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9112-
162 PISTON; REV CLU 8-96014-964-0 01 1 9112-
163 SPRING; PISTON CLU 8-08958-719-0 46 1 9112-
164 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9112-
165 RING; RET 8-05258-093-0 02 1 9112-
166 PLATE; REV CLU 8-05258-957-0 05 1 9112-9312
166 PLATE; REV CLU 8-96017-283-0 05 1 9401-
167 PLATE ASM; REV CLU 8-96014-269-0 04 1 9112-
168 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9112-9302
168 PLATE; REV CLU PRESS 8-96041-050-0 01 1 9303-9312
168 PLATE; REV CLU PRESS 8-96041-217-0 01 1 9401-9607
168 PLATE; REV CLU PRESS
T=6.35 T=6.35 		8-96014-622-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=6.64 T=6.64 		8-96014-623-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=6.93 T=6.93 		8-96014-624-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=7.22 T=7.22 		8-96014-625-0 01 1 9608-
168 PLATE; REV CLU PRESS
T=7.51 T=7.51 		8-96014-626-0 01 1 9608-
169 DRUM; 2ND CLU 8-96014-950-0 01 1 9112-9302
169 DRUM; 2ND CLU 8-96041-122-0 01 1 9303-
170 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9112-
171 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9112-
173 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9112-
178 RING; RET 8-08958-619-0 02 1 9112-
179 GEAR; RING 8-96014-576-0 01 1 9112-
183 PLATE; REV CLU 8-05258-989-0 01 1 9112-9312
183 PLATE; REV CLU 8-96017-451-0 01 1 9401-
