◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44 - AUTO TRANS CONTROL VALVE; LOWER BODY ▶
2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#33208) — 32 parça

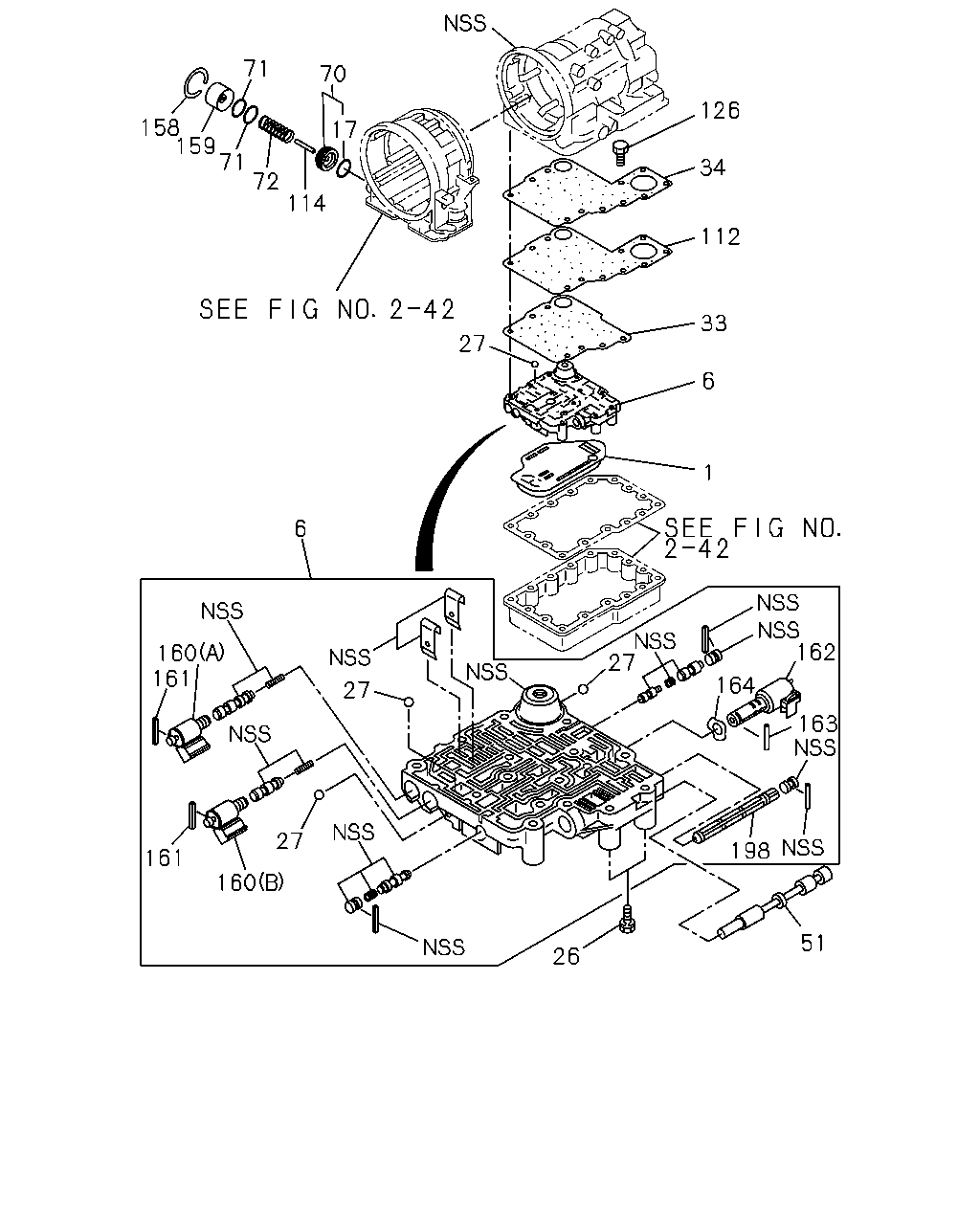

çizim 67147
71 70 126 158 159 71 72 114 17 34 112 27 33 6 1 6 162 27 160 161 27 164 163 27 198 161 160 51 26
BalonParca AdiParca NoAdetTipApplied Date
1 STRAINER ASM; OIL,A/T 8-96015-062-0 01 1 9303-
6 BODY ASM; VLV LWR,A/T 8-96016-831-0 01 1 9112-9504
6 BODY ASM; VLV LWR,A/T 8-96017-636-0 01 1 9505-
17 RETAINER; ACCUMLATOR CONT VALVE 8-96014-566-0 01 1 9112-
26 BOLT; BODY FIX,VLV LWR,A/T 8-00179-826-0 12 1 9112-
27 BALL; STEEL,VLV,A/T 8-11066-201-0 05 1 9112-
33 GASKET; LWR,VLV BODY,A/T 8-96015-417-0 01 1 9112-
34 GASKET; UPR,VLV BODY,A/T 8-96016-265-0 01 1 9112-9302
34 GASKET; UPR,VLV BODY,A/T 8-96017-202-0 01 1 9303-9703
34 GASKET; UPR,VLV BODY,A/T 8-96018-338-0 01 1 9704-
51 VALVE; MANUAL,A/T 8-96014-445-0 01 1 9112-
70 PISTON; ACCUMLATOR 8-96016-921-0 01 1 9112-9302
70 PISTON; ACCUMLATOR 8-96016-916-0 01 1 9303-
71 GASKET; ACCUMLATOR PISTON 8-96014-317-0 02 1 9112-9309
72 SPRING; ACCUMLATOR PISTON 8-05258-862-0 01 1 9112-9302
72 SPRING; ACCUMLATOR PISTON 8-96016-972-0 01 1 9303-
112 PLATE; VLV BODY CVR,VLV LWR,A/T 8-96015-494-0 01 1 9112-9504
112 PLATE; VLV BODY CVR,VLV LWR,A/T 8-96017-628-0 01 1 9505-
114 PIN; ACCUMLATOR PISTON (B-2) 8-96014-313-0 01 1 9112-9302
114 PIN; ACCUMLATOR PISTON (B-2) 8-96017-098-0 01 1 9303-
126 BOLT; CVR,VLV LWR,A/T 8-00117-461-0 02 1 9112-
158 RING; SNAP,ADAPTER 8-96015-714-0 01 1 9112-
159 COVER; PISTON 8-96014-318-0 01 1 9112-9308
159 COVER; PISTON 8-96017-093-0 01 1 9309-
160 SOLENOID; ON-OFF
(B) 		8-96014-224-0 01 1 9112-
160 SOLENOID; ON-OFF
(A) 		8-96014-593-0 01 1 9112-
161 PIN; SPRING,SOLENOID 8-96014-443-0 02 1 9112-
162 SOLENOID; BAND CONT 8-96041-033-0 01 1 9112-9410
162 SOLENOID; BAND CONT 8-96042-006-0 01 1 9411-
163 PIN; SOLENOID 8-96014-440-0 01 1 9112-
164 WASHER; SOLENOID 8-96014-555-0 01 1 9112-
198 STRAINER 8-96041-012-0 01 1 9411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
