2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#33206) — 52 parça

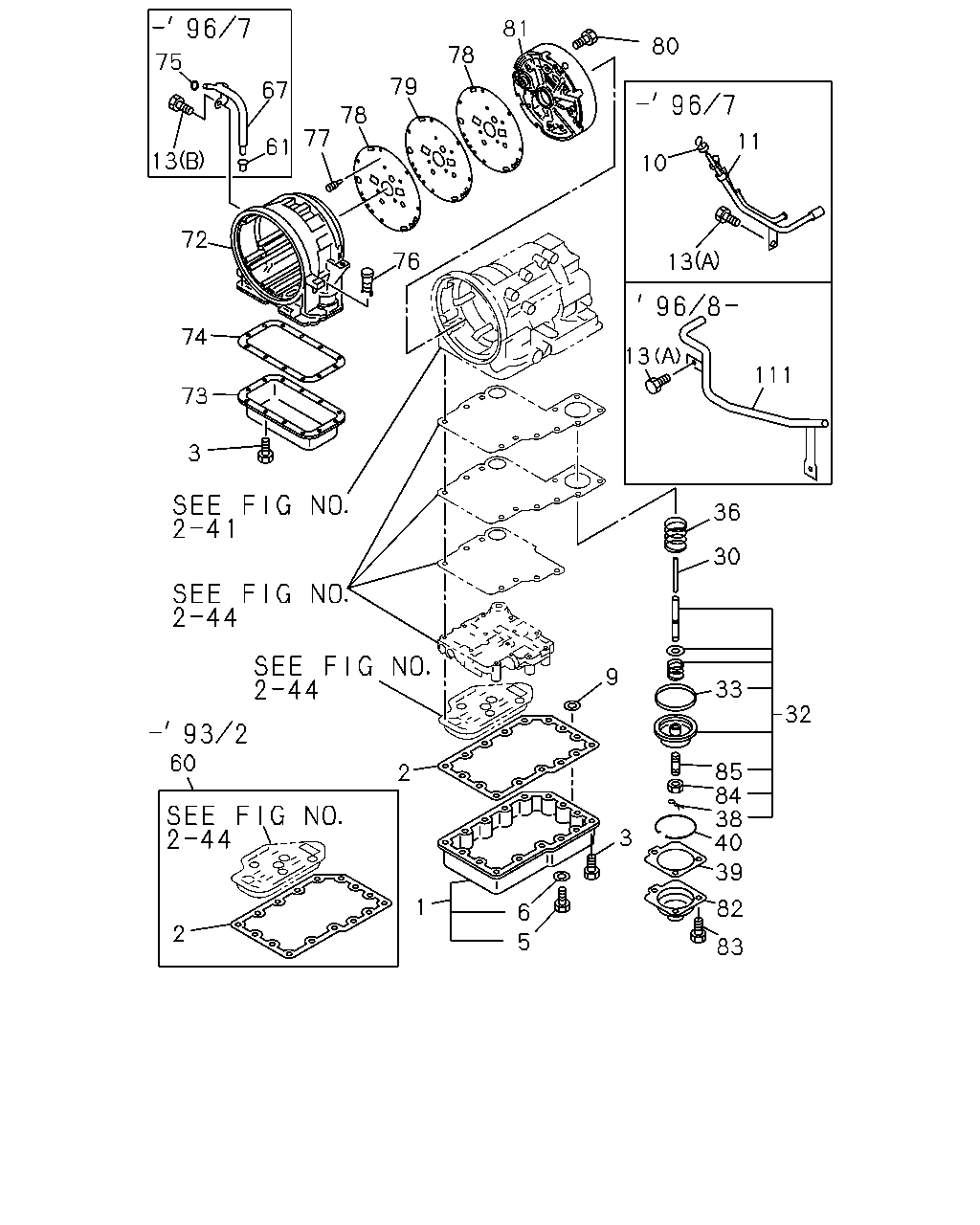

çizim 18883
75 81 80 78 79 67 78 77 11 61 13 10 72 13 76 74 13 111 73 3 36 30 9 33 32 60 85 84 38 40 39 82 2 3 1 6 5 2 83
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL,A/T 8-96016-554-0 01 1 9112-9607
1 PAN ASM; OIL,A/T 8-96017-876-0 01 1 9608-
2 GASKET; OIL PAN,A/T 8-96014-234-0 01 1 9112-
3 BOLT; OIL PAN TO CASE 8-96014-452-0 28 1 9112-9302
3 BOLT; OIL PAN TO CASE 8-96017-023-0 28 1 9303-
5 PLUG; OIL PAN 8-96015-481-0 01 1 9112-9607
5 PLUG; OIL PAN 8-96015-481-0 02 1 9608-
6 GASKET; OIL PAN TO PLUG 8-96014-572-0 01 1 9112-9607
6 GASKET; OIL PAN TO PLUG 8-01638-257-0 02 1 9608-
9 MAGNET; OIL PAN 8-96013-938-0 01 1 9112-
10 GAUGE; OIL LEVEL 8-97066-966-4 01 1 9112-9607
11 TUBE; OIL FILLER 8-97066-963-2 01 1 9112-9403
11 TUBE; OIL FILLER 8-97108-767-0 01 1 9404-9607
13 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28010-816-0 01 1 9112-9204
13 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9205-
13 BOLT; OIL FILLER
(B) 		8-96014-452-0 01 1 9112-9302
13 BOLT; OIL FILLER
(B) 		8-96017-023-0 01 1 9303-9607
30 ROD; VAC DIAPH,A/T 8-05258-182-0 01 1 9112-
32 PISTON ASM; SERVO,A/T 8-05258-183-0 01 1 9112-9504
32 PISTON ASM; SERVO,A/T 8-96017-601-0 01 1 9505-
33 SEAL; RING,SERVO PISTON,A/T 8-05258-159-0 01 1 9112-
36 SPRING; RETURN,SERVO PISTON,A/T 8-08958-931-0 01 1 9112-
38 RING; SNAP,SERVO PISTON,A/T 8-05258-185-0 01 1 9112-
39 GASKET; SERVO COVER 8-96014-414-0 01 1 9112-
40 RETAINER; SERVO PISTON,A/T 8-05258-121-0 01 1 9112-
60 REPAIR KIT; OIL FILTER,A/T 8-96041-011-0 01 1 9112-9302
61 SEAL; OIL FILTER 8-96014-690-0 01 1 9112-9410
61 SEAL; OIL FILTER 8-01259-475-0 01 1 9411-9607
67 TUBE; OIL FILLER,UPR,A/T 8-96015-118-0 01 1 9112-9607
72 CASE ASM; ADAPTER 8-96016-973-0 01 1 9112-9302
72 CASE ASM; ADAPTER 8-96041-192-0 01 1 9303-9410
72 CASE ASM; ADAPTER 8-96017-512-0 01 1 9411-
73 PAN ASM; ADAPTER 8-96014-186-0 01 1 9112-
74 GASKET; ADAPTER PAN 8-96014-235-0 01 1 9112-
75 SEAL; FILTER TUBE 8-96014-673-0 01 1 9112-9607
76 CONNECTOR; ADAPTER CASE 8-96015-408-0 01 1 9112-
77 RESTRICTOR; OIL 8-96014-353-0 01 1 9112-
78 GASKET; ADAPTER PLATE 8-96016-500-0 02 1 9112-9302
78 GASKET; ADAPTER PLATE 8-96016-514-0 02 1 9303-
79 PLATE; ADAPTER,CTR SUPPORT 8-96016-833-0 01 1 9112-
80 SCREW; CTR SUPPORT 8-96013-316-0 08 1 9112-
81 SUPPORT ASM; CENTER 8-96041-121-0 01 1 9112-9302
81 SUPPORT ASM; CENTER 8-96041-203-0 01 1 9303-9410
81 SUPPORT ASM; CENTER 8-96041-282-0 01 1 9411-
82 COVER; SERVO PISTON 8-96014-413-0 01 1 9112-
83 SCREW; SERVO COVER 8-96013-316-0 04 1 9112-
84 NUT; SERVO SCREW 8-00114-494-0 01 1 9112-9504
84 NUT; SERVO SCREW 8-96017-231-0 01 1 9505-
85 SCREW; SERVO PISTON 8-96014-010-0 01 1 9112-9504
85 SCREW; SERVO PISTON 8-96017-230-0 01 1 9505-9703
85 SCREW; SERVO PISTON 8-96018-235-0 01 1 9704-
111 PIPE; BREATHER 8-97120-495-3 01 1 9608-
