2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#33205) — 90 parça

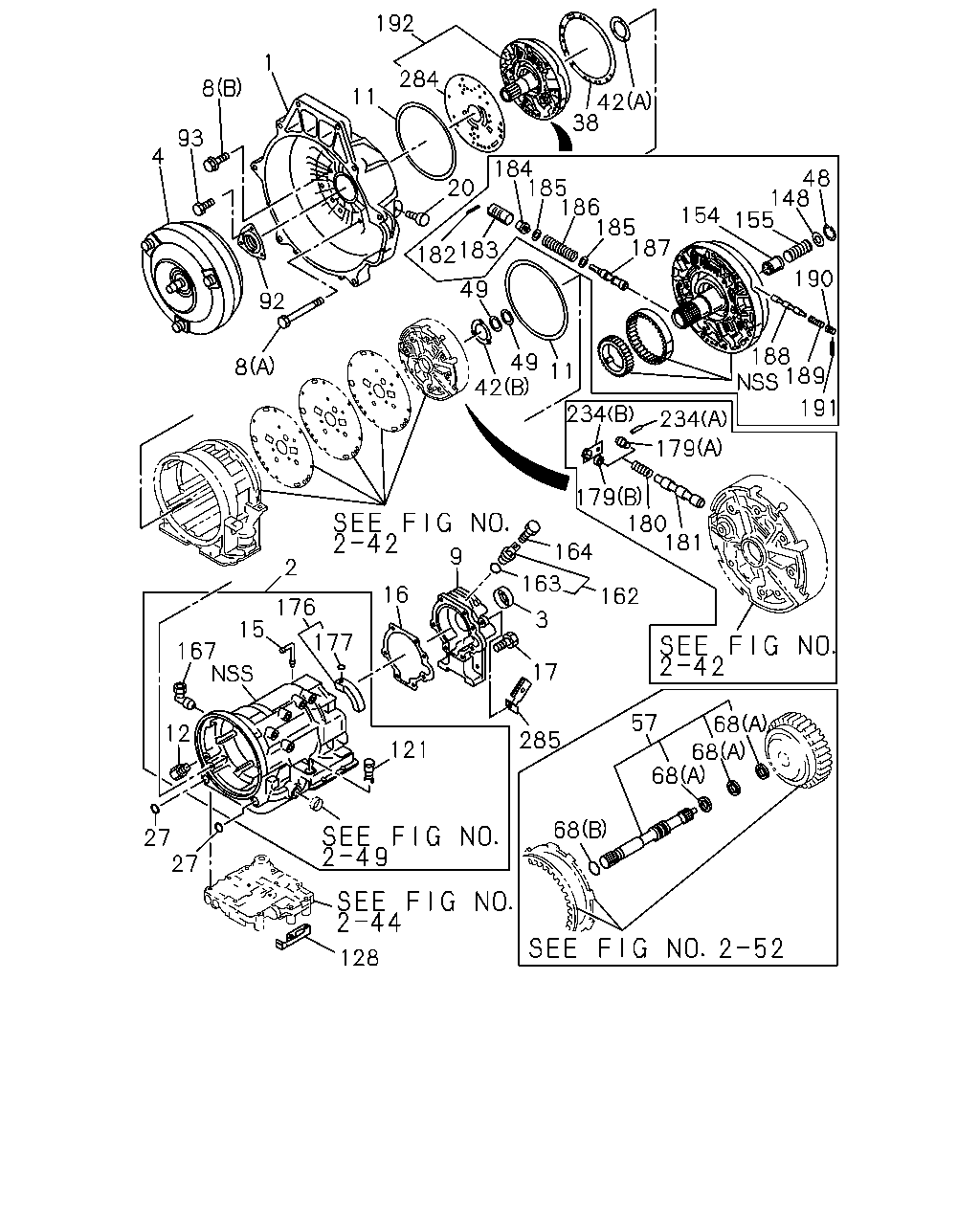

çizim 17214
192 1 42 38 284 8 11 184 185 186 154 185 187 93 4 48 148 155 20 190 182 183 49 188 189 191 92 49 11 42 8 234 234 179 179 180 181 9 164 163 2 16 162 176 15 3 177 12 167 17 68 68 68 57 285 121 27 27 68 128
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-96016-611-0 01 1 9112-9607
1 HOUSING; CONV,A/T 8-96042-197-0 01 1 9608-
2 CASE ASM; A/T 8-96041-007-0 01 1 9112-9607
2 CASE ASM; A/T 8-96042-084-0 01 1 9608-9703
2 CASE ASM; A/T 8-96041-374-0 01 1 9704-
3 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9112-
4 CONVERTER ASM; TORQUE,A/T 8-08681-486-0 01 1 9112-9504
4 CONVERTER ASM; TORQUE,A/T 8-24200-145-0 01 1 9505-
8 BOLT; HSG TO CASE
(A) 		8-96013-210-0 05 1 9112-
8 BOLT; HSG TO CASE
(B) 		8-96016-795-0 07 1 9112-
9 COVER ASM; RR,A/T 8-96016-769-0 01 1 9112-9302
9 COVER ASM; RR,A/T 8-96017-109-0 01 1 9303-9409
9 COVER ASM; RR,A/T 8-96017-656-0 01 1 9410-9607
9 COVER ASM; RR,A/T 8-96042-194-0 01 1 9608-
11 RING; SEALING,TRANS CASE 8-05258-119-0 02 1 9112-9302
11 RING; SEALING,TRANS CASE 8-96017-189-0 02 1 9303-
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-96015-476-0 01 1 9112-
15 BREATHER; A/T CASE 8-96015-793-0 01 1 9112-
16 GASKET; EXT HSG 8-96014-417-0 01 1 9112-
17 BOLT; REAR COVER TO CASE 8-96015-271-0 07 1 9112-
20 PLUG; TAPER,A/T CASE 8-96014-086-0 01 1 9112-9302
20 PLUG; TAPER,A/T CASE 8-08662-173-0 01 1 9303-
27 GASKET; HSG TO CASE 8-96014-270-0 02 1 9112-
38 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9112-
42 WASHER; OIL PUMP HSG,A/T
(A),(B) YELLOW 		8-96013-761-0 02 1 9112-9410
42 WASHER; OIL PUMP HSG,A/T
(A) YELLOW 		8-96013-761-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(A),(B) RED 		8-96013-762-0 02 1 9112-9410
42 WASHER; OIL PUMP HSG,A/T
(A) RED 		8-96013-762-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(A),(B) BLACK 		8-96013-763-0 02 1 9112-9410
42 WASHER; OIL PUMP HSG,A/T
(A) BLACK 		8-96013-763-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(A),(B) NATURAL 		8-96013-764-0 02 1 9112-9410
42 WASHER; OIL PUMP HSG,A/T
(A) NATURAL 		8-96013-764-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(A),(B) GREEN 		8-96013-765-0 02 1 9112-9410
42 WASHER; OIL PUMP HSG,A/T
(A) GREEN 		8-96013-765-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(A),(B) BLUE 		8-96013-766-0 02 1 9112-9410
42 WASHER; OIL PUMP HSG,A/T
(A) BLUE 		8-96013-766-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(B) YELLOW 		8-96017-289-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(B) RED 		8-96017-290-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(B) BLACK 		8-96017-291-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(B) WHITE 		8-96017-292-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(B) GREEN 		8-96017-293-0 01 1 9411-
42 WASHER; OIL PUMP HSG,A/T
(B) BLUE 		8-96017-294-0 01 1 9411-
48 RING; SNAP,OIL PUMP,A/T 8-96014-406-0 01 1 9112-
49 RING; OIL SEAL 8-96013-453-0 02 1 9112-9410
49 RING; OIL SEAL 8-96017-553-0 02 1 9411-
57 SHAFT; TURBINE,A/T 8-96014-386-0 01 1 9112-9607
57 SHAFT; TURBINE,A/T 8-96018-034-0 01 1 9608-
68 RING; OIL SEAL,TURBINE SHAFT
(B) 		8-96013-953-0 01 1 9112-
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96015-717-0 03 1 9112-9408
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96017-484-0 03 1 9409-9607
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96017-484-0 02 1 9608-
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96041-327-0 01 1 9608-
92 COVER ASM; A/T 8-96015-187-0 01 1 9112-
93 BOLT; COVER & BUSHING,A/T 8-96015-215-0 03 1 9112-
121 CONNECTOR; ELEC 8-96015-409-0 01 1 9112-
128 ROLLER ASM; SPR,DETENT 8-96015-354-0 01 1 9112-
148 RETAINER; SPRING,CAM RING,OIL PUMP 8-96014-405-0 01 1 9112-
154 PISTON; ACCUMLATOR,OIL PUMP 8-96014-403-0 01 1 9112-
155 SPRING; SERVO,ACCUMLATOR PISTON,OIL PU 8-96014-404-0 01 1 9112-
162 SENSOR; REVOLUTION,A/T CONT 8-96014-422-0 01 1 9112-
163 GASKET; REV SENSOR,A/T 8-96041-008-0 01 1 9112-9607
164 BOLT; REV SENSOR,A/T 8-96014-809-0 01 1 9112-
167 CONNECTOR; CASE,A/T 8-96015-477-0 01 1 9112-
176 RESERVOIR; MAIN CASE 8-96014-865-0 01 1 9112-
177 SEAL; MAIN CASE 8-96014-859-0 01 1 9112-9410
177 SEAL; MAIN CASE 8-96017-547-0 01 1 9411-
179 PLUG; LOCKOUT
(A) 		8-96015-554-0 01 1 9112-9302
179 PLUG; LOCKOUT
(B) 		8-96017-027-0 01 1 9303-
180 SPRING; LOCKOUT 8-96014-961-0 01 1 9112-
181 VALVE; LOCKOUT 8-96014-967-0 01 1 9112-
182 PIN; BOOST VALVE SLEEVE 8-08958-824-0 01 1 9112-
183 SLEEVE; BOOST VALVE 8-96016-067-0 01 1 9112-
184 VALVE; BOOST 8-96016-071-0 01 1 9112-
185 SEAT; SPR,REG VALVE 8-05258-219-0 02 1 9112-
186 SPRING; REG VALVE 8-96016-793-0 01 1 9112-9410
186 SPRING; REG VALVE 8-96017-526-0 01 1 9411-
187 VALVE; PRESSURE REG 8-96016-072-0 01 1 9112-
188 VALVE; CONV CLU CONT 8-96014-396-0 01 1 9112-
189 SPRING; CONV CLU CONT VALVE 8-96014-397-0 01 1 9112-
190 PLUG; CONV CLU CONT VALVE 8-96013-218-0 01 1 9112-
191 PIN; SPR,PLUG 8-96013-658-0 01 1 9112-
192 PUMP KIT; OIL 8-96041-092-0 01 1 9112-9410
192 PUMP KIT; OIL 8-96041-283-0 01 1 9411-9504
192 PUMP KIT; OIL 8-96041-284-0 01 1 9505-
234 PLATE; RETAINER
(A) 		8-96015-555-0 01 1 9112-9302
234 PLATE; RETAINER
(B) 		8-96017-026-0 01 1 9303-
284 PLATE; WEAR,OIL PUMP 8-96017-926-0 01 1 9505-
285 BRACKET; HARNESS 8-96017-916-0 01 1 9608-9611
285 BRACKET; HARNESS 8-96018-298-0 01 1 9612-9709
285 BRACKET; HARNESS 8-96018-455-0 01 1 9710-
