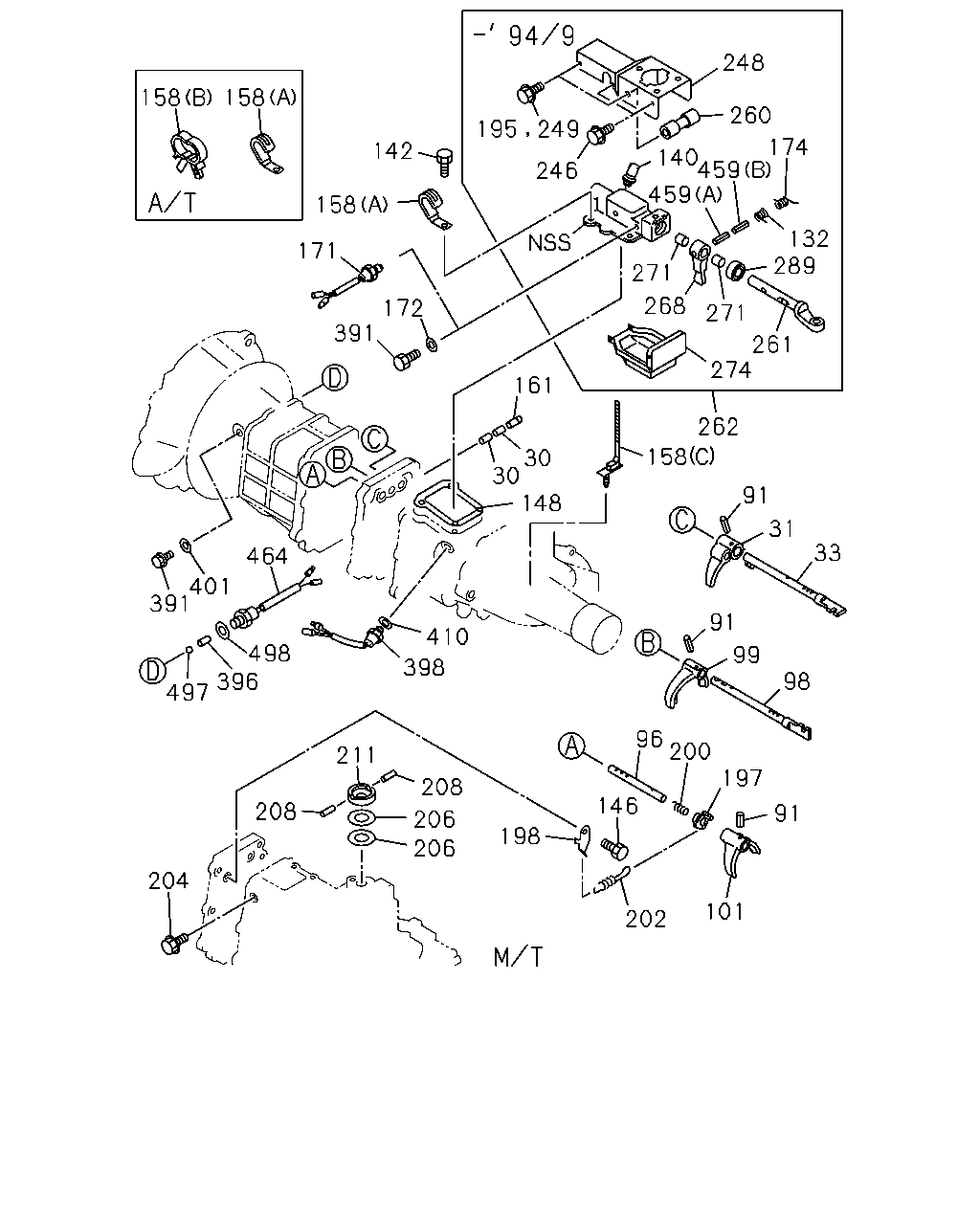

2-30 — GEAR SHIFTER AND QUADRANT BOX (#33202) — 126 parça

248 158 158 260 174 140 459 459 271 268 195 249 142 246 158 132 289 171 172 391 271 261 274 161 262 158 30 30 148 91 31 33 464 401 391 91 99 498 396 497 410 398 98 96 200 197 211 208 206 206 146 208 91 198 204 101 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK	5-33534-002-1	02	1	9112-	●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9112-	●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-1	01	1	9112-	●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	9112-	●
96	ROD; SHIFT,5TH	8-94440-079-0	01	1	9112-	●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-2	01	1	9112-	●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9112-	●
101	ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9112-	●
132	SPRING; SELECT STOP	8-94473-790-1	01	1	9112-9409	●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
140	BREATHER; AIR,TRANS L=39	8-97035-693-2	01	1	9112-9409	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9112-	●
146	BOLT; REV INHIBITOR M8X22 FLANGE	0-28080-822-0	01	1	9112-9609	●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28680-820-0	01	1	9610-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94473-945-0	01	1	9112-9308	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9309-	●
158	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9112-9208	●
158	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9112-9509		●
158	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9510-		●
158	CLIP; HARNESS (B) ID=24	8-97022-568-3	01	1	9112-		●
158	CLIP; HARNESS (C) L=140	8-97122-360-0	01	1	9510-9512		●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	9112-	●
171	SWITCH; NEUTRAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9112-9504	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9112-	●
174	SPRING; REV	8-94473-791-1	01	1	9112-9409	●
174	SPRING; REV	8-97103-105-0	01	1	9410-	●
195	BOLT M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●
195	BOLT M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●
195	BOLT M8X12 FLANGE	8-94479-696-1	01	1	9604-	●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9112-	●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9112-	●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9112-	●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9112-	●
204	STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9112-	●
206	SPRING; BALL SEAT	9-33619-632-0	02	1	9112-9707	●
208	PIN; BALL SEAT	8-94204-186-0	02	1	9112-9505	●
208	PIN; BALL SEAT	8-94204-186-0	02	1	9505-9707	●
211	SEAT; BALL	5-33619-042-0	01	1	9112-9707	●
246	SCREW; DUST COVER M4X10 FLANGE	8-94328-359-1	04	1	9112-9409	●
248	RETAINER; CONT BOX	8-94328-360-2	01	1	9112-9409	●
249	BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	05	1	9112-9308	●
249	BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	03	1	9309-9409	●
260	SHAFT; SPRING SET,CONT BOX	8-94473-789-0	01	1	9112-9409	●
261	ROD; GEAR CONT	8-94473-788-3	01	1	9112-9409	●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9410-	●
262	BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9112-9409	●
262	BOX ASM; SHIFT CONT	8-97100-878-3	01	1	9410-	●
268	LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9112-9409	●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	BUSHING; QUAD BOX	8-94151-447-0	02	1	9112-9310	●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9311-	●
274	COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9112-9409	●
274	COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94221-533-1	01	1	9112-9310	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9311-	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M14X9	9-99202-314-0	01	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	02	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	03	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) M14X9	9-99202-314-0	02	1	9206-9308	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	01	1	9206-9308	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M14X9	9-99202-314-0	01	1	9206-9308	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	01	1	9309-9312	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5) M14X9	9-99202-314-0	01	1	9309-9312	●
391	PLUG; SW HOLE M14X9	9-99202-314-0	01	1	9309-9312	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5) M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M14X11	8-94252-142-0	01	1	9505-	●	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5) M14X11	8-94252-142-0	01	1	9505-	●	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) M14X11	8-94252-142-0	01	1	9505-	●	●
396	PLUNGER; SHIFT ROD 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) D=5.5 L=20.7	8-94225-228-0	01	1	9309-9504	●
396	PLUNGER; SHIFT ROD 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) D=5.5 L=20.7	8-94225-228-0	01	1	9505-	●
398	SWITCH; REV LAMP	8-94464-566-0	01	1	9112-9609	●
398	SWITCH; REV LAMP	8-97138-635-0	01	1	9610-	●
401	GASKET; SWITCH,TOP & 3RD 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-9607	●
401	GASKET; SWITCH,TOP & 3RD 6VD1 SOHC ENG(RLU) ID=14.2 OD=20.0	9-09571-414-0	01	1	9608-	●
410	GASKET; REV SW ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-	●
459	PIN; SPR,ROD TO ARM (A) OUTER OD=5.4	9-09678-510-0	01	1	9112-	●
459	PIN; SPR,ROD TO ARM (B) INNER OD=3.3	9-09678-519-0	01	1	9112-	●
464	SWITCH; 1ST & 2ND 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-94411-366-1	01	1	9309-9504	●
464	SWITCH; 1ST & 2ND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-94411-366-1	01	1	9505-	●
497	BALL; SWITCH 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	9-00097-517-0	01	1	9309-9504	●
497	BALL; SWITCH 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	9-00097-517-0	01	1	9505-	●
498	GASKET; SWITCH,1ST & 2ND 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=14.2 OD=20.0	9-09571-414-0	01	1	9309-9504	●
498	GASKET; SWITCH,1ST & 2ND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-	●

262 511 459 271 142 186 459 271 289 171 22 132 479 166 22 174 268 479 166 261 172 391 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9410-	●
132	SPRING; SELECT STOP	8-94473-790-1	01	1	9112-9409	●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9112-	●
166	PIN; SPR,SELECT LEVER D=4.2 L=25	8-97103-142-0	02	1	9410-	●
171	SWITCH; NEUTRAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9112-9504	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9112-	●
174	SPRING; REV	8-94473-791-1	01	1	9112-9409	●
174	SPRING; REV	8-97103-105-0	01	1	9410-	●
186	PLUG; SHIFTER ROD OD=16	9-11129-081-0	01	1	9410-	●
261	ROD; GEAR CONT	8-94473-788-3	01	1	9112-9409	●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9410-	●
262	BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9112-9409	●
262	BOX ASM; SHIFT CONT	8-97100-878-3	01	1	9410-	●
268	LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9112-9409	●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	BUSHING; QUAD BOX	8-94151-447-0	02	1	9112-9310	●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9311-	●
274	COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9112-9409	●
274	COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94221-533-1	01	1	9112-9310	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9311-	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M14X9	9-99202-314-0	01	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	02	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	03	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) M14X9	9-99202-314-0	02	1	9206-9308	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	01	1	9206-9308	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M14X9	9-99202-314-0	01	1	9206-9308	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	01	1	9309-9312	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5) M14X9	9-99202-314-0	01	1	9309-9312	●
391	PLUG; SW HOLE M14X9	9-99202-314-0	01	1	9309-9312	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5) M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M14X11	8-94252-142-0	01	1	9505-	●	●
391	PLUG; SW HOLE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5) M14X11	8-94252-142-0	01	1	9505-	●	●
391	PLUG; SW HOLE 6VD1 SOHC ENG(RLU) M14X11	8-94252-142-0	01	1	9505-	●	●
459	PIN; SPR,ROD TO ARM (A) OUTER OD=5.4	9-09678-510-0	01	1	9112-	●
459	PIN; SPR,ROD TO ARM (B) INNER OD=3.3	9-09678-519-0	01	1	9112-	●
479	PLATE; SELECT D=13	8-97103-110-0	02	1	9410-	●
511	PIPE; AIR	8-97104-725-0	01	1	9410-	●
