Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#33201) — 236 parça

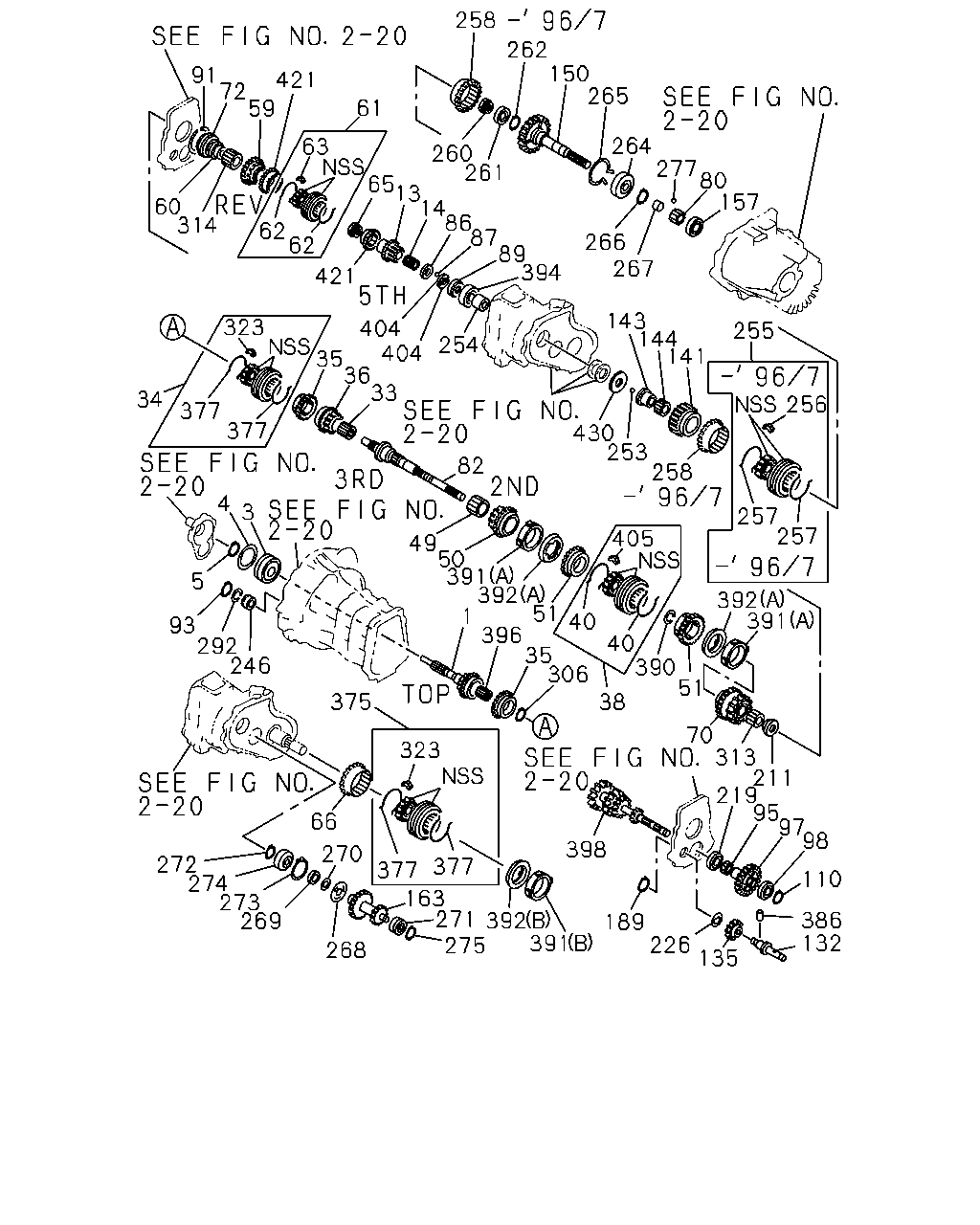

258 262 150 265 91 421 72 59 264 277 80 157 61 63 65 13 14 86 87 89 394 260 261 60 314 62 62 421 323 404 35 404 36 33 82 49 50 391 392 1 51 40 396 40 35 390 306 51 38 266 267 255 143 144 141 254 256 34 430 253 258 257 257 392 391 377 377 4 405 5 93 292 246 375 70 313 211 219 95 97 98 323 66 270 377 377 163 189 275 391 226 135 398 272 274 273 269 110 386 132 268 392 271 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) Z=25	8-97041-579-2	01	1	9112-9312	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97041-579-3	01	1	9401-9409	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9410-9709	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-	●
1	SHAFT; TOP GEAR,TRANS 4ZE1 ENG(RLJ) Z=25	8-94421-856-5	01	1	9112-9312	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9112-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9112-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9112-9303	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0 OD=53.0	8-94422-093-0	01	1	9304-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-94377-431-0	01	1	9112-9206	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97071-686-0	01	1	9207-9409	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9410-	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9112-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	9112-	●
34	SYNCHRONIZER; 4TH & 3RD	8-94421-869-2	01	1	9112-9412	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9501-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9112-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97065-100-0	01	1	9112-9409	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9410-	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9112-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9112-	●
49	BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9112-	●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9112-	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-0	02	1	9112-	●
59	GEAR; REV MAINSHAFT Z=40	8-94336-492-1	01	1	9112-9206	●
59	GEAR; REV MAINSHAFT -920920 Z=40	8-97071-683-0	01	1	9207-9209	●
59	GEAR; REV MAINSHAFT 920921- Z=40	8-94336-492-2	01	1	9209-9409	●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9410-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	9112-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9112-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9112-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9112-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	9112-	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9505-9506	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9507-9612	●	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-0	01	1	9701-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9112-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9112-	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9112-	●	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97029-307-0	01	1	9112-9503	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9504-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9112-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9112-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9112-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9112-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9112-	●
89	RING; RET,THRUST RING	8-94422-395-0	01	1	9112-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9112-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	9112-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9112-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9112-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9112-	●
132	SHAFT; REV	8-97019-155-0	01	1	9112-	●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9112-	●
141	GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9112-9502	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9503-9607	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9608-	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9112-	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9112-	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97018-363-1	01	1	9112-9501	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97113-405-0	01	1	9502-9502	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97120-122-0	01	1	9503-9607	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97141-879-0	01	1	9608-9703	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9704-	●	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9112-	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9112-9502	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9503-9607	●	●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9608-	●	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9112-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9112-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9112-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9112-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9112-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-0	01	1	9112-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-3	01	1	9112-	●
253	BALL; INPUT	8-94201-356-0	01	1	9112-	●	●
254	COLLAR; TRANSFER	8-94483-030-2	01	1	9112-	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97030-109-0	01	1	9112-9607	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	9608-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97033-098-0	01	1	9112-9607		●
256	INSERT; SYN,LOW-HIGH,TRANSFER	8-94363-062-0	03	1	9112-9607	●
257	SPRING; INSERT,LOW-HIGH SYN,TRANSFER	8-94448-045-0	02	1	9112-9607	●
258	RING; BLOCK,LOW-HIGH SYN,TRANSFER Z=42	8-97019-042-0	02	1	9112-9607	●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9112-	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9112-		●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9112-	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9112-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9112-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9505-	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9112-	●	●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9112-	●	●
267	COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9112-9501	●	●
268	PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9112-9607	●	●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9608-	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9112-	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9112-	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9112-	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9112-9403	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9112-	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9112-9403	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-	●	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9112-	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-94422-058-1	01	1	9112-9112	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97075-338-0	01	1	9201-9203	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-183-0	01	1	9204-9210	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9211-9405	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9204-9308	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9309-9405	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97113-430-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9112-	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9112-	●	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9112-	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-94422-094-0	01	1	9112-9504	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-94422-095-0	01	1	9112-9504	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-94422-096-0	01	1	9112-9504	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	9505-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9112-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9112-	●
323	INSERT	8-94448-202-1	03	1	9112-9504	●
323	INSERT SHIFT ON THE FLY(7EX)	8-94448-202-1	03	1	9505-	●	●
323	INSERT	8-94448-202-1	03	1	9505-	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-94457-785-1	01	1	9112-9412	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-026-0	01	1	9501-9504	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9505-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9112-9504	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	9505-9607	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	9608-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9608-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9112-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9112-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9112-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9112-	●
391	RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9112-	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9507-	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9507-9612	●	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97169-514-0	01	1	9701-	●	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	9112-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9112-	●
398	GEAR; COUNTER Z=46-38-27-21	8-97025-871-1	01	1	9112-9409	●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-0	01	1	9410-	●
404	PLATE; THRUST	8-94421-892-0	02	1	9112-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-0	03	1	9112-	●
421	RING; BLOCK,REV & 5TH REV	8-94377-438-0	01	1	9112-9206	●
421	RING; BLOCK,REV & 5TH 5TH	8-94421-888-0	01	1	9112-9206	●
421	RING; BLOCK,REV & 5TH REV & 5TH Z=36	8-97071-688-0	02	1	9207-9208	●
421	RING; BLOCK,REV & 5TH REV	8-94377-438-1	01	1	9209-9409	●
421	RING; BLOCK,REV & 5TH 5TH Z=36	8-97071-688-0	01	1	9209-9409	●
421	RING; BLOCK,REV & 5TH REV & 5TH Z=36	8-97071-688-0	02	1	9410-	●
430	PLATE; OIL SEAL,TRANSFER	8-94482-379-2	01	1	9112-	●

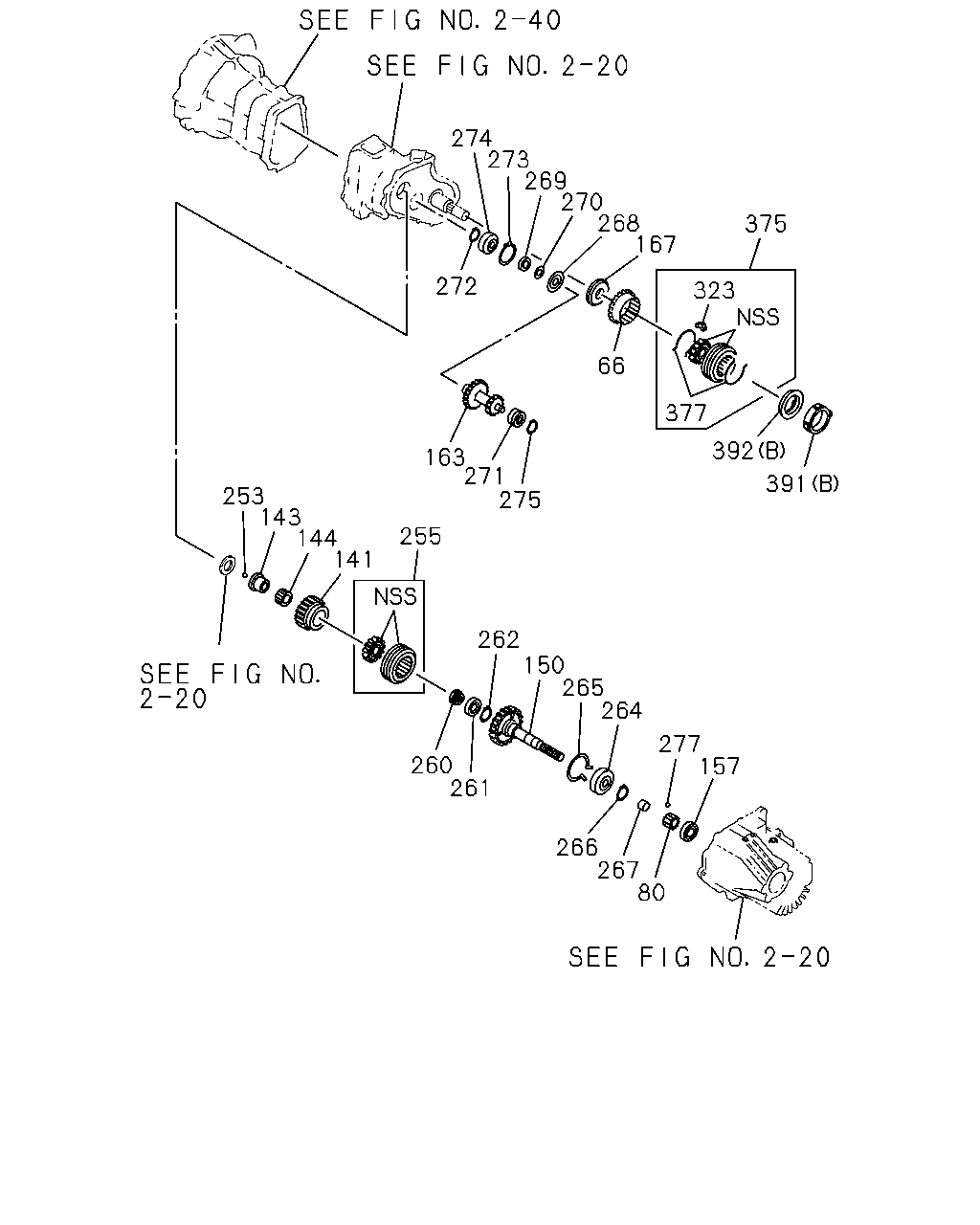

274 273 269 270 268 167 375 272 323 66 377 392 391 163 271 275 253 143 144 141 255 262 150 265 264 277 157 260 261 266 267 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9505-9506	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9507-9612	●	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-0	01	1	9701-	●	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9112-	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9112-9502	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9503-9607	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9608-	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9112-	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9112-	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97018-363-1	01	1	9112-9501	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97113-405-0	01	1	9502-9502	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97120-122-0	01	1	9503-9607	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97141-879-0	01	1	9608-9703	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9704-	●	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9112-	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9112-9502	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9503-9607	●	●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9608-	●	●
167	PLATE; LK,COUNTER SHAFT,TRANSFER SHIFT ON THE FLY(7EX)	8-97102-940-0	01	1	9505-		●
253	BALL; INPUT	8-94201-356-0	01	1	9112-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97030-109-0	01	1	9112-9607	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	9608-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97033-098-0	01	1	9112-9607		●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9112-	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9112-		●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9112-	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9112-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9112-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9505-	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9112-	●	●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9112-	●	●
267	COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9112-9501	●	●
268	PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9112-9607	●	●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9608-	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9112-	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9112-	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9112-	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9112-9403	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9112-	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9112-9403	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-	●	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9112-	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-94422-058-1	01	1	9112-9112	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97075-338-0	01	1	9201-9203	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-183-0	01	1	9204-9210	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9211-9405	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9204-9308	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9309-9405	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97113-430-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9112-	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9112-	●	●
323	INSERT	8-94448-202-1	03	1	9112-9504	●
323	INSERT SHIFT ON THE FLY(7EX)	8-94448-202-1	03	1	9505-	●	●
323	INSERT	8-94448-202-1	03	1	9505-	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-94457-785-1	01	1	9112-9412	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-026-0	01	1	9501-9504	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9505-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9112-9504	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	9505-9607	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	9608-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9608-	●
391	RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9112-	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9507-	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9507-9612	●	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97169-514-0	01	1	9701-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
