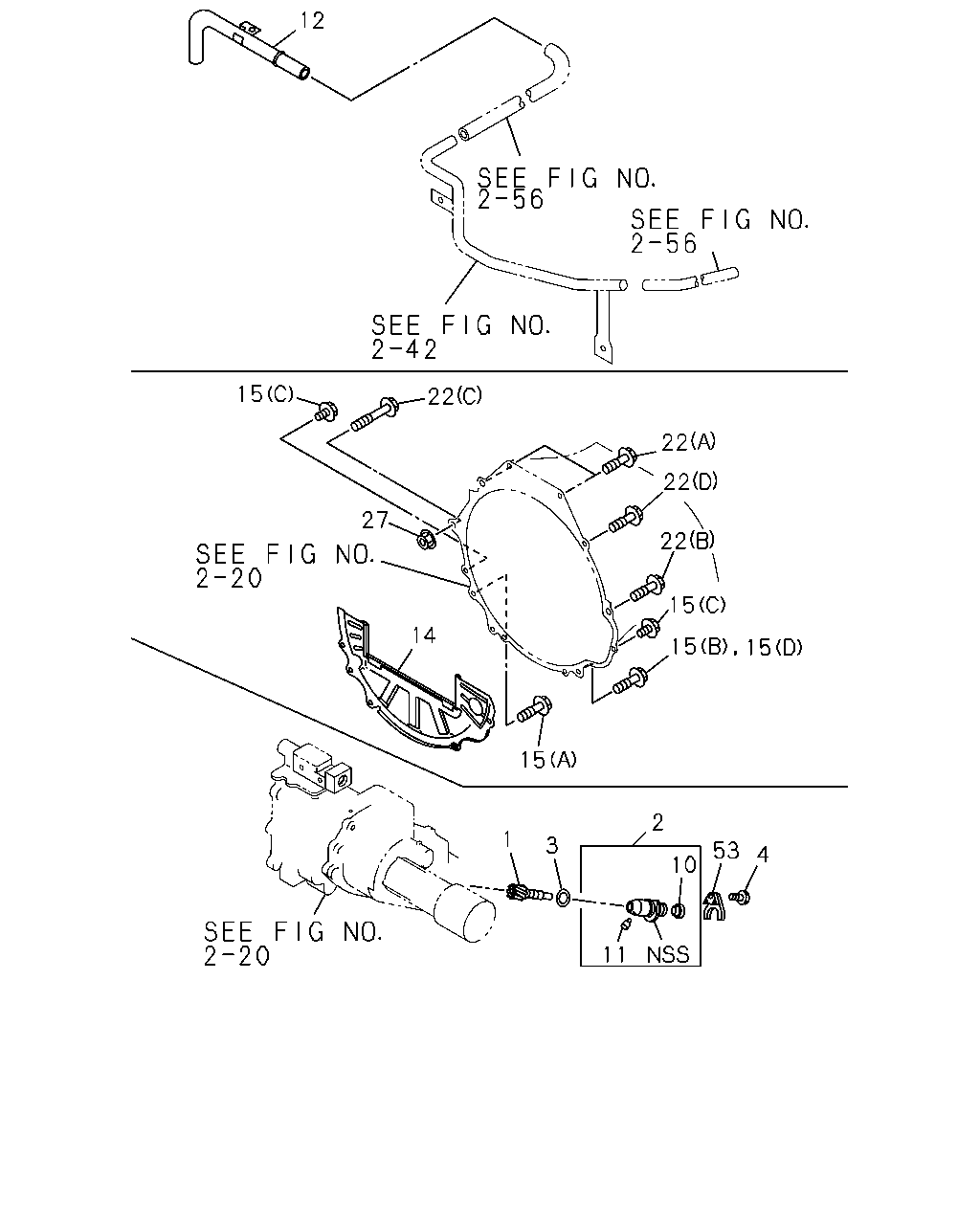

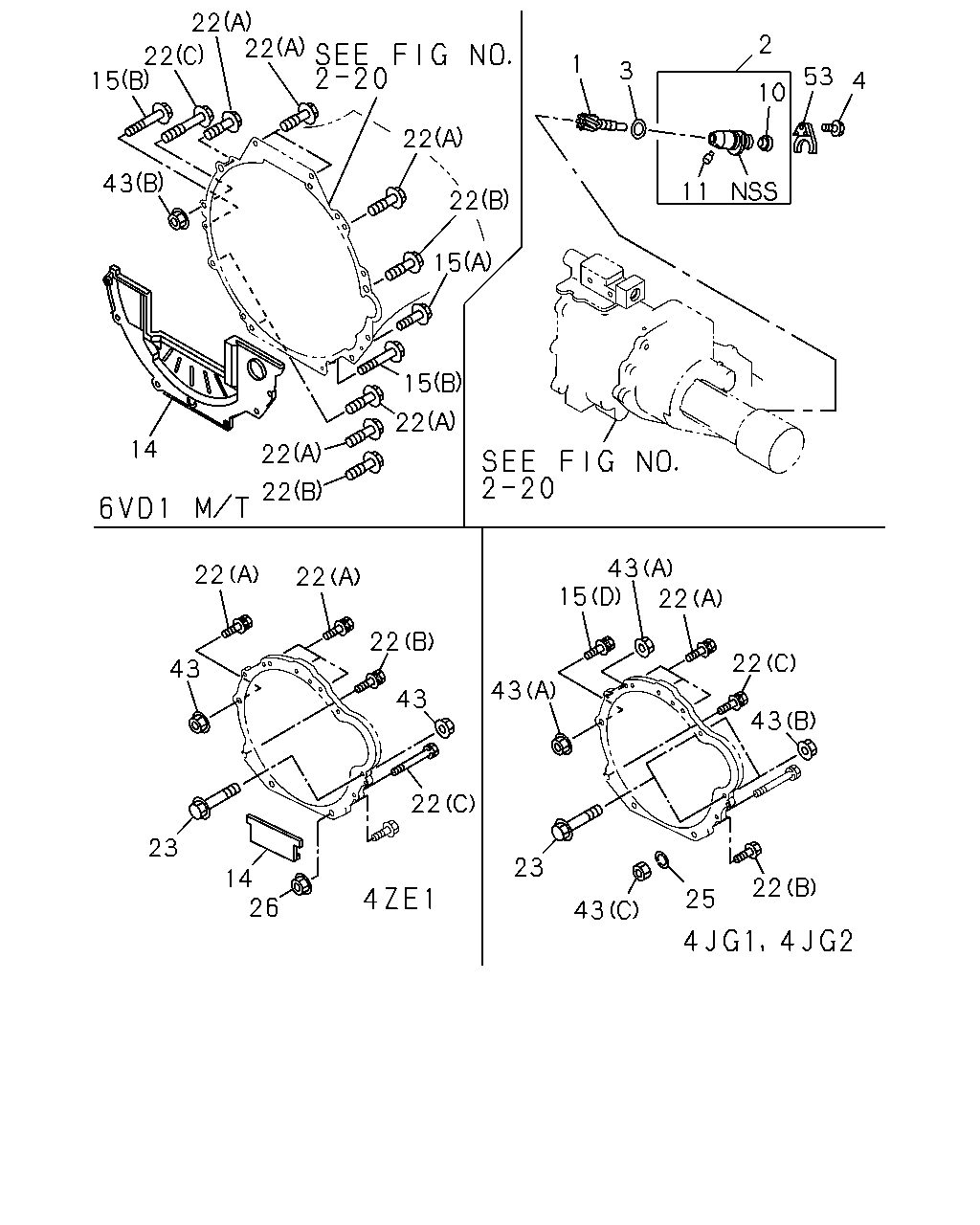

2-25 — SPEEDOMETER DRIVEN GEAR (#33200) — 128 parça

22 2 22 2 15 2 1 3 53 4 10 22 22 15 11 43 15 22 14 22 22 43 15 22 22 22 22 22 43 43 43 43 22 23 14 26 23 22 25 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9112-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) Z=17	8-97012-085-1	01	1	9112-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-1	01	1	9112-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9112-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	9112-	●	●
4	BOLT; RET,DRIVEN GEAR M8X18	0-28010-818-0	01	1	9112-9204	●	●
4	BOLT; RET,DRIVEN GEAR M8X18 FLANGE	0-28080-818-0	01	1	9205-9609	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28080-820-0	01	1	9610-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-113-0	01	1	9112-9505	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-0	01	1	9506-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	9112-9405	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	9506-	●	●
14	COVER; UNDER,TRANS 4ZE1 ENG(RLJ)	8-94310-655-2	01	1	9112-	●
14	COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-94380-152-1	01	1	9112-9309	●
14	COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-97105-840-1	01	1	9310-	●
14	COVER; UNDER,TRANS	8-94374-537-0	01	1	9112-		●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> (D) M10X40 FLANGE	0-28081-040-0	01	1	9505-9601	●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-		●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X45 FLANGE	0-28081-045-0	01	1	9112-9504	●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (D) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (A) M6X25	0-28010-625-0	01	1	9112-9204	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (A) M6X25 FLANGE	0-28080-625-0	01	1	9205-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40	0-28010-640-0	02	1	9112-9204	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	02	1	9205-9705	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	01	1	9706-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X45 FLANGE	0-28080-645-0	01	1	9706-	●
15	BOLT; UNDER COVER TO TRANS (A) M6X16	0-28010-616-0	02	1	9112-9204		●
15	BOLT; UNDER COVER TO TRANS (A) M6X16 FLANGE	0-28080-616-0	02	1	9205-9601		●
15	BOLT; UNDER COVER TO TRANS (C) M10X40 FLANGE	0-28181-040-0	02	1	9602-		●
15	BOLT; UNDER COVER TO TRANS (B) M10X35	0-28011-035-0	01	1	9112-9204		●
15	BOLT; UNDER COVER TO TRANS (B) M10X35 FLANGE	0-28081-035-0	01	1	9205-9601		●
15	BOLT; UNDER COVER TO TRANS (C) M10X35 FLANGE	0-28181-035-0	02	1	9112-9601		●
15	BOLT; UNDER COVER TO TRANS (A) M6X16 FLANGE	0-28680-616-0	02	1	9602-		●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) M10X40 FLANGE	0-28081-040-0	03	1	9112-9504	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (A) M10X40 FLANGE	0-28081-040-0	03	1	9505-	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M10X60 FLANGE	0-28081-060-0	02	1	9112-9504	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (B) M10X60 FLANGE	0-28081-060-0	02	1	9505-	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) M12X40 FLANGE	0-28081-240-0	01	1	9112-9504	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (C) M12X40 FLANGE	0-28081-240-0	01	1	9505-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X30 FLANGE	0-28081-030-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X35 FLANGE	0-28081-035-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (C) M10X40 FLANGE	0-28081-040-0	01	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (B) M10X45 FLANGE	0-28081-045-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (C) M10X50 FLANGE	0-28081-050-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	06	1	9112-9607	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	04	1	9608-	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (C) M12X85 FLANGE	8-94480-345-1	01	1	9112-	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (B) M12X50 FLANGE	0-28181-250-0	01	1	9112-9504	●	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (B) M12X50 FLANGE	0-28181-250-0	01	1	9505-	●	●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28181-240-0	01	1	9112-		●
22	BOLT; TRANS CASE TO ENG (A) M12X45 FLANGE	0-28181-245-0	03	1	9112-		●
22	BOLT; TRANS CASE TO ENG (D) M12X68 FLANGE	8-94480-344-1	01	1	9112-		●
23	BOLT; STARTER TO TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) M12X68 FLANGE	8-94480-344-1	02	1	9112-9504	●
23	BOLT; STARTER TO TRANS CASE 4JG2 ENG(RJC) M12X68 FLANGE	8-94480-344-1	02	1	9505-	●
23	BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) M10X35 FLANGE	0-28181-035-0	01	1	9112-9504	●
23	BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) M10X40 FLANGE	0-28081-040-0	01	1	9602-9602	●
23	BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) M10X35 FLANGE	0-28181-035-0	01	1	9603-9608	●
23	BOLT; STARTER TO TRANS CASE 4ZE1 ENG(RLJ) M10X35 FLANGE	0-28781-035-0	01	1	9608-	●
25	WASHER; PL,TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) ID=12.5	9-09160-512-0	01	1	9112-9504	●
25	WASHER; PL,TRANS CASE 4JG2 ENG(RJC) ID=12.5	9-09160-512-0	01	1	9505-	●
26	NUT; UNDER COVER,TRANS 4ZE1 ENG(RLJ) M6 FLANGE	0-91150-106-0	02	1	9112-	●
43	NUT; TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●
43	NUT; TRANS CASE 4JG2 ENG(RJC) (A) M10 FLANGE	0-91150-110-0	02	1	9505-	●
43	NUT; TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M12 FLANGE	0-91150-112-0	02	1	9112-9504	●
43	NUT; TRANS CASE 4JG2 ENG(RJC) (B) M12 FLANGE	0-91150-112-0	02	1	9505-	●
43	NUT; TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) M12	9-99110-412-0	01	1	9112-9504	●
43	NUT; TRANS CASE 4JG2 ENG(RJC) (C) M12	9-99110-412-0	01	1	9505-	●
43	NUT; TRANS CASE 4ZE1 ENG(RLJ) M10 FLANGE	0-91150-110-0	03	1	9112-9609	●
43	NUT; TRANS CASE 4ZE1 ENG(RLJ) M10 FLANGE	0-91150-110-0	03	1	9610-	●
43	NUT; TRANS CASE 6VD1 SOHC ENG(RLU) (B) M12 FLANGE	0-91150-112-0	01	1	9112-	●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9112-	●	●

12 15 22 22 22 27 22 15 14 15 15 15 2 1 3 53 4 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9112-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) Z=17	8-97012-085-1	01	1	9112-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-1	01	1	9112-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9112-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	9112-	●	●
4	BOLT; RET,DRIVEN GEAR M8X18	0-28010-818-0	01	1	9112-9204	●	●
4	BOLT; RET,DRIVEN GEAR M8X18 FLANGE	0-28080-818-0	01	1	9205-9609	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28080-820-0	01	1	9610-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-113-0	01	1	9112-9505	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-0	01	1	9506-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	9112-9405	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	9506-	●	●
12	BREATHER; AIR,TRANS	8-97133-374-1	01	1	9608-		●
14	COVER; UNDER,TRANS 4ZE1 ENG(RLJ)	8-94310-655-2	01	1	9112-	●
14	COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-94380-152-1	01	1	9112-9309	●
14	COVER; UNDER,TRANS 6VD1 SOHC ENG(RLU)	8-97105-840-1	01	1	9310-	●
14	COVER; UNDER,TRANS	8-94374-537-0	01	1	9112-		●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> (D) M10X40 FLANGE	0-28081-040-0	01	1	9505-9601	●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (D) M10X40 FLANGE	0-28081-040-0	01	1	9602-		●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X45 FLANGE	0-28081-045-0	01	1	9112-9504	●
15	BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (D) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (A) M6X25	0-28010-625-0	01	1	9112-9204	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (A) M6X25 FLANGE	0-28080-625-0	01	1	9205-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40	0-28010-640-0	02	1	9112-9204	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	02	1	9205-9705	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X40 FLANGE	0-28080-640-0	01	1	9706-	●
15	BOLT; UNDER COVER TO TRANS 6VD1 SOHC ENG(RLU) (B) M6X45 FLANGE	0-28080-645-0	01	1	9706-	●
15	BOLT; UNDER COVER TO TRANS (A) M6X16	0-28010-616-0	02	1	9112-9204		●
15	BOLT; UNDER COVER TO TRANS (A) M6X16 FLANGE	0-28080-616-0	02	1	9205-9601		●
15	BOLT; UNDER COVER TO TRANS (C) M10X40 FLANGE	0-28181-040-0	02	1	9602-		●
15	BOLT; UNDER COVER TO TRANS (B) M10X35	0-28011-035-0	01	1	9112-9204		●
15	BOLT; UNDER COVER TO TRANS (B) M10X35 FLANGE	0-28081-035-0	01	1	9205-9601		●
15	BOLT; UNDER COVER TO TRANS (C) M10X35 FLANGE	0-28181-035-0	02	1	9112-9601		●
15	BOLT; UNDER COVER TO TRANS (A) M6X16 FLANGE	0-28680-616-0	02	1	9602-		●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) M10X40 FLANGE	0-28081-040-0	03	1	9112-9504	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (A) M10X40 FLANGE	0-28081-040-0	03	1	9505-	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M10X60 FLANGE	0-28081-060-0	02	1	9112-9504	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (B) M10X60 FLANGE	0-28081-060-0	02	1	9505-	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) M12X40 FLANGE	0-28081-240-0	01	1	9112-9504	●
22	BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (C) M12X40 FLANGE	0-28081-240-0	01	1	9505-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X30 FLANGE	0-28081-030-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (A) M10X35 FLANGE	0-28081-035-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (C) M10X40 FLANGE	0-28081-040-0	01	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (B) M10X45 FLANGE	0-28081-045-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 4ZE1 ENG(RLJ) (C) M10X50 FLANGE	0-28081-050-0	02	1	9112-	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	06	1	9112-9607	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (A) M12X45 FLANGE	0-28181-245-0	04	1	9608-	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (C) M12X85 FLANGE	8-94480-345-1	01	1	9112-	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (B) M12X50 FLANGE	0-28181-250-0	01	1	9112-9504	●	●
22	BOLT; TRANS CASE TO ENG 6VD1 SOHC ENG(RLU) (B) M12X50 FLANGE	0-28181-250-0	01	1	9505-	●	●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28181-240-0	01	1	9112-		●
22	BOLT; TRANS CASE TO ENG (A) M12X45 FLANGE	0-28181-245-0	03	1	9112-		●
22	BOLT; TRANS CASE TO ENG (D) M12X68 FLANGE	8-94480-344-1	01	1	9112-		●
27	NUT; CLU HSG TO TRANS M12 FLANGE	0-91150-112-0	01	1	9112-		●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9112-	●	●
