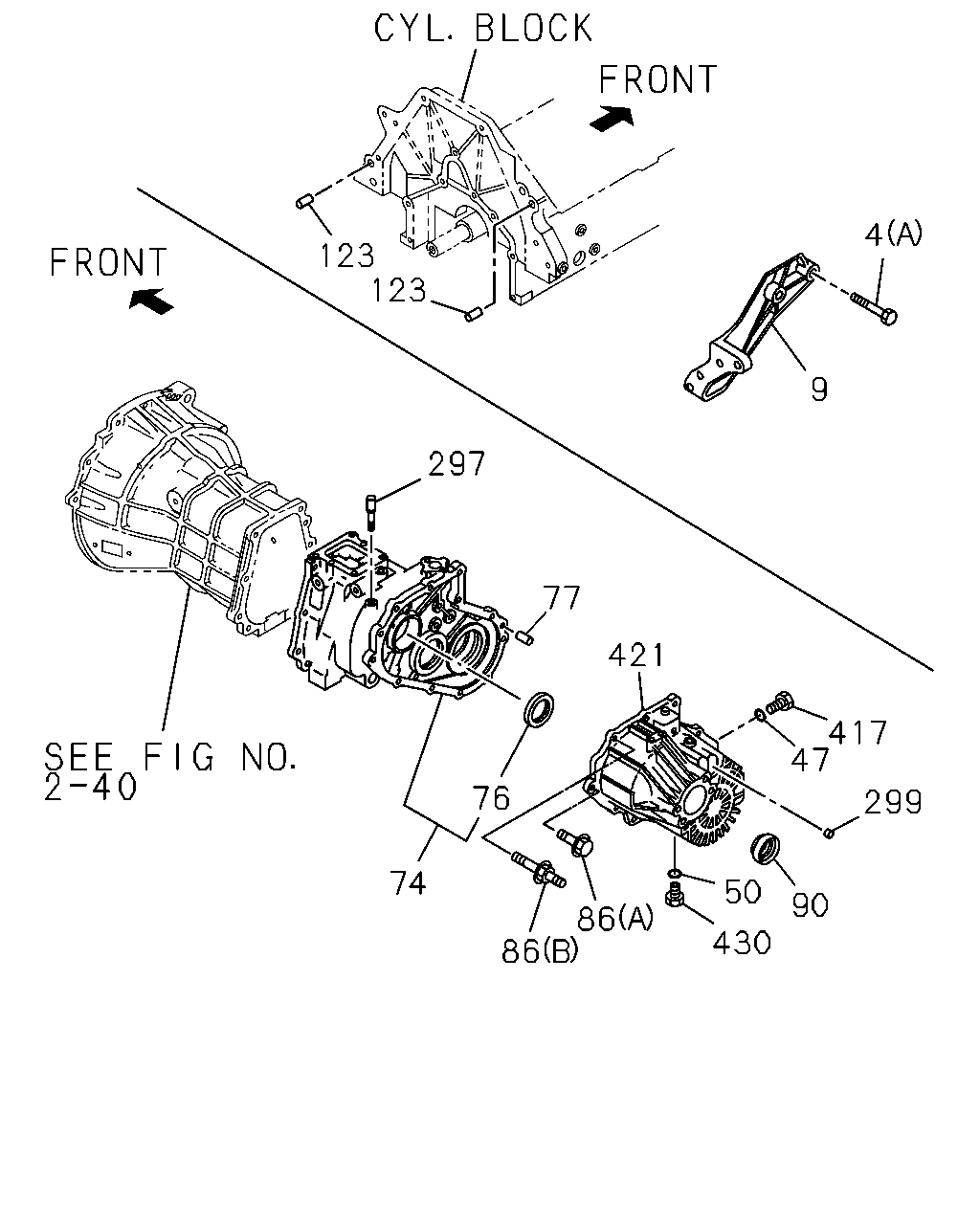

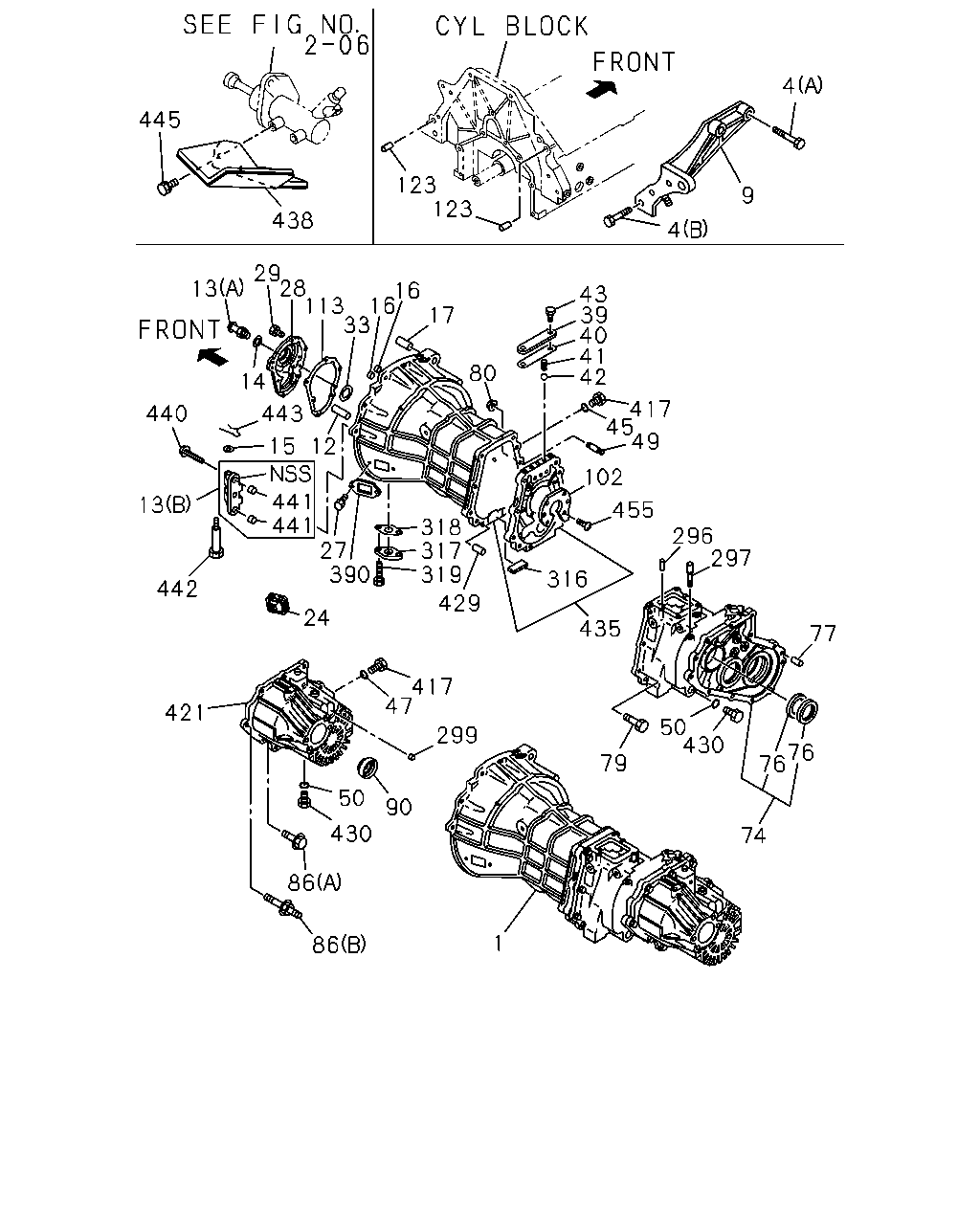

2-20 — MANUAL TRANSMISSION ASM AND CASE (#33199) — 212 parça

445 123 123 9 438 4 29 13 28 16 113 16 17 33 43 39 40 41 14 42 443 15 441 441 318 27 317 390 319 429 80 417 45 49 440 102 455 13 296 297 316 442 24 435 77 417 47 421 50 430 299 76 76 79 50 90 430 74 86 86 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) SHIFT ON THE FLY(7EX)	8-97110-346-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE(JE5) SHIFT ON THE FLY(7EX)	8-97142-142-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) ANTI LOCK BRAKE(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97142-144-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) ANTI LOCK BRAKE(JE5) SHIFT ON THE FLY(7EX)	8-97142-146-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. ANTI LOCK BRAKE(JE5),SHIFT ON THE FLY(7EX)	8-97142-143-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE(JE5)	8-97142-145-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE(JE5)	8-97110-345-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE(JE5)	8-97142-141-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97018-484-0	01	1	9112-9205	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97077-227-0	01	1	9206-9208	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97077-238-0	01	1	9209-9308	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT) ANTI LOCK BRAKE(JE5)	8-97086-995-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT) ANTI LOCK BRAKE(JE5)	8-97103-960-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97103-960-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97142-140-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE(JE5)	8-97086-723-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. ANTI LOCK BRAKE(JE5)	8-97103-959-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE(JE5),SHIFT ON THE FLY(7EX)	8-97103-959-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI LOCK BRAKE(JE5),SHIFT ON THE FLY(7EX)	8-97142-139-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ)	8-97018-486-0	01	1	9112-9205	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ)	8-97077-239-0	01	1	9206-9208	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ)	8-97077-251-0	01	1	9209-9308	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ)	8-97086-724-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ)	8-97103-962-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ) EXC. SHIFT ON THE FLY(7EX)	8-97103-962-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ) EXC. SHIFT ON THE FLY(7EX)	8-97142-147-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97110-344-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97142-148-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) AUTO CRUISE CONT<K30>	8-97086-991-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) AUTO CRUISE CONT<K30>	8-97103-982-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) SHIFT ON THE FLY(7EX)	8-97110-349-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE(JE5) SHIFT ON THE FLY(7EX)	8-97142-136-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. AUTO CRUISE CONT<K30>	8-97086-993-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. AUTO CRUISE CONT<K30>	8-97103-981-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97103-981-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97142-134-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5),AUTO CRUISE CONT<K30>	8-97086-994-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5),AUTO CRUISE CONT<K30>	8-97103-979-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5),SHIFT ON THE FLY(7EX)	8-97103-979-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI LOCK BRAKE(JE5),SHIFT ON THE FLY(7EX)	8-97142-133-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30>	8-97038-622-0	01	1	9112-9205	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30>	8-97077-220-0	01	1	9206-9208	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30>	8-97077-225-0	01	1	9209-9308	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30> EXC. ANTI LOCK BRAKE(JE5)	8-97086-992-0	01	1	9309-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) AUTO CRUISE CONT<K30> EXC. ANTI LOCK BRAKE(JE5)	8-97103-980-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE(JE5)	8-97110-347-0	01	1	9505-9607	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE(JE5)	8-97142-135-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30>	8-97038-691-0	01	1	9112-9205	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30>	8-97077-221-0	01	1	9206-9208	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30>	8-97077-226-0	01	1	9209-9308	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 43/10(S7C) ANTI LOCK BRAKE(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97142-130-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 43/10(S7C) ANTI LOCK BRAKE(JE5) SHIFT ON THE FLY(7EX)	8-97142-132-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 43/10(S7C) EXC. ANTI LOCK BRAKE(JE5),SHIFT ON THE FLY(7EX)	8-97142-129-0	01	1	9608-	●
1	TRANSMISSION ASM; MANUAL 6VD1 SOHC ENG(RLU) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE(JE5)	8-97142-131-0	01	1	9608-	●
4	BOLT; FLYWHEEL HSG 6VD1 SOHC ENG(RLU) (B) M12X45 FLANGE	0-28181-245-0	02	1	9112-	●
4	BOLT; FLYWHEEL HSG 6VD1 SOHC ENG(RLU) (A) M10X40 FLANGE	0-28181-040-0	02	1	9112-	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-94389-545-2	01	1	9112-9304	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-97088-743-2	01	1	9305-9504	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-94389-545-5	01	1	9505-9610	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-97139-279-0	01	1	9611-	●	●
12	PIN; TRANS CASE TO BODY 4ZE1 ENG(RLJ) OD=10 L=32	9-08161-032-0	01	1	9112-	●
13	SUPPORT; SHIFT FORK 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (A) L=47.5	5-31345-002-1	01	1	9112-9504	●
13	SUPPORT; SHIFT FORK 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (A) L=47.5	5-31345-002-1	01	1	9505-9611	●
13	SUPPORT; SHIFT FORK 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (A) L=47.5	8-97072-827-0	01	1	9612-	●
13	SUPPORT; SHIFT FORK 6VD1 SOHC ENG(RLU) (B)	8-97033-703-1	01	1	9112-	●
14	WASHER; LK,SUPPORT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) ID=12.2	9-09150-512-0	01	1	9112-9504	●
14	WASHER; LK,SUPPORT 4JG2 ENG(RJC),4ZE1 ENG(RLJ) ID=12.2	9-09150-512-0	01	1	9505-	●
15	WASHER; PL 6VD1 SOHC ENG(RLU) ID=8.4 OD=22	9-09160-708-0	01	1	9112-	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9112-9607	●
16	PLUG; SHIFT ROD HEAD LAMP REMINDER<T63> OD=14	5-09609-004-0	02	1	9608-	●	●
17	STUD; STARTER SETTING 4ZE1 ENG(RLJ) M10X33 L=53	8-94207-236-0	01	1	9112-9308	●
17	STUD; STARTER SETTING 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M10X33 L=53	8-94207-236-0	01	1	9309-9409	●
17	STUD; STARTER SETTING 4ZE1 ENG(RLJ) M10X33 L=53	8-94207-236-0	01	1	9410-	●
24	COVER; CHECK HOLE,DUST 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)	8-94156-700-0	01	1	9112-9504	●
24	COVER; CHECK HOLE,DUST 4JG2 ENG(RJC),4ZE1 ENG(RLJ)	8-94156-700-0	01	1	9505-	●
27	BOLT; COVER TO CLU HSG 6VD1 SOHC ENG(RLU) M6X12	0-28010-612-0	02	1	9112-9204	●
27	BOLT; COVER TO CLU HSG 6VD1 SOHC ENG(RLU) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●
28	COVER; FRT,TRANS CASE 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94421-862-2	01	1	9112-9409	●
28	COVER; FRT,TRANS CASE 4JG2 ENG(RJC)	8-97104-676-0	01	1	9410-	●
28	COVER; FRT,TRANS CASE 4ZE1 ENG(RLJ)	8-94421-861-2	01	1	9112-9409	●
28	COVER; FRT,TRANS CASE 4ZE1 ENG(RLJ)	8-97104-675-0	01	1	9410-	●
28	COVER; FRT,TRANS CASE 6VD1 SOHC ENG(RLU)	8-94377-430-1	01	1	9112-9409	●
28	COVER; FRT,TRANS CASE 6VD1 SOHC ENG(RLU)	8-97104-678-0	01	1	9410-	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9112-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9112-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9302-	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9112-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9112-9308	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9309-	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9112-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9112-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	0-28080-822-0	02	1	9112-9409	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	9410-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9504	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9505-	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-	●	●
49	STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9112-9607	●
49	STUD; TRANSFER CASE HEAD LAMP REMINDER<T63> M10X51.5 L=72	8-97036-714-1	01	1	9608-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	02	1	9112-9407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9408-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-		●
74	CASE ASM; TRANSFER	8-97027-772-5	01	1	9112-9707	●
74	CASE ASM; TRANSFER	8-97149-125-0	01	1	9708-	●
74	CASE ASM; TRANSFER	8-97033-097-0	01	1	9112-9612		●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	9701-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9112-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9302-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9112-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9302-		●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	9-08161-020-0	02	1	9112-9507	●	●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9508-	●	●
79	BOLT; TRANSFER CASE M10X55 FLANGE	8-94473-959-1	07	1	9112-	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-210-0	01	1	9112-9301	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-110-0	01	1	9302-	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	01	1	9112-9301	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	01	1	9302-9407	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	10	1	9112-9301	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	10	1	9302-9407	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	11	1	9408-9708	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	09	1	9709-	●	●
86	BOLT; RR COVER (A),(B) M10X35 FLANGE	8-94448-818-1	11	1	9302-9407		●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9709-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9112-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9302-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	8-94448-042-0	01	1	9112-9601	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9602-9607	●
102	RETAINER; BRG UPR,MAINSHAFT HEAD LAMP REMINDER<T63>	8-97138-673-0	01	1	9608-	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-946-0	01	1	9112-9308	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9309-	●
123	DOWEL; TRANS CASE 6VD1 SOHC ENG(RLU)	8-94134-791-0	02	1	9112-9307	●	●
123	DOWEL; TRANS CASE 6VD1 SOHC ENG(RLU)	8-94325-506-1	02	1	9308-	●	●
296	PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9112-	●
297	BREATHER; AIR,TRANSFER CASE	8-97035-694-2	01	1	9112-	●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	9112-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	9112-	●
317	COVER; CASE 6VD1 SOHC ENG(RLU)	8-97034-422-1	01	1	9112-	●
318	GASKET; COVER 6VD1 SOHC ENG(RLU)	8-97035-567-0	01	1	9112-	●
319	BOLT; COVER 6VD1 SOHC ENG(RLU) M6X12	0-28010-612-0	02	1	9112-9204	●
319	BOLT; COVER 6VD1 SOHC ENG(RLU) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●
390	COVER; DUST,CLU SHIFT 6VD1 SOHC ENG(RLU)	8-94380-259-1	01	1	9112-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9112-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9112-		●
421	COVER; RR,TRANS	8-97029-308-2	01	1	9112-9210	●	●
421	COVER; RR,TRANS	8-97069-364-5	01	1	9211-	●	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9112-9607	●
429	PIN; STRAIGHT HEAD LAMP REMINDER<T63> OD=10 L=40	5-09740-018-1	02	1	9608-	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9112-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9112-		●
435	CASE; TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94453-375-0	01	1	9112-9308	●
435	CASE; TRANS 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97087-054-0	01	1	9309-9504	●
435	CASE; TRANS 4JG2 ENG(RJC)	8-97087-054-0	01	1	9505-	●
435	CASE; TRANS 4ZE1 ENG(RLJ)	8-94453-374-0	01	1	9112-	●
435	CASE; TRANS 6VD1 SOHC ENG(RLU)	8-97019-056-0	01	1	9112-9607	●
435	CASE; TRANS 6VD1 SOHC ENG(RLU)	8-97120-625-0	01	1	9608-9705	●
435	CASE; TRANS 6VD1 SOHC ENG(RLU)	8-97149-234-1	01	1	9706-	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 SOHC ENG(RLU)	8-97066-178-1	01	1	9112-9308	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 SOHC ENG(RLU)	8-97094-632-0	01	1	9309-9607	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 SOHC ENG(RLU)	8-97094-632-0	01	1	9608-9711	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 SOHC ENG(RLU)	8-97178-698-0	01	1	9712-	●
440	BOLT; SUPPORT 6VD1 SOHC ENG(RLU) M10X25 FLANGE	0-28181-025-0	03	1	9112-	●
441	DOWEL; SUPPORT 6VD1 SOHC ENG(RLU)	8-97049-712-0	02	1	9112-	●
442	PIN; SHIFT FORK 6VD1 SOHC ENG(RLU)	8-94377-424-1	01	1	9112-	●
443	PIN; SNAP,SHIFT FORK 6VD1 SOHC ENG(RLU) L=27.7	1-09747-005-0	01	1	9112-	●
445	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M6X12 FLANGE	0-28080-612-0	02	1	9112-9603	●
445	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28680-616-0	02	1	9604-9607	●
445	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M6X12 FLANGE	0-28080-612-0	02	1	9608-	●
455	SCREW; BRG RET M8X22	8-94388-328-1	04	1	9112-9409	●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	9410-	●

4 123 123 9 297 77 421 417 47 76 299 74 50 90 430 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; FLYWHEEL HSG 6VD1 SOHC ENG(RLU) (B) M12X45 FLANGE	0-28181-245-0	02	1	9112-	●
4	BOLT; FLYWHEEL HSG 6VD1 SOHC ENG(RLU) (A) M10X40 FLANGE	0-28181-040-0	02	1	9112-	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-94389-545-2	01	1	9112-9304	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-97088-743-2	01	1	9305-9504	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-94389-545-5	01	1	9505-9610	●	●
9	STIFFENER; C/BL 6VD1 SOHC ENG(RLU)	8-97139-279-0	01	1	9611-	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	02	1	9112-9407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9408-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-		●
74	CASE ASM; TRANSFER	8-97027-772-5	01	1	9112-9707	●
74	CASE ASM; TRANSFER	8-97149-125-0	01	1	9708-	●
74	CASE ASM; TRANSFER	8-97033-097-0	01	1	9112-9612		●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	9701-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9112-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9302-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9112-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9302-		●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	9-08161-020-0	02	1	9112-9507	●	●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9508-	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	01	1	9112-9301	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	01	1	9302-9407	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	10	1	9112-9301	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	10	1	9302-9407	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	11	1	9408-9708	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	09	1	9709-	●	●
86	BOLT; RR COVER (A),(B) M10X35 FLANGE	8-94448-818-1	11	1	9302-9407		●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9709-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9112-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9302-	●	●
123	DOWEL; TRANS CASE 6VD1 SOHC ENG(RLU)	8-94134-791-0	02	1	9112-9307	●	●
123	DOWEL; TRANS CASE 6VD1 SOHC ENG(RLU)	8-94325-506-1	02	1	9308-	●	●
297	BREATHER; AIR,TRANSFER CASE	8-97035-694-2	01	1	9112-	●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	9112-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9112-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9112-		●
421	COVER; RR,TRANS	8-97029-308-2	01	1	9112-9210	●	●
421	COVER; RR,TRANS	8-97069-364-5	01	1	9211-	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9112-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
