2-08 — CLUTCH MASTER CYLINDER (#33197) — 34 parça

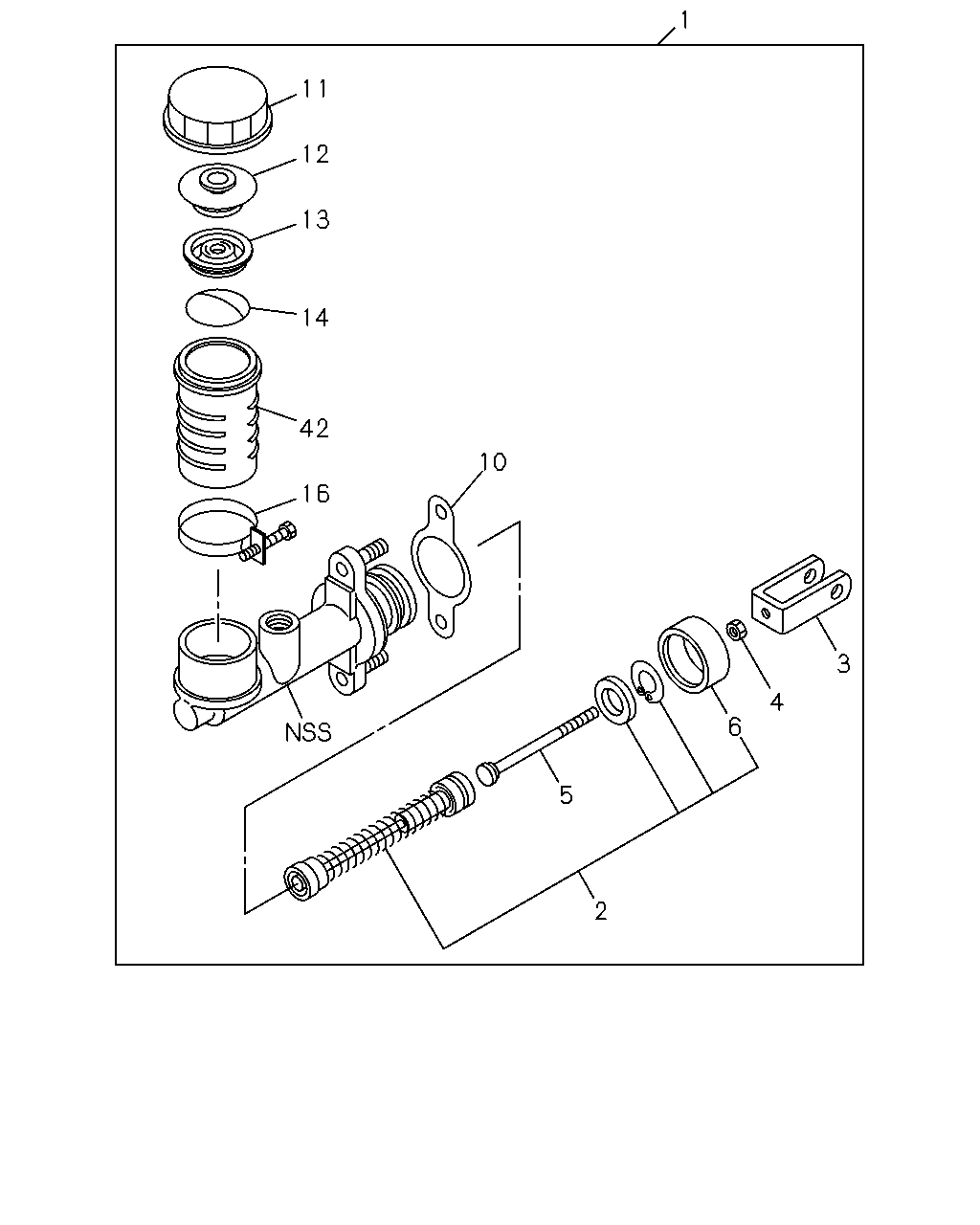

çizim 66969
1 11 12 13 14 42 10 16 3 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 8-97066-437-1 01 1 9112-9402 ● ●
1 CYLINDER ASM; CLUTCH MASTER 8-97110-220-0 01 1 9403-9504 ● ●
1 CYLINDER ASM; CLUTCH MASTER 8-97110-220-0 01 1 9505-9508 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97136-443-0 01 1 9509-9708 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97185-016-0 01 1 9709- ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN) 		8-97024-940-2 01 1 9112-9402 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN) 		8-97110-221-0 01 1 9403-9508 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN) 		8-97136-444-0 01 1 9509-9708 ● ●
1 CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN) 		8-97185-017-0 01 1 9709- ● ●
2 REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		5-87831-220-0 01 1 9112-9402 ● ● ● ●
2 REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		5-87831-486-0 01 1 9403-9504 ● ● ● ●
2 REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		5-87831-486-1 01 1 9505-9708 ● ● ●
2 REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		5-87831-659-0 01 1 9709- ● ● ●
3 JOINT; JAW,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-201-0 01 1 9112-9504 ● ● ● ●
3 JOINT; JAW,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-201-0 01 1 9505- ● ● ●
4 NUT; JAW JOINT
M/T MUA 5 SPEED(RMN) M8 		9-09111-408-0 01 1 9112-9504 ● ● ● ●
4 NUT; JAW JOINT
M/T MUA 5 SPEED(RMN) M8 		9-09111-408-0 01 1 9505- ● ● ●
5 ROD; PUSH,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-197-2 01 1 9112-9504 ● ● ● ●
5 ROD; PUSH,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-197-2 01 1 9505-9708 ● ● ●
6 BOOT; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-200-0 01 1 9112-9504 ● ● ● ●
6 BOOT; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-200-0 01 1 9505- ● ● ●
10 GASKET; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94427-298-0 01 1 9112-9504 ● ● ● ●
10 GASKET; CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94427-298-0 01 1 9505- ● ● ●
11 CAP; OUTER,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-207-0 01 1 9112-9504 ● ● ● ●
11 CAP; OUTER,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-207-0 01 1 9505- ● ● ●
12 CAP; INNER,OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-206-0 01 1 9112-9504 ● ● ● ●
12 CAP; INNER,OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-206-0 01 1 9505- ● ● ●
13 GASKET; OIL TANK
M/T MUA 5 SPEED(RMN) 		8-94412-205-0 01 1 9112-9504 ● ● ● ●
13 GASKET; OIL TANK
M/T MUA 5 SPEED(RMN) 		8-94412-205-0 01 1 9505- ● ● ●
14 FLOAT; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-204-0 01 1 9112-9407 ● ● ● ●
16 CLIP; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-202-0 01 1 9112-9504 ● ● ● ●
16 CLIP; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94412-202-0 01 1 9505- ● ● ●
42 TANK; OIL,CLU
M/T MUA 5 SPEED(RMN) 		8-97037-335-0 01 1 9112-9504 ● ● ● ●
42 TANK; OIL,CLU
M/T MUA 5 SPEED(RMN) 		8-97037-335-0 01 1 9505- ● ● ●
