◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#33195) — 70 parça

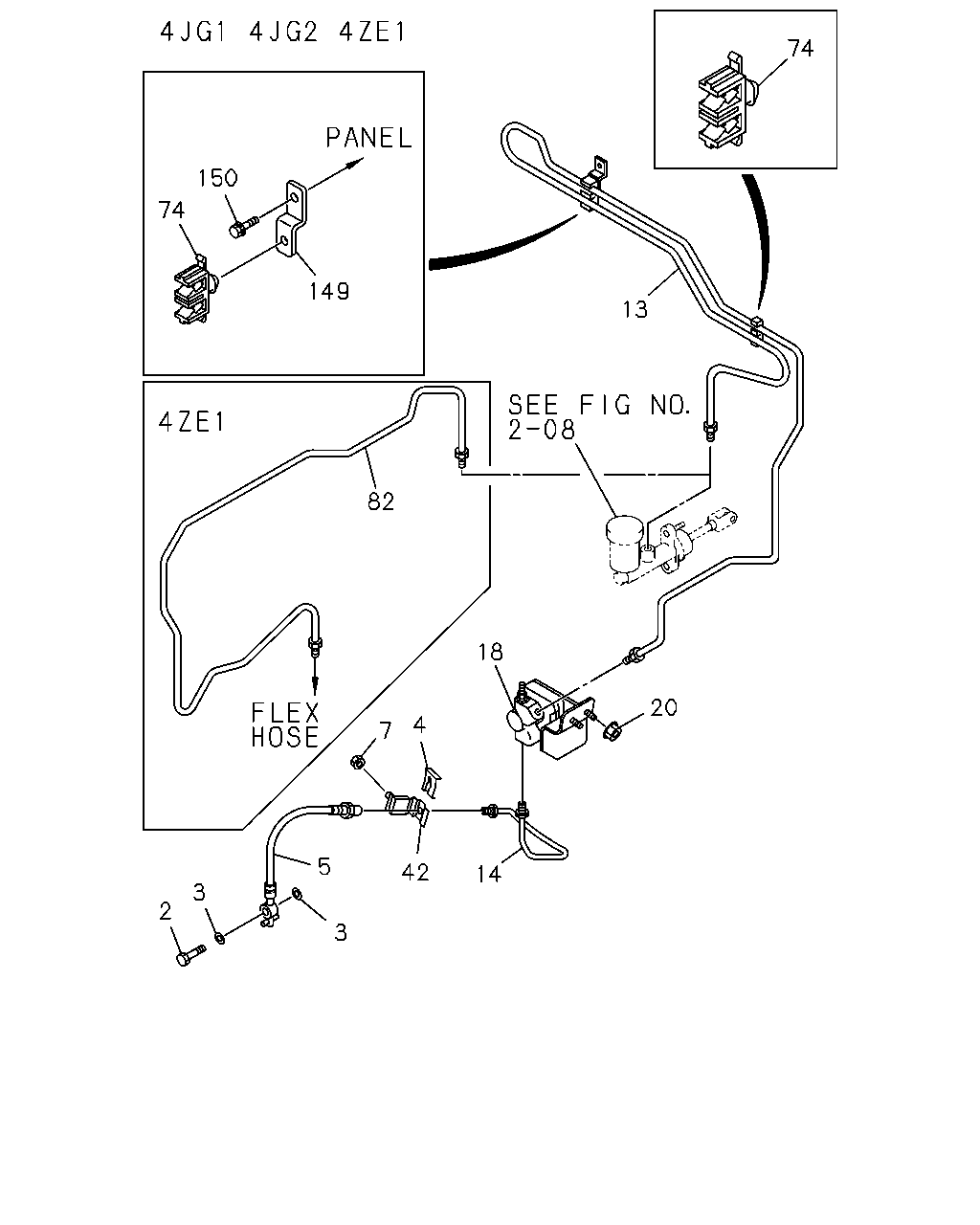

çizim 65699
74 150 74 149 13 82 18 20 4 7 5 42 14 3 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED(RMN) M10X22 		5-09675-017-0 01 1 9112- ● ● ● ●
3 GASKET; FLEX HOSE,CLU
M/T MUA 5 SPEED(RMN) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9112- ● ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-94436-216-0 01 1 9112- ● ● ● ●
5 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 9112-9504 ● ●
5 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 9505- ●
5 HOSE; FLEX,CLU PIPE 8-97039-203-0 01 1 9112- ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN) 		8-97020-579-1 01 1 9112- ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) M8 FLANGE 		0-91150-108-0 01 1 9112- ● ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 8-97066-882-1 01 1 9112-9504 ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 8-97066-882-2 01 1 9505- ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94374-847-2 01 1 9112- ●
14 PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL 8-97066-883-1 01 1 9112-9504 ● ●
14 PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL 8-97066-883-2 01 1 9505- ●
14 PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97035-074-3 01 1 9112- ●
18 DAMPER ASM; CLU OIL 8-97066-444-1 01 1 9112-9504 ● ●
18 DAMPER ASM; CLU OIL 8-97066-444-1 01 1 9505-9506 ●
18 DAMPER ASM; CLU OIL 8-97132-841-0 01 1 9507- ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97066-447-1 01 1 9112-9506 ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97132-842-0 01 1 9507- ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ● ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) M6 FLANGE 		0-91150-106-0 02 1 9505- ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97069-911-0 01 1 9112-9308 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97092-787-0 01 1 9309-9503 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-0 01 1 9504-9504 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-0 01 1 9505- ●
42 BRACKET; FLEX HOSE,CLU CONT 8-94425-108-2 01 1 9112- ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-97062-260-0 01 1 9112- ●
74 CLIP; CLU OIL PIPE
ID=4.8X2 		8-94113-470-0 02 1 9112-9504 ● ●
74 CLIP; CLU OIL PIPE
ID=4.8X2 		8-94113-470-0 02 1 9505- ●
82 PIPE; OIL,M/CYL TO FLEX HOSE 8-94374-849-2 01 1 9112- ●
149 BRACKET; CLIP,OIL PIPE 8-97068-818-0 01 1 9112-9504 ● ●
149 BRACKET; CLIP,OIL PIPE 8-97068-818-0 01 1 9505- ●
150 BOLT; BRKT,PIPE CLIP
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9112-9310 ● ●
150 BOLT; BRKT,PIPE CLIP
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9311-9504 ● ●
150 BOLT; BRKT,PIPE CLIP
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9505- ●
çizim 65716
126 13 20 18 14 7 4 123 42 125 124 76 179 5 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED(RMN) M10X22 		5-09675-017-0 01 1 9112- ● ● ● ●
3 GASKET; FLEX HOSE,CLU
M/T MUA 5 SPEED(RMN) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9112- ● ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-94436-216-0 01 1 9112- ● ● ● ●
5 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 9112-9504 ● ●
5 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 9505- ●
5 HOSE; FLEX,CLU PIPE 8-97039-203-0 01 1 9112- ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN) 		8-97020-579-1 01 1 9112- ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) M8 FLANGE 		0-91150-108-0 01 1 9112- ● ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 8-97066-882-1 01 1 9112-9504 ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 8-97066-882-2 01 1 9505- ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94374-847-2 01 1 9112- ●
14 PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL 8-97066-883-1 01 1 9112-9504 ● ●
14 PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL 8-97066-883-2 01 1 9505- ●
14 PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97035-074-3 01 1 9112- ●
18 DAMPER ASM; CLU OIL 8-97066-444-1 01 1 9112-9504 ● ●
18 DAMPER ASM; CLU OIL 8-97066-444-1 01 1 9505-9506 ●
18 DAMPER ASM; CLU OIL 8-97132-841-0 01 1 9507- ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97066-447-1 01 1 9112-9506 ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97132-842-0 01 1 9507- ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ● ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) M6 FLANGE 		0-91150-106-0 02 1 9505- ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97069-911-0 01 1 9112-9308 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97092-787-0 01 1 9309-9503 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-0 01 1 9504-9504 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-0 01 1 9505- ●
42 BRACKET; FLEX HOSE,CLU CONT 8-94425-108-2 01 1 9112- ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-97062-260-0 01 1 9112- ●
76 SCREW; BREATHER
M/T MUA 5 SPEED(RMN) M8X10 		8-94115-113-0 01 1 9112-9208 ●
76 SCREW; BREATHER
M/T MUA 5 SPEED(RMN) M8X10 		8-94115-113-0 01 1 9209-9504 ●
76 SCREW; BREATHER
M/T MUA 5 SPEED(RMN) M8X10 		8-94115-113-0 01 1 9505- ●
123 UNION; AIR PIPE
M/T MUA 5 SPEED(RMN) 		8-97013-854-0 01 1 9112- ●
124 NUT; PIPE UNION
M/T MUA 5 SPEED(RMN) M16 		9-99111-416-0 01 1 9112- ●
125 WASHER; LK,PIPE UNION
M/T MUA 5 SPEED(RMN) ID=16.2 		9-09150-516-0 01 1 9112- ●
126 PIPE; AIR,UNION TO UNION
M/T MUA 5 SPEED(RMN) 		8-97062-259-1 01 1 9112- ●
179 CAP; BREATHER
M/T MUA 5 SPEED(RMN) OD=9.5 		9-47619-005-0 01 1 9112- ●
