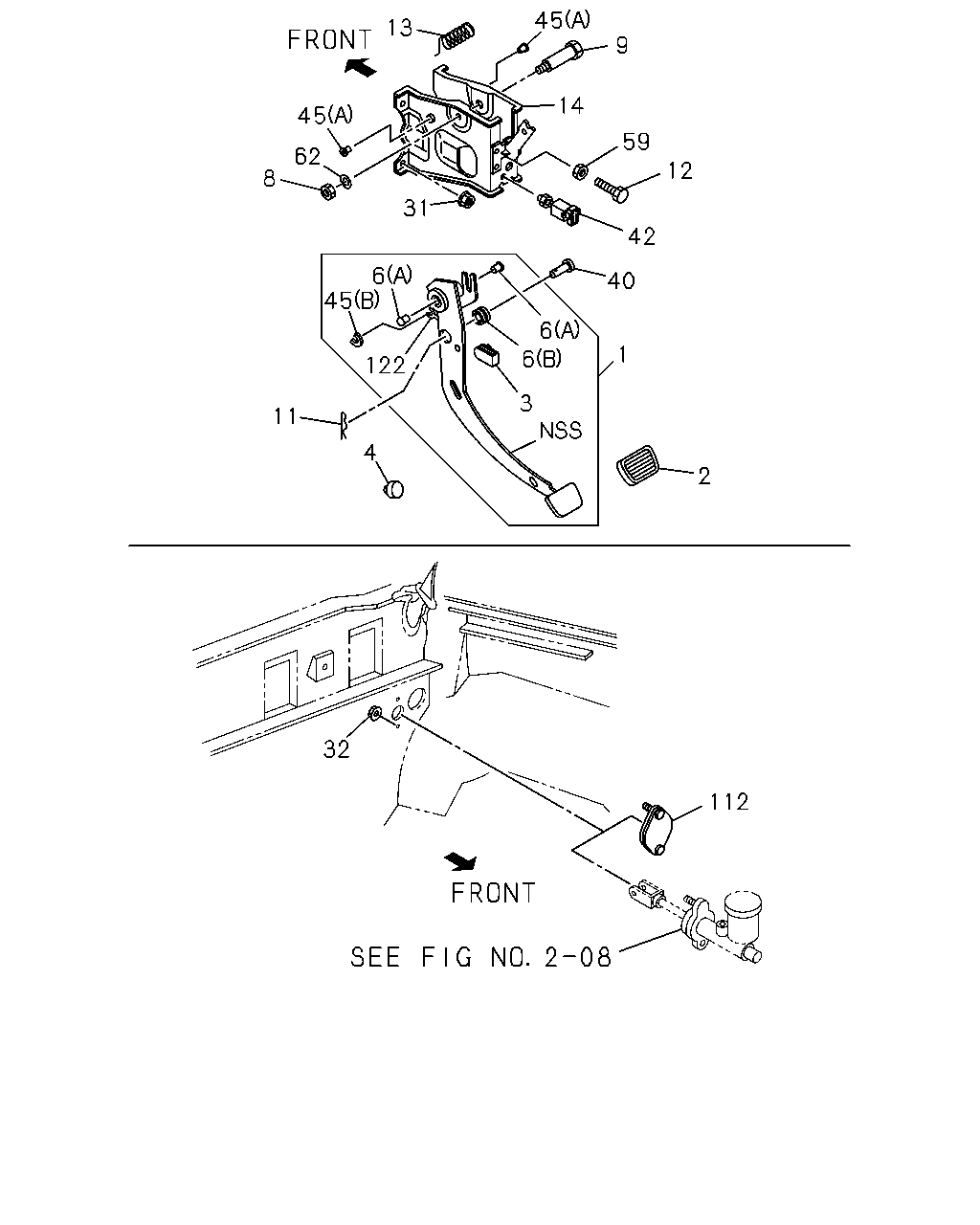

2-03 — CLUTCH PEDAL AND CONTROL (#33194) — 28 parça

45 13 9 14 31 45 59 62 12 8 42 6 45 40 6 6 1 122 3 11 4 2 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)	8-97035-500-0	01	1	9112-9208	●	●
1	PEDAL; CLU 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)	8-97078-569-0	01	1	9209-9504	●	●
1	PEDAL; CLU 4JG2 ENG(RJC),4ZE1 ENG(RLJ)	8-97078-569-0	01	1	9505-	●	●
1	PEDAL; CLU 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97042-060-1	01	1	9112-	●	●
2	COVER; CLU PEDAL M/T MUA 5 SPEED(RMN)	8-94222-524-1	01	1	9112-	●	●
3	RUBBER; STOPPER,CLU PEDAL M/T MUA 5 SPEED(RMN)	8-94463-258-0	01	1	9112-	●	●
4	STOPPER; CLU PEDAL M/T MUA 5 SPEED(RMN)	8-94103-675-0	01	1	9112-	●	●
6	BUSHING; CLU PEDAL M/T MUA 5 SPEED(RMN) (A)	8-94244-439-0	02	1	9112-	●	●
6	BUSHING; CLU PEDAL M/T MUA 5 SPEED(RMN) (B)	8-97035-885-0	01	1	9112-	●	●
8	NUT; PIN TO PEDAL M/T MUA 5 SPEED(RMN) M10	9-09110-410-0	01	1	9112-	●	●
9	PIN; CLU PEDAL M/T MUA 5 SPEED(RMN)	8-94455-308-0	01	1	9112-	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED(RMN) L=27.7	1-09747-005-0	01	1	9112-	●	●
12	BOLT; CLU PEDAL ADJ M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> M10X35	9-02041-035-0	01	1	9112-9204	●	●
12	BOLT; CLU PEDAL ADJ M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> M10X35	0-20801-035-0	01	1	9205-	●	●
13	SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED(RMN)	8-97036-041-0	01	1	9112-	●	●
14	BRACKET ASM; CLU PEDAL MTG 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)	8-94315-200-3	01	1	9112-9504	●	●
14	BRACKET ASM; CLU PEDAL MTG 4JG2 ENG(RJC),4ZE1 ENG(RLJ)	8-94315-200-3	01	1	9505-	●	●
14	BRACKET ASM; CLU PEDAL MTG 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97042-057-0	01	1	9112-	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED(RMN) M8 FLANGE	0-91150-108-0	04	1	9112-	●	●
32	NUT; BRKT TO CLU M/CYL M8 FLANGE	0-91150-108-0	02	1	9112-	●	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED(RMN)	8-94318-383-0	01	1	9112-	●	●
42	SWITCH; CLU M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30>	8-94368-343-0	01	1	9112-	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED(RMN) (A)	8-94175-433-0	02	1	9112-	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED(RMN) (B)	8-94175-434-0	01	1	9608-	●	●
59	NUT; CLU PEDAL ADJ M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> M10	9-09110-410-0	01	1	9112-	●	●
62	WASHER; LK,PIN TO PEDAL M/T MUA 5 SPEED(RMN) ID=10.2	9-09150-510-0	01	1	9112-	●	●
112	PLUG; METAL,M/CYL A/T THM(RMQ)	8-94325-869-0	01	1	9112-	●	●
122	BUSHING; ASSIST PEDAL,CLU M/T MUA 5 SPEED(RMN)	8-94175-434-0	01	1	9112-	●	●
