◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#33193) — 74 parça

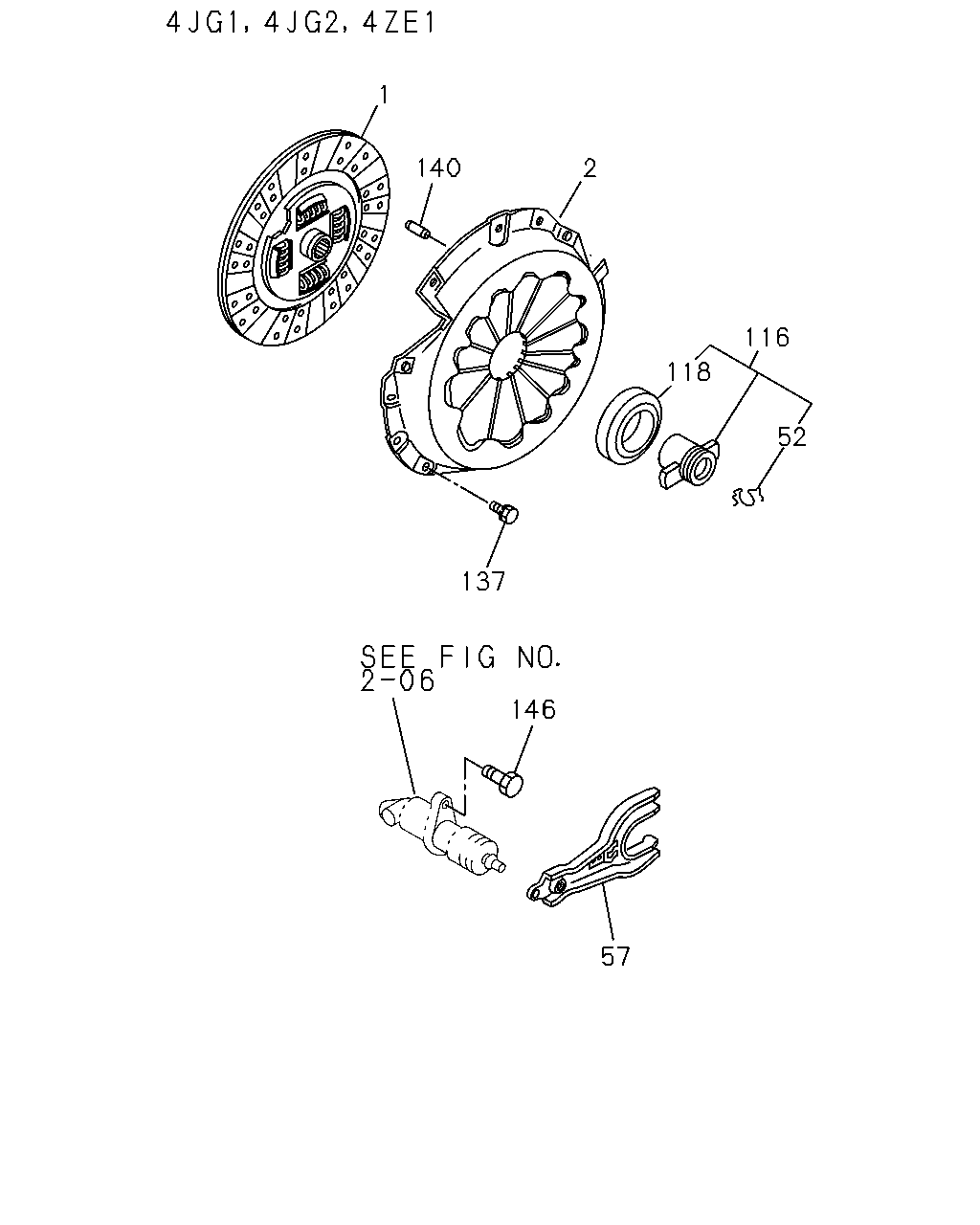

çizim 18988
1 140 2 116 118 52 137 146 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DISC; CLUTCH
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94375-248-1 01 1 9112-9502 ● ●
1 DISC; CLUTCH 8-94375-248-1 01 1 9503-9504 ●
1 DISC; CLUTCH
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-94375-248-1 01 1 9505-9608 ●
1 DISC; CLUTCH
EUROPE/CANARY EQUIPMENT(EK4) 		8-97066-345-0 01 1 9112- ●
1 DISC; CLUTCH
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97080-564-1 01 1 9503-9509 ●
1 DISC; CLUTCH
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97135-492-0 01 1 9510-9608 ●
1 DISC; CLUTCH
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97135-492-0 01 1 9609- ●
1 DISC; CLUTCH 8-97036-062-0 01 1 9112- ●
1 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-94374-898-1 01 1 9112-9504 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-94374-898-1 01 1 9505-9511 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97138-135-0 01 1 9512- ●
2 PLATE ASM; PRESSURE,CLU 8-94375-247-1 01 1 9112-9307 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97090-843-0 01 1 9308-9504 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9505- ●
2 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9112-9207 ●
2 PLATE ASM; PRESSURE,CLU 8-97029-209-0 01 1 9208- ●
2 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-94374-897-8 01 1 9112- ●
52 SPRING; SHIFT BLOCK TO FORK 8-94311-807-0 01 1 9112-9504 ● ● ●
52 SPRING; SHIFT BLOCK TO FORK 8-94311-807-0 01 1 9505- ● ●
57 FORK; SHIFT,CLU 8-97039-266-0 01 1 9112-9504 ● ● ●
57 FORK; SHIFT,CLU 8-97039-266-0 01 1 9505- ● ●
57 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94370-379-2 01 1 9112- ●
116 BLOCK; SHIFT,CLU 8-94379-441-0 01 1 9112-9504 ● ● ●
116 BLOCK; SHIFT,CLU 8-94379-441-0 01 1 9505- ● ●
118 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9112-9504 ● ● ●
118 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9505- ● ●
118 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) 		8-94377-417-1 01 1 9112- ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9112-9504 ● ● ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9505-9611 ● ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28080-816-0 06 1 9612- ● ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) M8X18 W/LK WASHER 		8-94321-840-1 09 1 9112-9607 ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) M8X16 FLANGE 		0-28080-816-0 09 1 9608- ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9112-9504 ● ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9505- ●
140 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 03 1 9112- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X85 FLANGE 		8-94480-345-1 02 1 9112-9504 ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X85 FLANGE 		8-94480-345-1 02 1 9505- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M10X25 FLANGE 		0-28181-025-0 02 1 9112-9607 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M10X30 FLANGE 		0-28781-030-0 02 1 9608- ●

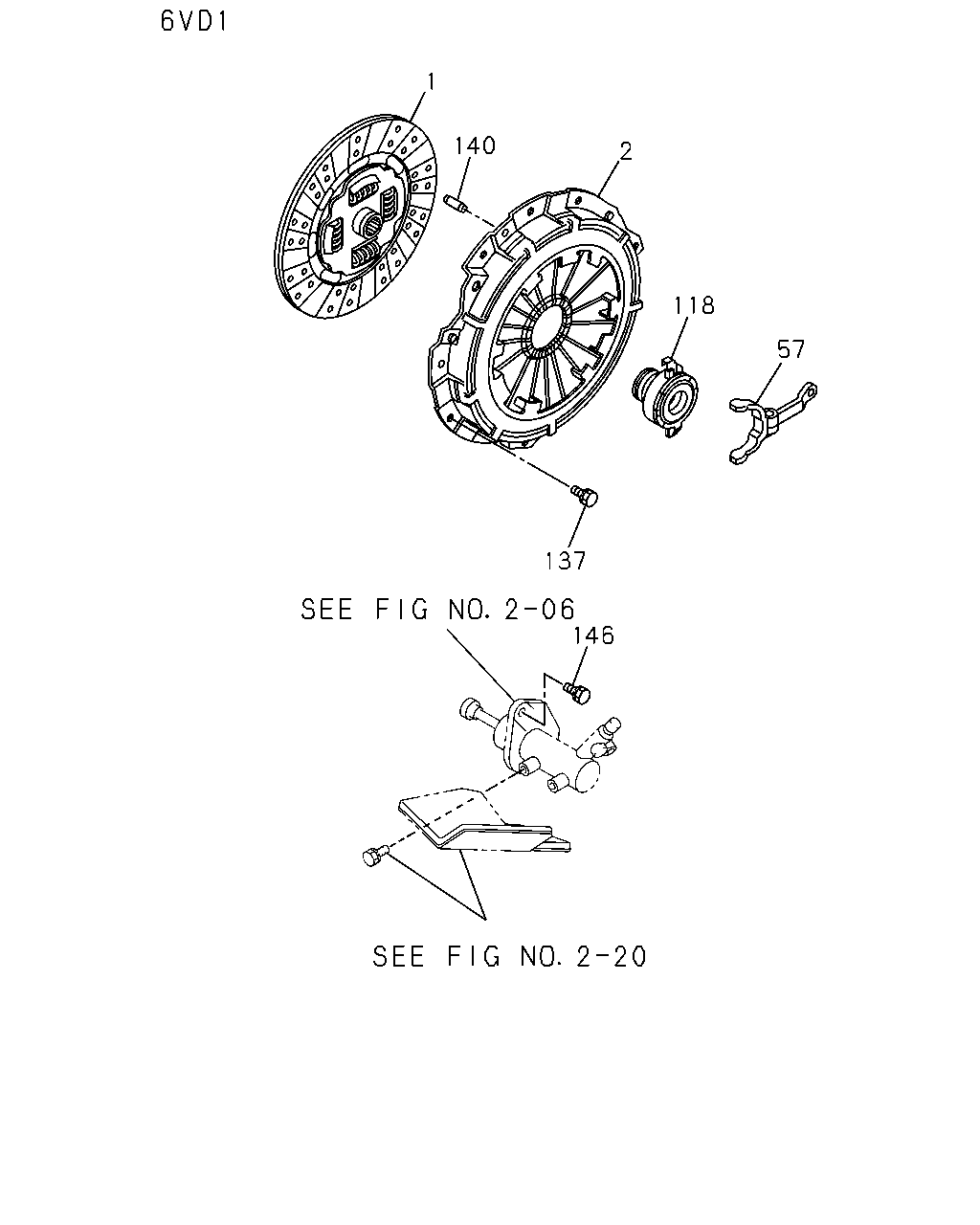

çizim 19335
1 140 2 118 57 137 146
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DISC; CLUTCH
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94375-248-1 01 1 9112-9502 ● ●
1 DISC; CLUTCH 8-94375-248-1 01 1 9503-9504 ●
1 DISC; CLUTCH
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-94375-248-1 01 1 9505-9608 ●
1 DISC; CLUTCH
EUROPE/CANARY EQUIPMENT(EK4) 		8-97066-345-0 01 1 9112- ●
1 DISC; CLUTCH
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97080-564-1 01 1 9503-9509 ●
1 DISC; CLUTCH
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97135-492-0 01 1 9510-9608 ●
1 DISC; CLUTCH
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97135-492-0 01 1 9609- ●
1 DISC; CLUTCH 8-97036-062-0 01 1 9112- ●
1 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-94374-898-1 01 1 9112-9504 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-94374-898-1 01 1 9505-9511 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97138-135-0 01 1 9512- ●
2 PLATE ASM; PRESSURE,CLU 8-94375-247-1 01 1 9112-9307 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97090-843-0 01 1 9308-9504 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9505- ●
2 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9112-9207 ●
2 PLATE ASM; PRESSURE,CLU 8-97029-209-0 01 1 9208- ●
2 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-94374-897-8 01 1 9112- ●
57 FORK; SHIFT,CLU 8-97039-266-0 01 1 9112-9504 ● ● ●
57 FORK; SHIFT,CLU 8-97039-266-0 01 1 9505- ● ●
57 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94370-379-2 01 1 9112- ●
118 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9112-9504 ● ● ●
118 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9505- ● ●
118 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) 		8-94377-417-1 01 1 9112- ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9112-9504 ● ● ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9505-9611 ● ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28080-816-0 06 1 9612- ● ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) M8X18 W/LK WASHER 		8-94321-840-1 09 1 9112-9607 ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) M8X16 FLANGE 		0-28080-816-0 09 1 9608- ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9112-9504 ● ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9505- ●
140 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 03 1 9112- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X85 FLANGE 		8-94480-345-1 02 1 9112-9504 ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X85 FLANGE 		8-94480-345-1 02 1 9505- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M10X25 FLANGE 		0-28181-025-0 02 1 9112-9607 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M10X30 FLANGE 		0-28781-030-0 02 1 9608- ●
