1-57 — EXHAUST THROTTLE BODY (#33192) — 110 parça

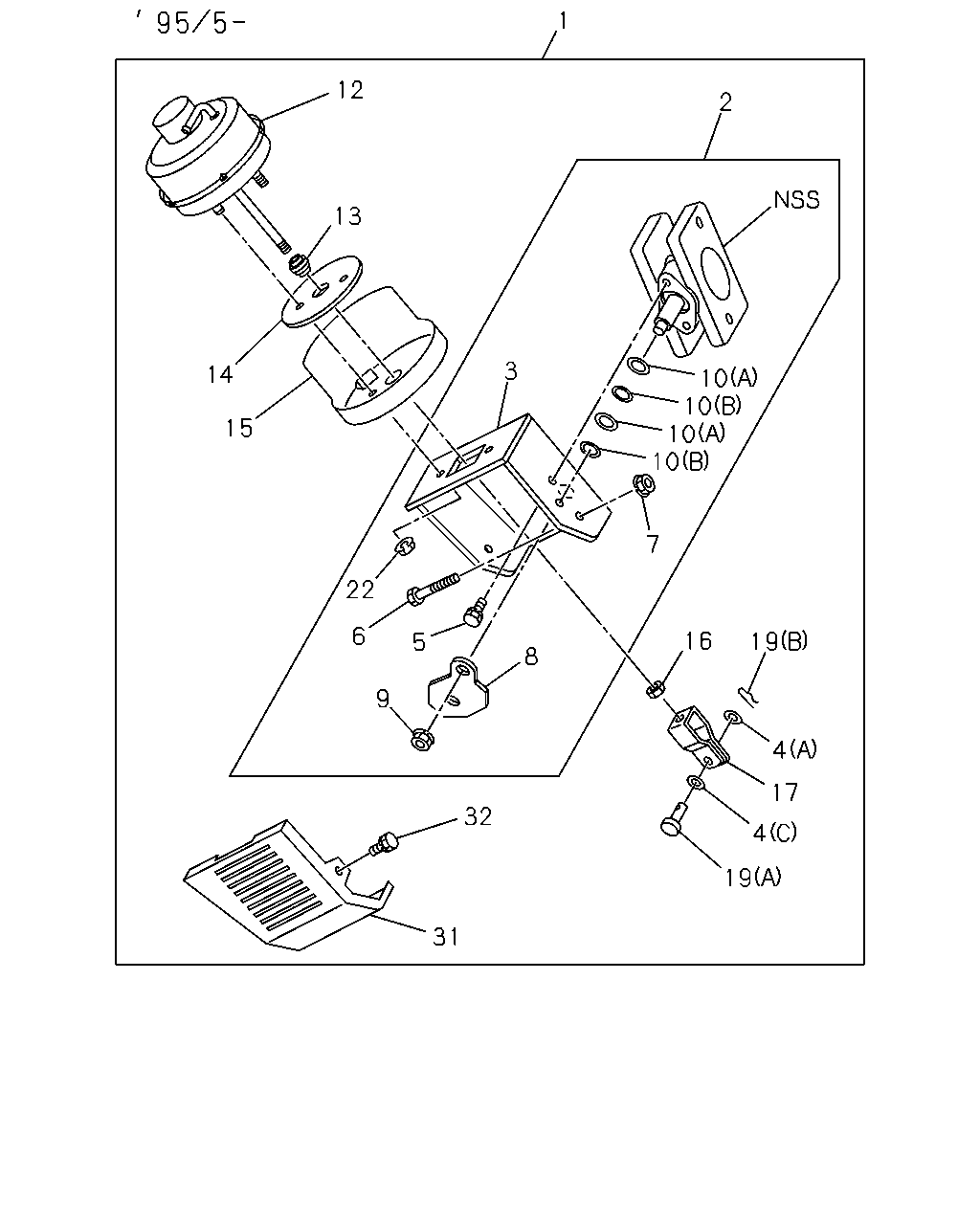

1 12 2 13 10 10 10 10 3 14 15 7 22 6 19 16 5 8 9 4 17 32 4 19 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BODY ASM; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4)	8-97043-558-4	01	1	9112-9503
1	BODY ASM; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4)	8-97128-897-0	01	1	9504-9504
1	BODY ASM; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97128-896-1	01	1	9505-
2	BODY; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-575-1	01	1	9505-
3	BRACKET; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-621-1	01	1	9112-9504
3	BRACKET; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-578-0	01	1	9505-
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94311-430-0	01	1	9112-9504
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-94311-430-0	01	1	9505-
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (C)	8-97072-431-0	01	1	9112-9504
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97112-939-0	01	1	9505-
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B) ID=8.2	9-09150-508-0	06	1	9112-9404
5	BOLT; BRKT TO VLV EUROPE/CANARY EQUIPMENT(EK4) M8X16	9-02050-816-0	04	1	9112-9404
5	BOLT; BRKT TO VLV EUROPE/CANARY EQUIPMENT(EK4)	1-22199-154-0	04	1	9405-9504
5	BOLT; BRKT TO VLV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	1-22199-154-0	02	1	9505-
6	BOLT; BRKT,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-622-0	02	1	9112-9504
6	BOLT; BRKT,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-622-0	02	1	9505-
7	NUT; LOCK,BOLT EUROPE/CANARY EQUIPMENT(EK4)	8-94311-424-0	02	1	9112-9504
7	NUT; LOCK,BOLT EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-441-0	02	1	9505-
8	LEVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-94311-427-0	01	1	9112-9504
8	LEVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-579-0	01	1	9505-
9	NUT; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-94311-428-0	02	1	9112-9404
9	NUT; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) M8 W/LK WASHER	8-94279-050-0	02	1	9405-9504
9	NUT; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M8 W/LK WASHER	8-94279-050-0	01	1	9505-
10	RING; SEAL,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=13	1-22189-009-0	02	1	9505-
10	RING; SEAL,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97130-338-0	02	1	9505-
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97065-022-0	01	1	9112-9503
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97128-390-0	01	1	9504-9504
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97069-401-2	01	1	9112-9503
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-927-0	01	1	9504-9504
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-602-0	01	1	9505-
13	BEARING; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-94383-629-0	01	1	9112-9504
13	BEARING; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-446-0	01	1	9505-
14	GASKET; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94328-234-0	01	1	9505-
15	INSULATOR; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-576-0	01	1	9505-
16	NUT; LK,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94311-428-0	02	1	9112-9504
16	NUT; LK,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	9-88510-009-0	01	1	9505-
16	NUT; LK,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97039-201-0	02	1	9112-9504
17	CLEVIS; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94428-084-0	01	1	9505-
19	PIN; LEVER EUROPE/CANARY EQUIPMENT(EK4)	8-97010-295-1	01	1	9112-9504
19	PIN; LEVER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-94311-452-0	01	1	9505-
19	PIN; LEVER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97049-560-0	01	1	9505-
22	NUT; BRKT TO POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-94311-428-0	02	1	9112-9504
22	NUT; BRKT TO POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M8 W/LK WASHER	8-94279-050-0	02	1	9505-
31	COVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97065-627-0	01	1	9112-9504
31	COVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-577-0	01	1	9505-
31	COVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97065-628-0	01	1	9112-9504
32	SCREW; COVER,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-629-0	07	1	9112-9203
32	SCREW; COVER,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-629-0	08	1	9204-9504
32	SCREW; COVER,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-629-0	02	1	9505-

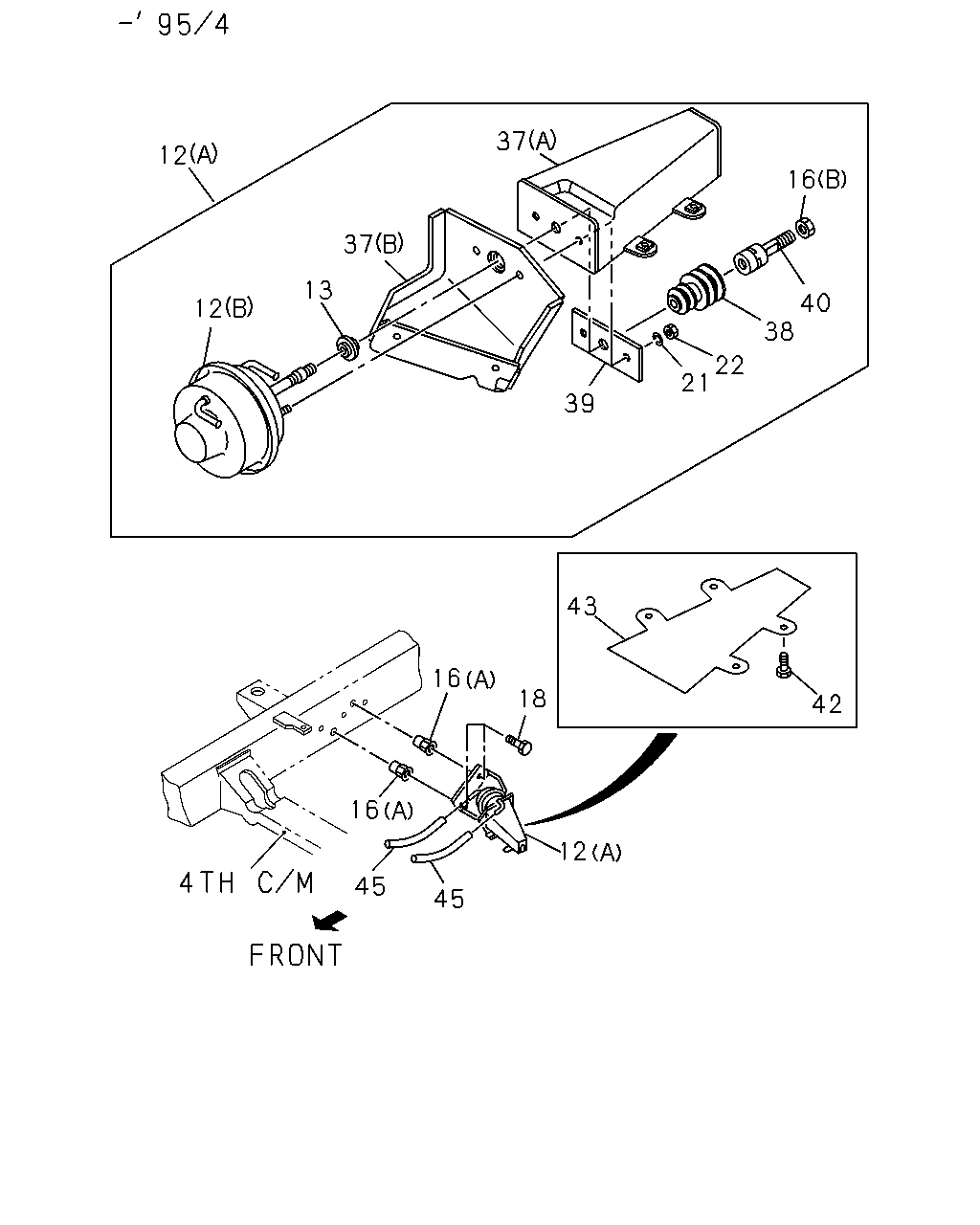

37 12 16 37 13 40 38 12 22 21 39 43 16 18 42 16 12 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97065-022-0	01	1	9112-9503
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97128-390-0	01	1	9504-9504
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97069-401-2	01	1	9112-9503
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-927-0	01	1	9504-9504
12	CHAMBER; POWER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-602-0	01	1	9505-
13	BEARING; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-94383-629-0	01	1	9112-9504
13	BEARING; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-446-0	01	1	9505-
16	NUT; LK,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94311-428-0	02	1	9112-9504
16	NUT; LK,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	9-88510-009-0	01	1	9505-
16	NUT; LK,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97039-201-0	02	1	9112-9504
18	BOLT; SET,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9112-9410
18	BOLT; SET,POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) M8X25 FLANGE	0-28680-825-0	02	1	9411-9504
21	WASHER; BRKT TO POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ID=8.2	9-09150-508-0	02	1	9112-9504
22	NUT; BRKT TO POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-94311-428-0	02	1	9112-9504
22	NUT; BRKT TO POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M8 W/LK WASHER	8-94279-050-0	02	1	9505-
37	BRACKET; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97065-023-0	01	1	9112-9504
37	BRACKET; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97065-027-0	01	1	9112-9504
38	BOOT; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-97065-024-0	01	1	9112-9503
39	RETAINER; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-97065-025-0	01	1	9112-9504
40	JOINT; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-97065-026-0	01	1	9112-9504
42	BOLT; COVER EUROPE/CANARY EQUIPMENT(EK4) M6X12 FLANGE	0-28080-612-0	04	1	9112-9504
43	COVER; POWER CHAMBER EUROPE/CANARY EQUIPMENT(EK4)	8-97065-028-0	01	1	9112-9504
45	HOSE; CHAMBER TO PIPE EUROPE/CANARY EQUIPMENT(EK4) L=170 SERVICED BY L=3000	0-04730-300-0	01	1	9201-9503
45	HOSE; CHAMBER TO PIPE EUROPE/CANARY EQUIPMENT(EK4) L=190 SERVICED BY L=3000	0-04731-300-0	01	1	9201-9504

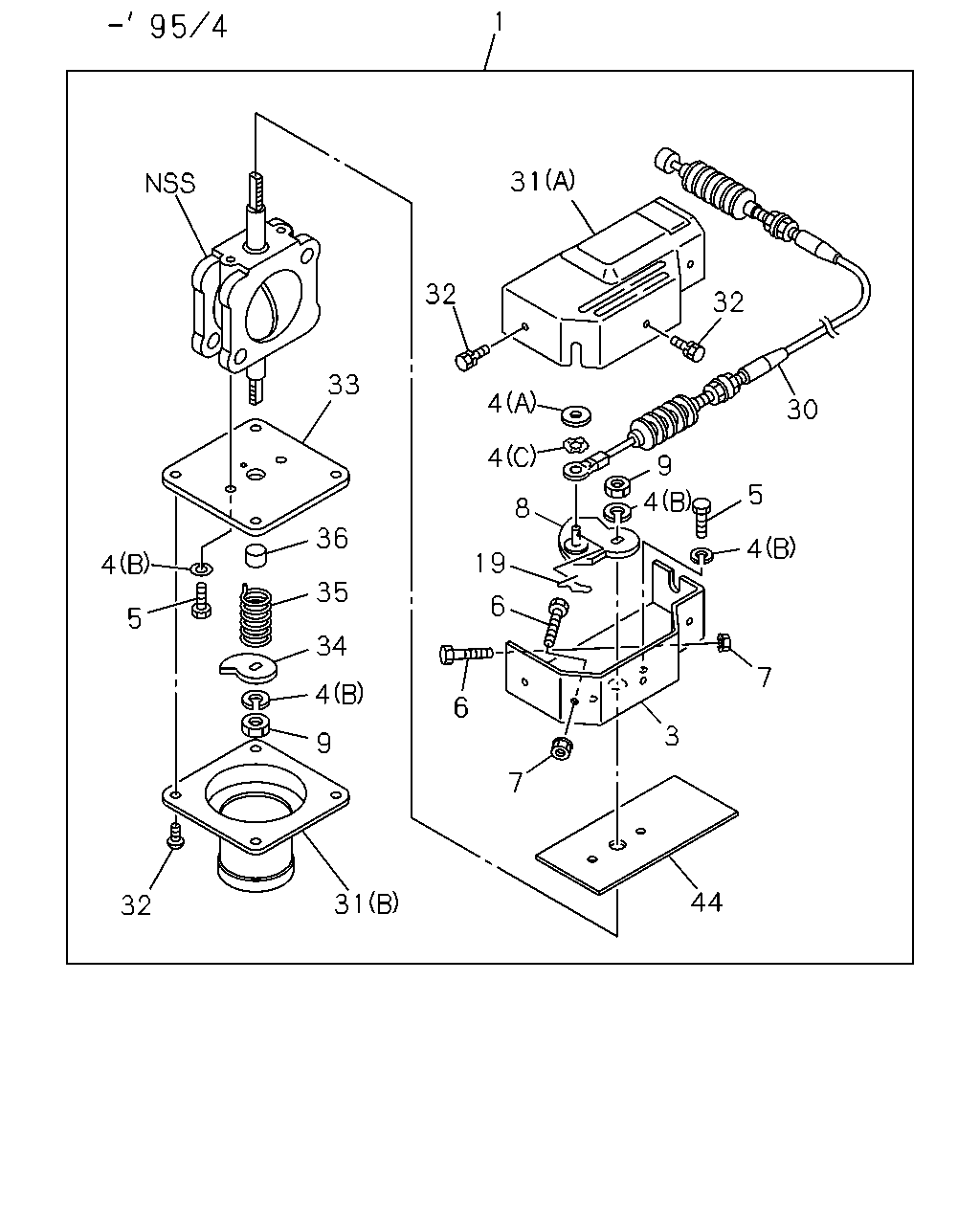

1 31 32 32 33 4 30 4 9 4 5 8 36 4 4 5 19 35 6 34 7 4 6 3 9 7 31 44 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BODY ASM; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4)	8-97043-558-4	01	1	9112-9503
1	BODY ASM; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4)	8-97128-897-0	01	1	9504-9504
1	BODY ASM; EXH THROTTLE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97128-896-1	01	1	9505-
3	BRACKET; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-621-1	01	1	9112-9504
3	BRACKET; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-578-0	01	1	9505-
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94311-430-0	01	1	9112-9504
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-94311-430-0	01	1	9505-
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (C)	8-97072-431-0	01	1	9112-9504
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97112-939-0	01	1	9505-
4	WASHER; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B) ID=8.2	9-09150-508-0	06	1	9112-9404
5	BOLT; BRKT TO VLV EUROPE/CANARY EQUIPMENT(EK4) M8X16	9-02050-816-0	04	1	9112-9404
5	BOLT; BRKT TO VLV EUROPE/CANARY EQUIPMENT(EK4)	1-22199-154-0	04	1	9405-9504
5	BOLT; BRKT TO VLV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	1-22199-154-0	02	1	9505-
6	BOLT; BRKT,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-622-0	02	1	9112-9504
6	BOLT; BRKT,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-622-0	02	1	9505-
7	NUT; LOCK,BOLT EUROPE/CANARY EQUIPMENT(EK4)	8-94311-424-0	02	1	9112-9504
7	NUT; LOCK,BOLT EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-441-0	02	1	9505-
8	LEVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-94311-427-0	01	1	9112-9504
8	LEVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-579-0	01	1	9505-
9	NUT; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-94311-428-0	02	1	9112-9404
9	NUT; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) M8 W/LK WASHER	8-94279-050-0	02	1	9405-9504
9	NUT; LEVER,EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M8 W/LK WASHER	8-94279-050-0	01	1	9505-
19	PIN; LEVER EUROPE/CANARY EQUIPMENT(EK4)	8-97010-295-1	01	1	9112-9504
19	PIN; LEVER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-94311-452-0	01	1	9505-
19	PIN; LEVER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97049-560-0	01	1	9505-
30	CABLE; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-626-0	01	1	9112-9504
31	COVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97065-627-0	01	1	9112-9504
31	COVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-577-0	01	1	9505-
31	COVER; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97065-628-0	01	1	9112-9504
32	SCREW; COVER,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-629-0	07	1	9112-9203
32	SCREW; COVER,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-629-0	08	1	9204-9504
32	SCREW; COVER,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-629-0	02	1	9505-
33	PLATE; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-623-0	01	1	9112-9504
34	ARM; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-625-0	01	1	9112-9504
35	SPRING; EXH THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97065-624-0	01	1	9112-9504
36	RETAINER; SPRING,THROTTLE BODY EUROPE/CANARY EQUIPMENT(EK4)	8-94311-425-0	01	1	9112-9504
44	INSULATOR; BRKT EUROPE/CANARY EQUIPMENT(EK4)	8-97072-432-0	01	1	9204-9504
