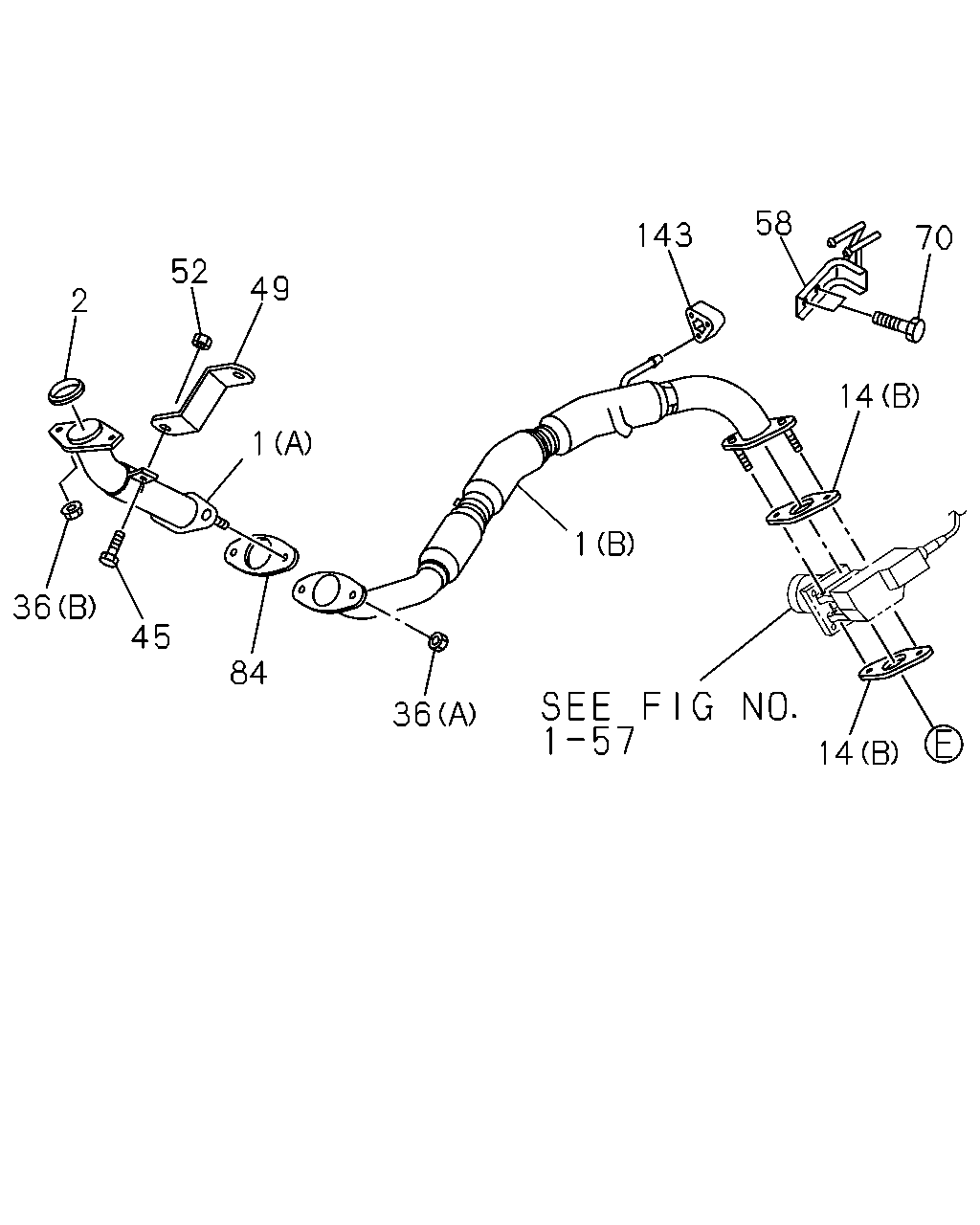

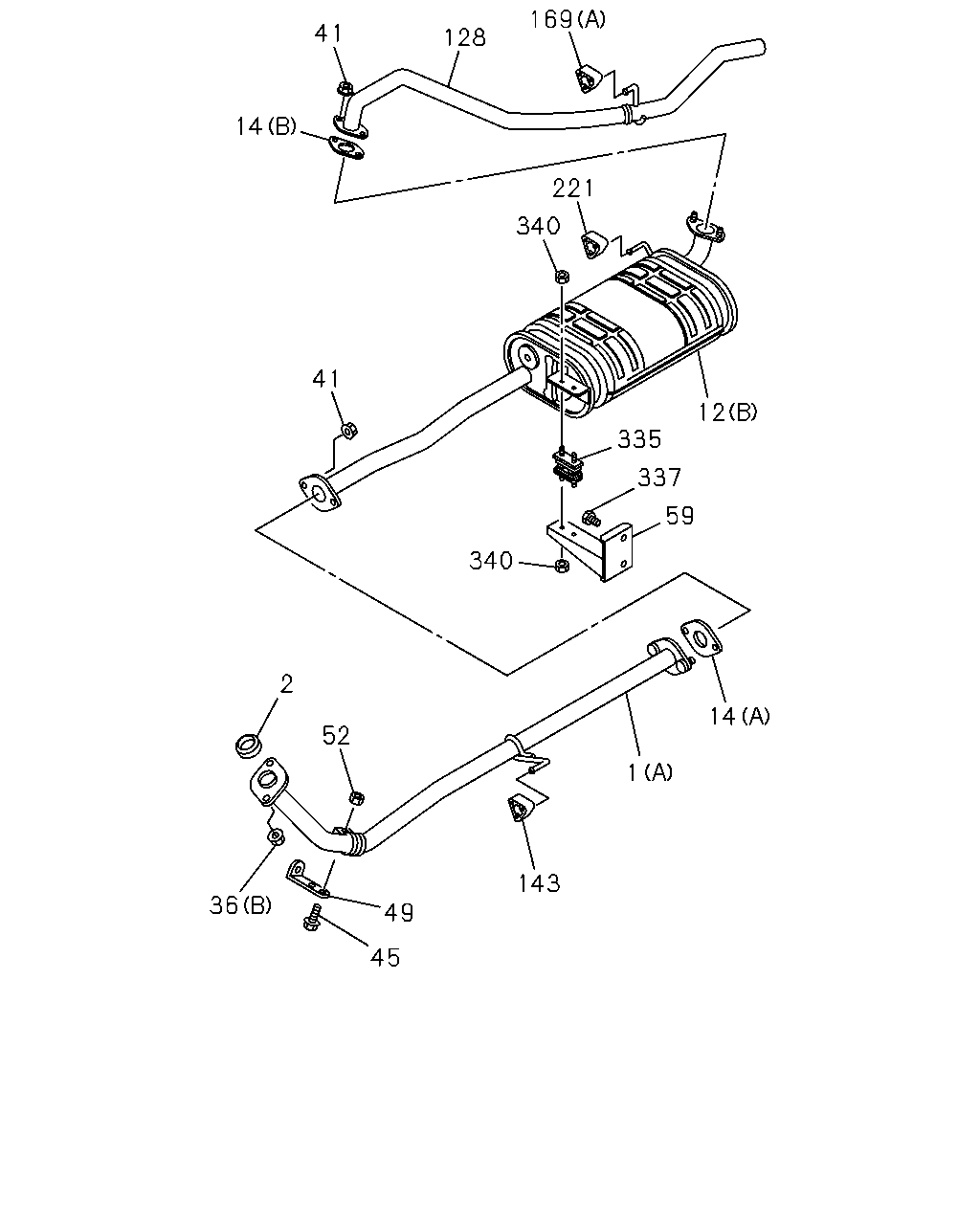

1-50 — EXHAUST PIPE AND SILENCER (#33191) — 1275 parça

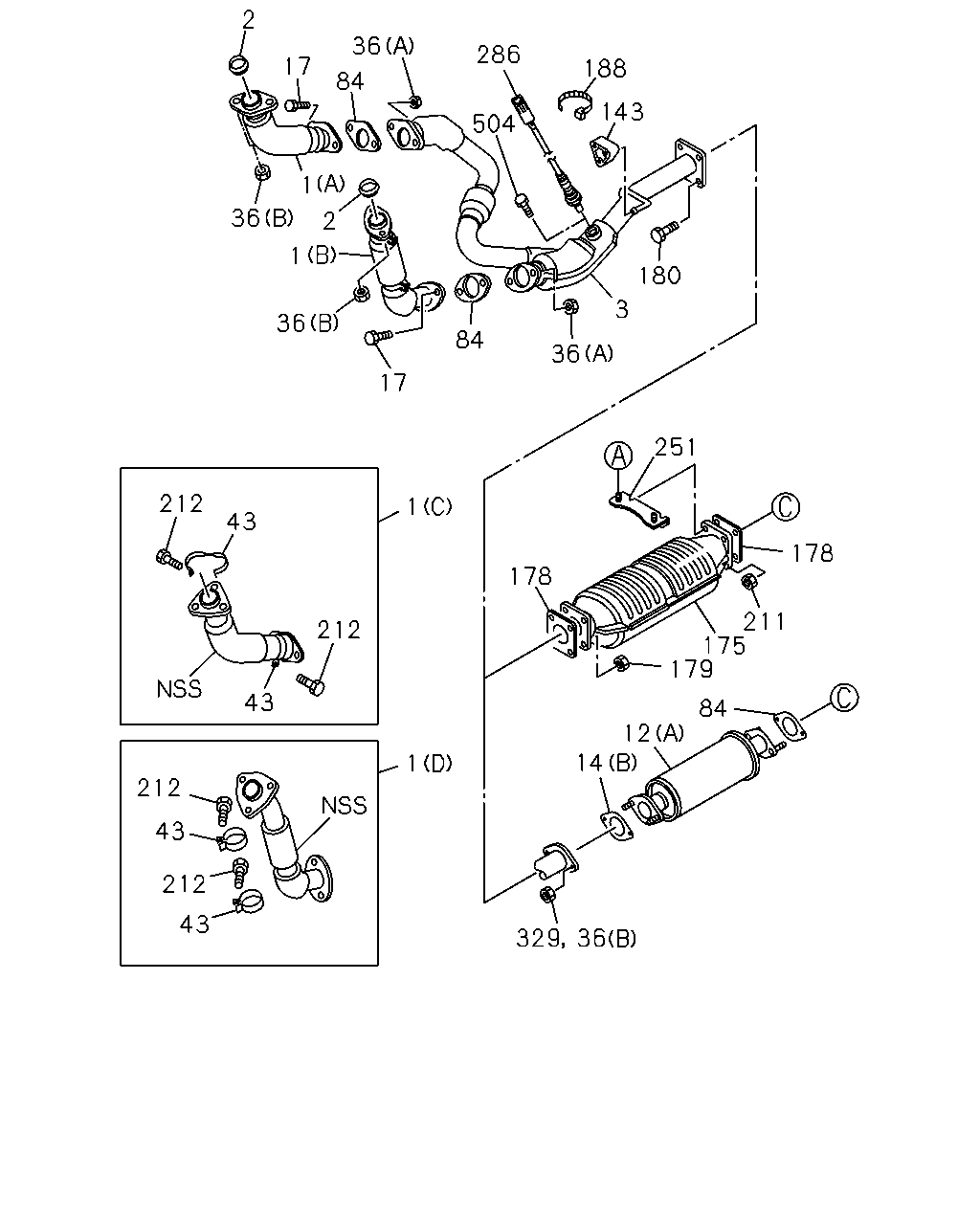

çizim 16420
2 36 84 286 17 188 504 143 1 36 2 1 180 3 36 84 36 17 251 212 1 43 178 178 211 175 179 212 43 84 12 14 1 212 43 212 43 329 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) 		8-94369-041-2 01 1 9112-9504 ●
1 PIPE; EXH
(B) 		8-97022-844-1 01 1 9112-9404 ●
1 PIPE; EXH
(B) 		8-97111-857-0 01 1 9405-9504 ●
1 PIPE; EXH
(A) 		8-97037-890-1 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9505- ●
1 PIPE; EXH
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-596-4 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9505- ●
1 PIPE; EXH
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97061-461-3 01 1 9112-9504 ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9505- ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97022-845-0 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (B) 		8-97022-847-1 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (A) 		8-97111-400-1 01 1 9505- ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (B) 		8-97022-846-1 01 1 9112-9504 ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (A) 		8-97111-399-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97030-276-1 01 1 9112-9301 ●
1 PIPE; EXH
CATALYSIS CONTROL(6MZ) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
(A) 		8-97093-319-1 01 1 9309-9510 ●
1 PIPE; EXH
(C) 		8-97127-477-1 01 1 9511- ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97030-280-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-322-1 01 1 9302-9510 ●
1 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9511- ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97030-277-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-321-0 01 1 9302-9308 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97093-321-1 01 1 9309-9510 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9511- ●
1 PIPE; EXH
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) (A) 		8-97093-320-0 01 1 9302-9308 ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 01 1 9112-9112 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9201-9504 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9505- ● ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 02 1 9112-9112 ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 02 1 9201-9510 ●
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9511- ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) CATALYSIS CONTROL(6MZ) 		8-97048-577-0 01 1 9112-9301 ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) CATALYSIS CONTROL(6MZ) 		8-97093-325-0 01 1 9302-9308 ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) 		8-97093-325-0 01 1 9309- ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2) 		8-97062-731-0 01 1 9112-9301 ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2) 		8-97093-331-0 01 1 9302-9308 ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) 		8-97048-578-0 01 1 9112-9301 ●
3 PIPE; EXH,CENTER
A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) 		8-97093-330-0 01 1 9302-9308 ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) CATALYSIS CONTROL(6MZ) 		8-97048-579-3 01 1 9112-9301 ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) CATALYSIS CONTROL(6MZ) 		8-97093-323-0 01 1 9302-9308 ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) 		8-97093-323-0 01 1 9309- ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97062-730-3 01 1 9112-9301 ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97093-329-0 01 1 9302-9308 ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) 		8-97048-580-3 01 1 9112-9301 ●
3 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) 		8-97093-328-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
17 BOLT; EXH PIPE
A/T THM(RMQ) M10X30 W/LK&PL WASHER 		0-50141-030-0 04 1 9112-9301 ●
17 BOLT; EXH PIPE
A/T THM(RMQ) M10X35 FLANGE 		0-28081-035-0 04 1 9302-9410 ●
17 BOLT; EXH PIPE
A/T THM(RMQ) M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
17 BOLT; EXH PIPE
M/T MUA 5 SPEED(RMN) M10X30 W/LK&PL WASHER 		0-50141-030-0 03 1 9112-9301 ●
17 BOLT; EXH PIPE
M/T MUA 5 SPEED(RMN) M10X35 FLANGE 		0-28081-035-0 03 1 9302-9410 ●
17 BOLT; EXH PIPE
M/T MUA 5 SPEED(RMN) M10X40 FLANGE 		0-28681-040-0 03 1 9411- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9505- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 02 1 9112-9305 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9306-9308 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9309- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9112- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 04 1 9112-9305 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 04 1 9306-9510 ●
36 NUT; EXH PIPE
(B) M12 LK W/FLANGE 		8-97102-030-0 06 1 9511-9702 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9703- ●
43 CLAMP; EXH PIPE 8-94472-880-0 02 1 9511- ●
43 CLAMP; EXH PIPE 8-94472-880-0 02 1 9511- ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ●
84 GASKET; EXH PIPE
(A) ID=55 		8-97093-574-0 01 1 9505- ●
84 GASKET; EXH PIPE
(B) ID=64.7 		8-94328-352-0 01 1 9505- ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 02 1 9302- ●
84 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) ID=64.7 		8-94328-352-0 01 1 9112-9308 ●
143 RUBBER; SUPPORT 8-97021-581-0 01 1 9112-9301 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9302-9504 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9505- ● ● ●
175 CONVERTER; CATALYST
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) 		8-97032-881-2 01 1 9112-9506 ●
175 CONVERTER; CATALYST
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97032-881-3 01 1 9507- ●
178 GASKET; CONV TO MANIF
EXC. CATALYSIS CONTROL(6MZ) ID=71 		8-94324-194-0 01 1 9309- ●
178 GASKET; CONV TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) ID=71 		8-94324-194-0 02 1 9112-9506 ●
178 GASKET; CONV TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=71 		8-94324-194-0 02 1 9507- ●
179 NUT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10 		8-94201-308-1 04 1 9112-9308 ●
179 NUT; CONV TO PIPE
M10 		8-94201-308-1 04 1 9309- ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) 		0-28211-040-0 08 1 9112-9204 ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 		0-28281-040-0 08 1 9205-9308 ●
180 BOLT; CONV TO PIPE
M10X40 		0-28281-040-0 04 1 9309-9410 ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 		0-28281-040-0 04 1 9309-9410 ●
180 BOLT; CONV TO PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
188 CLIP; OXYGEN SENSOR
EUROPE/CANARY EQUIPMENT(EK4) L=140 		5-09707-031-0 01 1 9112-9304 ●
188 CLIP; OXYGEN SENSOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) L=140 		5-09707-031-0 01 1 9305-9505 ●
188 CLIP; OXYGEN SENSOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) L=140 		5-09707-031-0 01 1 9506-9506 ●
188 CLIP; OXYGEN SENSOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=140 		5-09707-031-0 01 1 9507- ●
211 NUT; CONV
CATALYSIS CONTROL(6MZ) M10 		8-94201-308-1 02 1 9112- ●
212 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 02 1 9511- ●
212 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 02 1 9511- ●
251 BRACKET; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) 		8-97044-896-3 01 1 9112- ●
286 SENSOR; OXYGEN
EUROPE/CANARY EQUIPMENT(EK4) 		8-97062-292-0 01 1 9112-9308 ●
286 SENSOR; OXYGEN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97062-293-0 01 1 9112-9308 ●
329 NUT; EXH PIPE TO PIPE
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9112-9308 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9309-9504 ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9505- ●
504 PLUG; EXH PIPE
EXC. SAUDI ARABIA EQUIPMENT(EU2) M18X12 		9-99202-318-0 01 1 9309-9505 ●
504 PLUG; EXH PIPE
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CATALYSIS CONTROL(6MZ) M18X12 		9-99202-318-0 01 1 9506- ●
çizim 17930
169 41 128 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
128 PIPE; EXH,RR
2 DOOR SHORT(UB***C) 		8-97011-631-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
4 DOOR LONG(UB***F) 		8-97011-630-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-559-0 01 1 9112-9308 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9505-9601 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9505-9601 ●
128 PIPE; EXH,RR 8-97131-338-1 01 1 9602-9608 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97131-338-1 01 1 9602-9608 ●
128 PIPE; EXH,RR 8-97165-817-0 01 1 9609- ● ● ●
128 PIPE; EXH,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) 		8-97070-151-0 01 1 9209-9601 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97070-151-0 01 1 9602-9608 ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97141-971-0 01 1 9602-9608 ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●

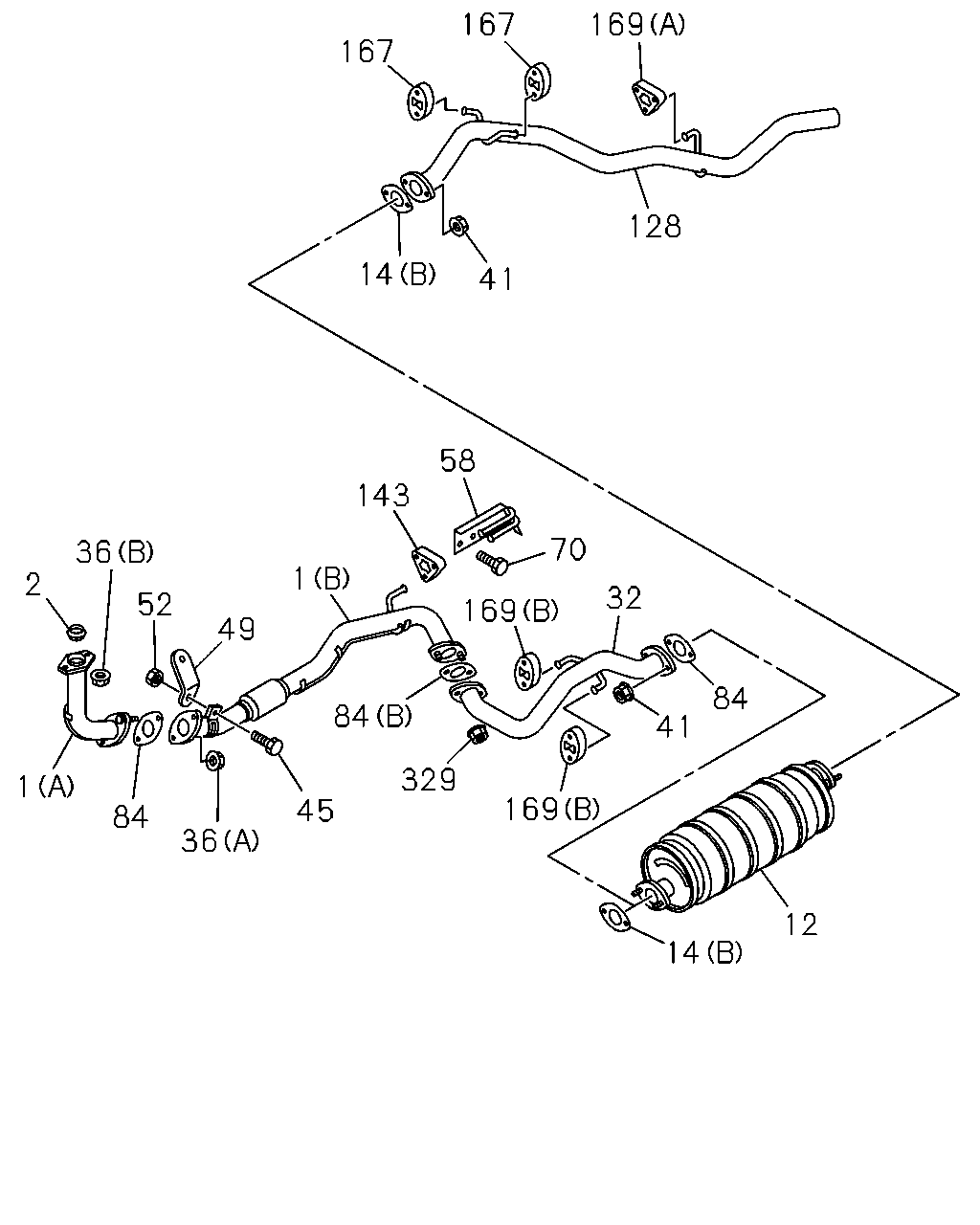

çizim 65673
167 169 167 128 14 41 58 143 70 36 1 2 32 52 169 49 84 84 41 329 1 169 45 84 36 12 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) 		8-94369-041-2 01 1 9112-9504 ●
1 PIPE; EXH
(B) 		8-97022-844-1 01 1 9112-9404 ●
1 PIPE; EXH
(B) 		8-97111-857-0 01 1 9405-9504 ●
1 PIPE; EXH
(A) 		8-97037-890-1 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9505- ●
1 PIPE; EXH
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-596-4 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9505- ●
1 PIPE; EXH
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97061-461-3 01 1 9112-9504 ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9505- ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97022-845-0 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (B) 		8-97022-847-1 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (A) 		8-97111-400-1 01 1 9505- ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (B) 		8-97022-846-1 01 1 9112-9504 ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (A) 		8-97111-399-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97030-276-1 01 1 9112-9301 ●
1 PIPE; EXH
CATALYSIS CONTROL(6MZ) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
(A) 		8-97093-319-1 01 1 9309-9510 ●
1 PIPE; EXH
(C) 		8-97127-477-1 01 1 9511- ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97030-280-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-322-1 01 1 9302-9510 ●
1 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9511- ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97030-277-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-321-0 01 1 9302-9308 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97093-321-1 01 1 9309-9510 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9511- ●
1 PIPE; EXH
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) (A) 		8-97093-320-0 01 1 9302-9308 ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 01 1 9112-9112 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9201-9504 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9505- ● ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 02 1 9112-9112 ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 02 1 9201-9510 ●
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9511- ●
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH

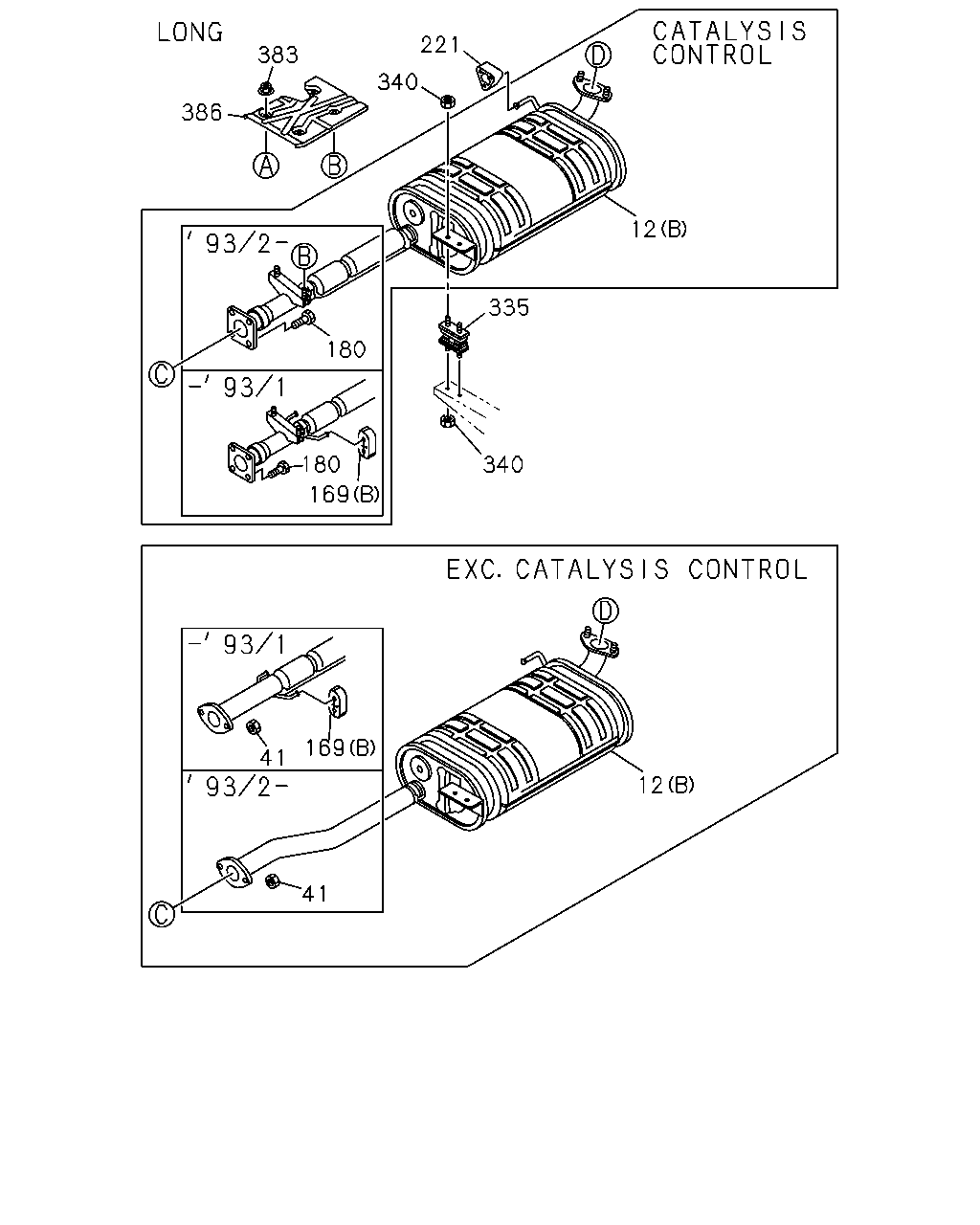

4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
32 PIPE; EXH,FRT
2 DOOR SHORT(UB***C) 		8-97018-577-0 01 1 9112-9404 ●
32 PIPE; EXH,FRT
2 DOOR SHORT(UB***C) 		8-97111-859-0 01 1 9405-9504 ●
32 PIPE; EXH,FRT
4 DOOR LONG(UB***F) 		8-97018-576-0 01 1 9112-9404 ●
32 PIPE; EXH,FRT
4 DOOR LONG(UB***F) 		8-97111-858-0 01 1 9405-9504 ●
32 PIPE; EXH,FRT
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97130-204-0 01 1 9505- ●
32 PIPE; EXH,FRT
TURBOCHARGER<K51> ENG QUICK WARM UP SYSTEM<6JZ> 		8-97126-887-0 01 1 9505- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9505- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 02 1 9112-9305 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9306-9308 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9309- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9112- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 04 1 9112-9305 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 04 1 9306-9510 ●
36 NUT; EXH PIPE
(B) M12 LK W/FLANGE 		8-97102-030-0 06 1 9511-9702 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9703- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
45 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9112-9410 ● ● ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9411-9504 ● ● ●
45 BOLT; BRKT
EXC. TURBOCHARGER<K51> M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-538-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-539-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. TURBOCHARGER<K51> 		8-97092-867-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-94473-560-0 01 1 9112- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9112-9504 ● ● ●
52 NUT; BRKT
EXC. TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 01 1 9505- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9505- ●
58 BRACKET; EXH PIPE,RR 8-97043-727-1 01 1 9112-9504 ● ●
58 BRACKET; EXH PIPE,RR 8-97043-727-1 01 1 9505-9605 ●
70 BOLT; BRKT
M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
70 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
70 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
70 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9505-9605 ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ●
84 GASKET; EXH PIPE
(A) ID=55 		8-97093-574-0 01 1 9505- ●
84 GASKET; EXH PIPE
(B) ID=64.7 		8-94328-352-0 01 1 9505- ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 02 1 9302- ●
84 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) ID=64.7 		8-94328-352-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
2 DOOR SHORT(UB***C) 		8-97011-631-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
4 DOOR LONG(UB***F) 		8-97011-630-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-559-0 01 1 9112-9308 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9505-9601 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9505-9601 ●
128 PIPE; EXH,RR 8-97131-338-1 01 1 9602-9608 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97131-338-1 01 1 9602-9608 ●
128 PIPE; EXH,RR 8-97165-817-0 01 1 9609- ● ● ●
128 PIPE; EXH,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) 		8-97070-151-0 01 1 9209-9601 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97070-151-0 01 1 9602-9608 ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97141-971-0 01 1 9602-9608 ●
143 RUBBER; SUPPORT 8-97021-581-0 01 1 9112-9301 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9302-9504 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9505- ● ● ●
167 HANGER; EXH PIPE
T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9504 ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●
329 NUT; EXH PIPE TO PIPE
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9112-9308 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9309-9504 ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9505- ●
çizim 66200
169 41 128 14 221 340 41 12 335 337 59 340 2 14 52 1 143 36 49 45
BalonParca AdiParca NoAdetTipApplied Date A B C D

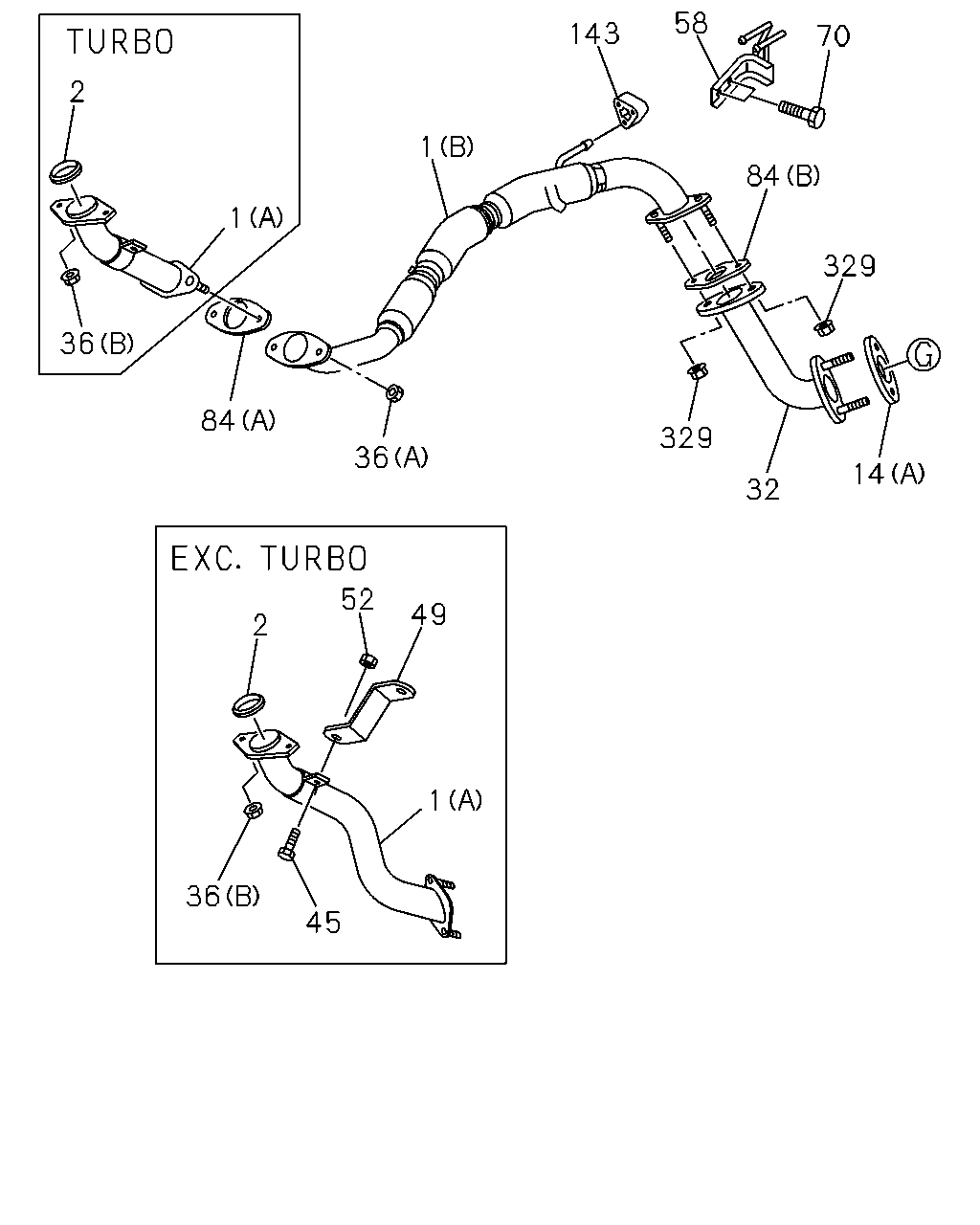

1 PIPE; EXH
(A) 		8-94369-041-2 01 1 9112-9504 ●
1 PIPE; EXH
(B) 		8-97022-844-1 01 1 9112-9404 ●
1 PIPE; EXH
(B) 		8-97111-857-0 01 1 9405-9504 ●
1 PIPE; EXH
(A) 		8-97037-890-1 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9505- ●
1 PIPE; EXH
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-596-4 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9505- ●
1 PIPE; EXH
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97061-461-3 01 1 9112-9504 ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9505- ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97022-845-0 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (B) 		8-97022-847-1 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (A) 		8-97111-400-1 01 1 9505- ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (B) 		8-97022-846-1 01 1 9112-9504 ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (A) 		8-97111-399-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97030-276-1 01 1 9112-9301 ●
1 PIPE; EXH
CATALYSIS CONTROL(6MZ) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
(A) 		8-97093-319-1 01 1 9309-9510 ●
1 PIPE; EXH
(C) 		8-97127-477-1 01 1 9511- ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97030-280-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-322-1 01 1 9302-9510 ●
1 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9511- ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97030-277-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-321-0 01 1 9302-9308 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97093-321-1 01 1 9309-9510 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9511- ●
1 PIPE; EXH
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) (A) 		8-97093-320-0 01 1 9302-9308 ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 01 1 9112-9112 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9201-9504 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9505- ● ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 02 1 9112-9112 ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 02 1 9201-9510 ●
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9511- ●

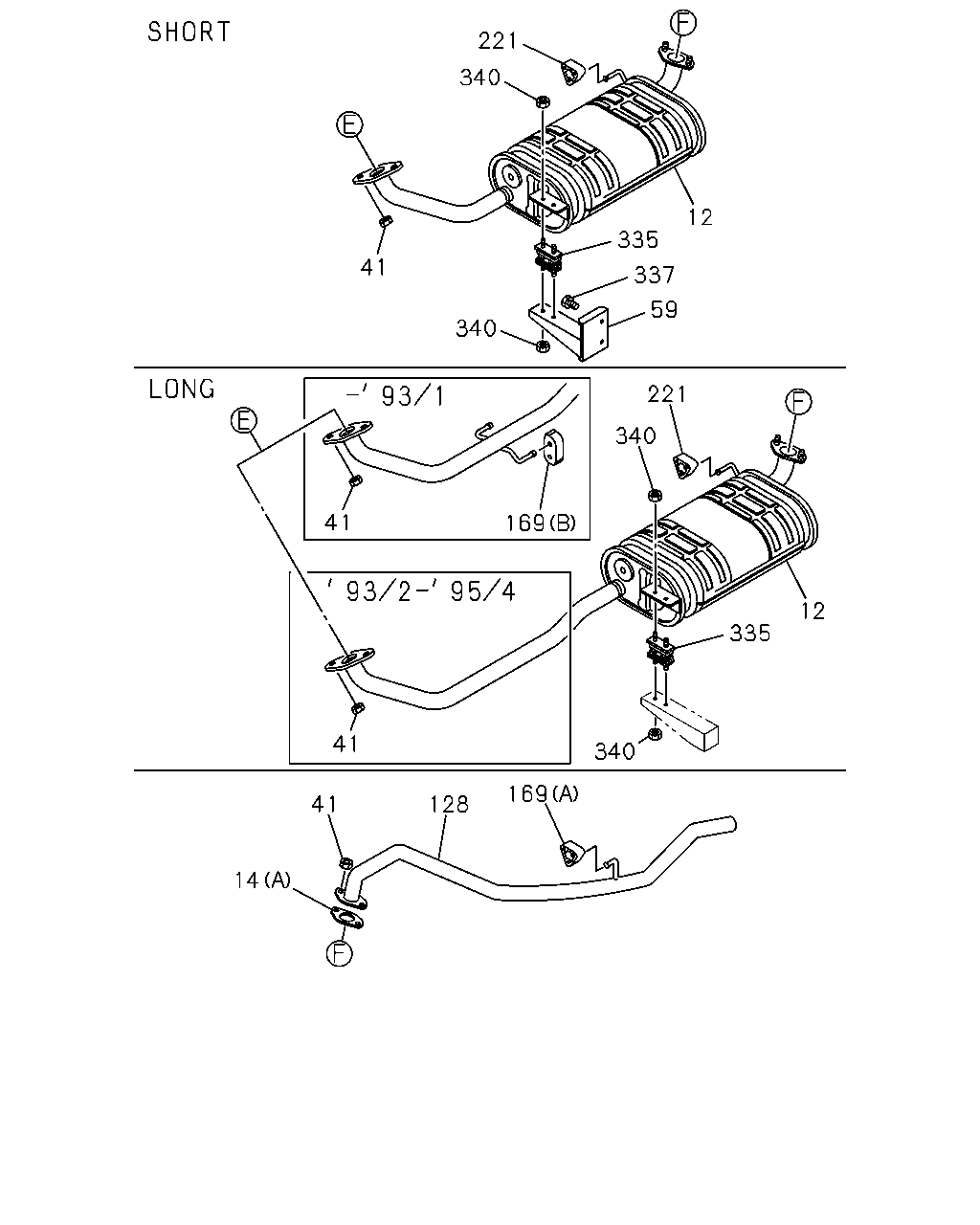

12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9505- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 02 1 9112-9305 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9306-9308 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9309- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9112- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 04 1 9112-9305 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 04 1 9306-9510 ●
36 NUT; EXH PIPE
(B) M12 LK W/FLANGE 		8-97102-030-0 06 1 9511-9702 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9703- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
45 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9112-9410 ● ● ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9411-9504 ● ● ●
45 BOLT; BRKT
EXC. TURBOCHARGER<K51> M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-538-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-539-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. TURBOCHARGER<K51> 		8-97092-867-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-94473-560-0 01 1 9112- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9112-9504 ● ● ●
52 NUT; BRKT
EXC. TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 01 1 9505- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9505- ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9112-9504 ● ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9505- ● ● ●
128 PIPE; EXH,RR
2 DOOR SHORT(UB***C) 		8-97011-631-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
4 DOOR LONG(UB***F) 		8-97011-630-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-559-0 01 1 9112-9308 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9505-9601 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9505-9601 ●
128 PIPE; EXH,RR 8-97131-338-1 01 1 9602-9608 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97131-338-1 01 1 9602-9608 ●
128 PIPE; EXH,RR 8-97165-817-0 01 1 9609- ● ● ●
128 PIPE; EXH,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) 		8-97070-151-0 01 1 9209-9601 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97070-151-0 01 1 9602-9608 ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97141-971-0 01 1 9602-9608 ●
143 RUBBER; SUPPORT 8-97021-581-0 01 1 9112-9301 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9302-9504 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9505- ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97021-581-0 01 1 9112-9301 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9112-9301 ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9302-9504 ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97023-883-0 01 1 9112-9301 ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9505- ● ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9112-9504 ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9505- ● ● ●

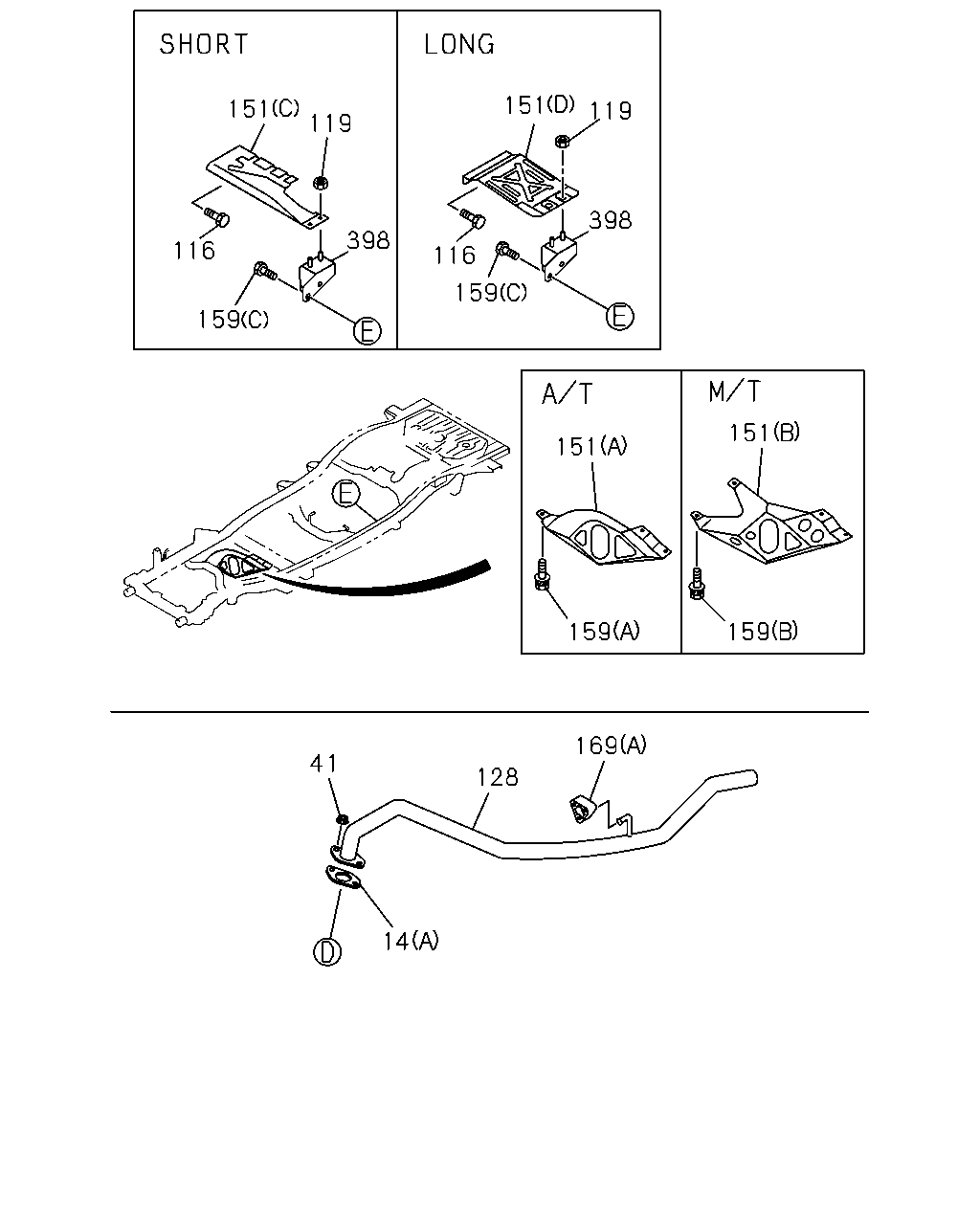

çizim 66375
151 119 151 119 398 398 116 116 159 159 151 151 159 159 169 41 128 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
116 BOLT; BRKT
CATALYSIS CONTROL(6MZ) M6X16 		0-28010-616-0 02 1 9112-9204 ●
116 BOLT; BRKT
CATALYSIS CONTROL(6MZ) M6X16 FLANGE 		0-28080-616-0 02 1 9205- ●
119 NUT; BRKT
CATALYSIS CONTROL(6MZ) M6 FLANGE 		0-91150-106-0 02 1 9112- ●
128 PIPE; EXH,RR
2 DOOR SHORT(UB***C) 		8-97011-631-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
4 DOOR LONG(UB***F) 		8-97011-630-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-559-0 01 1 9112-9308 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9505-9601 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9505-9601 ●
128 PIPE; EXH,RR 8-97131-338-1 01 1 9602-9608 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97131-338-1 01 1 9602-9608 ●
128 PIPE; EXH,RR 8-97165-817-0 01 1 9609- ● ● ●
128 PIPE; EXH,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) 		8-97070-151-0 01 1 9209-9601 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97070-151-0 01 1 9602-9608 ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97141-971-0 01 1 9602-9608 ●
151 PROTECTOR; HEAT,EXH PIPE
A/T THM(RMQ) (A) 		8-97018-375-2 01 1 9112- ●
151 PROTECTOR; HEAT,EXH PIPE
M/T MUA 5 SPEED(RMN) (B) 		8-97018-374-1 01 1 9112- ●
151 PROTECTOR; HEAT,EXH PIPE
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (D) 		8-97047-568-3 01 1 9112- ●
151 PROTECTOR; HEAT,EXH PIPE
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (C) 		8-97047-569-1 01 1 9112- ●
159 BOLT; HEAT PROTECTOR
A/T THM(RMQ) (A) M10X25 		8-94492-949-0 03 1 9112-9310 ●
159 BOLT; HEAT PROTECTOR
A/T THM(RMQ) (A) M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9311- ●
159 BOLT; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) (C) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ●
159 BOLT; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) (C) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ●
159 BOLT; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) (C) M8X20 FLANGE 		0-28680-820-0 02 1 9411- ●
159 BOLT; HEAT PROTECTOR
M/T MUA 5 SPEED(RMN) (B) M10X25 		8-94492-949-0 02 1 9112-9310 ●
159 BOLT; HEAT PROTECTOR
M/T MUA 5 SPEED(RMN) (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9311- ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●
398 BRACKET; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97065-926-0 01 1 9112- ●
398 BRACKET; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97065-927-0 01 1 9112- ●
çizim 67706
58 143 70 2 1 84 1 329 36 84 329 36 14 32 52 49 2 1 36 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) 		8-94369-041-2 01 1 9112-9504 ●
1 PIPE; EXH
(B) 		8-97022-844-1 01 1 9112-9404 ●
1 PIPE; EXH
(B) 		8-97111-857-0 01 1 9405-9504 ●
1 PIPE; EXH
(A) 		8-97037-890-1 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9505- ●
1 PIPE; EXH
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-596-4 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9505- ●
1 PIPE; EXH
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97061-461-3 01 1 9112-9504 ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9505- ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97022-845-0 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (B) 		8-97022-847-1 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (A) 		8-97111-400-1 01 1 9505- ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (B) 		8-97022-846-1 01 1 9112-9504 ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (A) 		8-97111-399-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97030-276-1 01 1 9112-9301 ●
1 PIPE; EXH
CATALYSIS CONTROL(6MZ) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
(A) 		8-97093-319-1 01 1 9309-9510 ●
1 PIPE; EXH
(C) 		8-97127-477-1 01 1 9511- ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97030-280-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-322-1 01 1 9302-9510 ●
1 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9511- ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97030-277-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-321-0 01 1 9302-9308 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97093-321-1 01 1 9309-9510 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9511- ●
1 PIPE; EXH
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) (A) 		8-97093-320-0 01 1 9302-9308 ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 01 1 9112-9112 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9201-9504 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9505- ● ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 02 1 9112-9112 ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 02 1 9201-9510 ●
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9511- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
32 PIPE; EXH,FRT
2 DOOR SHORT(UB***C) 		8-97018-577-0 01 1 9112-9404 ●
32 PIPE; EXH,FRT
2 DOOR SHORT(UB***C) 		8-97111-859-0 01 1 9405-9504 ●
32 PIPE; EXH,FRT
4 DOOR LONG(UB***F) 		8-97018-576-0 01 1 9112-9404 ●
32 PIPE; EXH,FRT
4 DOOR LONG(UB***F) 		8-97111-858-0 01 1 9405-9504 ●
32 PIPE; EXH,FRT
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97130-204-0 01 1 9505- ●
32 PIPE; EXH,FRT
TURBOCHARGER<K51> ENG QUICK WARM UP SYSTEM<6JZ> 		8-97126-887-0 01 1 9505- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9505- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 02 1 9112-9305 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9306-9308 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9309- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9112- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 04 1 9112-9305 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 04 1 9306-9510 ●
36 NUT; EXH PIPE
(B) M12 LK W/FLANGE 		8-97102-030-0 06 1 9511-9702 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9703- ●
45 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9112-9410 ● ● ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9411-9504 ● ● ●
45 BOLT; BRKT
EXC. TURBOCHARGER<K51> M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-538-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-539-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. TURBOCHARGER<K51> 		8-97092-867-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-94473-560-0 01 1 9112- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9112-9504 ● ● ●
52 NUT; BRKT
EXC. TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 01 1 9505- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9505- ●
58 BRACKET; EXH PIPE,RR 8-97043-727-1 01 1 9112-9504 ● ●
58 BRACKET; EXH PIPE,RR 8-97043-727-1 01 1 9505-9605 ●
70 BOLT; BRKT
M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
70 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
70 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
70 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9505-9605 ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ●
84 GASKET; EXH PIPE
(A) ID=55 		8-97093-574-0 01 1 9505- ●
84 GASKET; EXH PIPE
(B) ID=64.7 		8-94328-352-0 01 1 9505- ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 02 1 9302- ●
84 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) ID=64.7 		8-94328-352-0 01 1 9112-9308 ●
143 RUBBER; SUPPORT 8-97021-581-0 01 1 9112-9301 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9302-9504 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9505- ● ● ●
329 NUT; EXH PIPE TO PIPE
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9112-9308 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9309-9504 ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9505- ●
çizim 67740
221 340 41 14 12 335 337 340 59 221 340 41 12 14 335 340
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9112-9504 ● ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9505- ● ● ●
221 CLAMP; EXH SILENCER 8-97021-581-0 01 1 9112-9301 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9112-9301 ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9302-9504 ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97023-883-0 01 1 9112-9301 ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9505- ● ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9112-9504 ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9505- ● ● ●
çizim 68325
167 167 169 128 14 41 12 169 14 1 45 41 2 49 169 14 41 1 36 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) 		8-94369-041-2 01 1 9112-9504 ●
1 PIPE; EXH
(B) 		8-97022-844-1 01 1 9112-9404 ●
1 PIPE; EXH
(B) 		8-97111-857-0 01 1 9405-9504 ●
1 PIPE; EXH
(A) 		8-97037-890-1 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9505- ●
1 PIPE; EXH
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-596-4 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9505- ●
1 PIPE; EXH
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97061-461-3 01 1 9112-9504 ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9505- ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97022-845-0 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (B) 		8-97022-847-1 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (A) 		8-97111-400-1 01 1 9505- ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (B) 		8-97022-846-1 01 1 9112-9504 ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (A) 		8-97111-399-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97030-276-1 01 1 9112-9301 ●
1 PIPE; EXH
CATALYSIS CONTROL(6MZ) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
(A) 		8-97093-319-1 01 1 9309-9510 ●
1 PIPE; EXH
(C) 		8-97127-477-1 01 1 9511- ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97030-280-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-322-1 01 1 9302-9510 ●
1 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9511- ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97030-277-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-321-0 01 1 9302-9308 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97093-321-1 01 1 9309-9510 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9511- ●
1 PIPE; EXH
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) (A) 		8-97093-320-0 01 1 9302-9308 ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 01 1 9112-9112 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9201-9504 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9505- ● ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 02 1 9112-9112 ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 02 1 9201-9510 ●
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9511- ●
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9505- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 02 1 9112-9305 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9306-9308 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9309- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9112- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 04 1 9112-9305 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 04 1 9306-9510 ●
36 NUT; EXH PIPE
(B) M12 LK W/FLANGE 		8-97102-030-0 06 1 9511-9702 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9703- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
45 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9112-9410 ● ● ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9411-9504 ● ● ●
45 BOLT; BRKT
EXC. TURBOCHARGER<K51> M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-538-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-539-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. TURBOCHARGER<K51> 		8-97092-867-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-94473-560-0 01 1 9112- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9112-9504 ● ● ●
52 NUT; BRKT
EXC. TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 01 1 9505- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9505- ●
128 PIPE; EXH,RR
2 DOOR SHORT(UB***C) 		8-97011-631-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
4 DOOR LONG(UB***F) 		8-97011-630-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-559-0 01 1 9112-9308 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9505-9601 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9505-9601 ●
128 PIPE; EXH,RR 8-97131-338-1 01 1 9602-9608 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97131-338-1 01 1 9602-9608 ●
128 PIPE; EXH,RR 8-97165-817-0 01 1 9609- ● ● ●
128 PIPE; EXH,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) 		8-97070-151-0 01 1 9209-9601 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97070-151-0 01 1 9602-9608 ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97141-971-0 01 1 9602-9608 ●
167 HANGER; EXH PIPE
T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9504 ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●
çizim 68692
221 386 340 383 12 180 335 337 59 340 221 12 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9112-9504 ● ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9505- ● ● ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) 		0-28211-040-0 08 1 9112-9204 ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 		0-28281-040-0 08 1 9205-9308 ●
180 BOLT; CONV TO PIPE
M10X40 		0-28281-040-0 04 1 9309-9410 ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 		0-28281-040-0 04 1 9309-9410 ●
180 BOLT; CONV TO PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
221 CLAMP; EXH SILENCER 8-97021-581-0 01 1 9112-9301 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9112-9301 ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9302-9504 ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97023-883-0 01 1 9112-9301 ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9505- ● ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9112-9504 ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9505- ● ● ●
383 NUT; PROTECTOR
CATALYSIS CONTROL(6MZ) M6 FLANGE 		0-91150-106-0 04 1 9112- ●
386 PANEL; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97063-965-1 01 1 9112-9601 ●
386 PANEL; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97134-610-0 01 1 9602- ●
386 PANEL; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97063-966-1 01 1 9112-9601 ●
386 PANEL; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97134-609-0 01 1 9602- ●
çizim 68712
221 383 340 386 12 335 180 180 169 340 41 169 12 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) 		0-28211-040-0 08 1 9112-9204 ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 		0-28281-040-0 08 1 9205-9308 ●
180 BOLT; CONV TO PIPE
M10X40 		0-28281-040-0 04 1 9309-9410 ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 		0-28281-040-0 04 1 9309-9410 ●
180 BOLT; CONV TO PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
180 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) M10X40 FLANGE 		0-28681-040-0 04 1 9411- ●
221 CLAMP; EXH SILENCER 8-97021-581-0 01 1 9112-9301 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9112-9301 ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9302-9504 ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97023-883-0 01 1 9112-9301 ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9112-9504 ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9505- ● ● ●
383 NUT; PROTECTOR
CATALYSIS CONTROL(6MZ) M6 FLANGE 		0-91150-106-0 04 1 9112- ●
386 PANEL; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97063-965-1 01 1 9112-9601 ●
386 PANEL; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97134-610-0 01 1 9602- ●
386 PANEL; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97063-966-1 01 1 9112-9601 ●
386 PANEL; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97134-609-0 01 1 9602- ●
çizim 68738
221 340 12 335 41 337 59 340 221 340 41 169 12 335 340 41 169 128 41 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 SILENCER ASM; EXH 8-97031-660-1 01 1 9112-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97092-582-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97111-398-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97133-911-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) 		8-97165-833-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-915-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-583-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-595-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-582-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-594-5 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-580-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97092-580-1 01 1 9309-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97111-397-1 01 1 9505-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97133-910-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) 		8-97165-834-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-916-4 01 1 9112-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97092-581-0 01 1 9302-9308 ●
12 SILENCER ASM; EXH 8-97031-659-1 01 1 9112-9501 ●
12 SILENCER ASM; EXH 8-97125-944-0 01 1 9502-9504 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97029-575-0 01 1 9112-9208 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97070-149-0 01 1 9209-9308 ●
12 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-0 01 1 9309- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-911-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97070-148-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97092-578-1 01 1 9302-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97130-507-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-507-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-829-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-912-3 01 1 9112-9301 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-579-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-508-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9609- ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-606-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-838-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97047-913-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97070-146-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97092-575-2 01 1 9302-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (B) 		8-97130-505-0 01 1 9509-9601 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97130-505-0 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-830-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97047-914-3 01 1 9112-9208 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97070-174-1 01 1 9209-9301 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9302-9504 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97092-576-0 01 1 9505-9508 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97130-506-0 01 1 9509-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9609- ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97134-605-1 01 1 9602-9608 ●
12 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97165-839-0 01 1 9609- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9608- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
EXC. CATALYSIS CONTROL(6MZ) M10 FLANGE 		0-91150-110-0 02 1 9608- ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9112-9504 ● ●
59 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9505- ● ● ●
128 PIPE; EXH,RR
2 DOOR SHORT(UB***C) 		8-97011-631-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
4 DOOR LONG(UB***F) 		8-97011-630-0 01 1 9112-9504 ● ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-559-0 01 1 9112-9308 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9309-9504 ●
128 PIPE; EXH,RR 8-97047-559-0 01 1 9505-9601 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-559-0 01 1 9505-9601 ●
128 PIPE; EXH,RR 8-97131-338-1 01 1 9602-9608 ● ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97131-338-1 01 1 9602-9608 ●
128 PIPE; EXH,RR 8-97165-817-0 01 1 9609- ● ● ●
128 PIPE; EXH,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
EXC. CATALYSIS CONTROL(6MZ) 		8-97047-560-0 01 1 9112-9308 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) 		8-97070-151-0 01 1 9209-9601 ●
128 PIPE; EXH,RR
CATALYSIS CONTROL(6MZ) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97070-151-0 01 1 9602-9608 ●
128 PIPE; EXH,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97141-971-0 01 1 9602-9608 ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97021-581-0 01 1 9112-9301 ● ● ● ●
169 RING; DAMPER,EXH PIPE
(A) 		8-97080-694-0 01 1 9302- ● ● ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
4 DOOR LONG(UB***F) (B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9112-9301 ● ●
169 RING; DAMPER,EXH PIPE
(B) T=28 55X44(OVAL) 		8-94332-331-0 02 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97021-581-0 01 1 9112-9301 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9302-9504 ● ●
221 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9112-9301 ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-1 01 1 9302-9504 ● ●
335 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9505- ● ● ●
335 RUBBER; SUPPORT,SILENCER 8-97023-883-0 01 1 9112-9301 ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
337 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) M8X20 FLANGE 		0-28680-820-0 02 1 9505- ● ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9112-9504 ● ●
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9505- ● ● ●
çizim 70838
58 143 70 52 49 2 14 1 1 36 45 84 36 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) 		8-94369-041-2 01 1 9112-9504 ●
1 PIPE; EXH
(B) 		8-97022-844-1 01 1 9112-9404 ●
1 PIPE; EXH
(B) 		8-97111-857-0 01 1 9405-9504 ●
1 PIPE; EXH
(A) 		8-97037-890-1 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9505- ●
1 PIPE; EXH
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-596-4 01 1 9112-9504 ●
1 PIPE; EXH
TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9505- ●
1 PIPE; EXH
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97061-461-3 01 1 9112-9504 ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9505- ●
1 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97022-845-0 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (B) 		8-97022-847-1 01 1 9112-9504 ●
1 PIPE; EXH
2 DOOR SHORT(UB***C) (A) 		8-97111-400-1 01 1 9505- ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (B) 		8-97022-846-1 01 1 9112-9504 ●
1 PIPE; EXH
4 DOOR LONG(UB***F) (A) 		8-97111-399-0 01 1 9505- ●
1 PIPE; EXH
(A) 		8-97030-276-1 01 1 9112-9301 ●
1 PIPE; EXH
CATALYSIS CONTROL(6MZ) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97093-319-0 01 1 9302-9308 ●
1 PIPE; EXH
(A) 		8-97093-319-1 01 1 9309-9510 ●
1 PIPE; EXH
(C) 		8-97127-477-1 01 1 9511- ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97030-280-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-322-1 01 1 9302-9510 ●
1 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9511- ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97030-277-1 01 1 9112-9301 ●
1 PIPE; EXH
A/T THM(RMQ) (B) 		8-97093-321-0 01 1 9302-9308 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (B) 		8-97093-321-1 01 1 9309-9510 ●
1 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9511- ●
1 PIPE; EXH
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL(6MZ) (A) 		8-97093-320-0 01 1 9302-9308 ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 01 1 9112-9112 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9201-9504 ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9505- ● ●
2 GASKET; PIPE TO MANIF 8-94329-529-0 02 1 9112-9112 ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 02 1 9201-9510 ●
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9511- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
14 GASKET; SILENCER TO EXH PIPE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
14 GASKET; SILENCER TO EXH PIPE
EUROPE/CANARY EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 02 1 9302-9504 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=64.7 		8-94328-352-0 01 1 9112-9504 ● ●
14 GASKET; SILENCER TO EXH PIPE
ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 02 1 9505- ●
14 GASKET; SILENCER TO EXH PIPE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7 		8-94328-352-0 01 1 9505- ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9505- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9504 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9505- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 02 1 9112-9305 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9306-9308 ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 02 1 9309- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9112- ●
36 NUT; EXH PIPE
(B) M10 LOCK NUT 		8-94375-110-0 04 1 9112-9305 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-0 04 1 9306-9510 ●
36 NUT; EXH PIPE
(B) M12 LK W/FLANGE 		8-97102-030-0 06 1 9511-9702 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9703- ●
45 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9112-9410 ● ● ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9411-9504 ● ● ●
45 BOLT; BRKT
EXC. TURBOCHARGER<K51> M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
45 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-538-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS 8-97037-539-0 01 1 9112-9504 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. TURBOCHARGER<K51> 		8-97092-867-0 01 1 9505- ●
49 BRACKET; EXH PIPE TO TRANS 8-94473-560-0 01 1 9112- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9112-9504 ● ● ●
52 NUT; BRKT
EXC. TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 01 1 9505- ●
52 NUT; BRKT
M8 FLANGE 		0-91150-208-0 01 1 9505- ●
58 BRACKET; EXH PIPE,RR 8-97043-727-1 01 1 9112-9504 ● ●
58 BRACKET; EXH PIPE,RR 8-97043-727-1 01 1 9505-9605 ●
70 BOLT; BRKT
M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9112-9204 ● ●
70 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9410 ● ●
70 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9411-9504 ● ●
70 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9505-9605 ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ● ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ● ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 01 1 9302-9504 ●
84 GASKET; EXH PIPE
(A) ID=55 		8-97093-574-0 01 1 9505- ●
84 GASKET; EXH PIPE
(B) ID=64.7 		8-94328-352-0 01 1 9505- ●
84 GASKET; EXH PIPE
ID=53.0 NON-ASBESTOS 		8-94328-353-0 02 1 9112-9301 ●
84 GASKET; EXH PIPE
ID=55 		8-97093-574-0 02 1 9302- ●
84 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) ID=64.7 		8-94328-352-0 01 1 9112-9308 ●
143 RUBBER; SUPPORT 8-97021-581-0 01 1 9112-9301 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9302-9504 ● ● ●
143 RUBBER; SUPPORT 8-97080-694-0 01 1 9505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
