◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#33190) — 46 parça

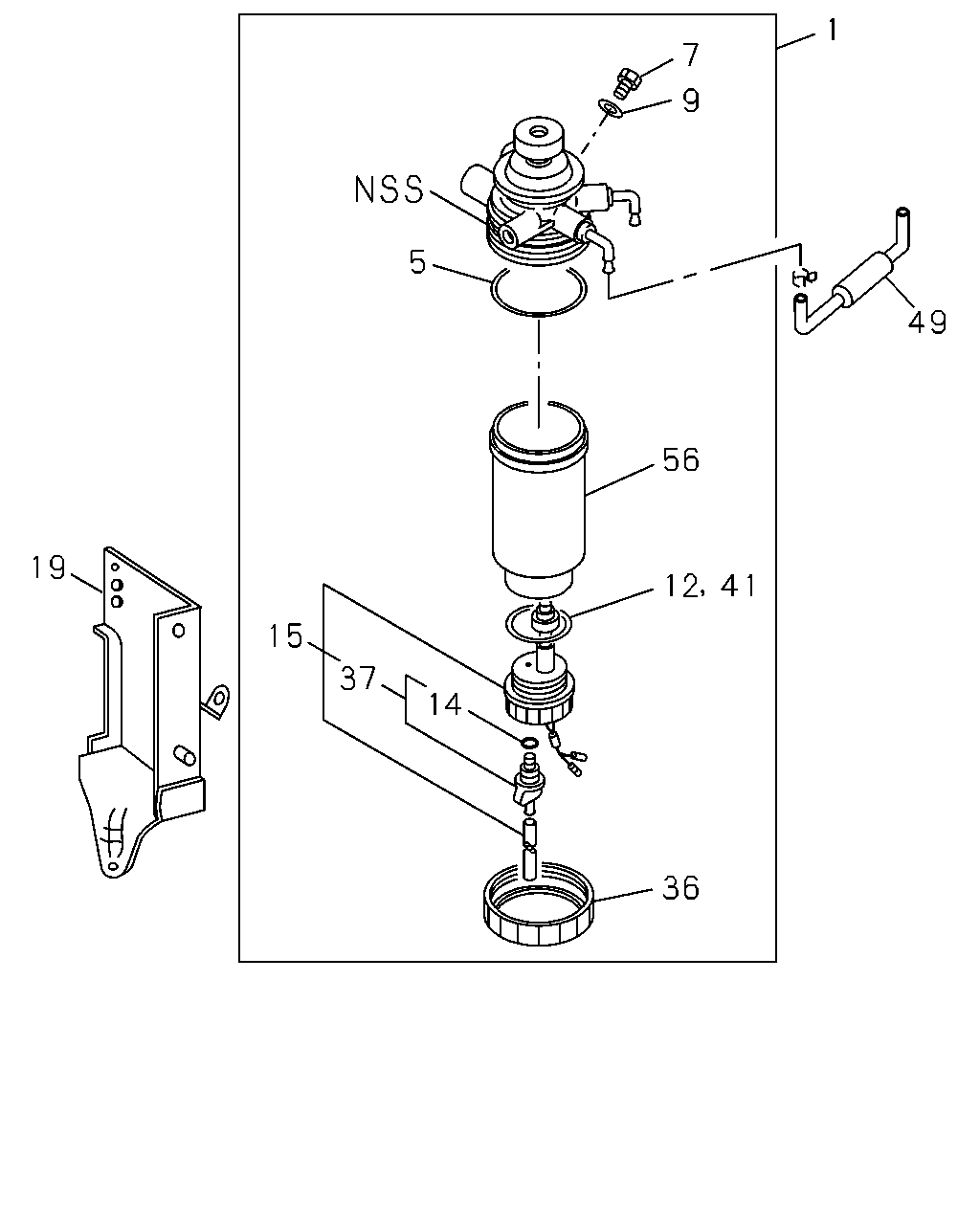

çizim 68530
1 7 9 5 49 56 19 15 37 14 36 12 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-183-2 01 1 9112-9504 ● ●
1 SEDIMENTER; FUEL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-183-3 01 1 9505- ●
1 SEDIMENTER; FUEL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-184-1 01 1 9112-9607 ●
1 SEDIMENTER; FUEL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97132-350-0 01 1 9608- ●
5 GASKET; UPR COVER,SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-09623-075-0 01 1 9112-9504 ● ●
5 GASKET; UPR COVER,SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-09623-075-0 01 1 9505- ●
7 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9112-9504 ● ●
7 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9505- ●
9 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9112-9504 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9505- ●
12 GASKET; CENTER BOLT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		9-09563-334-0 01 1 9112-9504 ● ●
14 GASKET; SENSOR TO CENTER BOLT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94447-156-0 01 1 9112-9504 ● ●
14 GASKET; SENSOR TO CENTER BOLT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94447-156-0 01 1 9505- ●
15 SENSOR ASM; SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97064-711-0 01 1 9112-9504 ● ●
15 SENSOR ASM; SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97064-711-0 01 1 9505- ●
15 SENSOR ASM; SEDIMENTER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97064-712-1 01 1 9112- ●
19 BRACKET; FUEL SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97074-768-0 01 1 9207-9504 ● ●
19 BRACKET; FUEL SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97074-768-0 01 1 9505- ●
36 RING; BODY TO CASE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13234-001-0 01 1 9112-9503 ● ●
36 RING; BODY TO CASE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13234-010-0 01 1 9504-9504 ● ●
36 RING; BODY TO CASE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13234-010-0 01 1 9505- ●
37 PLUG; SENSOR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13220-002-0 01 1 9112-9504 ● ●
37 PLUG; SENSOR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13220-002-0 01 1 9505- ●
37 PLUG; SENSOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-94247-973-0 01 1 9112-9504 ●
37 PLUG; SENSOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-94453-746-0 01 1 9505- ●
41 GASKET; SENSOR TO CASE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		9-09563-334-0 01 1 9505- ●
49 HOSE; RUBBER,FUEL FILTER TO SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-297-0 01 1 9112-9504 ● ●
49 HOSE; RUBBER,FUEL FILTER TO SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-297-0 01 1 9505- ●
56 CASE; FUEL SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13211-030-1 01 1 9112-9504 ● ●
56 CASE; FUEL SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13211-030-1 01 1 9505- ●
çizim 68672
1 9 7 57 15 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-183-2 01 1 9112-9504 ● ●
1 SEDIMENTER; FUEL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-183-3 01 1 9505- ●
1 SEDIMENTER; FUEL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-184-1 01 1 9112-9607 ●
1 SEDIMENTER; FUEL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97132-350-0 01 1 9608- ●
7 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9112-9504 ● ●
7 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9505- ●
9 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9112-9504 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9505- ●
15 SENSOR ASM; SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97064-711-0 01 1 9112-9504 ● ●
15 SENSOR ASM; SEDIMENTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97064-711-0 01 1 9505- ●
15 SENSOR ASM; SEDIMENTER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97064-712-1 01 1 9112- ●
37 PLUG; SENSOR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13220-002-0 01 1 9112-9504 ● ●
37 PLUG; SENSOR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		5-13220-002-0 01 1 9505- ●
37 PLUG; SENSOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-94247-973-0 01 1 9112-9504 ●
37 PLUG; SENSOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-94453-746-0 01 1 9505- ●
57 CARTRIDGE KIT; FUEL FILTER
EUROPE/CANARY EQUIPMENT(EK4) 		8-94369-299-3 01 1 9112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
