1-41 — FUEL PIPING; CHASSIS (#33189) — 404 parça

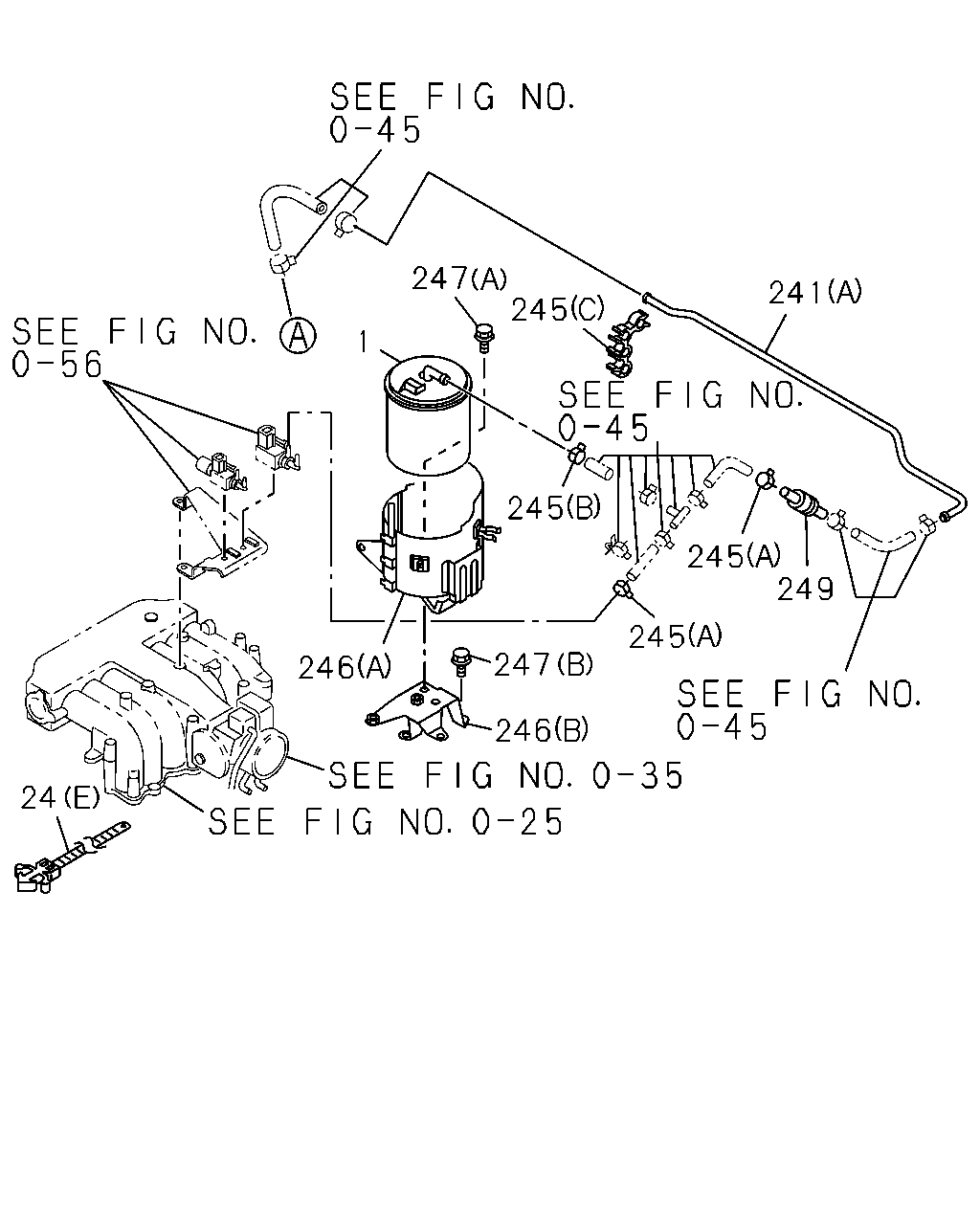

çizim 66068
247 245 241 1 245 245 249 245 246 247 246 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CANISTER; FUEL 8-17087-023-0 01 1 9112- ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=14 		8-97173-221-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-97087-056-0 02 1 9608- ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9112-9208 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9112-9308 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9209-9607 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-97173-219-0 03 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9309-9607 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 01 1 9705- ●
24 CLIP; FUEL HOSE
(C) ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9112-9704 ●
24 CLIP; FUEL HOSE
(C) ID=12 		8-97148-892-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(D) 		8-97063-401-0 02 1 9112-9501 ●
24 CLIP; FUEL HOSE
(D) 		8-97019-746-0 02 1 9502- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> (E) L=212 		8-94107-652-0 01 1 9608- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> ID=11.5 		8-97138-011-0 02 1 9608- ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-94374-842-2 01 1 9112-9607 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-269-1 01 1 9608- ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-94374-843-2 01 1 9112-9410 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97114-238-0 01 1 9411-9607 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-270-1 01 1 9608- ●
241 PIPE; EVAP
(A) 		8-97035-077-3 01 1 9112-9303 ●
241 PIPE; EVAP
(A) 		8-97094-792-1 01 1 9304- ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-94374-840-1 01 1 9112-9203 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-97077-508-1 01 1 9204-9607 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-97122-281-2 01 1 9608- ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-94374-841-2 01 1 9112-9203 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-97077-509-0 01 1 9204-9607 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-97122-282-2 01 1 9608- ●
245 CLIP; EVAP HOSE
(A) ID=11 		8-94238-570-0 02 1 9112-9301 ●
245 CLIP; EVAP HOSE
(A) ID=11 		8-94238-570-0 01 1 9302- ●
245 CLIP; EVAP HOSE
(B) ID=12 		8-94238-610-0 01 1 9112- ●
245 CLIP; EVAP HOSE
(C) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97035-565-2 01 1 9112- ●
246 BRACKET; CANISTER
(A) 		8-94375-329-2 01 1 9112-9203 ●
246 BRACKET; CANISTER
(A) 		8-97077-358-0 01 1 9204-9308 ●
246 BRACKET; CANISTER
(A) 		8-97089-947-0 01 1 9309- ●
246 BRACKET; CANISTER
(B) 		8-97049-112-0 01 1 9112-9203 ●
246 BRACKET; CANISTER
(B) 		8-97077-359-0 01 1 9204- ●
247 BOLT; CANISTER BRKT
(A) M6X16 FLANGE 		0-28080-616-0 02 1 9112-9203 ●
247 BOLT; CANISTER BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9112-9203 ●
247 BOLT; CANISTER BRKT
(A) M6X16 FLANGE 		0-28480-616-0 02 1 9505-9607 ●
247 BOLT; CANISTER BRKT
(B) M6X16 FLANGE 		0-28080-616-0 06 1 9204-9504 ●
247 BOLT; CANISTER BRKT
(B) M6X16 FLANGE 		0-28080-616-0 04 1 9505- ●
247 BOLT; CANISTER BRKT
M6X16 FLANGE 		0-28480-616-0 02 1 9608- ●
249 VALVE; CONT,EVAP
EUROPE/CANARY EQUIPMENT(EK4) 		8-94367-933-0 01 1 9112- ●
249 VALVE; CONT,EVAP 8-94151-559-1 01 1 9112-9308 ●
249 VALVE; CONT,EVAP 8-97076-391-0 01 1 9309- ●

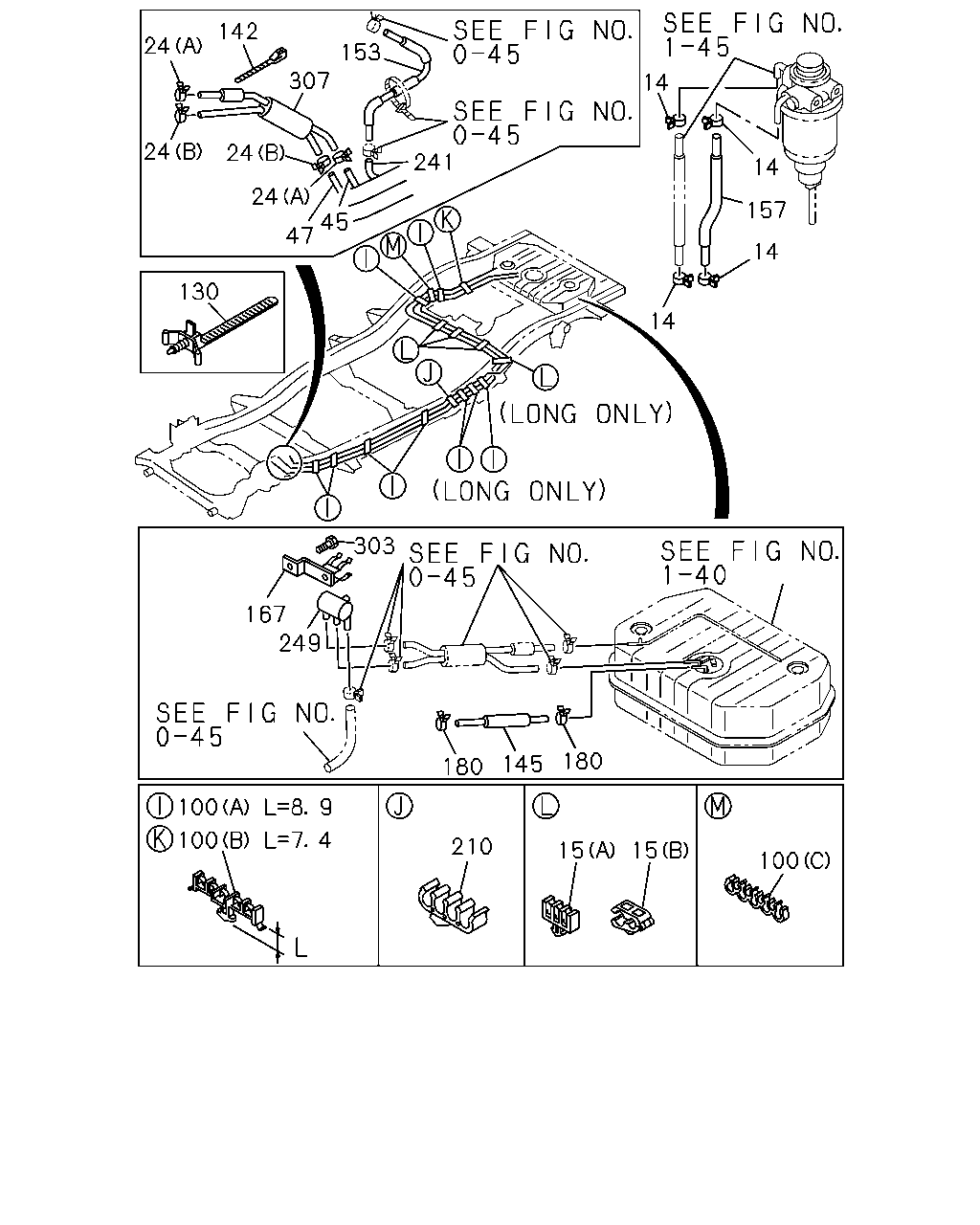

çizim 68354
14 142 24 153 307 241 24 24 14 24 45 47 157 14 130 14 303 167 249 180 145 180 210 15 15 100 100 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 CLIP; HOSE
ID=14 		8-94238-572-0 02 1 9112-9504 ● ●
14 CLIP; HOSE
EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=14 		8-94238-572-0 02 1 9112-9504 ● ●
14 CLIP; HOSE
EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=14 		8-94238-572-0 02 1 9505-9607 ●
14 CLIP; HOSE
ID=14 		8-94238-572-0 02 1 9505-9607 ●
14 CLIP; HOSE
EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=14.2 		8-97087-056-0 02 1 9608- ●
14 CLIP; HOSE
ID=14.2 		8-97087-056-0 02 1 9608- ●
15 CLIP; FUEL PIPE
(A) BLUE 		8-94455-380-1 02 1 9112-9504 ●
15 CLIP; FUEL PIPE
2 DOOR SHORT(UB***C) (B) 		8-97012-498-1 03 1 9112- ●
15 CLIP; FUEL PIPE
4 DOOR LONG(UB***F) (B) 		8-97012-498-1 04 1 9112- ●
15 CLIP; FUEL PIPE 8-94182-922-0 01 1 9209-9504 ●
15 CLIP; FUEL PIPE 8-94182-922-0 01 1 9505-9512 ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=14 		8-97173-221-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-97087-056-0 02 1 9608- ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9112-9208 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9112-9308 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9209-9607 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-97173-219-0 03 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9309-9607 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 01 1 9705- ●
24 CLIP; FUEL HOSE
(C) ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9112-9704 ●
24 CLIP; FUEL HOSE
(C) ID=12 		8-97148-892-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(D) 		8-97063-401-0 02 1 9112-9501 ●
24 CLIP; FUEL HOSE
(D) 		8-97019-746-0 02 1 9502- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> (E) L=212 		8-94107-652-0 01 1 9608- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> ID=11.5 		8-97138-011-0 02 1 9608- ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-94374-815-2 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97012-433-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-94374-834-1 01 1 9112-9607 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-97133-265-1 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-94374-835-1 01 1 9112-9410 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97114-237-0 01 1 9411-9607 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97133-266-1 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94316-813-0 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97012-435-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97109-522-1 01 1 9505- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97018-366-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97109-520-1 01 1 9505- ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94374-833-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94374-833-1 01 1 9505-9506 ● ●
45 PIPE; FUEL,DELIVERY
(A) 		8-97109-897-1 01 1 9507- ● ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-94374-831-0 01 1 9112-9206 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97083-096-0 01 1 9207-9607 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97122-277-2 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-94374-832-1 01 1 9112-9505 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97113-024-0 01 1 9506-9607 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97122-278-2 01 1 9608- ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94374-816-2 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97012-434-1 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94374-838-2 01 1 9112-9607 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97133-267-1 01 1 9608- ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-94374-839-2 01 1 9112-9410 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97113-028-0 01 1 9411-9607 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97133-268-1 01 1 9608- ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94374-836-1 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97109-524-2 01 1 9505- ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-94374-837-1 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97109-523-2 01 1 9505- ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94375-529-1 01 1 9112-9506 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97113-030-0 01 1 9507-9607 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97122-279-2 01 1 9608- ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-94375-530-2 01 1 9112-9506 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97113-031-0 01 1 9507-9607 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97122-280-2 01 1 9608- ●
100 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 AR 1 9112- ● ● ● ●
100 CLIP; FUEL PIPE
(B) L=7.4 		8-94435-550-0 AR 1 9112- ● ● ●
100 CLIP; FUEL PIPE
(C) 		8-97073-935-0 AR 1 9112- ● ● ●
100 CLIP; FUEL PIPE
(D) L=8.9 		8-97137-467-0 AR 1 9608- ●
130 CLIP; RUBBER HOSE
EUROPE/CANARY EQUIPMENT(EK4) L=135 		8-94473-399-0 01 1 9112- ●
130 CLIP; RUBBER HOSE
ID=10.7 		8-94400-275-0 01 1 9112- ●
142 CLIP; BAND,FUEL HOSE
L=250 		5-09707-030-0 01 1 9112-9504 ● ●
142 CLIP; BAND,FUEL HOSE
L=250 		5-09707-030-0 01 1 9505- ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97807-123-0 01 1 9112-9504 ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97109-644-1 01 1 9505- ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97018-368-0 01 1 9112- ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97018-367-2 01 1 9112-9506 ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97109-841-0 01 1 9507- ●
153 HOSE; RUBBER,PIPE TO ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-966-2 01 1 9112-9604 ●
153 HOSE; RUBBER,PIPE TO ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97146-258-0 01 1 9605-9607 ●
153 HOSE; RUBBER,PIPE TO ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97161-054-0 01 1 9608- ●
157 HOSE; FUEL FILTER TO FEED PIPE
L=440 		8-94133-604-2 01 1 9112-9504 ● ●
157 HOSE; FUEL FILTER TO FEED PIPE
L=440 		8-94133-604-2 01 1 9505-9607 ●
157 HOSE; FUEL FILTER TO FEED PIPE 8-97132-542-0 01 1 9608- ●
167 BRACKET
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-829-0 01 1 9309- ●
167 BRACKET 8-97049-707-1 01 1 9112- ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9112-9308 ● ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 04 1 9112-9308 ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9309-9504 ● ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9505-9704 ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-97173-221-0 02 1 9705- ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 04 1 9309-9704 ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-97173-221-0 04 1 9705- ●
180 CLIP; DELIVERY & RETURN
ID=12 WO/PVC COATING 		8-94123-526-0 06 1 9112-9704 ●
180 CLIP; DELIVERY & RETURN
ID=12 		8-97148-892-0 06 1 9705- ●
210 CLIP; FEED PIPE 8-97069-378-0 01 1 9112-9504 ● ● ● ●
210 CLIP; FEED PIPE 8-97069-378-0 01 1 9505- ● ● ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-94374-842-2 01 1 9112-9607 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-269-1 01 1 9608- ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-94374-843-2 01 1 9112-9410 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97114-238-0 01 1 9411-9607 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-270-1 01 1 9608- ●
241 PIPE; EVAP
(A) 		8-97035-077-3 01 1 9112-9303 ●
241 PIPE; EVAP
(A) 		8-97094-792-1 01 1 9304- ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-94374-840-1 01 1 9112-9203 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-97077-508-1 01 1 9204-9607 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-97122-281-2 01 1 9608- ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-94374-841-2 01 1 9112-9203 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-97077-509-0 01 1 9204-9607 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-97122-282-2 01 1 9608- ●
249 VALVE; CONT,EVAP
EUROPE/CANARY EQUIPMENT(EK4) 		8-94367-933-0 01 1 9112- ●
249 VALVE; CONT,EVAP 8-94151-559-1 01 1 9112-9308 ●
249 VALVE; CONT,EVAP 8-97076-391-0 01 1 9309- ●
303 BOLT; BRKT
EUROPE/CANARY EQUIPMENT(EK4) M6X16 FLANGE 		0-28480-616-0 01 1 9410- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97038-475-3 01 1 9112-9504 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97038-475-3 01 1 9505-9603 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97135-570-0 01 1 9604-9607 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. AIR BAG DRIVER<AJ3> 		8-97135-570-0 01 1 9608-9706 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. AIR BAG DRIVER<AJ3> 		8-97182-160-0 01 1 9707- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
AIR BAG DRIVER<AJ3> 		8-97134-374-0 01 1 9608- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-94328-120-0 01 1 9112- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97018-504-3 01 1 9112-9607 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. AIR BAG DRIVER<AJ3> 		8-97018-504-3 01 1 9608- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
AIR BAG DRIVER<AJ3> 		8-97137-573-1 01 1 9608- ●

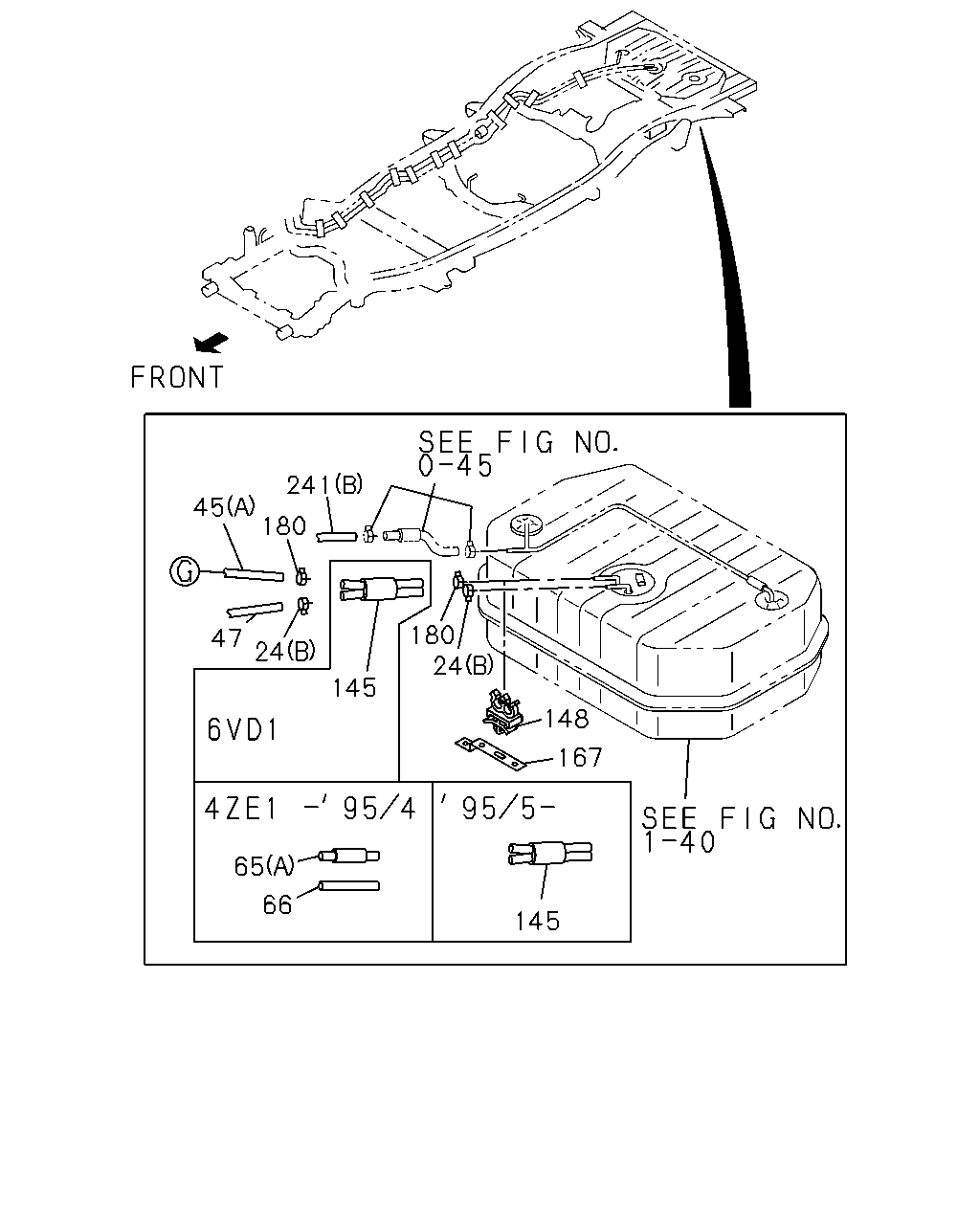

çizim 68355
241 45 180 180 24 47 24 145 148 167 65 66 145
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=14 		8-97173-221-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-97087-056-0 02 1 9608- ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9112-9208 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9112-9308 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9209-9607 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-97173-219-0 03 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9309-9607 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 01 1 9705- ●
24 CLIP; FUEL HOSE
(C) ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9112-9704 ●
24 CLIP; FUEL HOSE
(C) ID=12 		8-97148-892-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(D) 		8-97063-401-0 02 1 9112-9501 ●
24 CLIP; FUEL HOSE
(D) 		8-97019-746-0 02 1 9502- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> (E) L=212 		8-94107-652-0 01 1 9608- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> ID=11.5 		8-97138-011-0 02 1 9608- ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-94374-815-2 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97012-433-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-94374-834-1 01 1 9112-9607 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-97133-265-1 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-94374-835-1 01 1 9112-9410 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97114-237-0 01 1 9411-9607 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97133-266-1 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94316-813-0 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97012-435-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97109-522-1 01 1 9505- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97018-366-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97109-520-1 01 1 9505- ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94374-833-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94374-833-1 01 1 9505-9506 ● ●
45 PIPE; FUEL,DELIVERY
(A) 		8-97109-897-1 01 1 9507- ● ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-94374-831-0 01 1 9112-9206 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97083-096-0 01 1 9207-9607 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97122-277-2 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-94374-832-1 01 1 9112-9505 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97113-024-0 01 1 9506-9607 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97122-278-2 01 1 9608- ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94374-816-2 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97012-434-1 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94374-838-2 01 1 9112-9607 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97133-267-1 01 1 9608- ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-94374-839-2 01 1 9112-9410 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97113-028-0 01 1 9411-9607 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97133-268-1 01 1 9608- ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94374-836-1 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97109-524-2 01 1 9505- ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-94374-837-1 01 1 9112-9504 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97109-523-2 01 1 9505- ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-94375-529-1 01 1 9112-9506 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97113-030-0 01 1 9507-9607 ●
47 PIPE; FUEL,RETURN
2 DOOR SHORT(UB***C) 		8-97122-279-2 01 1 9608- ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-94375-530-2 01 1 9112-9506 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97113-031-0 01 1 9507-9607 ●
47 PIPE; FUEL,RETURN
4 DOOR LONG(UB***F) 		8-97122-280-2 01 1 9608- ●
65 HOSE; FUEL,DELIVERY PIPE
(A) L=440 SERVICED BY L=3000 		0-01258-300-0 01 1 9112-9504 ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=210 SERVICED BY L=3000 		0-01258-300-0 01 1 9112-9504 ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=100 SERVICED BY L=3000 		0-01258-300-0 01 1 9505- ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=100 SERVICED BY L=3000 		0-01458-300-0 01 1 9112- ●
66 HOSE; FUEL,RETURN PIPE
L=780 		8-94363-220-0 01 1 9112-9504 ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97807-123-0 01 1 9112-9504 ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97109-644-1 01 1 9505- ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97018-368-0 01 1 9112- ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97018-367-2 01 1 9112-9506 ●
145 HOSE; FUEL TANK TO RETURN PIPE 8-97109-841-0 01 1 9507- ●
148 CLIP; HOSE,FUEL 8-97019-746-0 01 1 9112- ●
167 BRACKET
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-829-0 01 1 9309- ●
167 BRACKET 8-97049-707-1 01 1 9112- ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9112-9308 ● ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 04 1 9112-9308 ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9309-9504 ● ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9505-9704 ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-97173-221-0 02 1 9705- ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 04 1 9309-9704 ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-97173-221-0 04 1 9705- ●
180 CLIP; DELIVERY & RETURN
ID=12 WO/PVC COATING 		8-94123-526-0 06 1 9112-9704 ●
180 CLIP; DELIVERY & RETURN
ID=12 		8-97148-892-0 06 1 9705- ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-94374-842-2 01 1 9112-9607 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-269-1 01 1 9608- ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-94374-843-2 01 1 9112-9410 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97114-238-0 01 1 9411-9607 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-270-1 01 1 9608- ●
241 PIPE; EVAP
(A) 		8-97035-077-3 01 1 9112-9303 ●
241 PIPE; EVAP
(A) 		8-97094-792-1 01 1 9304- ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-94374-840-1 01 1 9112-9203 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-97077-508-1 01 1 9204-9607 ●
241 PIPE; EVAP
2 DOOR SHORT(UB***C) (B) 		8-97122-281-2 01 1 9608- ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-94374-841-2 01 1 9112-9203 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-97077-509-0 01 1 9204-9607 ●
241 PIPE; EVAP
4 DOOR LONG(UB***F) (B) 		8-97122-282-2 01 1 9608- ●

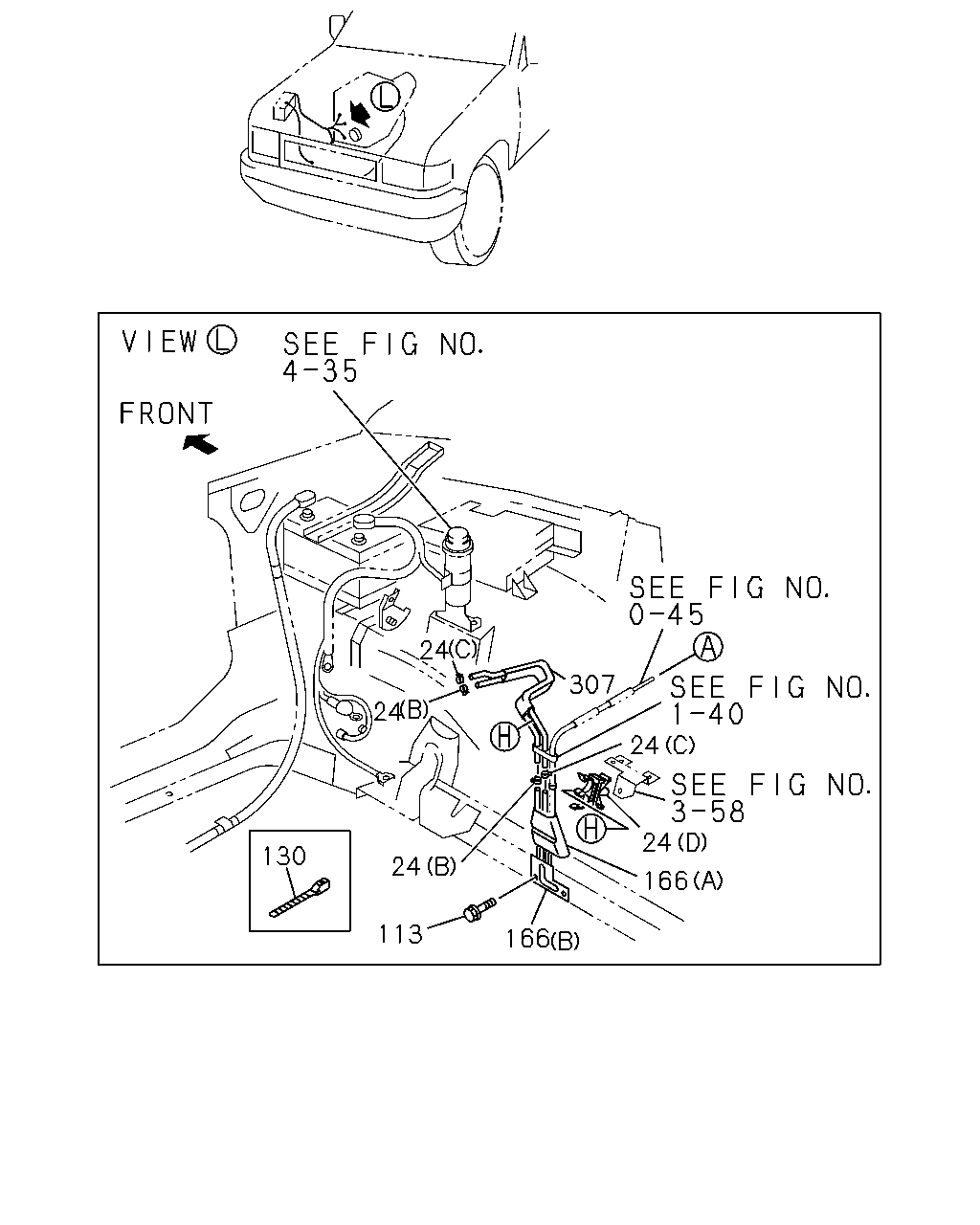

çizim 68594
24 24 166 24 24 307 130 24 113 166
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-94238-572-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=14 		8-97173-221-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9112-9504 ● ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 04 1 9505-9607 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-94238-571-0 02 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ● ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
EXC. AIR BAG DRIVER<AJ3> (B) ID=13 		8-97173-220-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-97087-056-0 02 1 9608- ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9112-9208 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9112-9308 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9209-9607 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-94238-570-0 03 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-97173-219-0 03 1 9705- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9309-9607 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-94238-571-0 01 1 9608-9704 ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 01 1 9705- ●
24 CLIP; FUEL HOSE
(C) ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9112-9704 ●
24 CLIP; FUEL HOSE
(C) ID=12 		8-97148-892-0 02 1 9705- ●
24 CLIP; FUEL HOSE
(D) 		8-97063-401-0 02 1 9112-9501 ●
24 CLIP; FUEL HOSE
(D) 		8-97019-746-0 02 1 9502- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> (E) L=212 		8-94107-652-0 01 1 9608- ●
24 CLIP; FUEL HOSE
AIR BAG DRIVER<AJ3> ID=11.5 		8-97138-011-0 02 1 9608- ●
113 BOLT; PROTECTOR
AIR BAG DRIVER<AJ3> M6X16 FLANGE 		0-28480-616-0 02 1 9608- ●
130 CLIP; RUBBER HOSE
EUROPE/CANARY EQUIPMENT(EK4) L=135 		8-94473-399-0 01 1 9112- ●
130 CLIP; RUBBER HOSE
ID=10.7 		8-94400-275-0 01 1 9112- ●
166 PROTECTOR; FUEL HOSE
AIR BAG DRIVER<AJ3> (A) 		8-97121-035-4 01 1 9608- ●
166 PROTECTOR; FUEL HOSE
AIR BAG DRIVER<AJ3> (B) 		8-97122-303-0 01 1 9608- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97038-475-3 01 1 9112-9504 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97038-475-3 01 1 9505-9603 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97135-570-0 01 1 9604-9607 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. AIR BAG DRIVER<AJ3> 		8-97135-570-0 01 1 9608-9706 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. AIR BAG DRIVER<AJ3> 		8-97182-160-0 01 1 9707- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
AIR BAG DRIVER<AJ3> 		8-97134-374-0 01 1 9608- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-94328-120-0 01 1 9112- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN 8-97018-504-3 01 1 9112-9607 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. AIR BAG DRIVER<AJ3> 		8-97018-504-3 01 1 9608- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
AIR BAG DRIVER<AJ3> 		8-97137-573-1 01 1 9608- ●

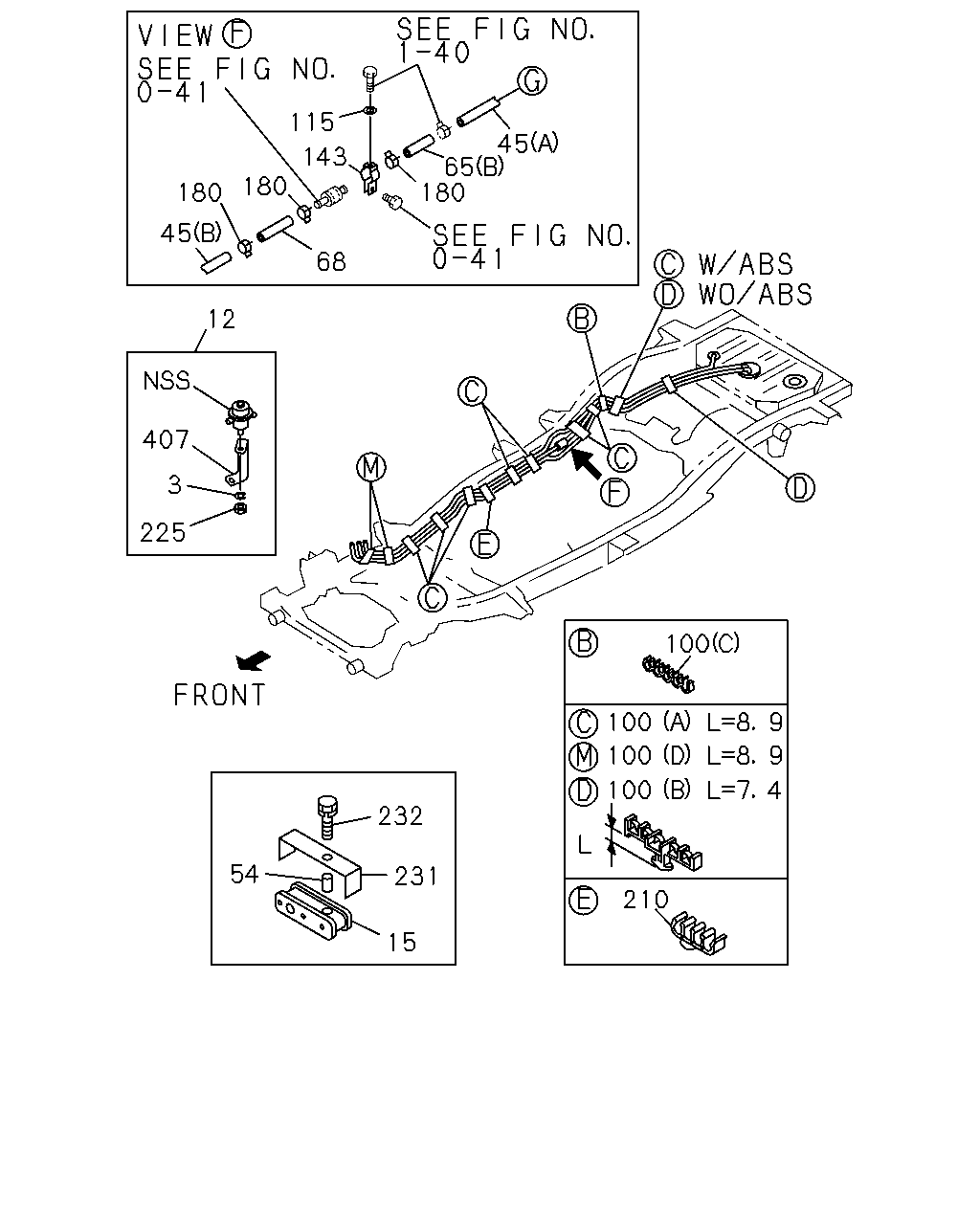

çizim 68713
115 143 180 45 65 180 180 45 68 12 407 3 225 100 232 54 231 210 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 WASHER; LK,BRKT
M/T MUA 5 SPEED(RMN) ID=8.2 		9-09150-608-0 01 1 9608- ●
12 DAMPER ASM; FUEL 8-94407-633-0 01 1 9112-9607 ●
12 DAMPER ASM; FUEL
M/T MUA 5 SPEED(RMN) 		8-94407-633-0 01 1 9608- ●
15 CLIP; FUEL PIPE
(A) BLUE 		8-94455-380-1 02 1 9112-9504 ●
15 CLIP; FUEL PIPE
2 DOOR SHORT(UB***C) (B) 		8-97012-498-1 03 1 9112- ●
15 CLIP; FUEL PIPE
4 DOOR LONG(UB***F) (B) 		8-97012-498-1 04 1 9112- ●
15 CLIP; FUEL PIPE 8-94182-922-0 01 1 9209-9504 ●
15 CLIP; FUEL PIPE 8-94182-922-0 01 1 9505-9512 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-94374-815-2 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97012-433-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-94374-834-1 01 1 9112-9607 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) 		8-97133-265-1 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-94374-835-1 01 1 9112-9410 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97114-237-0 01 1 9411-9607 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) 		8-97133-266-1 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94316-813-0 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97012-435-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97109-522-1 01 1 9505- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97018-366-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97109-520-1 01 1 9505- ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94374-833-1 01 1 9112-9504 ●
45 PIPE; FUEL,DELIVERY
(A) 		8-94374-833-1 01 1 9505-9506 ● ●
45 PIPE; FUEL,DELIVERY
(A) 		8-97109-897-1 01 1 9507- ● ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-94374-831-0 01 1 9112-9206 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97083-096-0 01 1 9207-9607 ●
45 PIPE; FUEL,DELIVERY
2 DOOR SHORT(UB***C) (B) 		8-97122-277-2 01 1 9608- ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-94374-832-1 01 1 9112-9505 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97113-024-0 01 1 9506-9607 ●
45 PIPE; FUEL,DELIVERY
4 DOOR LONG(UB***F) (B) 		8-97122-278-2 01 1 9608- ●
54 SPACER; CLIP,FUEL PIPE 8-94182-925-0 01 1 9209-9512 ●
65 HOSE; FUEL,DELIVERY PIPE
(A) L=440 SERVICED BY L=3000 		0-01258-300-0 01 1 9112-9504 ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=210 SERVICED BY L=3000 		0-01258-300-0 01 1 9112-9504 ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=100 SERVICED BY L=3000 		0-01258-300-0 01 1 9505- ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=100 SERVICED BY L=3000 		0-01458-300-0 01 1 9112- ●
68 HOSE; FUEL,FILTER TO PIPE
2 DOOR SHORT(UB***C) L=110 SERVICED BY L=3000 		0-01258-300-0 01 1 9112-9308 ●
68 HOSE; FUEL,FILTER TO PIPE
4 DOOR LONG(UB***F) L=150 SERVICED BY L=3000 		0-01258-300-0 01 1 9112-9308 ●
68 HOSE; FUEL,FILTER TO PIPE
2 DOOR SHORT(UB***C) L=110 SERVICED BY L=3000 		0-01258-300-0 01 1 9309-9504 ●
68 HOSE; FUEL,FILTER TO PIPE
2 DOOR SHORT(UB***C) L=100 SERVICED BY L=3000 		0-01258-300-0 01 1 9505- ●
68 HOSE; FUEL,FILTER TO PIPE
4 DOOR LONG(UB***F) L=150 SERVICED BY L=3000 		0-01258-300-0 01 1 9309-9504 ●
68 HOSE; FUEL,FILTER TO PIPE
4 DOOR LONG(UB***F) L=170 SERVICED BY L=3000 		0-01258-300-0 01 1 9505- ●
68 HOSE; FUEL,FILTER TO PIPE
2 DOOR SHORT(UB***C) L=110 SERVICED BY L=3000 		0-01458-300-0 01 1 9112-9206 ●
68 HOSE; FUEL,FILTER TO PIPE
2 DOOR SHORT(UB***C) L=100 SERVICED BY L=3000 		0-01458-300-0 01 1 9207-9308 ●
68 HOSE; FUEL,FILTER TO PIPE
4 DOOR LONG(UB***F) L=170 SERVICED BY L=3000 		0-01458-300-0 01 1 9112-9308 ●
68 HOSE; FUEL,FILTER TO PIPE
2 DOOR SHORT(UB***C) L=100 SERVICED BY L=3000 		0-01458-300-0 01 1 9309- ●
68 HOSE; FUEL,FILTER TO PIPE
4 DOOR LONG(UB***F) L=170 SERVICED BY L=3000 		0-01458-300-0 01 1 9309-9505 ●
68 HOSE; FUEL,FILTER TO PIPE
4 DOOR LONG(UB***F) L=150 SERVICED BY L=3000 		0-01458-300-0 01 1 9506- ●
100 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 AR 1 9112- ● ● ● ●
100 CLIP; FUEL PIPE
(B) L=7.4 		8-94435-550-0 AR 1 9112- ● ● ●
100 CLIP; FUEL PIPE
(C) 		8-97073-935-0 AR 1 9112- ● ● ●
100 CLIP; FUEL PIPE
(D) L=8.9 		8-97137-467-0 AR 1 9608- ●
115 WASHER; PL,CLIP
ID=6.4 OD=22 		9-09164-806-0 01 1 9112- ●
143 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9112- ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9112-9308 ● ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 04 1 9112-9308 ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9309-9504 ● ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 02 1 9505-9704 ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-97173-221-0 02 1 9705- ● ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-94238-572-0 04 1 9309-9704 ●
180 CLIP; DELIVERY & RETURN
ID=14 		8-97173-221-0 04 1 9705- ●
180 CLIP; DELIVERY & RETURN
ID=12 WO/PVC COATING 		8-94123-526-0 06 1 9112-9704 ●
180 CLIP; DELIVERY & RETURN
ID=12 		8-97148-892-0 06 1 9705- ●
210 CLIP; FEED PIPE 8-97069-378-0 01 1 9112-9504 ● ● ● ●
210 CLIP; FEED PIPE 8-97069-378-0 01 1 9505- ● ● ●
225 NUT; FUEL DAMPER
M/T MUA 5 SPEED(RMN) M8 		9-09110-508-0 01 1 9608- ●
231 RUBBER; SUPPORT,FUEL PIPE 8-94321-253-0 01 1 9112-9512 ●
232 BOLT; CLIP,PIPE
M6X25 		9-02040-625-0 01 1 9112-9204 ●
232 BOLT; CLIP,PIPE
M6X25 		0-20800-625-0 01 1 9205-9512 ●
407 BRACKET; FUEL DAMPER
M/T MUA 5 SPEED(RMN) 		8-94407-343-0 01 1 9608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
