Sayfa 1-40 - Isuzu EPC

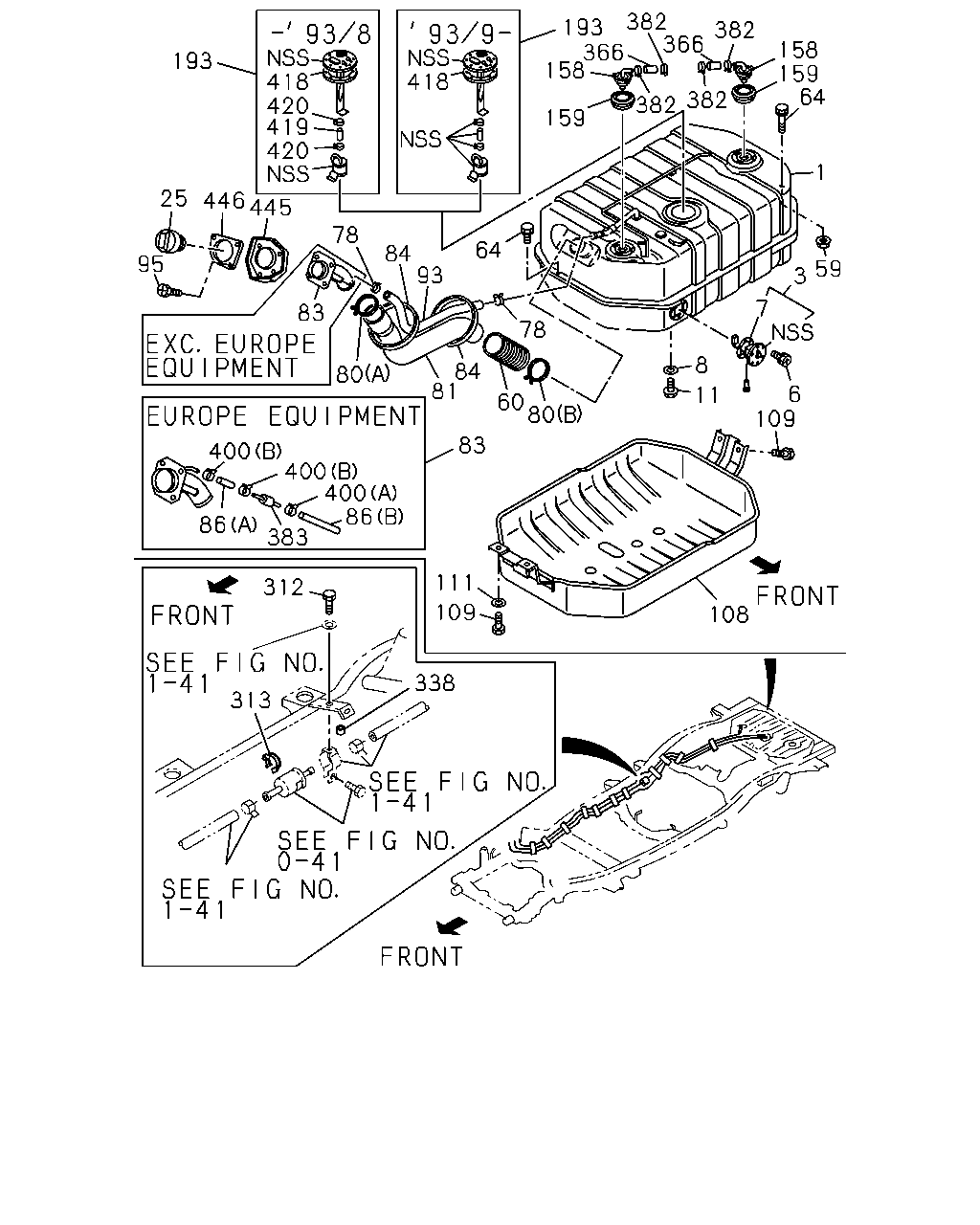

1-40 — FUEL TANK (#33188) — 226 parça

193 382 382 366 366 158 382 382 418 420 419 420 25 446 445 418 158 159 64 193 159 1 78 64 84 93 95 59 3 7 83 78 8 11 84 81 400 400 400 86 80 60 80 6 109 83 86 383 111 109 312 108 338 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94381-077-7	01	1	9112-9504	●	●	●
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94381-077-7	01	1	9505-9509	●	●
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97137-761-0	01	1	9510-9607	●	●
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97176-264-1	01	1	9608-	●	●
1	TANK; FUEL EUROPE/CANARY EQUIPMENT(EK4)	8-97049-717-5	01	1	9112-9509	●
1	TANK; FUEL EUROPE/CANARY EQUIPMENT(EK4)	8-97137-762-0	01	1	9510-9607	●
1	TANK; FUEL EUROPE/CANARY EQUIPMENT(EK4)	8-97176-263-1	01	1	9608-	●
1	TANK; FUEL	8-97049-716-5	01	1	9112-9407				●
1	TANK; FUEL	8-97116-011-0	01	1	9408-9504				●
1	TANK; FUEL	8-97049-716-6	01	1	9505-9602				●
1	TANK; FUEL	8-97146-442-0	01	1	9603-9607				●
1	TANK; FUEL	8-97176-265-1	01	1	9608-				●
3	UNIT; FUEL TANK,SUB	8-97064-895-0	01	1	9112-9210	●	●	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9211-9504	●	●	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9505-9509	●	●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9505-9509				●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9510-	●			●
3	UNIT; FUEL TANK,SUB EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-725-0	01	1	9510-		●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-9504	●	●	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	9-03910-512-0	05	1	9505-	●			●
6	SCREW; TANK UNIT TO SUB FUEL TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) M5X12 W/LK WASHER	9-03910-512-0	05	1	9505-		●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9112-9504	●	●	●	●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9505-	●			●
7	GASKET; TANK UNIT,SUB TANK EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-83148-001-0	01	1	9505-		●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9112-9407	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9408-9408	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9408-9408				●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9409-9504	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9505-	●			●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=8.2 OD=17	9-09572-008-0	01	1	9505-		●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9112-9407	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9408-9408	●	●	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9408-9408				●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9409-9504	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9505-	●			●
11	PLUG; DRAIN,FUEL TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 FLANGE	0-28080-816-0	01	1	9505-		●
25	CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9112-	●	●	●	●
59	NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9112-	●	●	●	●
60	PROTECTOR; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94318-424-0	01	1	9207-9312	●	●	●
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9401-9504	●	●	●	●
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9505-9612	●	●		●
60	PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9701-	●	●		●
64	BOLT; FUEL TANK M8X24	8-97034-130-0	06	1	9112-	●	●	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9112-9504	●	●	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9505-	●	●		●
80	CLIP; FILLER HOSE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=59	8-94435-876-0	01	1	9207-9312	●	●	●
80	CLIP; FILLER HOSE (A) ID=59	8-94435-876-0	01	1	9401-9501	●	●	●	●
80	CLIP; FILLER HOSE (A) ID=60	9-09915-265-1	01	1	9502-9504	●	●	●	●
80	CLIP; FILLER HOSE (A) ID=60	9-09915-265-1	01	1	9505-	●	●		●
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	9112-9504	●	●	●	●
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	9505-	●	●		●
81	HOSE; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97012-158-0	01	1	9207-9312	●	●	●
81	HOSE; FUEL FILLER	8-97012-158-0	01	1	9401-9504	●	●	●	●
81	HOSE; FUEL FILLER	8-97012-158-0	01	1	9505-	●	●		●
83	NECK; FUEL FILLER EUROPE/CANARY EQUIPMENT(EK4)	8-97049-710-2	01	1	9112-9312	●	●	●
83	NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97049-710-2	01	1	9112-9312				●
83	NECK; FUEL FILLER EUROPE/CANARY EQUIPMENT(EK4) EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9401-	●	●	●
83	NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9401-				●
83	NECK; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97081-009-1	01	1	9112-9504	●	●	●
83	NECK; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG>	8-97081-009-2	01	1	9505-	●	●
83	NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97049-709-2	01	1	9112-9312				●
83	NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97017-699-2	01	1	9401-				●
84	CLIP; BAND,FILLER PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) L=330	5-09709-118-0	02	1	9207-9312	●	●	●
84	CLIP; BAND,FILLER PIPE L=330	5-09709-118-0	02	1	9401-9504	●	●	●	●
84	CLIP; BAND,FILLER PIPE L=330	5-09709-118-0	02	1	9505-9612	●	●		●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9207-9209	●	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9207-9209	●	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504	●	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG> (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG> (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
93	HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9207-	●	●	●	●
95	SCREW; FILLER NECK M6X16	8-97039-204-0	03	1	9112-9210	●	●	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9211-	●	●	●	●
108	PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9112-	●	●	●	●
109	BOLT; HEAT PROTECTOR M8X24	8-97034-130-0	04	1	9112-	●	●	●	●
111	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●	●	●	●
158	VALVE; ROLL OVER & FLOAT EUROPE/CANARY EQUIPMENT(EK4)	8-94173-276-0	02	1	9112-9504	●		●
158	VALVE; ROLL OVER & FLOAT	8-94173-276-0	02	1	9112-9504				●
158	VALVE; ROLL OVER & FLOAT EUROPE/CANARY EQUIPMENT(EK4)	8-94173-276-0	02	1	9505-	●
158	VALVE; ROLL OVER & FLOAT	8-94173-276-0	02	1	9505-				●
159	SEAL; ROLL OVER & FLOAT VALVE EUROPE/CANARY EQUIPMENT(EK4)	8-94246-338-2	02	1	9112-9504	●		●
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9112-9504				●
159	SEAL; ROLL OVER & FLOAT VALVE EUROPE/CANARY EQUIPMENT(EK4)	8-94246-338-2	02	1	9505-	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9505-				●
193	PUMP; FUEL	8-97016-142-1	01	1	9112-9308				●
193	PUMP; FUEL	8-97041-876-3	01	1	9309-9407				●
193	PUMP; FUEL	8-97118-512-0	01	1	9408-				●
312	BOLT; FUEL FILTER CLAMP M6X14 W/LK WASHER	9-01900-614-0	01	1	9112-9204				●
312	BOLT; FUEL FILTER CLAMP M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9212				●
312	BOLT; FUEL FILTER CLAMP M6X16 W/LK WASHER	0-50040-616-0	01	1	9301-9505				●
312	BOLT; FUEL FILTER CLAMP M6X14 W/PL WASHER	8-94174-953-0	01	1	9506-9704				●
312	BOLT; FUEL FILTER CLAMP M6X16 FLANGE	0-28680-616-0	01	1	9705-				●
313	CLIP; FUEL FILTER ID=40 NYLON	8-94223-523-0	01	1	9112-		●
338	SPACER; FUEL PIPE CLIP	8-94182-925-0	01	1	9112-9208		●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504	●		●
366	HOSE; EVAP L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504				●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505	●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608	●
366	HOSE; EVAP L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608				●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9608-	●
366	HOSE; EVAP L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9608-				●
366	HOSE; EVAP L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505				●
382	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ID=8.5	8-94166-071-0	04	1	9112-9504	●		●
382	CLIP; RUBBER HOSE ID=8.5	8-94166-071-0	04	1	9112-9504				●
382	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ID=8.5	8-94166-071-0	04	1	9505-	●
382	CLIP; RUBBER HOSE ID=8.5	8-94166-071-0	04	1	9505-				●
383	VALVE; 2 WAY EXC. EUROPE/CANARY EQUIPMENT(EK4) -920719	8-94151-559-1	01	1	9112-9207	●	●	●
383	VALVE; 2 WAY EXC. EUROPE/CANARY EQUIPMENT(EK4) 920720-	8-97076-391-0	01	1	9207-9504	●	●	●
383	VALVE; 2 WAY EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG>	8-97076-391-0	01	1	9505-	●	●
400	CLIP; HOSE,EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=8.5	8-94166-071-0	03	1	9207-9209	●	●	●
400	CLIP; HOSE,EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=11	8-94238-570-0	03	1	9210-9504	●	●	●
400	CLIP; HOSE,EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG> (A) ID=11	8-94238-570-0	03	1	9505-	●	●
418	GASKET; FUEL PUMP	8-94382-906-0	01	1	9112-9308				●
418	GASKET; FUEL PUMP	8-94386-449-0	01	1	9309-				●
419	HOSE; FUEL PUMP	8-97028-981-0	01	1	9112-9308				●
420	CLIP; FUEL PUMP ID=12 PLATED	8-94121-566-0	02	1	9112-9308				●
445	RUBBER; RECEIVER	8-97022-669-2	01	1	9112-	●	●	●	●
446	PLATE; FIXING	8-94340-181-0	01	1	9112-	●	●	●	●

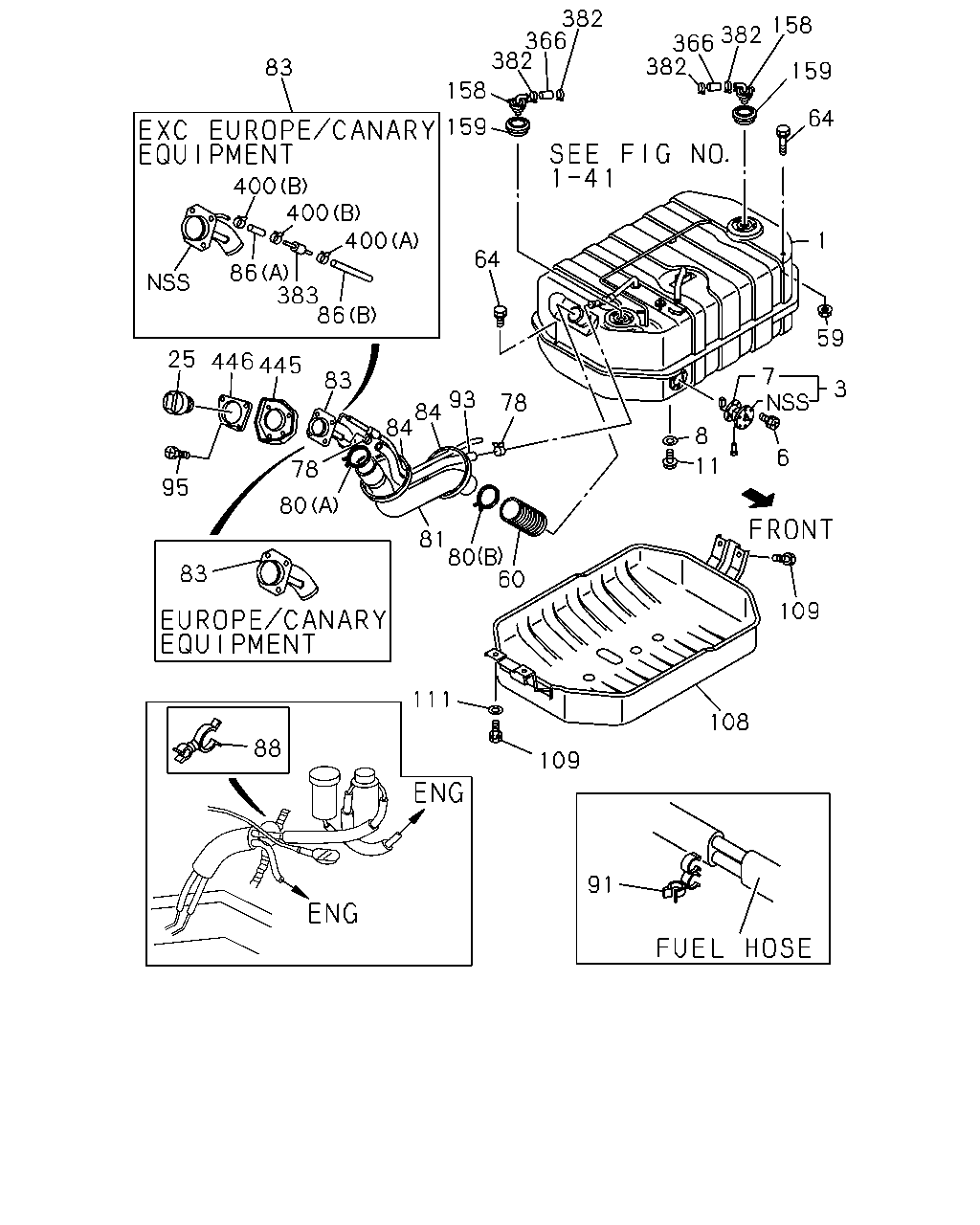

382 366 382 158 158 382 366 382 83 159 64 159 400 400 400 1 64 86 383 86 59 25 446 445 7 83 3 93 84 84 78 8 11 78 6 95 80 81 80 60 83 109 111 108 88 109 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94381-077-7	01	1	9112-9504	●	●	●
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94381-077-7	01	1	9505-9509	●	●
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97137-761-0	01	1	9510-9607	●	●
1	TANK; FUEL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97176-264-1	01	1	9608-	●	●
1	TANK; FUEL EUROPE/CANARY EQUIPMENT(EK4)	8-97049-717-5	01	1	9112-9509	●
1	TANK; FUEL EUROPE/CANARY EQUIPMENT(EK4)	8-97137-762-0	01	1	9510-9607	●
1	TANK; FUEL EUROPE/CANARY EQUIPMENT(EK4)	8-97176-263-1	01	1	9608-	●
1	TANK; FUEL	8-97049-716-5	01	1	9112-9407				●
1	TANK; FUEL	8-97116-011-0	01	1	9408-9504				●
1	TANK; FUEL	8-97049-716-6	01	1	9505-9602				●
1	TANK; FUEL	8-97146-442-0	01	1	9603-9607				●
1	TANK; FUEL	8-97176-265-1	01	1	9608-				●
3	UNIT; FUEL TANK,SUB	8-97064-895-0	01	1	9112-9210	●	●	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9211-9504	●	●	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9505-9509	●	●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9505-9509				●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9510-	●			●
3	UNIT; FUEL TANK,SUB EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-725-0	01	1	9510-		●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-9504	●	●	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	9-03910-512-0	05	1	9505-	●			●
6	SCREW; TANK UNIT TO SUB FUEL TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) M5X12 W/LK WASHER	9-03910-512-0	05	1	9505-		●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9112-9504	●	●	●	●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9505-	●			●
7	GASKET; TANK UNIT,SUB TANK EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-83148-001-0	01	1	9505-		●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9112-9407	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9408-9408	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9408-9408				●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9409-9504	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9505-	●			●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=8.2 OD=17	9-09572-008-0	01	1	9505-		●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9112-9407	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9408-9408	●	●	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9408-9408				●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9409-9504	●	●	●	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9505-	●			●
11	PLUG; DRAIN,FUEL TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 FLANGE	0-28080-816-0	01	1	9505-		●
25	CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9112-	●	●	●	●
59	NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9112-	●	●	●	●
60	PROTECTOR; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94318-424-0	01	1	9207-9312	●	●	●
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9401-9504	●	●	●	●
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9505-9612	●	●		●
60	PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9701-	●	●		●
64	BOLT; FUEL TANK M8X24	8-97034-130-0	06	1	9112-	●	●	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9112-9504	●	●	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9505-	●	●		●
80	CLIP; FILLER HOSE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=59	8-94435-876-0	01	1	9207-9312	●	●	●
80	CLIP; FILLER HOSE (A) ID=59	8-94435-876-0	01	1	9401-9501	●	●	●	●
80	CLIP; FILLER HOSE (A) ID=60	9-09915-265-1	01	1	9502-9504	●	●	●	●
80	CLIP; FILLER HOSE (A) ID=60	9-09915-265-1	01	1	9505-	●	●		●
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	9112-9504	●	●	●	●
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	9505-	●	●		●
81	HOSE; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97012-158-0	01	1	9207-9312	●	●	●
81	HOSE; FUEL FILLER	8-97012-158-0	01	1	9401-9504	●	●	●	●
81	HOSE; FUEL FILLER	8-97012-158-0	01	1	9505-	●	●		●
83	NECK; FUEL FILLER EUROPE/CANARY EQUIPMENT(EK4)	8-97049-710-2	01	1	9112-9312	●	●	●
83	NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97049-710-2	01	1	9112-9312				●
83	NECK; FUEL FILLER EUROPE/CANARY EQUIPMENT(EK4) EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9401-	●	●	●
83	NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9401-				●
83	NECK; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97081-009-1	01	1	9112-9504	●	●	●
83	NECK; FUEL FILLER EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG>	8-97081-009-2	01	1	9505-	●	●
83	NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97049-709-2	01	1	9112-9312				●
83	NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97017-699-2	01	1	9401-				●
84	CLIP; BAND,FILLER PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) L=330	5-09709-118-0	02	1	9207-9312	●	●	●
84	CLIP; BAND,FILLER PIPE L=330	5-09709-118-0	02	1	9401-9504	●	●	●	●
84	CLIP; BAND,FILLER PIPE L=330	5-09709-118-0	02	1	9505-9612	●	●		●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9207-9209	●	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9207-9209	●	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504	●	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG> (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
86	HOSE; EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG> (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
88	CLIP; FUEL HOSE ID=15 & 10	8-94152-804-0	01	1	9112-9304	●		●
88	CLIP; FUEL HOSE ID=25 & 11	8-97068-799-0	01	1	9305-9504	●		●
88	CLIP; FUEL HOSE ID=25 & 11	8-97068-799-0	01	1	9505-	●
91	CLAMP; FUEL HOSE	8-94480-513-0	01	1	9112-9310	●		●
93	HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9207-	●	●	●	●
95	SCREW; FILLER NECK M6X16	8-97039-204-0	03	1	9112-9210	●	●	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9211-	●	●	●	●
108	PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9112-	●	●	●	●
109	BOLT; HEAT PROTECTOR M8X24	8-97034-130-0	04	1	9112-	●	●	●	●
111	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●	●	●	●
158	VALVE; ROLL OVER & FLOAT EUROPE/CANARY EQUIPMENT(EK4)	8-94173-276-0	02	1	9112-9504	●		●
158	VALVE; ROLL OVER & FLOAT	8-94173-276-0	02	1	9112-9504				●
158	VALVE; ROLL OVER & FLOAT EUROPE/CANARY EQUIPMENT(EK4)	8-94173-276-0	02	1	9505-	●
158	VALVE; ROLL OVER & FLOAT	8-94173-276-0	02	1	9505-				●
159	SEAL; ROLL OVER & FLOAT VALVE EUROPE/CANARY EQUIPMENT(EK4)	8-94246-338-2	02	1	9112-9504	●		●
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9112-9504				●
159	SEAL; ROLL OVER & FLOAT VALVE EUROPE/CANARY EQUIPMENT(EK4)	8-94246-338-2	02	1	9505-	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9505-				●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504	●		●
366	HOSE; EVAP L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504				●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505	●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608	●
366	HOSE; EVAP L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608				●
366	HOSE; EVAP EUROPE/CANARY EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9608-	●
366	HOSE; EVAP L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9608-				●
366	HOSE; EVAP L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505				●
382	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ID=8.5	8-94166-071-0	04	1	9112-9504	●		●
382	CLIP; RUBBER HOSE ID=8.5	8-94166-071-0	04	1	9112-9504				●
382	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ID=8.5	8-94166-071-0	04	1	9505-	●
382	CLIP; RUBBER HOSE ID=8.5	8-94166-071-0	04	1	9505-				●
383	VALVE; 2 WAY EXC. EUROPE/CANARY EQUIPMENT(EK4) -920719	8-94151-559-1	01	1	9112-9207	●	●	●
383	VALVE; 2 WAY EXC. EUROPE/CANARY EQUIPMENT(EK4) 920720-	8-97076-391-0	01	1	9207-9504	●	●	●
383	VALVE; 2 WAY EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG>	8-97076-391-0	01	1	9505-	●	●
400	CLIP; HOSE,EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=8.5	8-94166-071-0	03	1	9207-9209	●	●	●
400	CLIP; HOSE,EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=11	8-94238-570-0	03	1	9210-9504	●	●	●
400	CLIP; HOSE,EVAP EXC. EUROPE/CANARY EQUIPMENT(EK4),ELECTRIC FUEL INJECTION<6GG> (A) ID=11	8-94238-570-0	03	1	9505-	●	●
445	RUBBER; RECEIVER	8-97022-669-2	01	1	9112-	●	●	●	●
446	PLATE; FIXING	8-94340-181-0	01	1	9112-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
